Remote Power Controls can be combined with a variety of switches or sequencers for an intrinsically safe, low voltage method of controlling AC power to equipment at remote locations. Controlling power distribution without directly accessing equipment minimizes the potential for unauthorized access, while simplifying activation and deactivation of equipment.

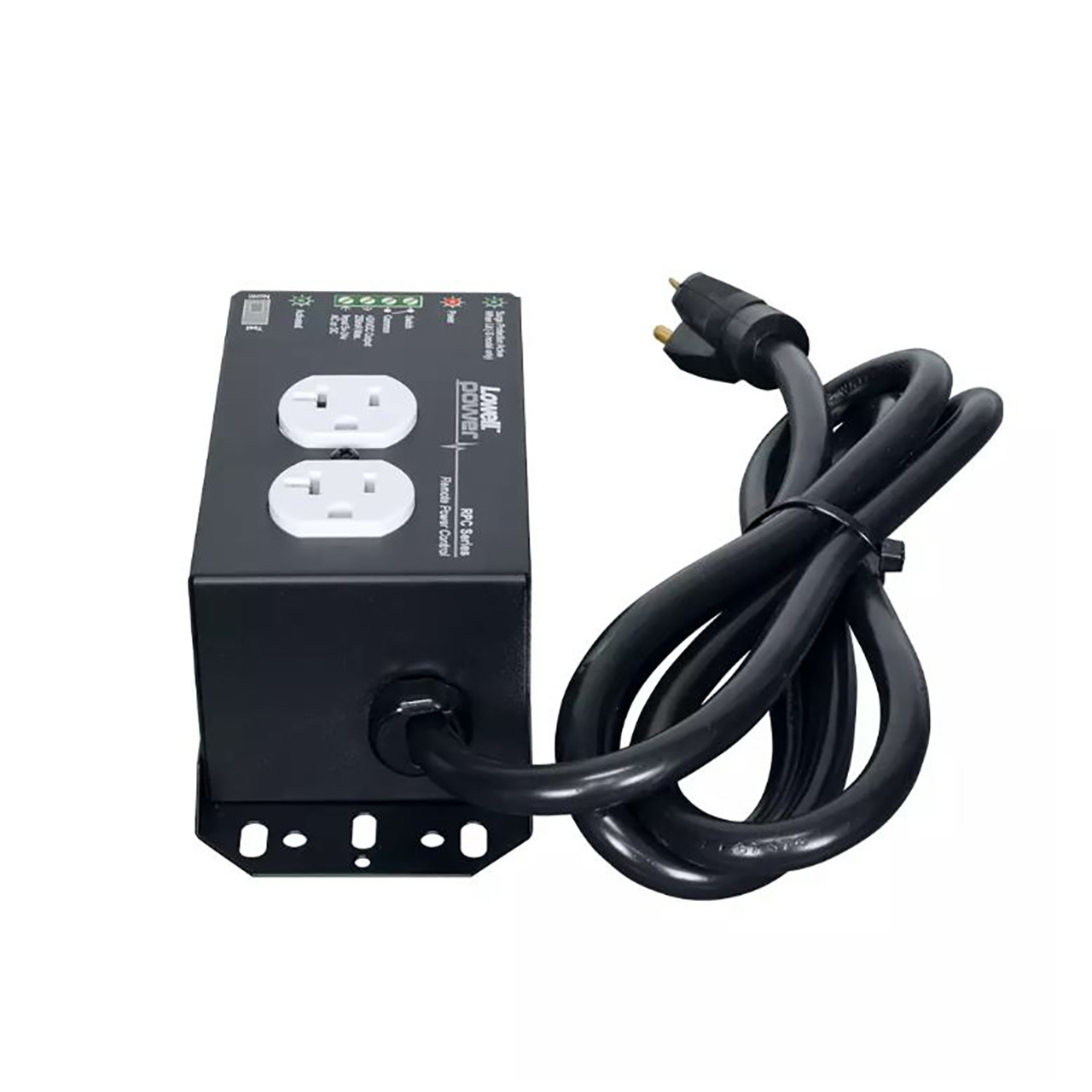

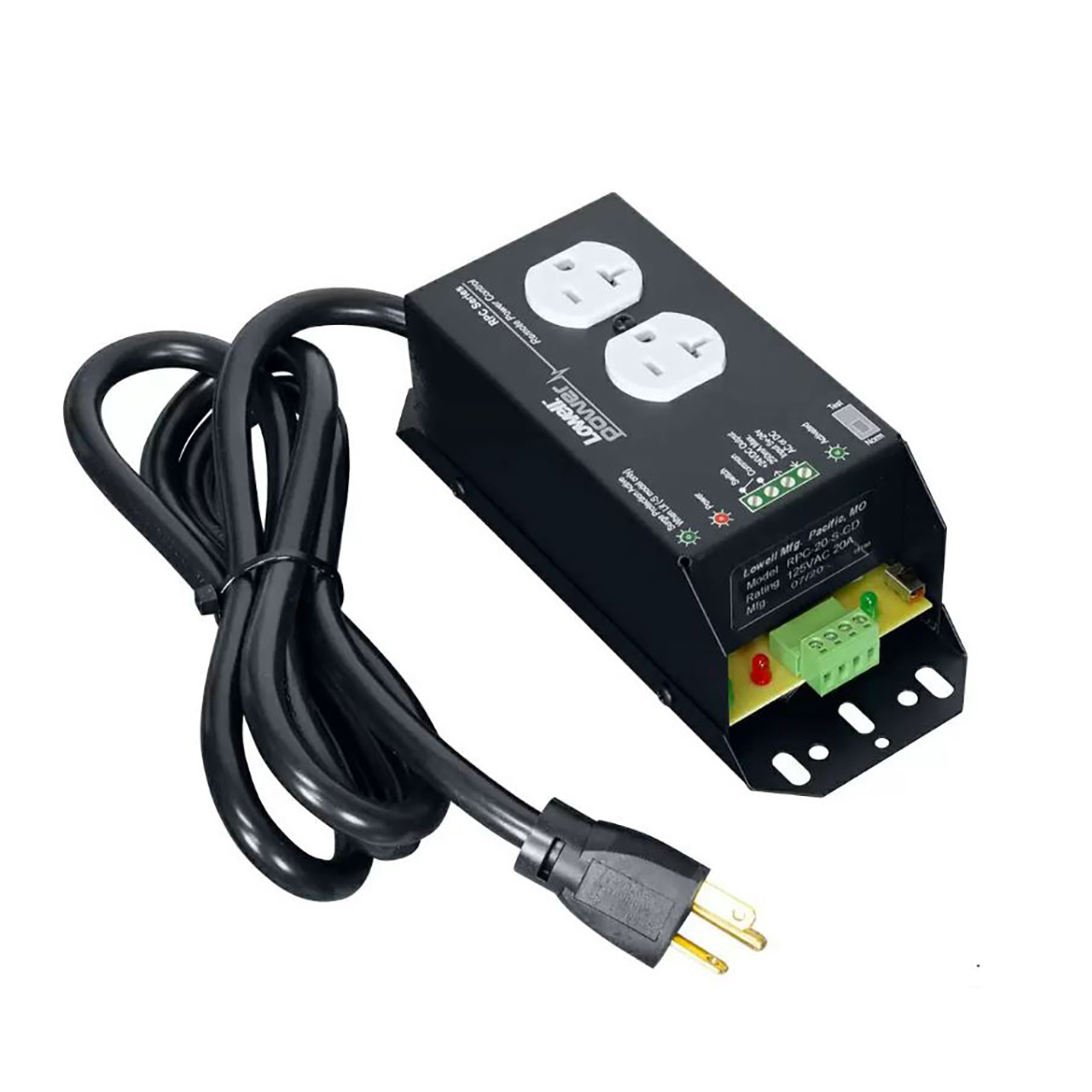

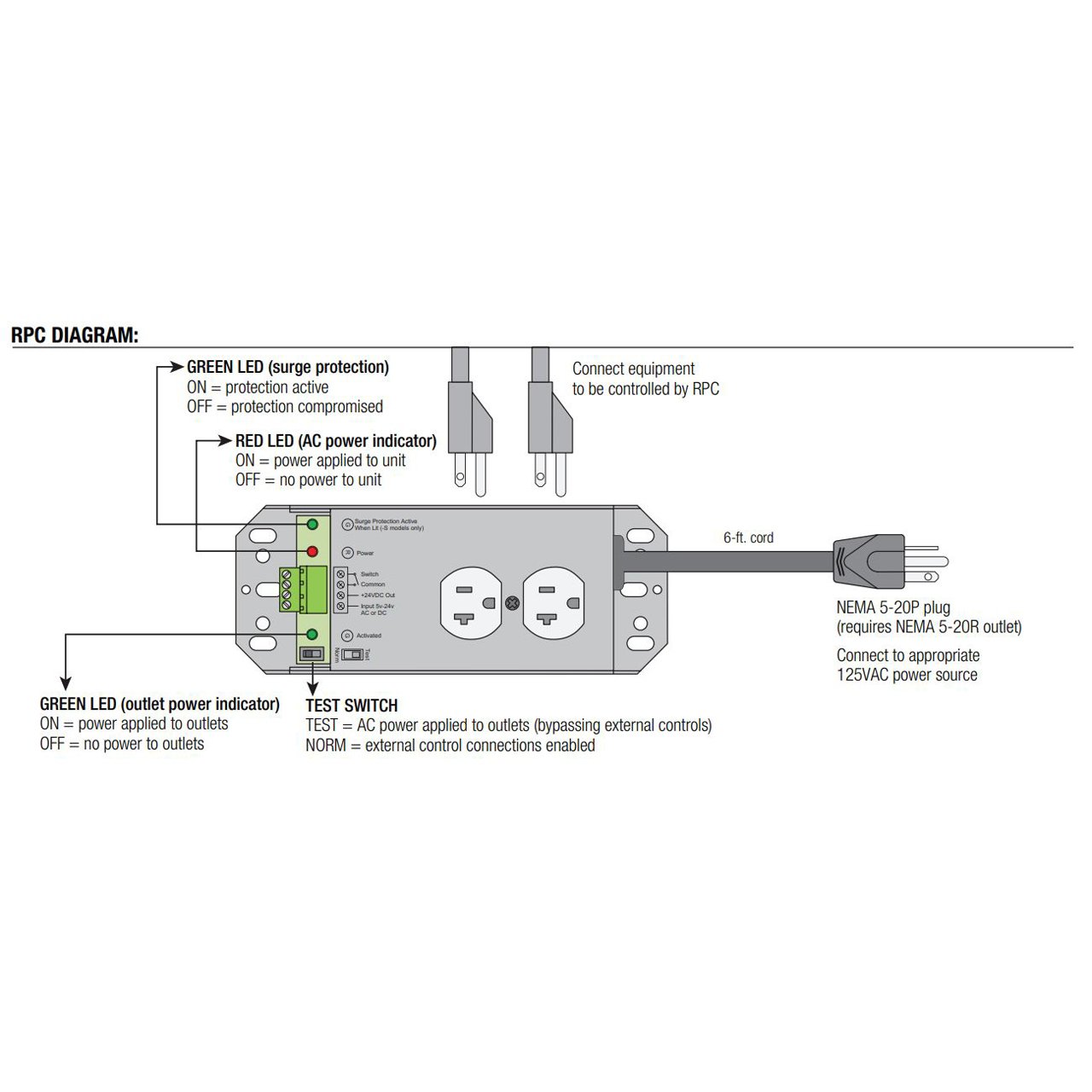

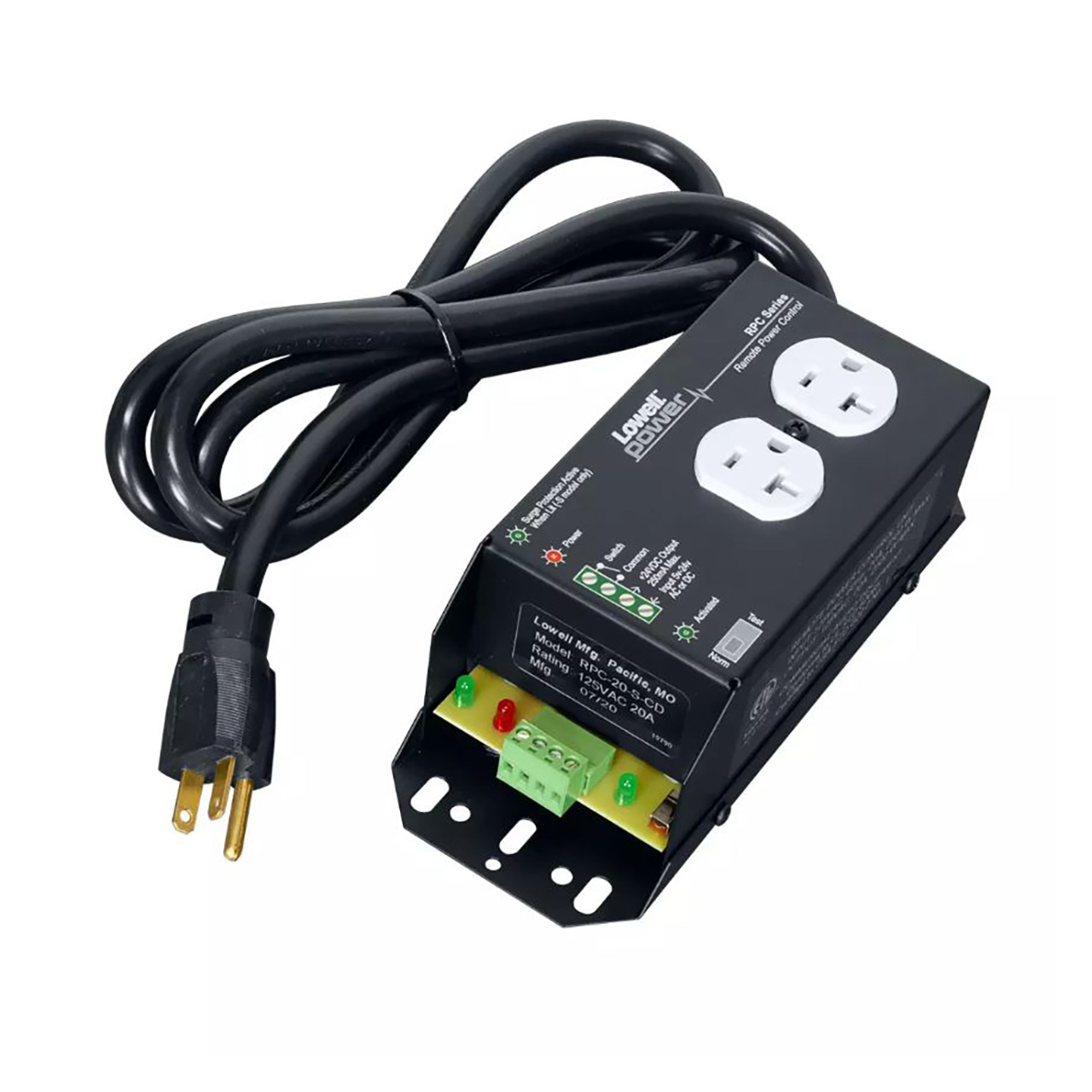

The Lowell RPC-20-SCD Remote Power Control uses classic style connections, and is ready to combine with a variety of switches or sequential control devices that provide a dry contact closure or voltage output (5V-24V, AC or DC, 3mA) for an intrinsically safe low voltage method of controlling AC power to equipment at a remote location. Model RPC-20-SCD includes 2-20A outlets and basic surge suppression. This unit requires an external trigger for activation.

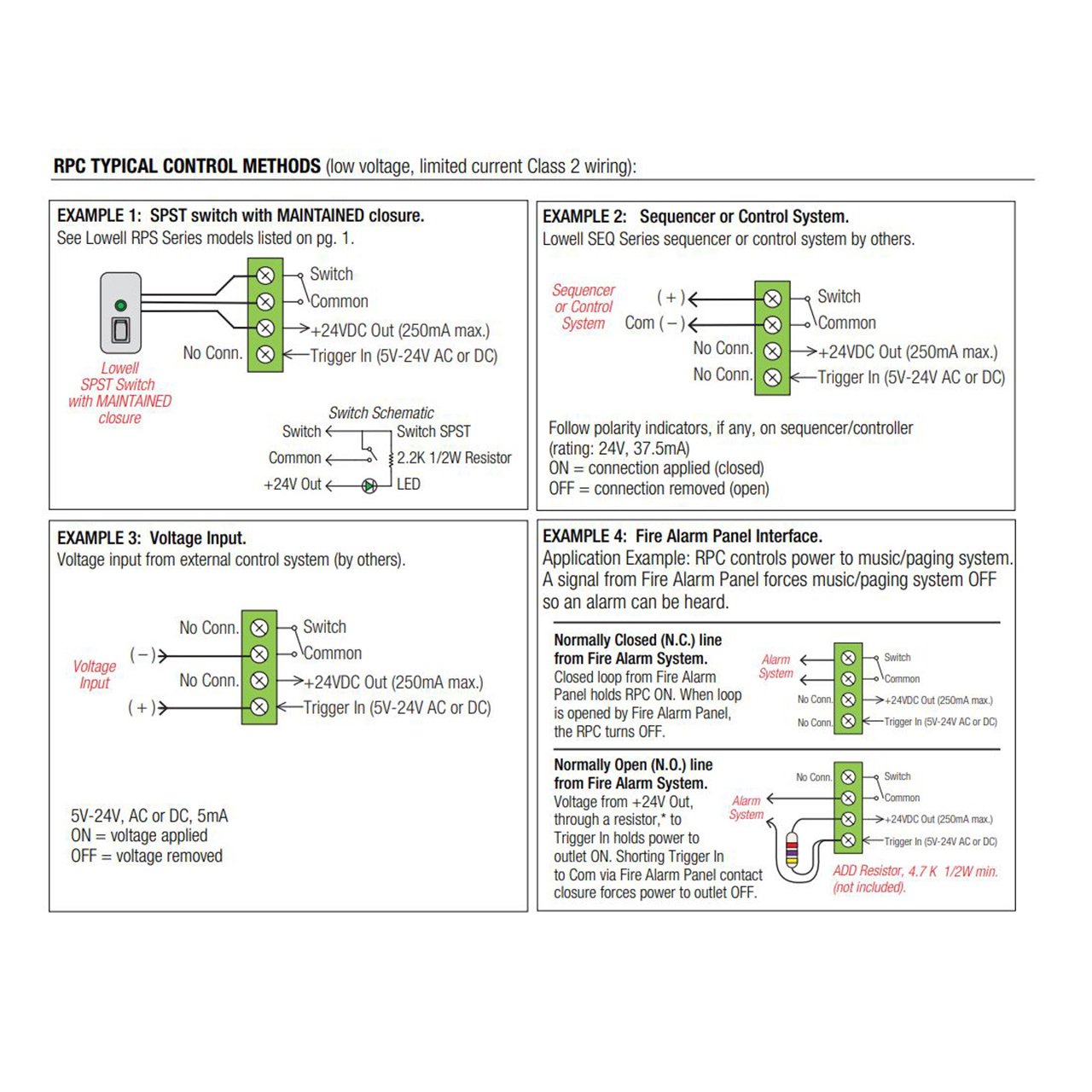

ACTIVATION:
The RPC must be connected to an external control for activation and deactivation (choose one):
- Dry Contact Closure: Connect to SPST switch, power sequencer, or independent control system with dry contact closure.
- Contact Coil Rating: - Voltage: 24VDC, - Current: 37.5mA
- Voltage Trigger (5-24V AC or DC 5mA): DSP connection.
