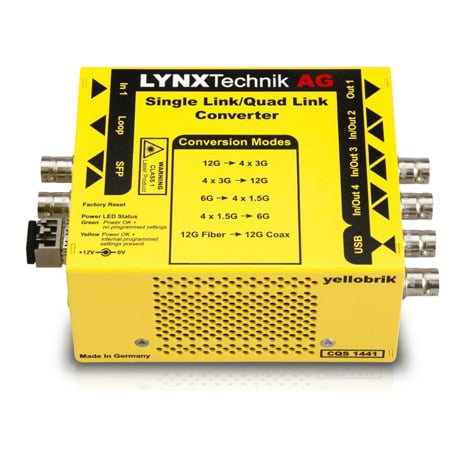

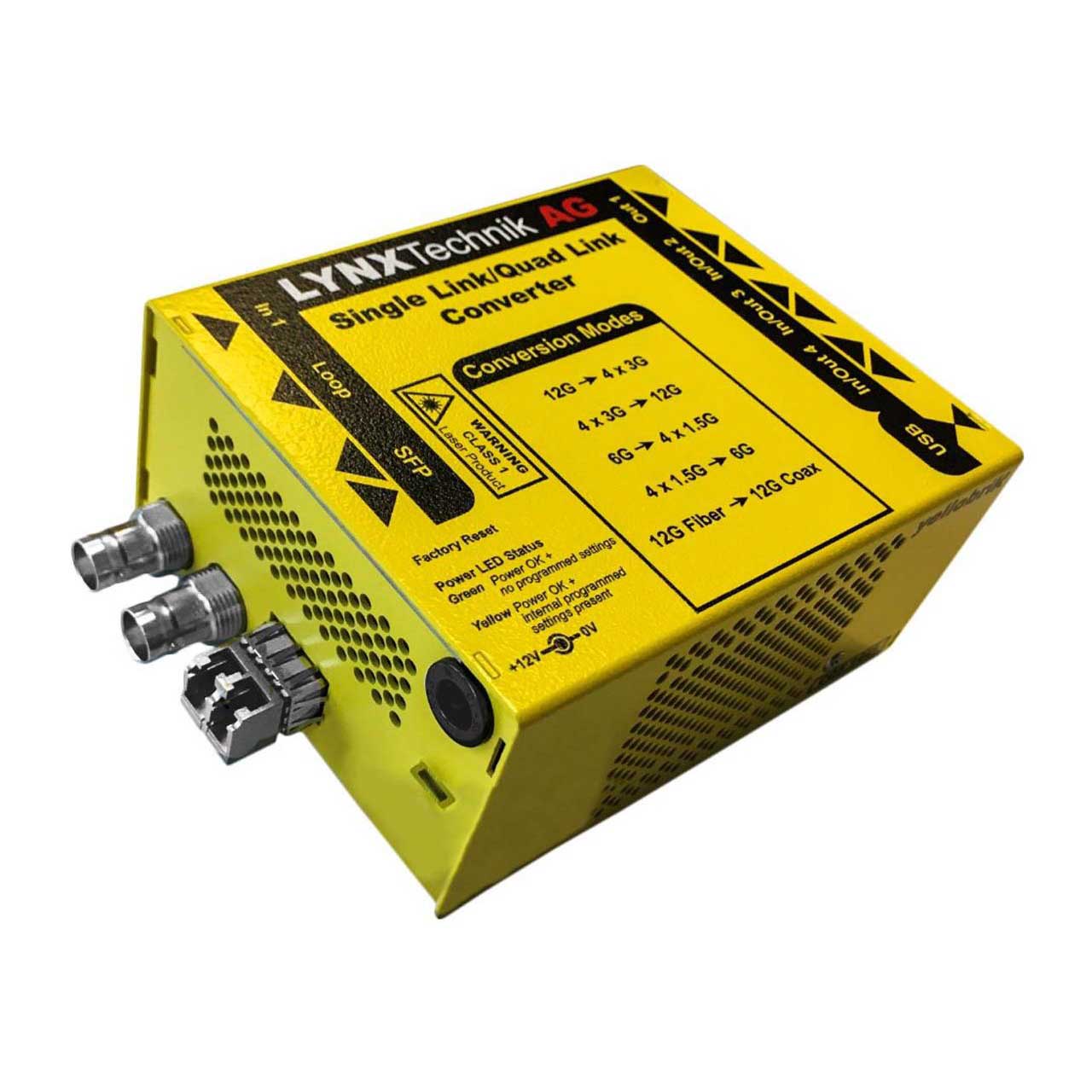

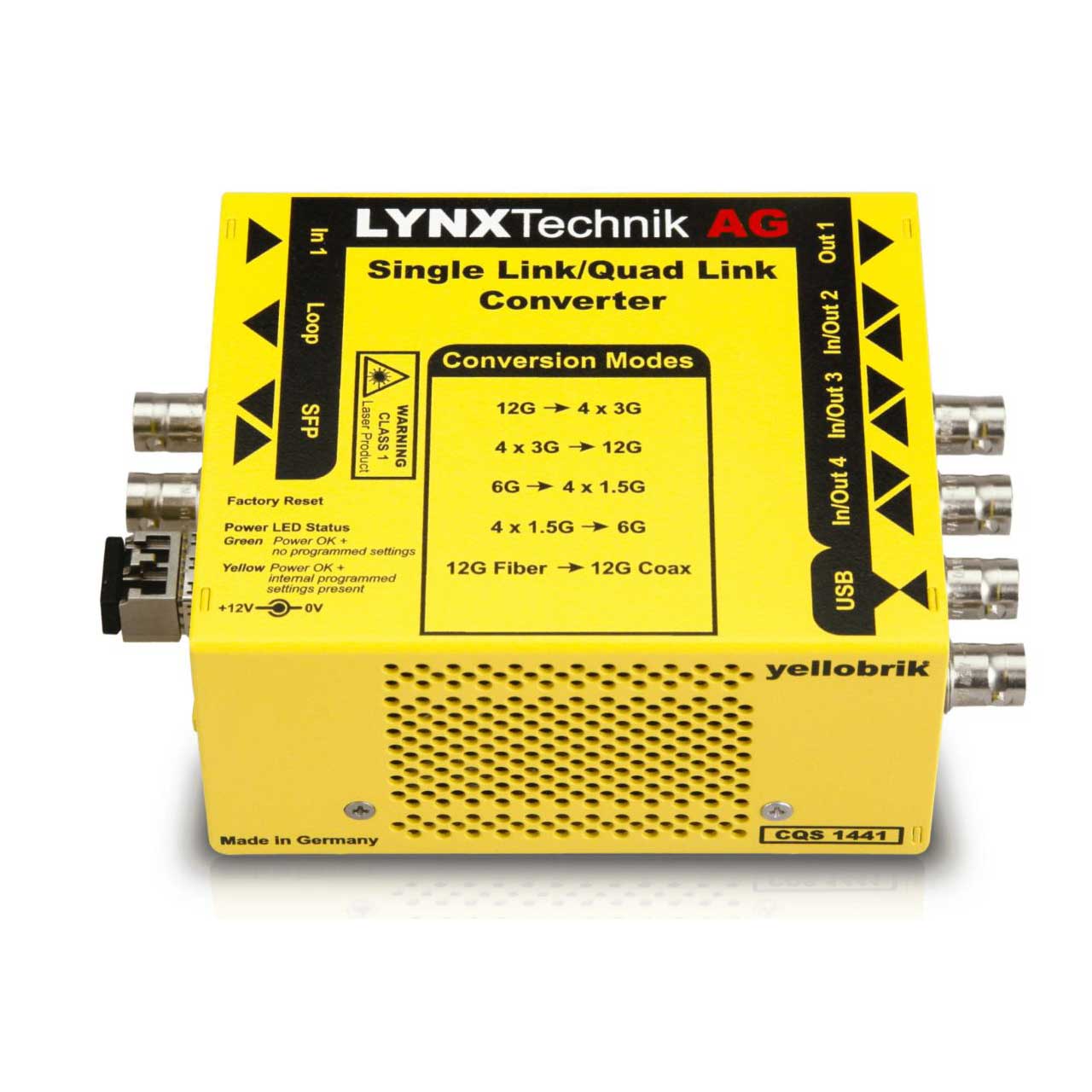

LYNX Technik Yellobrik CQS 1441 Bi-directional (12G) Single Link to Quad Link Converter

CQS 1441 - Overview

• Features:

  • Support for Quad 2SI to 12G SDI or 12G SDI to Quad 2SI conversions
  • 4K UHD 12G SDI Fiber and BNC Input (Fiber SFP optional)
  • 4K UHD 12G SDI Fiber and BNC Output (Fiber SFP optional)
  • 4K UHD 12G SDI BNC Loop Output
  • 4x 3G SDI BNC Input
  • 4x 3G SDI BNC Output
  • Control / configure via LYNX Technik yelloGUI
  • Fully compatible with Rack frame LYNX Technik R FR 1000-1


• Specifications:

  • HDMI Input
  • 3D compatible input using type A connector
  • For a detailed list of supported formats please refer to the article in our knowledge base (www.lynx-technik.com > support > tech.support)
  • Up to 8 channels embedded audio in HDMI is passed transparently

    SDI Outputs
  • 2 x SDI video, 75 Ohm BNC. (both have the same signal - NOT dual link)
  • SMPTE 424M, SMPTE 292M, SMPTE 259M
  • 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with
  • image formats 1280 x 720 and 1920 x 1080
  • For a detailed list of supported formats please refer to the article in our knowledge base (www.lynx-technik.com > support > tech.support)
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
  • Electrical Inputs
  • 4x multi-rate SDI inputs. 75 Ohm BNC connector (2SI only no support for SQD or "Square Division")
  • SMPTE 292M, SMPTE 424M, SMPTE 2081, SMPTE 2082
  • Multi standard operation from 1.5Gbit/s to 12Gbit/s; reclocking
  • Electrical Return Loss: >10dB from 1.5GHz to 3GHz, >7dB from 3GHz to 6GHz, >4dB from 6GHz to 12GHz
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz, >7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz
  • Automatic cable EQ 140m @ 3Gbit/s (Belden 1694A), 80m @ 6Gbit/s, 80m @ 12Gbit/s (Belden 4794R cable)

    Electrical Outputs
  • 5x multi-rate SDI outputs; 75 Ohm BNC connectors
  • 1x 12Gbit/s SDI output; 75 Ohm BNC connector
  • 1x 12Gbit/s SDI loop output; 75 Ohm BNC connector (2SI only no support for SQD or "Square Division")
  • SMPTE 292M, SMPTE 424M, SMPTE 2081, SMPTE 2082
  • Electrical Return Loss: >10dB from 1.5GHz to 3GHz, >7dB from 3GHz to 6GHz, >4dB from 6GHz to 12GHz
  • Alignment Jitter: < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @3Gbit/s, 6Gbit/s, 12Gbit/s
  • Timing Jitter: < 1.0 UI @ 1.5Gbit/s, < 2.0 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s

    Fiber Input
  • 1 x fiber optic output option for 12G SDI input (see option table) Simplex (singlemode) using LC Connection
  • SMPTE 297M - 2006
  • Input range (wavelength) 1260nm to 1620nm

    Fiber Output
  • 1 x fiber optic output option for 12G SDI (see option table). Simplex (singlemode) using LC Connection
  • Non CWDM (1310nm) and CWDM options available (see options table)

    Physical
  • Power: +12VDC @ 6.79W nominal - (supports 7 - 24VDC input range)
  • Size: 138 x 90 x 44mm (5.43 x 3.54 x 1.72") including connectors
  • Weight: 250g (8.9 Oz)
  • Ambient: 41 - 104°F 90% Humidity (non condensing)

    Fiber Output
  • Optional plug in SFP for optical SDI output (see fiber options table)

    Physical
  • Power: +12VDC @ 4W nominal - ( supports 10 - 14VDC input range )
  • Size: 123 x 90 x 22mm (4.84 x 3.54 x 0.86") - including connectors
  • Weight: 175g (6.17oz)
  • Ambient: 41 - 104°F 90% Humidity (non condensing)


• Item Includes:

  • 1x CQS 1441 Module
  • 1x 12v Power Supply


• Warranty:

  • 3 Year


• GTIN:

  4250479325678
