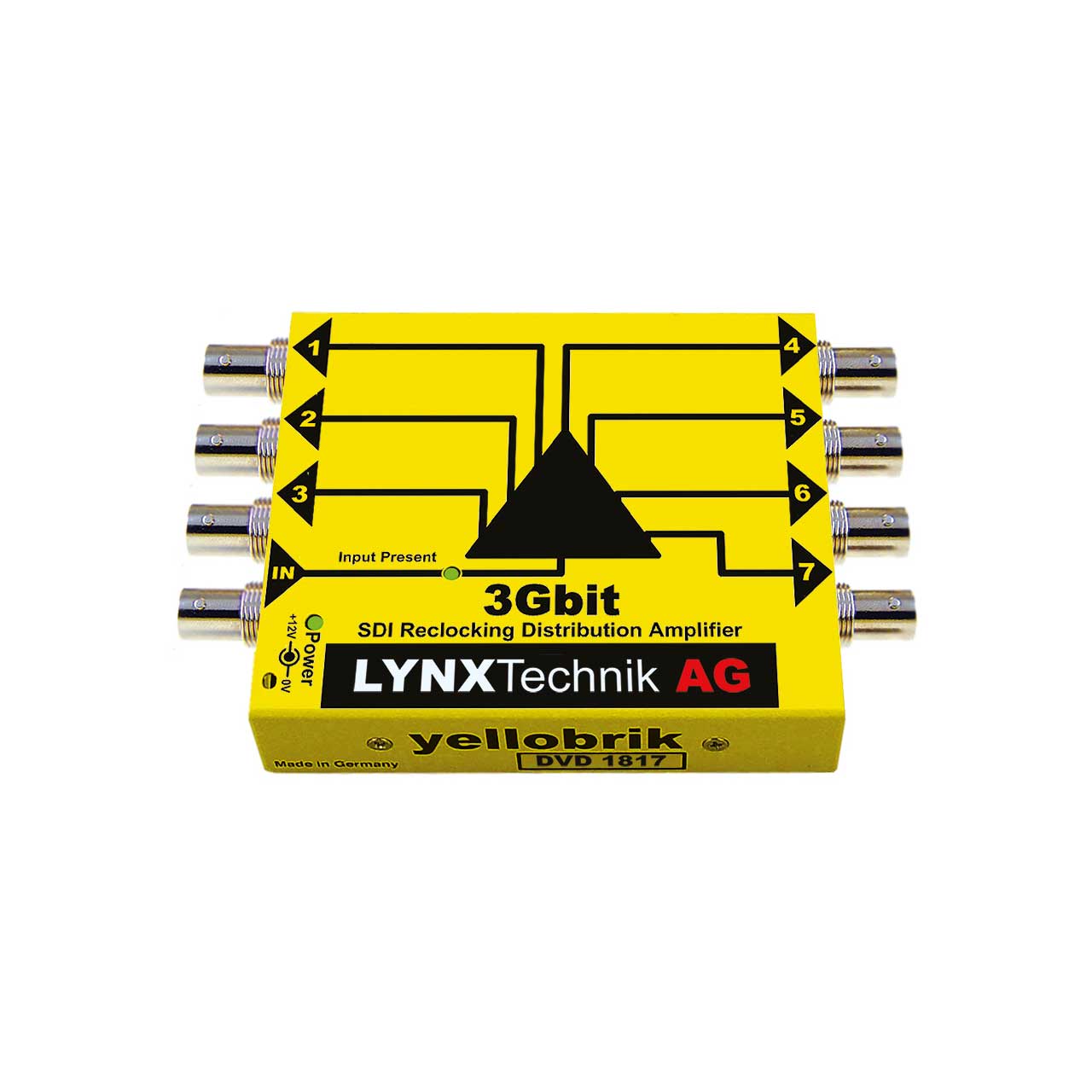

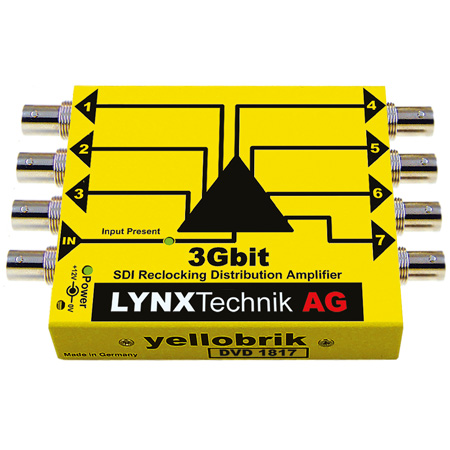

LYNX Technik Yellobrik DVD 1817 ASI Compatible 1x7 3GBit / HD-SDI Distribution Amplifier

DVD 1817 - Overview

7 Outputs & All Outpus are ASI Compatible!

• Features:

  • 1 input and 7 outputs
  • Suitable for SDI video up to 3Gbit/s (1080p60)
  • Level A and Level B support (all formats) and DVB-ASI
  • Reclocking
  • Auto-detect input format
  • Input present LED indication


• Specifications:

  • Input
  • 1 x SDI 75 Ohm BNC connector
  • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Multi-standard operation from 270Mbit/s to 3Gbit/s
  • Multi-rate reclocking
  • Input present LED indication
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
  • Automatic cable EQ (Belden 1694A cable)
  • 320m @ 270Mbit/s, 160m @ 1.5Gbit/s, 120m @ 3Gbit/s

    Outputs
  • 7 x multi-rate reclocked SDI outputs
  • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • 75 Ohm BNC connectors
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
  • Alignment Jitter < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @ 3Gbit/s
  • Timing Jitter < 0.2 UI @ 270Mbit/s, < 1.0 UI @ 1.5Gbit/s, < 2.0 UI @ 3Gbit/s

    Physical
  • Power: +12VDC @ 1.3W nominal - ( supports 7 - 16VDC input range )
  • Size: 138 x 90 x 22mm (5.43 x 3.54 x 0.86") including connectors
  • Weight: 240g (8.46oz)
  • Ambient: 5 - 40°C (41 - 104°F) 90% Humidity (non condensing)


• Item Includes:

  • Module
  • AC power supply


• GTIN:

  4250479359628
