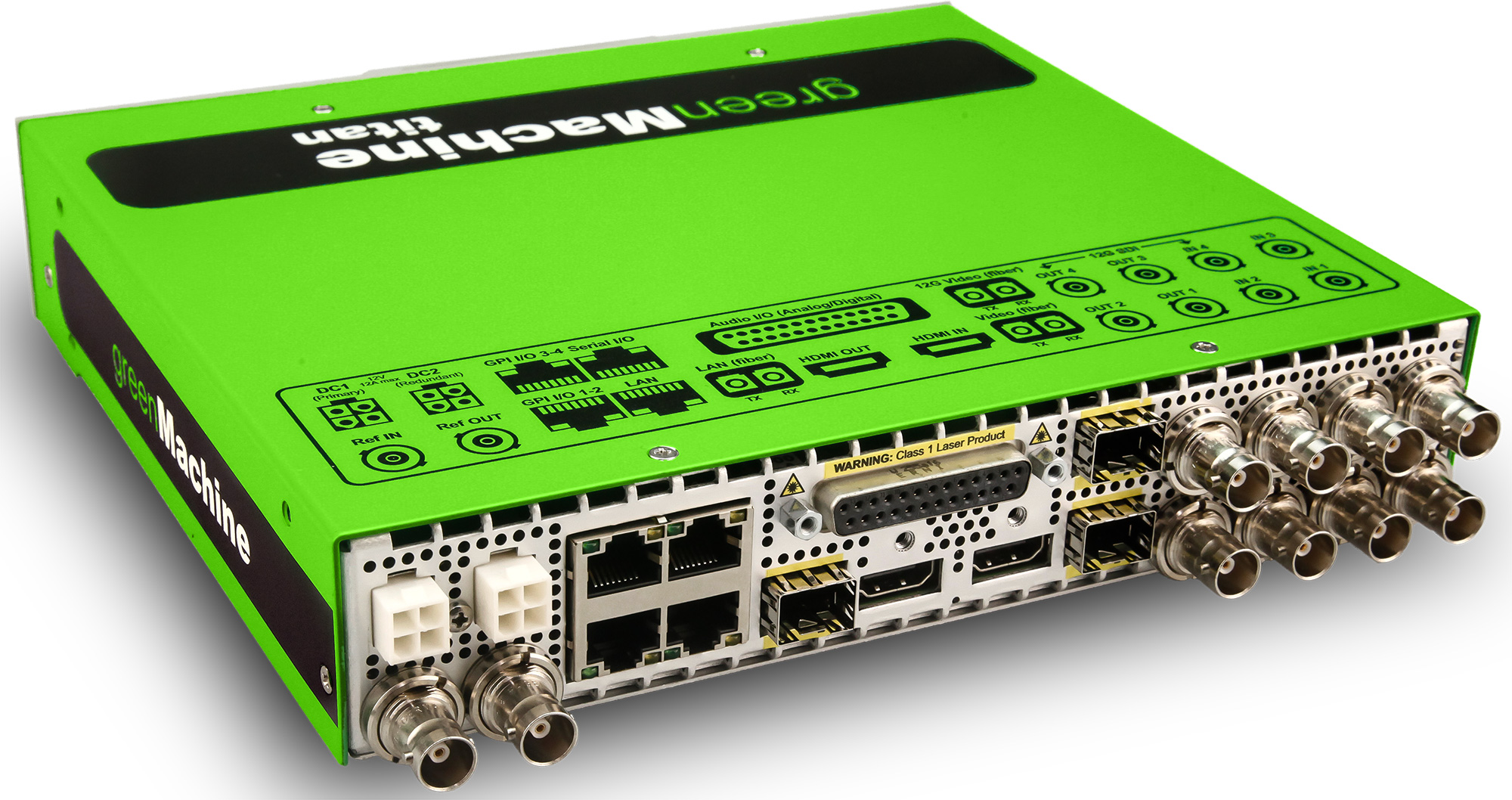

The greenMachine 4K Up/Down/Cross Converter Package includes a greenMachine titan hardware appliance and the necessary APPs to form a fully featured broadcast quality up/down/cross converter supporting formats up to 4K UHD.
This package is designed for applications that require dependable broadcast quality up/down/cross conversion and frame synchronization with full audio processing capability. The converter includes powerful scaling capabilities that allow a versatile Region of Interest selection. The included 3G Level A/B APP makes the module compatible with either 3G SDI standard (Level A or Level B).
The module also supports 4x3G SDI (Quad Link) or 12G SDI (Single Link) input and outputs for 4K UHD signals. With the optional APP QuadLink<>SingleLink Conversion signals can be interchanged in between the single link and quad link.
The extensive audio processing capability de-embeds all audio as well as providing support for four external audio inputs or outputs which individually can be configured to be analog or digital interfaces. Multiple internal crossbars allow for extensive audio shuffling. It also provides DolbyE synchronization, full audio processing as well as multiple adjustable user delays.

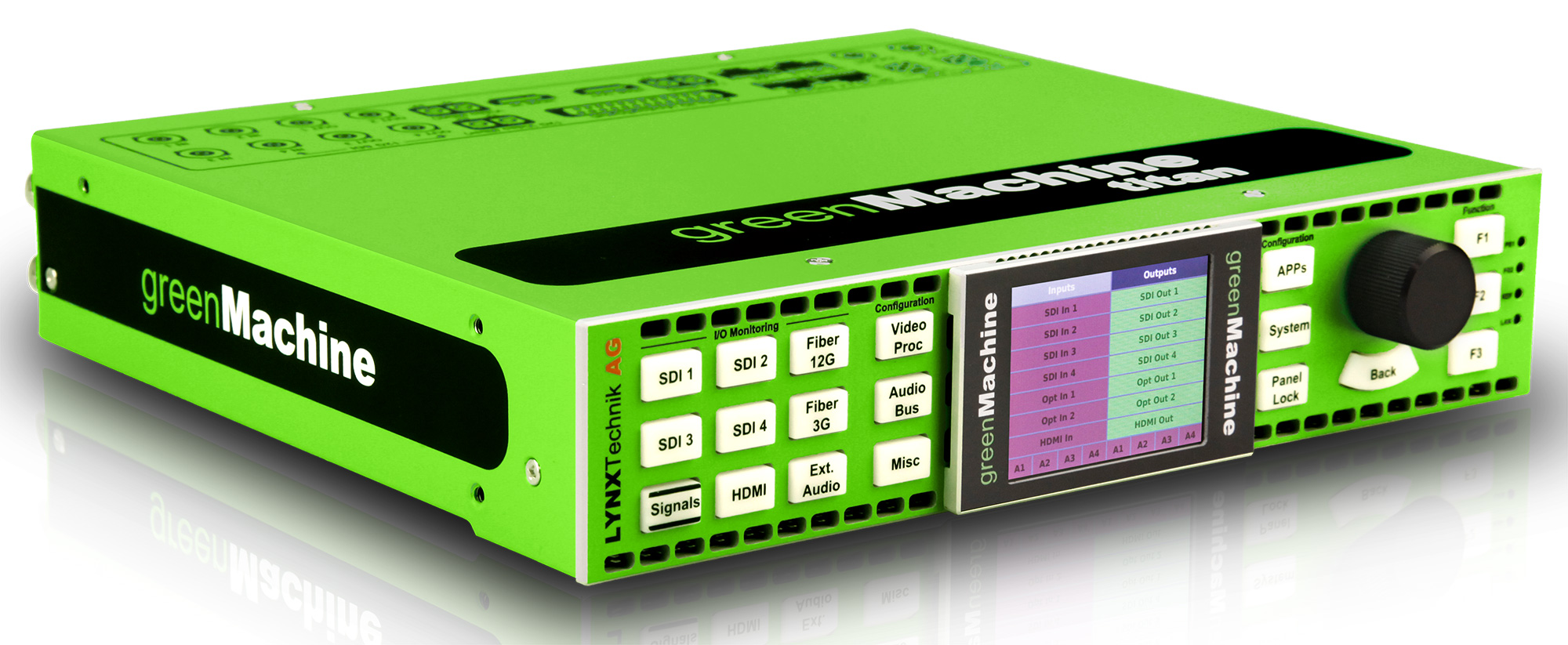

The greenMachine titan hardware comes with a fully featured local control interface with an LCD which displays image previews and audio level meters of the processed video paths in addition to the graphical user interface.
This greenMachine 4K UPXD Package also includes the MiniNova APP which enables the module to be remotely controlled and monitored via third party master control software.
Please Note: APPs can be added or removed at anytime to change fucntionality.
