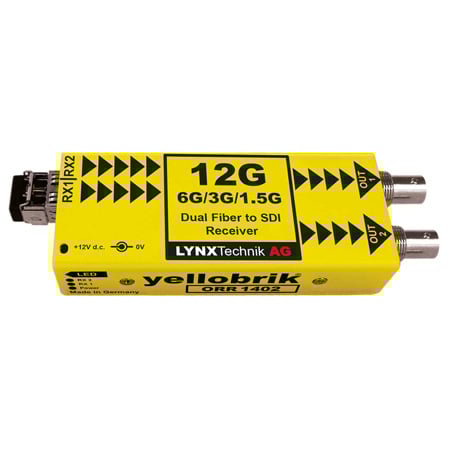

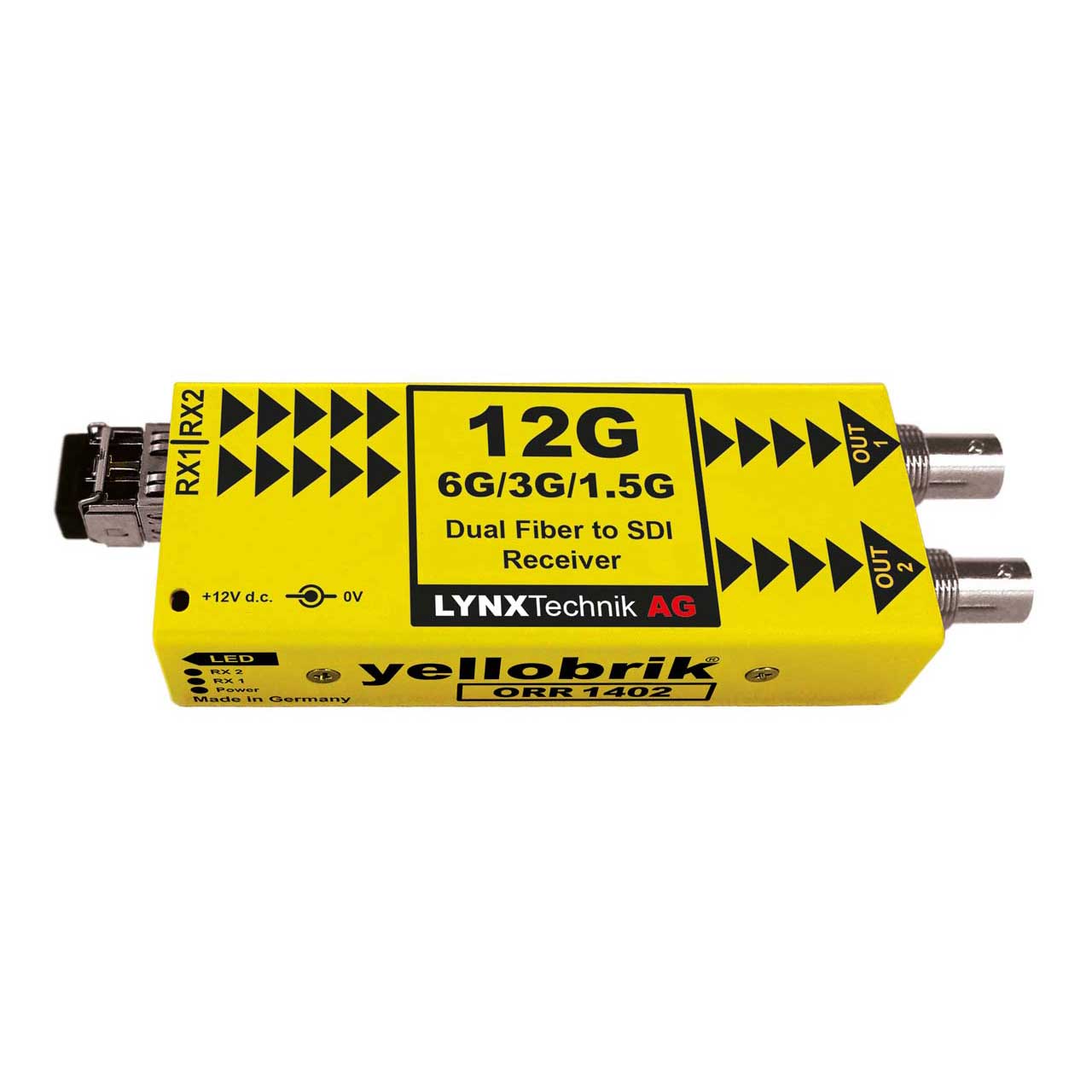

The LYNX Technik ORR 1402 is a compact dual channel fiber optical to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
When paired with a SDI optical transmitter (e.g. yellobrik OTT 1412, OTX1410, OTX1440 etc), the user will have a very cost-effective optical transmission/ receiver system for signals up to 12Gbit/s (4096x2160 @ 60Hz), while preserving full uncompressed quality.
The ORR1402 has two completely independent channels and each will autodetect and re-clock any 1.5Gbit, 3Gbit, 6Gbit, or 12Gbit SDI fiber source prior to electrical conversion. The module is fully compatible with 3Gbit Level A and Level B formats.
