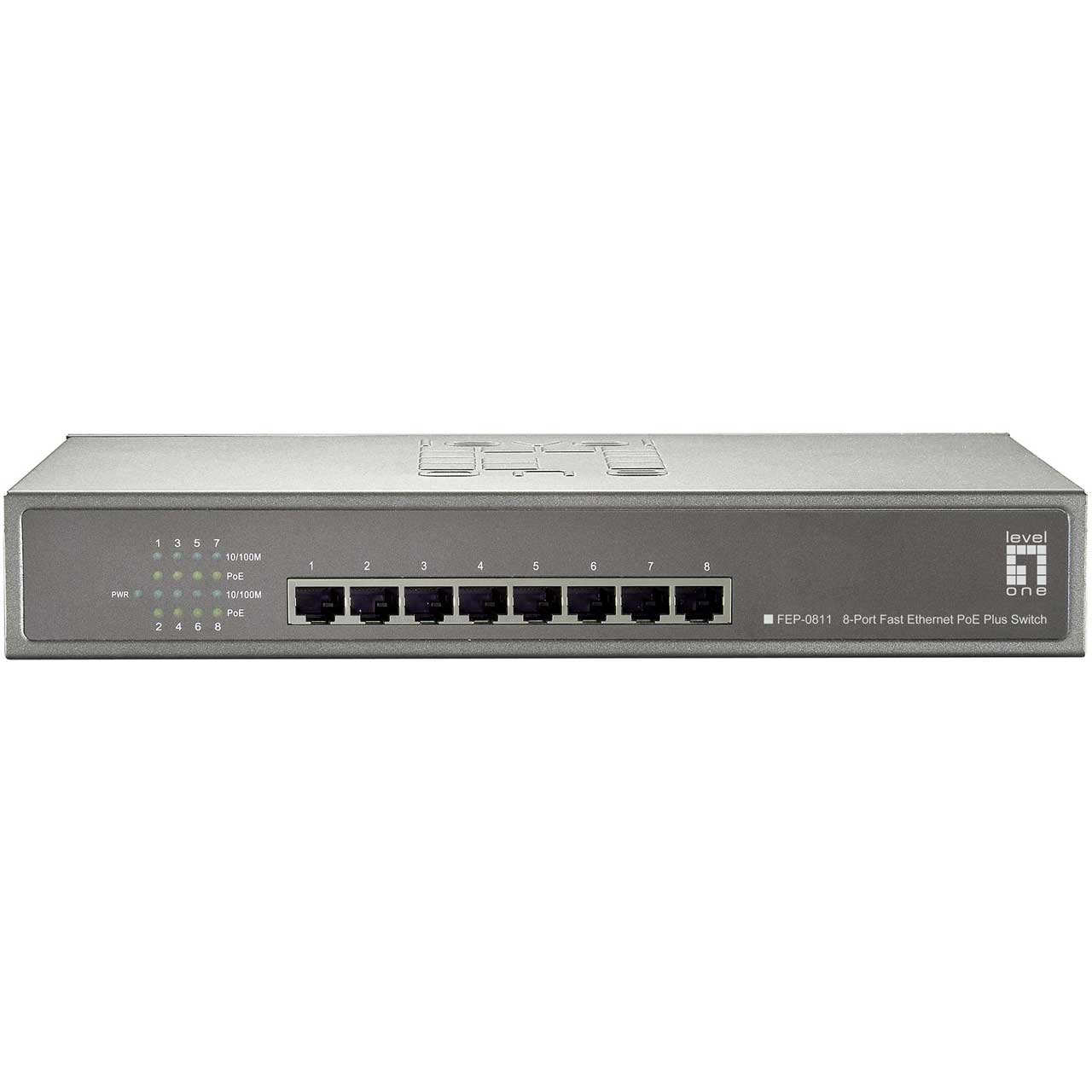

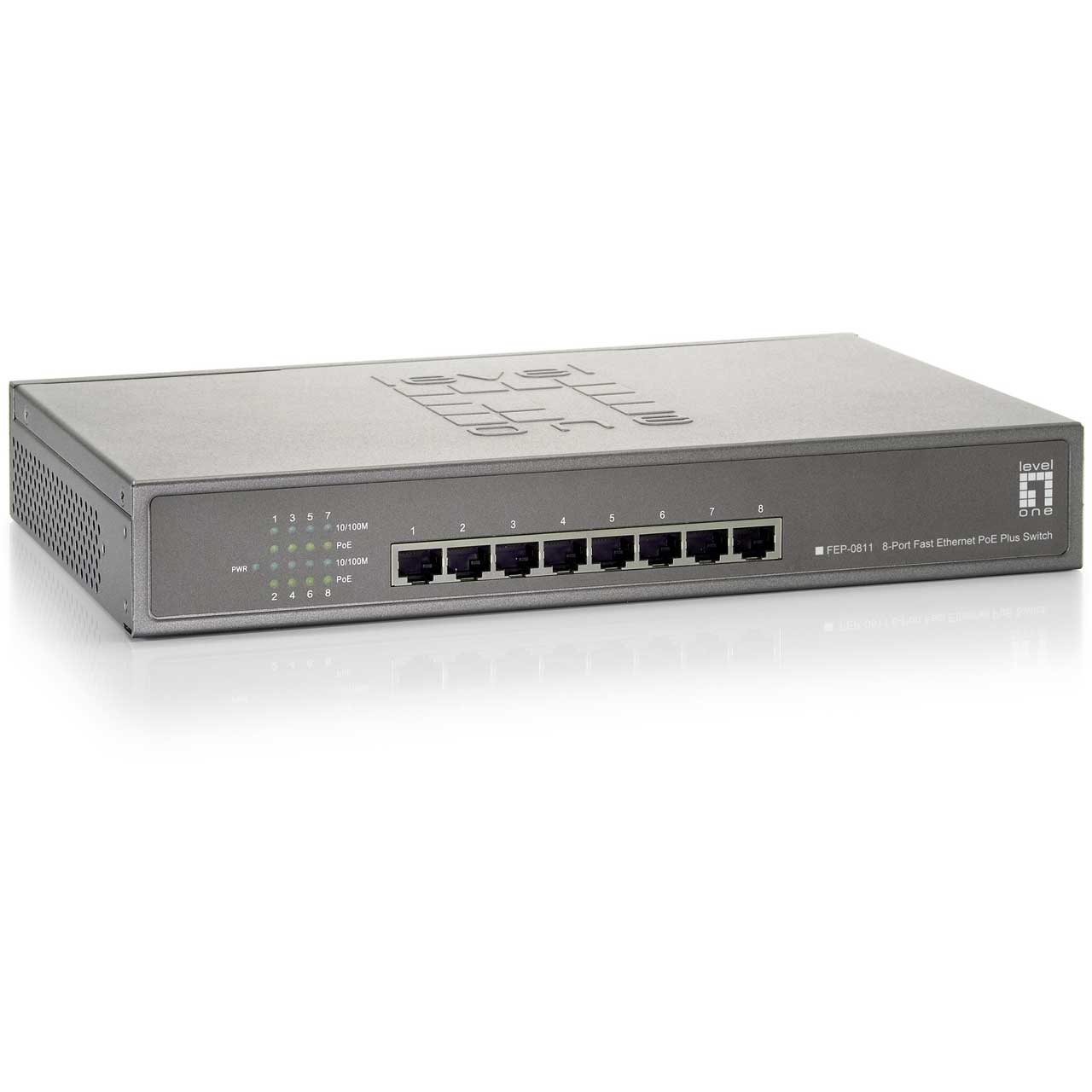

LevelOne FEP-0811 8-Port Fast Ethernet PoE Switch - 802.3at/af PoE - 120W

ITEM #: LVL1-FEP-0811 MFG #: FEP-0811

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
LevelOne
Free Shipping with $49 Minimum Order

List Price:

$229.77

Our Price:

$207.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FEP-0811 - Overview

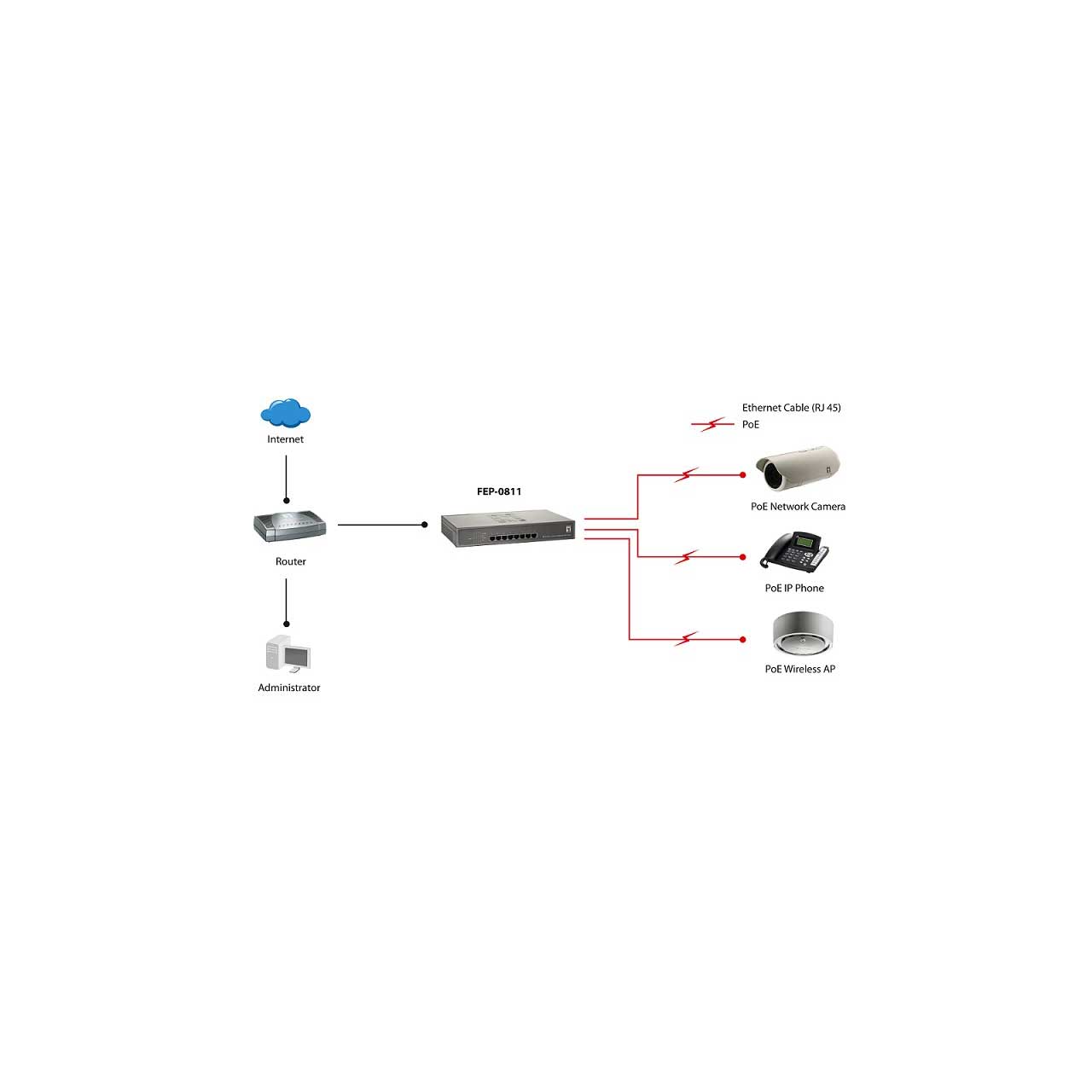

The LevelOne FEP-0811 series are unmanaged Fast Ethernet PoE switches with 8 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 120/250W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FEP-0811 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

  • Features:

    • IEEE 802.3af/at PoE compliant to simplify deployment and installation
    • Auto-detection and protection of non-standard PoE devices
    • 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
    • 11-inch metal housing with 19-inch rackmount kit included
    • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission


  • Specifications:

    • Standards:
      IEEE 802.3 10-BASE-T, Ethernet
      IEEE 802.3u 100-BASE-TX, Fast Ethernet
      IEEE 802.3x Full-duplex Flow Control
      IEEE 802.3af Power over Ethernet (PoE)
      IEEE 802.3at Power over Ethernet Plus (PoE+)
    • Buffer Memory: 64KB
    • Port:
      8x 10/100Base-TX RJ-45 PoE Ports
      10Base T Cat. 3, 4, 5 UTP/STP
      100Base TX Cat. 5 UTP/STP
    • Button/Knob: Power On / Off Switch
    • Indicator: Power, Active, 10/100M, PoE
    • Transmission Method: Store-and-Forward

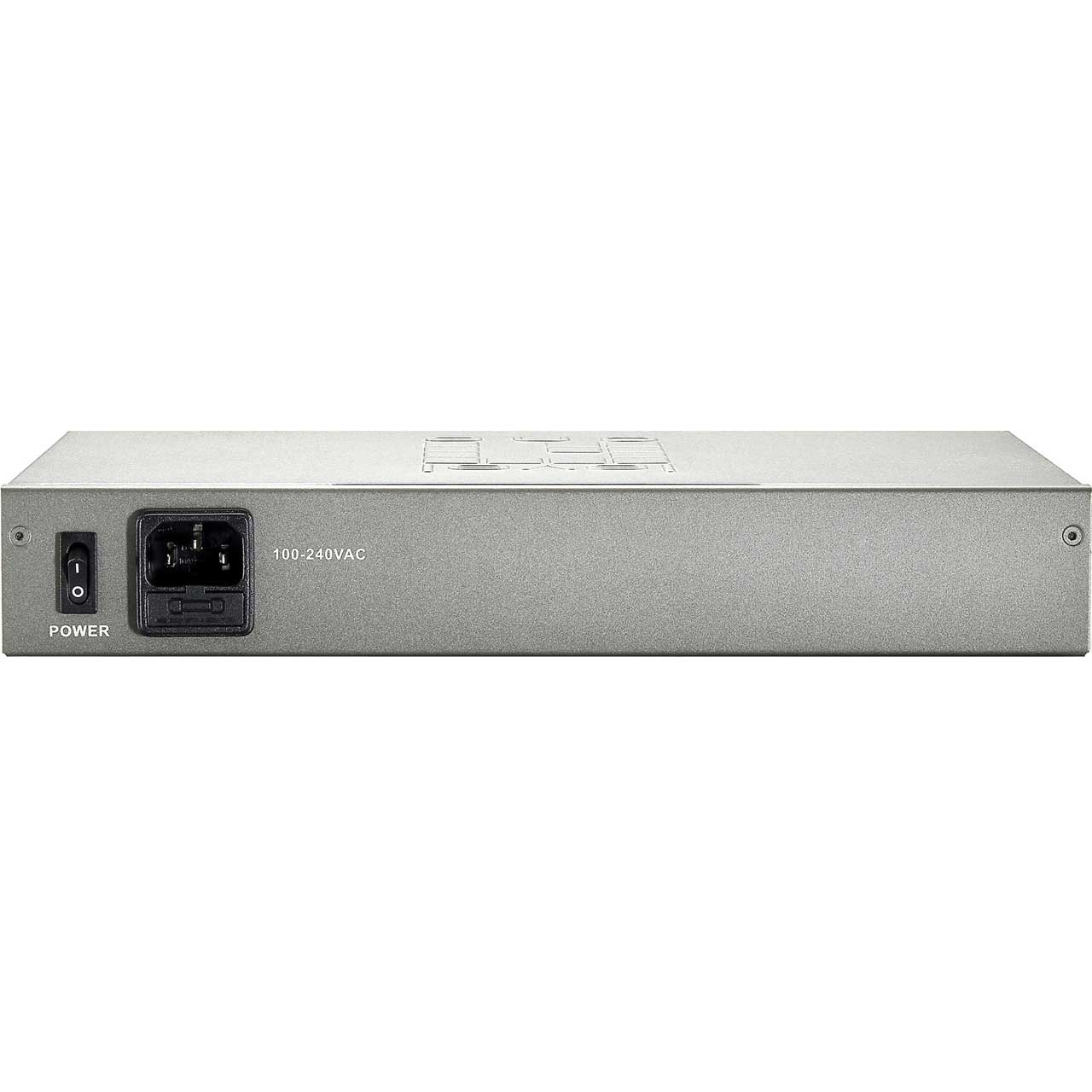

    • Power Input: 100-240V AC, 50-60 Hz, 2A Internal Power Supply
    • Power Consumption: <130W (FEP-0811); <250W (FEP-0811W250)
    • Backplane (Gbps): 1.6Gbps
    • MAC Address Table: 1K
    • Data Rate: 10/100Mbps
    • Operating Temp: 0°C to 45°C
    • Storage Temp: -40°C to 70°C
    • Humidity: 10 to 90% (non-condensing)
    • Mount: Desktop and 19-inch rack-mountable
    • PoE:
      Power Budget: Max. 123.2W (FEP-0811)
      Max. 245W (FEP-0811W250)
      PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
      PD classification identity
      PoE over current protection
      PoE circuit sorting protection
      PoE Power Output: Per Port 56V DC, Max. 15.4 watts (802.3af) or 30 watts (802.3at)
      Power Pin Assignment: 1/2(+), 3/6(-)
    • Packet Forwarding Rate: 100Mbps port - 148,000pps; 10Mbps port - 14,880pps
    • Dimensions (WxDxH): 7.28 x 11.02 x 1.73" (185 x 280 x 44mm)
    • Weight: 3.53Lbs (1600g)
    • Approval and Compliance: EMI/EMS: FCC, CE, RoHS


  • Item Includes:

    • x1 FEP-0811
    • x1 Power Cord
    • x1 19" Rack Mount Kit
    • x1 Quick Installation Guide


  • GTIN:

    0846359014905
