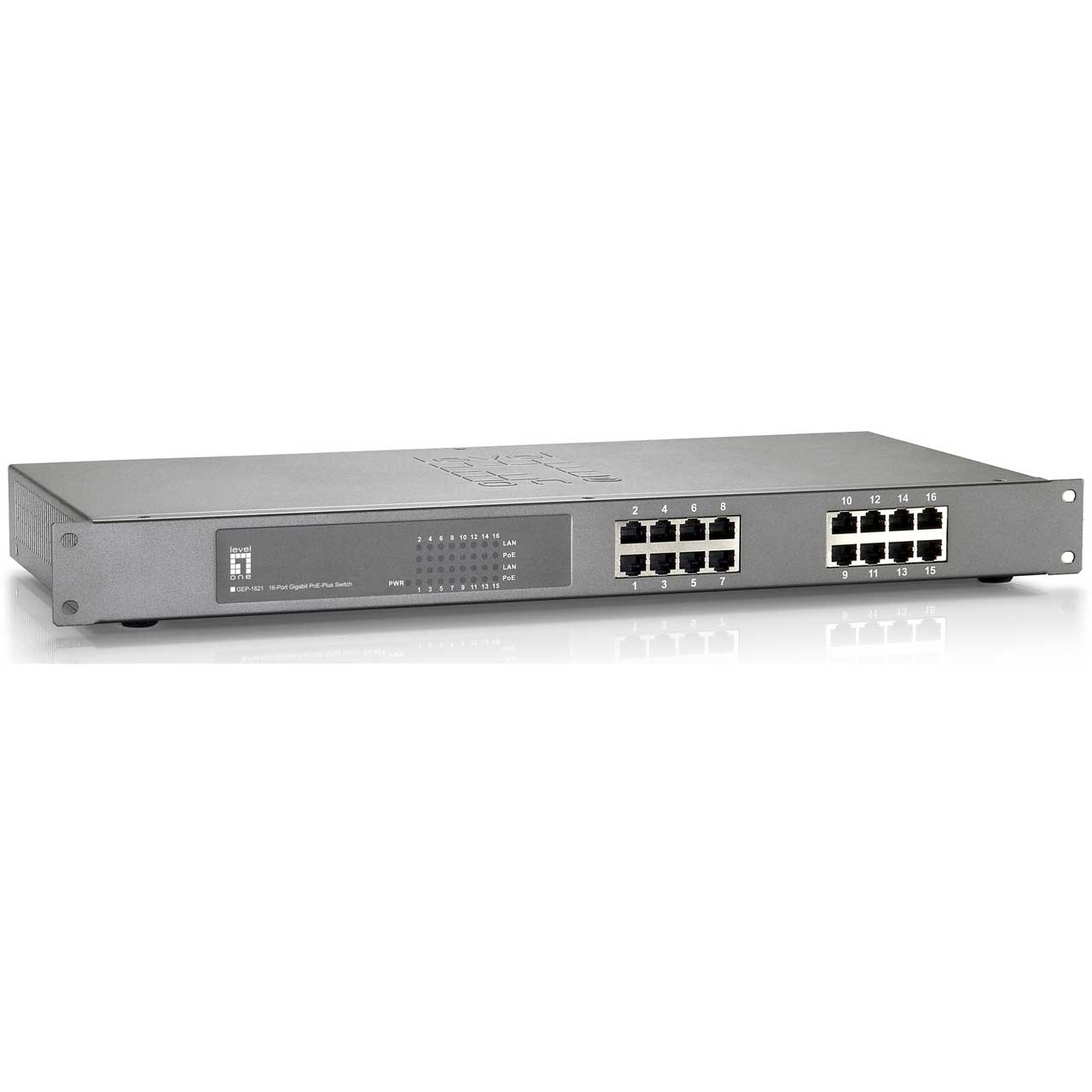

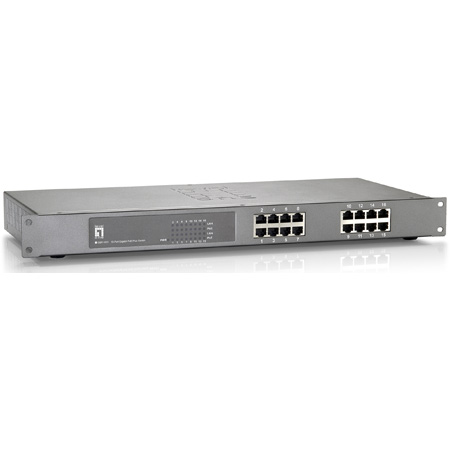

LevelOne GEP-1621 16-Port Gigabit PoE Switch - 802.3at/af PoE - 250W

GEP-1621 - Overview

• Features:

  • 16 PoE-Plus Gigabit Ethernet ports
  • 10/100/1000Mbps wire speed transmission and reception
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Auto-detection and protection of non-standard PoE devices
  • 9K jumbo frames to increase data transfer rates
  • Supports 8K MAC address auto-learning and auto-aging
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)


• Specifications:

  • Standards:
    IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient Ethernet
  • Buffer Memory: 256KB

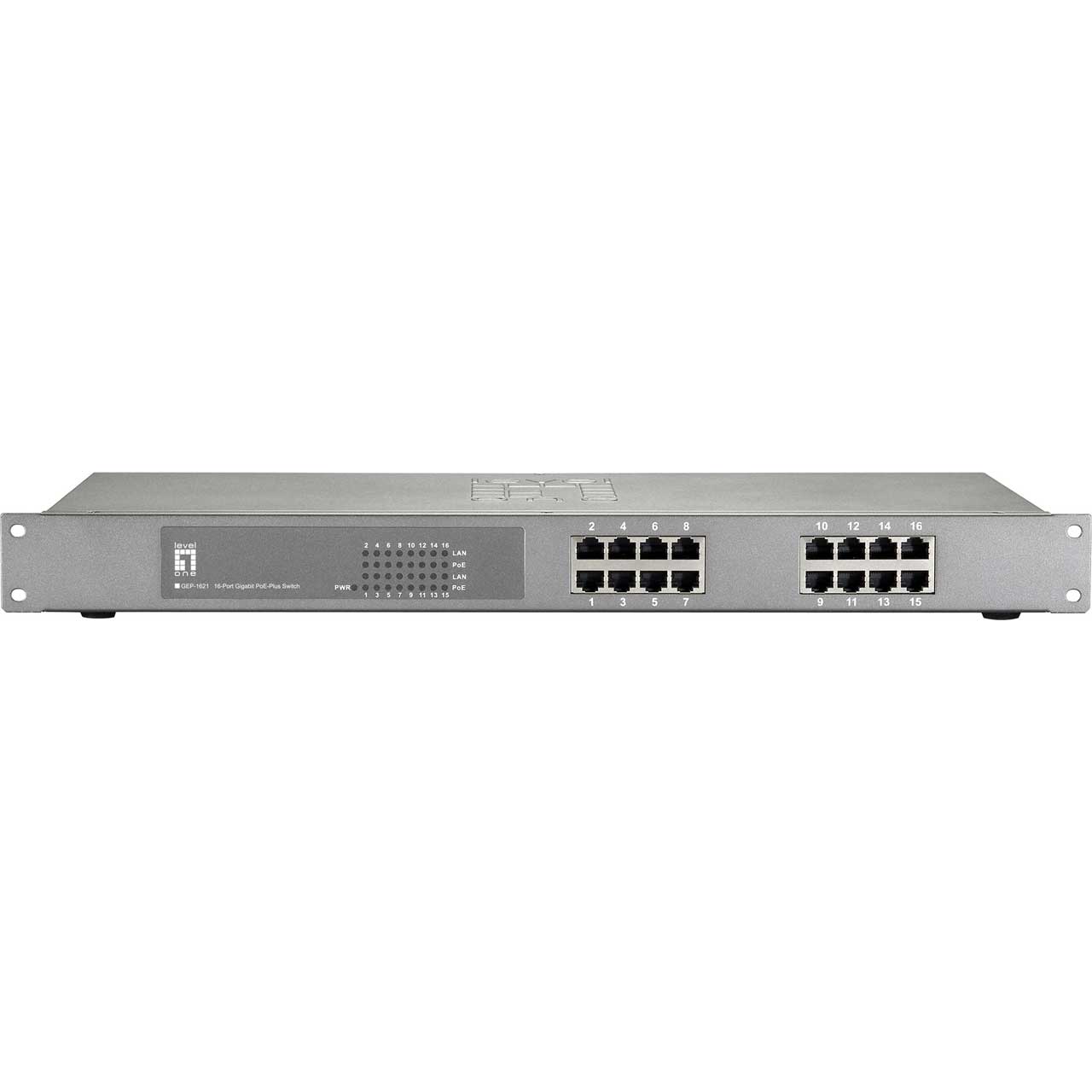

  • Port: 16 x RJ-45 10/100/1000Base-T PoE-Plus ports
  • Indicator: Power; Link/Active; PoE
  • Transmission Method: Store-and-Forward

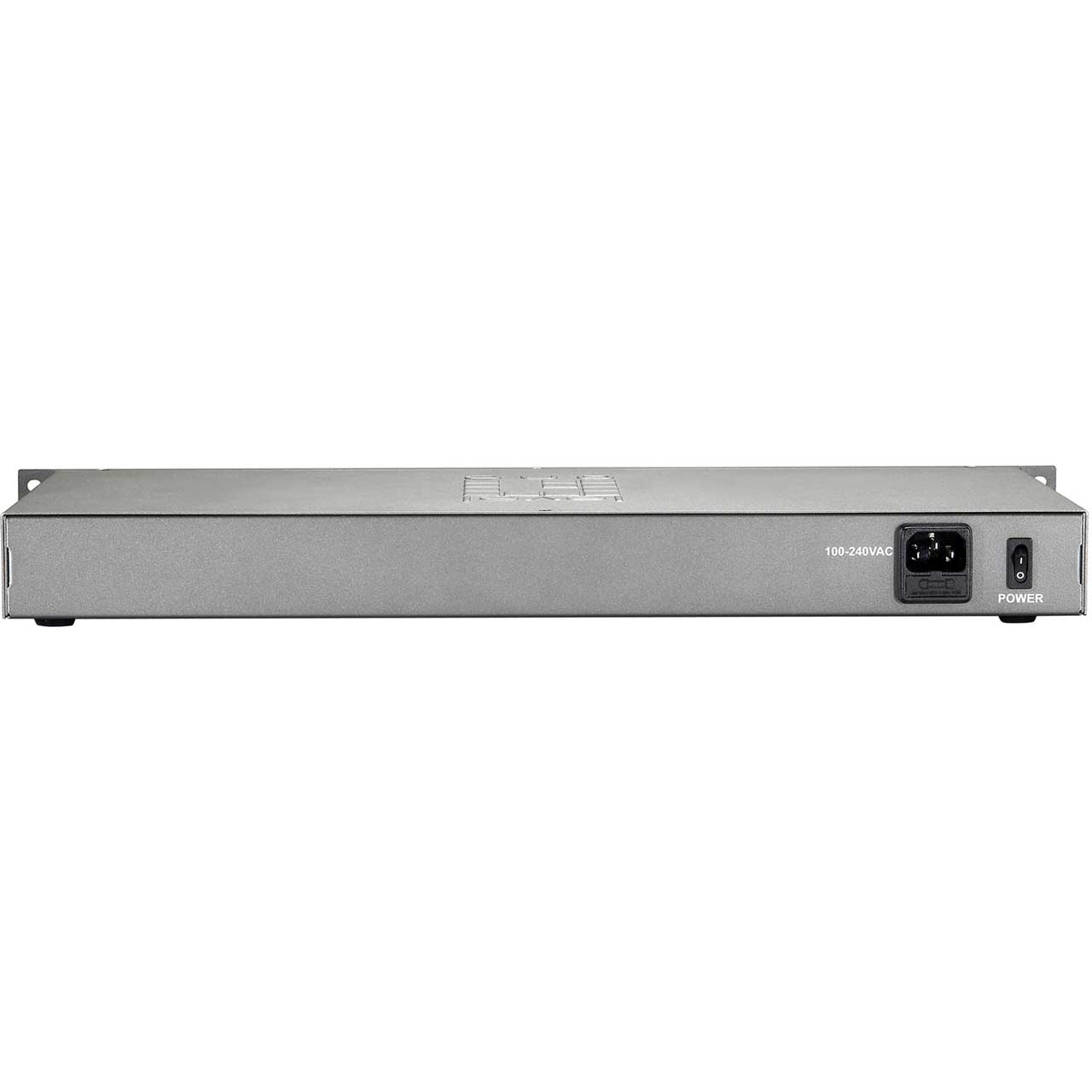

  • Power Input: 100-240V AC, 50-60 Hz, Internal Power Supply
  • Power Consumption:
    < 120W (GEP-1621W120)
    < 150W (GEP-1621W150)
    < 250W (GEP-1621)
    < 380W (GEP-1621W380)
  • Backplane (Gbps): 32Gbps
  • MAC Address Table: 8K
  • Data Rate: 10/100/1000Mbps
  • Power Saving: IEEE 802.3az Energy Efficient Ethernet:
    Automatically turns power off on RJ-45 port when detecting link down or Idle of client
    Cable length detection: Adjusts the signal strength based on the cable length
    Reduces the power consumption for cables shorter
  • Operating Temp: 32° to 122°F (0° to 50°C)
  • Storage Temp: -40° to 158°F (-40° to 70°C)
  • Humidity: 5 to 90% (non-condensing)
  • Mount: 19-inch rack-mountable
  • Flow Control: Half Duplex - Backpressure; Full Duplex - Pause frame
  • PoE:
    Power Budget: Max. 110W (GEP-1621W120)
    Max. 140W (GEP-1621W150)
    Max. 240W (GEP-1621)
    Max. 370W (GEP-1621W380)
  • Power Output: Up to 30W per port
  • Protection: Circuit protection to prevent power interference between ports
  • Pin Assignment: 1/2(+), 3/6(-)
  • Packet Forwarding Rate:
    1000Mbps port - 1,488,000pps
    100Mbps port - 148,000pps
    10Mbps port - 14,880pps
  • Jumbo Frame (K): 9KB
  • Dimensions (WxDxH): 18.90 x 7.87 x 1.73" (480 x 200 x 44mm)
  • Weight: 6.39Lbs (2900g)
  • MTBF: 48300 hours
  • Approval and Compliance: EMI/EMS: FCC Part 15 Class A, CE, RoHS


• Item Includes:

  • x1 GEP-1621
  • x1 Power Cord
  • x1 Quick Installation Guide


• GTIN:

  0846359032077
