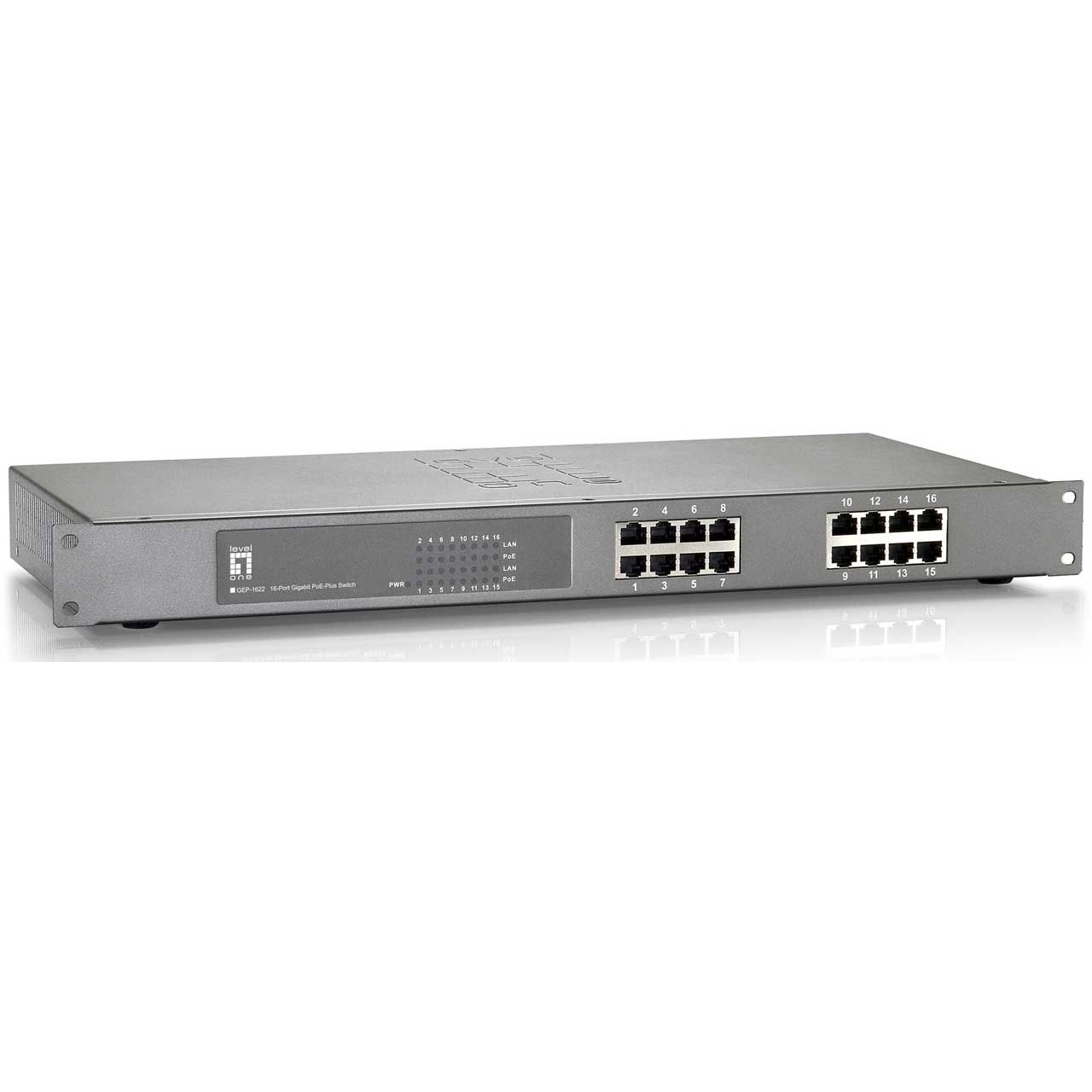

LevelOne GEP-1622 16-Port Gigabit PoE Switch - 802.3at/af PoE - 500W

GEP-1622 - Overview

• Features:

  • 16 PoE-Plus Gigabit Ethernet ports
  • 10/100/1000Mbps wire speed transmission and reception
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Auto-detection and protection of non-standard PoE devices
  • 9K jumbo frames to increase data transfer rates
  • Supports 8K MAC address auto-learning and auto-aging
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • Total PoE power budget: 480W, up to 30W per port


• Specifications:

  • Standards:
    IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient Ethernet
  • Buffer Memory: 256KB

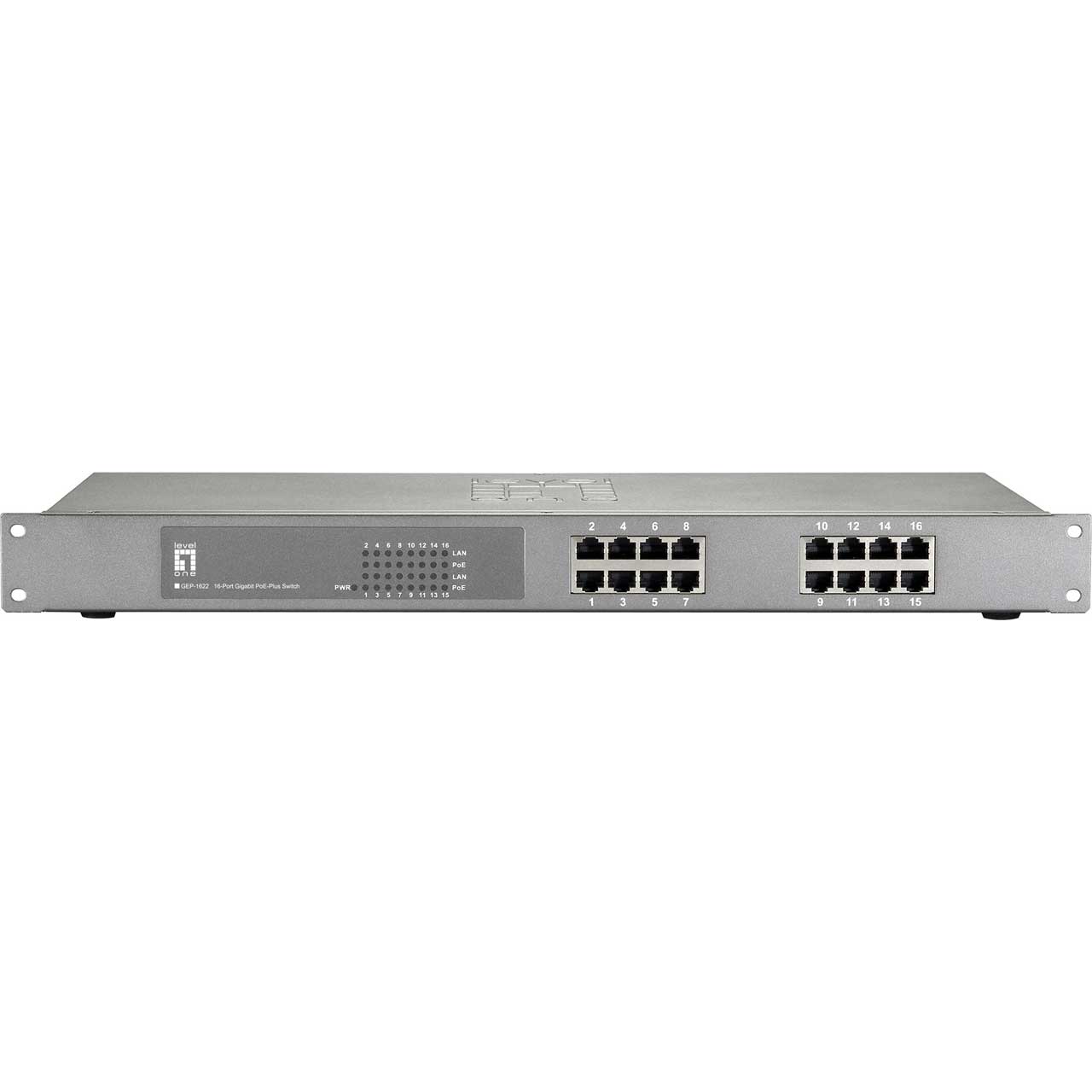

  • Port: 16 x RJ-45 10/100/1000Base-T PoE-Plus ports
  • Indicator: Power; Link/Active; PoE
  • Transmission Method: Store-and-Forward

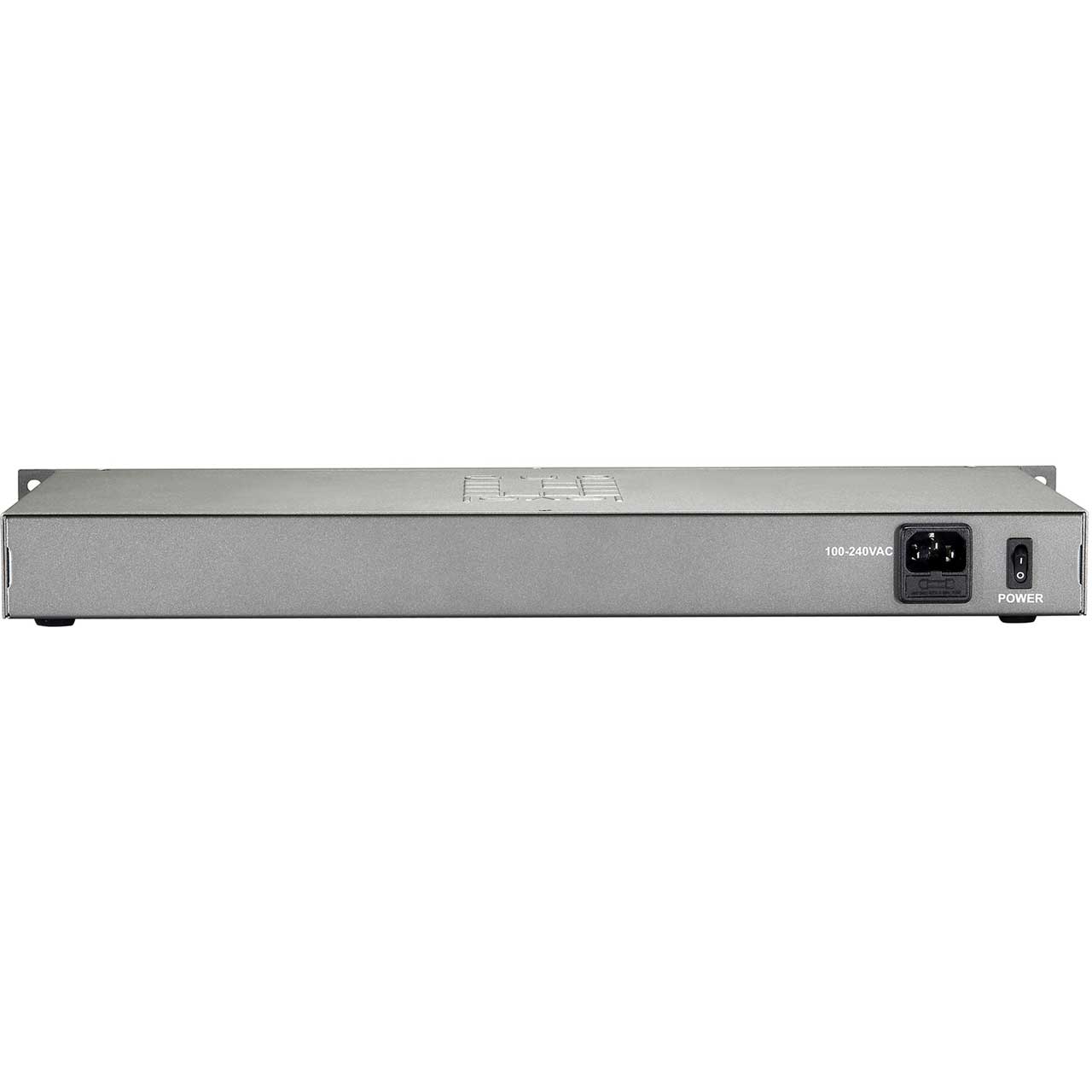

  • Power Input: 100-240V AC, 50-60 Hz, Internal Power Supply
  • Power Consumption: 500W
  • Backplane (Gbps): 32Gbps
  • MAC Address Table: 8K
  • Data Rate: 10/100/1000Mbps
  • Power Saving: IEEE 802.3az Energy Efficient Ethernet:
    Automatically turns power off on RJ-45 port when detecting link down or Idle of client
    Cable length detection: Adjusts the signal strength based on the cable length
    Reduces the power consumption for cables shorter
  • Operating Temp: 32° to 122°F (0° to 50°C)
  • Storage Temp: -40° to 158°F (-40° to 70°C)
  • Humidity: 5 to 90% (non-condensing)
  • Mount: 19-inch rack-mountable
  • General: Flow Control: Half Duplex - Backpressure; Full Duplex - Pause frame
  • PoE:
    Power Budget: Max. 480W
    Power Output: Up to 30W per port
    Protection: Circuit protection to prevent power interference between ports
    Pin Assignment: 1/2(+), 3/6(-)
  • Packet Forwarding Rate:
    1000Mbps port - 1,488,000pps
    100Mbps port - 148,000pps
    10Mbps port - 14,880pps
  • Jumbo Frame (K): 9KB
  • Dimensions (WxDxH): 18.90 x 7.87 x 1.73" (480 x 200 x 44mm)
  • Weight: 7.50Lbs (3400g)
  • MTBF: 42300 hours
  • Approval and Compliance: EMI/EMS: FCC Part 15 Class A, CE, RoHS


• Item Includes:

  • x1 GEP-1622
  • x1 Power Cord
  • x1 Quick Installation Guide


• GTIN:

  0846359032084
