LevelOne WUA-1810A AC1200 Dual Band Wireless USB Network Adapter - 1-11 Channel

ITEM #: LVL1-WUA-1810A MFG #: WUA-1810A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$37.68

Our Price:

$34.47

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


WUA-1810A - Overview

The LevelOne WUA-1810A is a dual-band wireless USB network adapter, compliant with the latest wireless technology IEEE 802.11ac standard. The adapter can simultaneously search for both 2.4 GHz and 5 GHz band networks, producing a transmission rate of up to 300Mbps on the 2.4 GHz frequency band, and 867Mbps on the 5 GHz band, with no radio interference and a faster, more stable wireless transmission. Compatible with mainstream Windows, Linux and Mac operating systems, WUA-1810 is very suitable for high-definition home entertainment networking, small business users, and sophisticated, high-demand wireless networking where speed and reliability are of optimum importance.

  • Features:

    • Provides wireless speeds of up to 300Mbps (2.4GHz) / 867Mbps (5GHz)
    • Dual band technology reduces interference, providing reliable connections
    • Compatible with IEEE 802.11a/b/g/n/ac wireless standards
    • Simple wireless connectivity and security with WPS push button
    • AP/Client operation modes to suite different wireless applications
    • Provides 5dBi detachable antenna

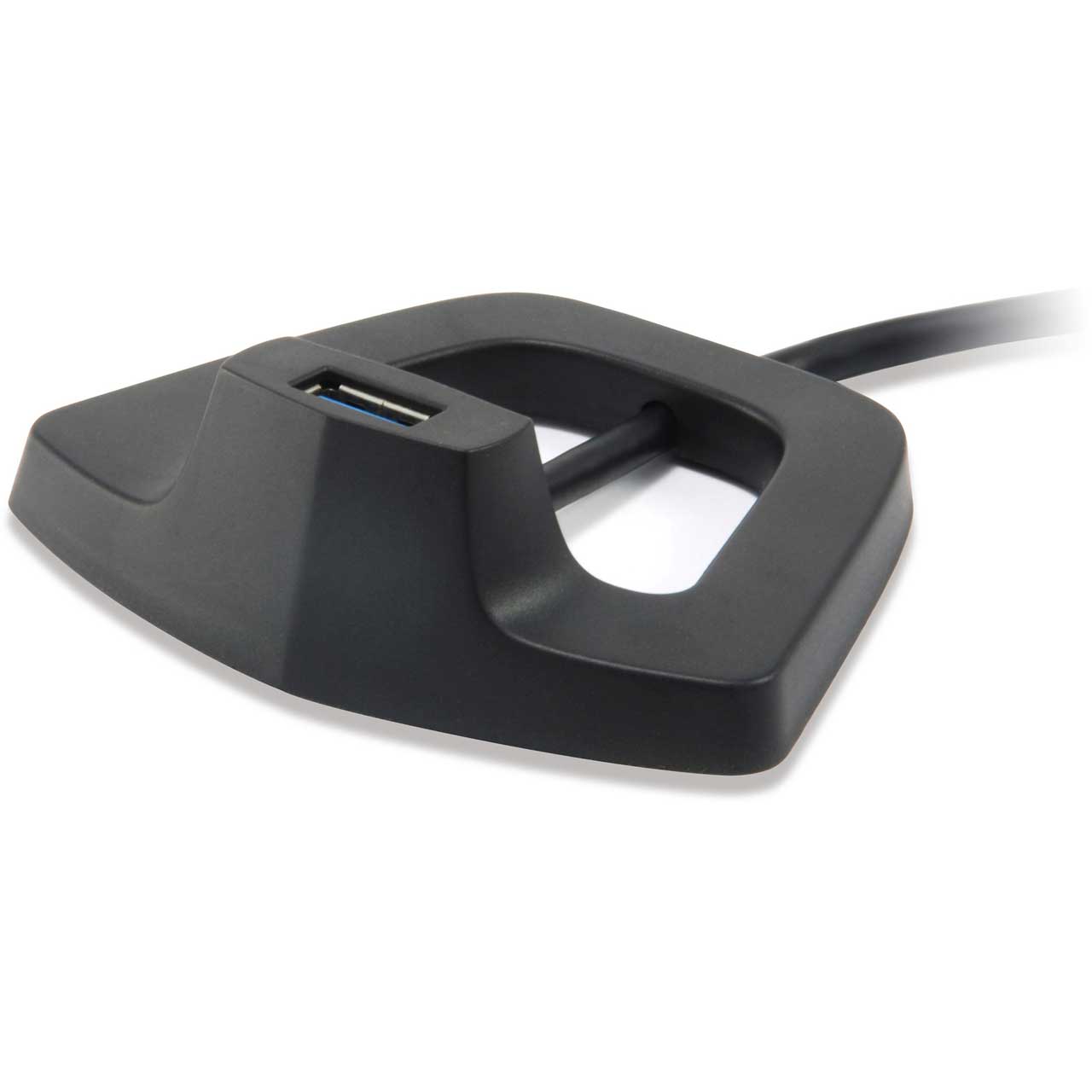

    • Comes with a USB cradle to allow flexible placement for optimal wireless signal

  • Specifications:

    • Standards & Protocols
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.11ac
    • Connector: USB 3.0
    • Button/Knob: WPS button

      Optical Receive Sensitivity
    • 11n:-68dBm@130M-68dBm@108M
    • 11g:-69dBm@54M
    • 11b:-85dBm@11M
    • 11ac:-59dBm@867M
    • Power Input: 5V/500mA

      Data Rate
    • IEEE 802.11b:1,2,5.5,11Mbps
    • IEEE 802.11g:6,9,12,18,24,36,48,54Mbps
    • IEEE 802.11n:Up to 300Mbps
    • IEEE 802.11ac:UP to 867Mbps

      Wireless
    • Receive Sensitivity(dBm)
      11n:-68dBm@130M?-68dBm@108M
      11g:-69dBm@54M
      11b:-85dBm@11M
      11ac:-59dBm@867M

      Wireless Channels: 1-11 CH (WUA-1810A), 1-13 CH (WUA-1810E)
    • EIRP(dBm): 18dbi
    • Antenna: 2 * 5dBi detachable antenna
    • Frequency Band: 2.4GHz & 5.0GHz
    • Modulation: DSSS, OFDM
    • General
      [email protected]
      [email protected]
    • Operating Distance: 100m
    • Dimensions (WxDxH): 2.51 x 1 x 0.33" (64 x 25.5 x 8.4mm)
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Operating Humidity (Non-condensing): 10 to 90%
    • Weight: 0.22Lbs (100g)
    • Operation Systems
      Windows 2000/XP/Vista/7/8/10
      Mac OS
      Linux

  • Item Includes:

    • x1 WUA-1810A
    • x1 Quick Installation Guide
    • x1 Antenna (x2)
    • x1 USB 3.0 Extension Stand
    • x1 Resource CD (User Manual, QIG, Driver)

  • GTIN:

    0846359044681
