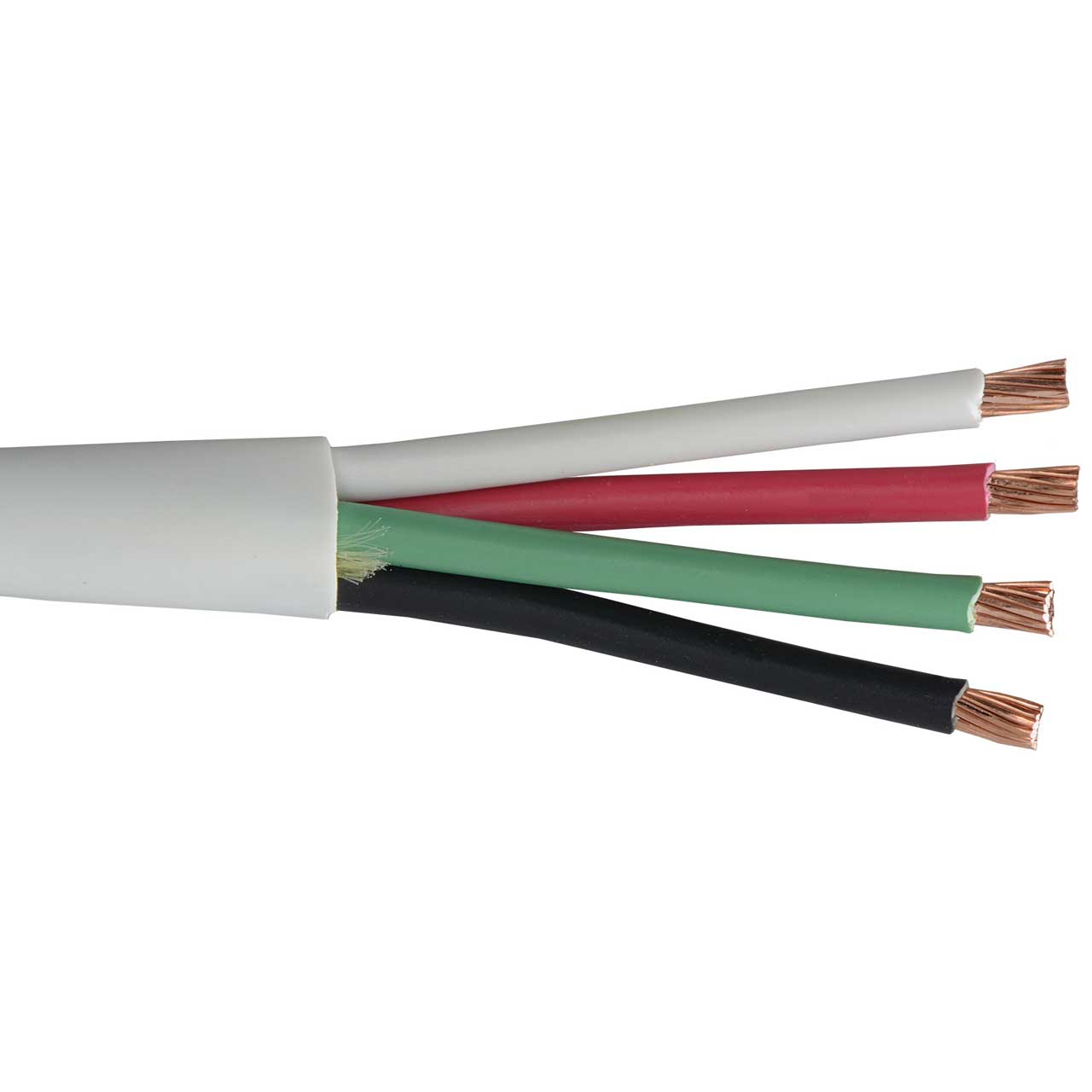

Liberty 14-4C-P-WHT (1000) White Commercial Grade General Purpose 14 AWG 4 Conductor Plenum Cable Reel 1000FT Roll

14-4C-P-WHT - Overview

• Features:

  • Stranded Annealed Bare Copper Conductors
  • Plenum rated PVC Alloy insulation
  • Twisted, unshielded
  • Plenum rated PVC Jacket
  • NEC CL3P, CEC CMP FT6, RoHS Compliant


• Specifications:

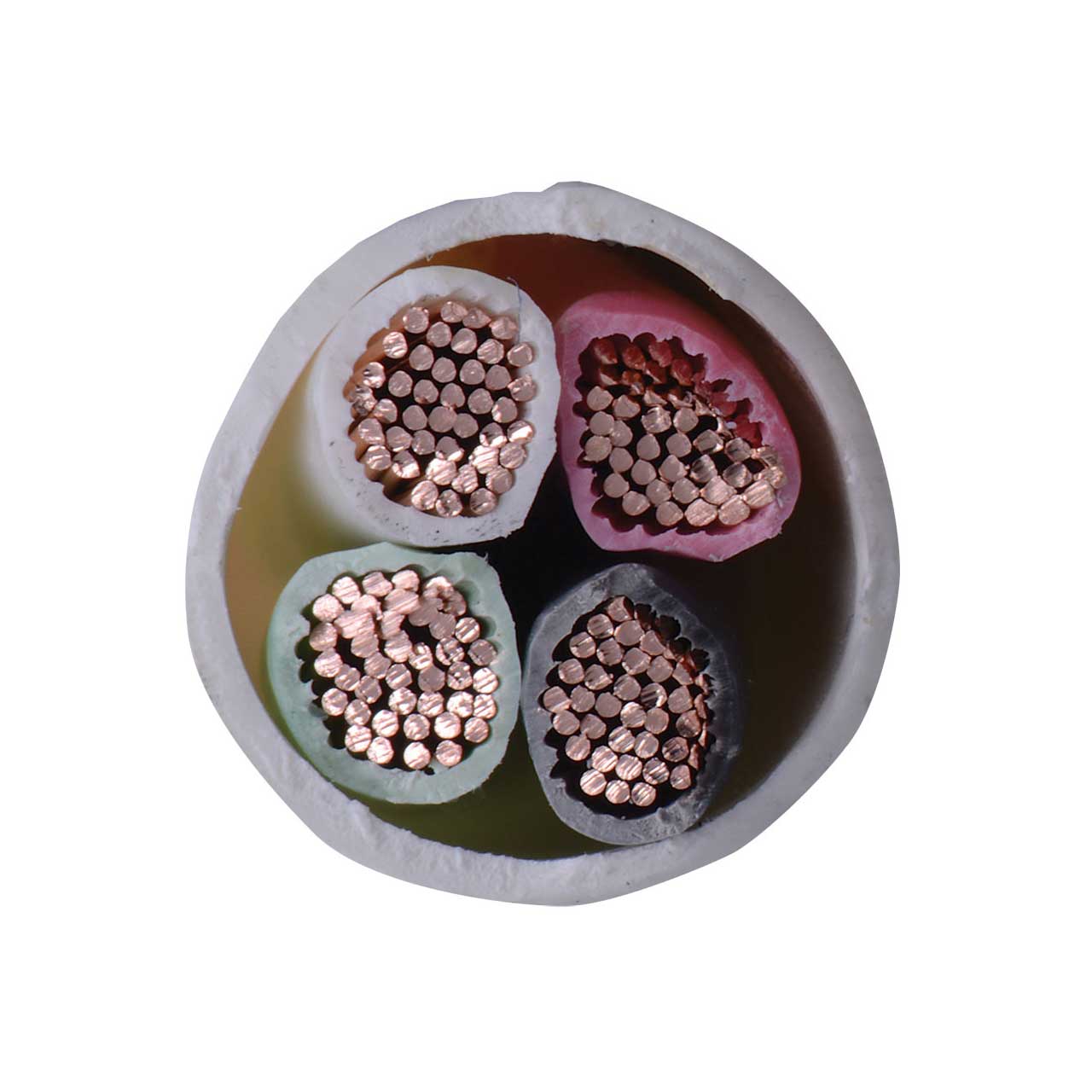

  • Conductor: 14 AWG / 41-strand annealed bare copper conductors / Diameter: 0.077"
  • Electrical: DC resistance: 2.66 Ω / Mutual capacitance: 40.06 pF/FT / Impedance: 51 Ω / Inductance: 0.15æH/FT | 0.49æH/M / Velocity of Propagation: 55% / Voltage rating: 300V / Maximum current: 6.4A@25°C
  • Insulation: Plenum rated polyvinyl chloride / Wall thickness: 0.011" / Diameter: 0.099"
  • Regulatory: NEC: CL3P 75°C, CEC: CMP FT6 For Audio Only 60°C, EU RoHS-2 2011/65/EU Compliant
  • Color Code: Black, Red, White, Green
  • Packages: Reel: 1000 Feet / Weight: 75 Lbs
  • Assembly: 4 conductors twisted, Lay length: 4.0", 3.0 twists per foot
  • Installation: Pull Tension: 132 Lb / Bend radius: 2.70"/ Bend radius: 5.40"/ Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F/0°C ambient temperature
  • Construct: Ripcord under jacket
  • Applications: Plenum commercial speaker audio, Plenum 70V speaker, Plenum class 2 power
  • Shield: N/A
  • Performance: Speaker level audio to 80 feet
  • Jacket: Plenum rated polyvinyl chloride, Colors: Natural White, Wall thickness: 0.015", Diameter: 0.270"
  • Final Outside Diameter (inches): 0.27


• Warranty:

  • 2 Years
