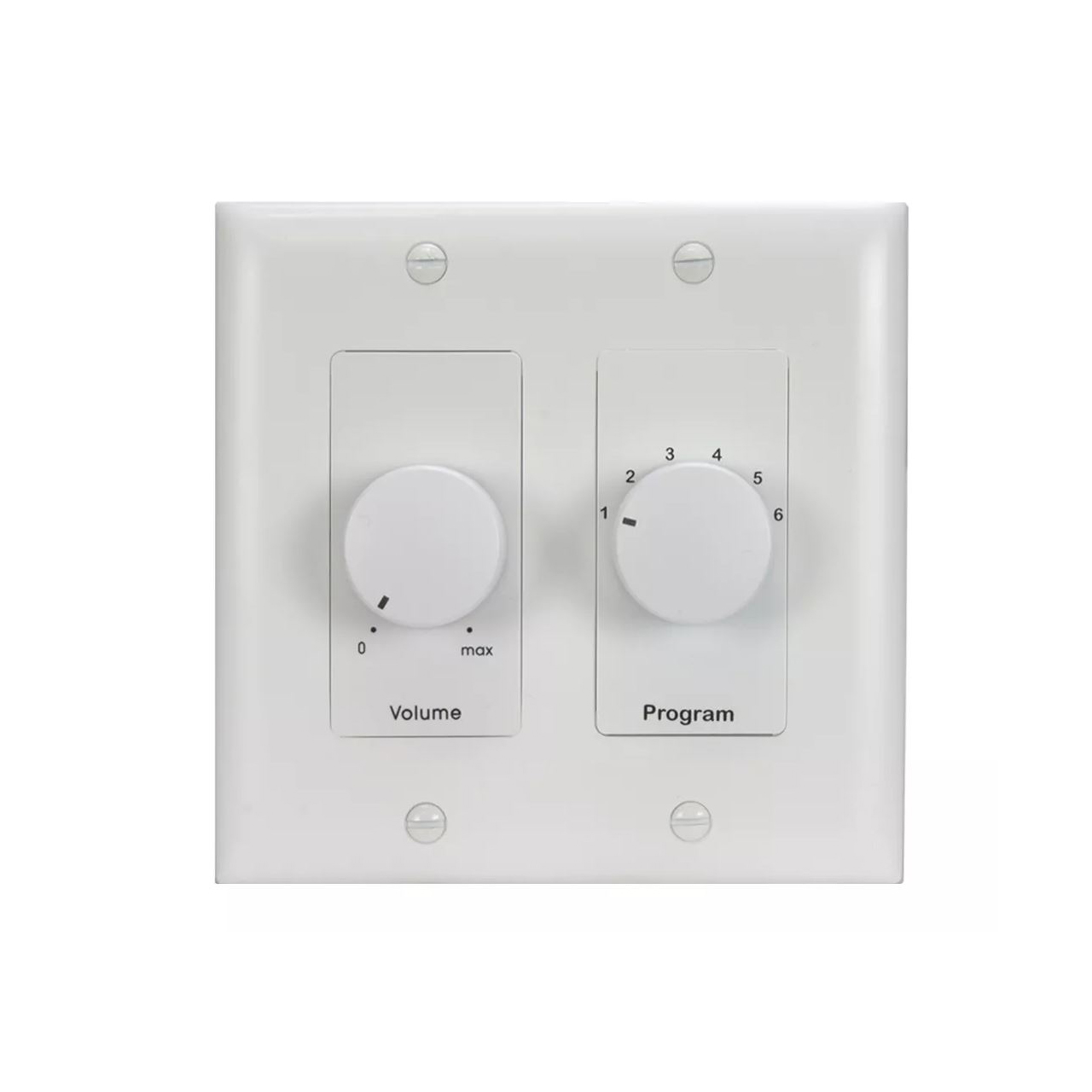

The Lowell CS650-DW is a combination wall unit that features a 50W mono volume control (autoformer attenuator style) plus a six-source program selector switch in white. It includes a 2-gang decorator wall plate and two 1-gang decorator wall plates for separate installation.
Volume Control
The 50W auto transformer volume control with rotary knob, for use with 70V or 25V speaker lines, provides 33dB attenuation in 10 steps. The last two steps before "OFF" are 6dB (33dB total). Wiring connections are plug-in screw terminations for prewire convenience. UL Listed.
Six-Source Selector Switch
Two-pole non-shorting rotary style to assure complete isolation between lines. Connections are Euro-style screw terminals allowing the unit to be field-connected for use together or independently.
Wall Plate
Includes a 2-gang decorator style wall plate, white with black printing. Also includes two 1-gang decorator style wall plates for separate location mounting, if needed for the application.
Hardware
Includes black rotary knobs, mounting screws.
