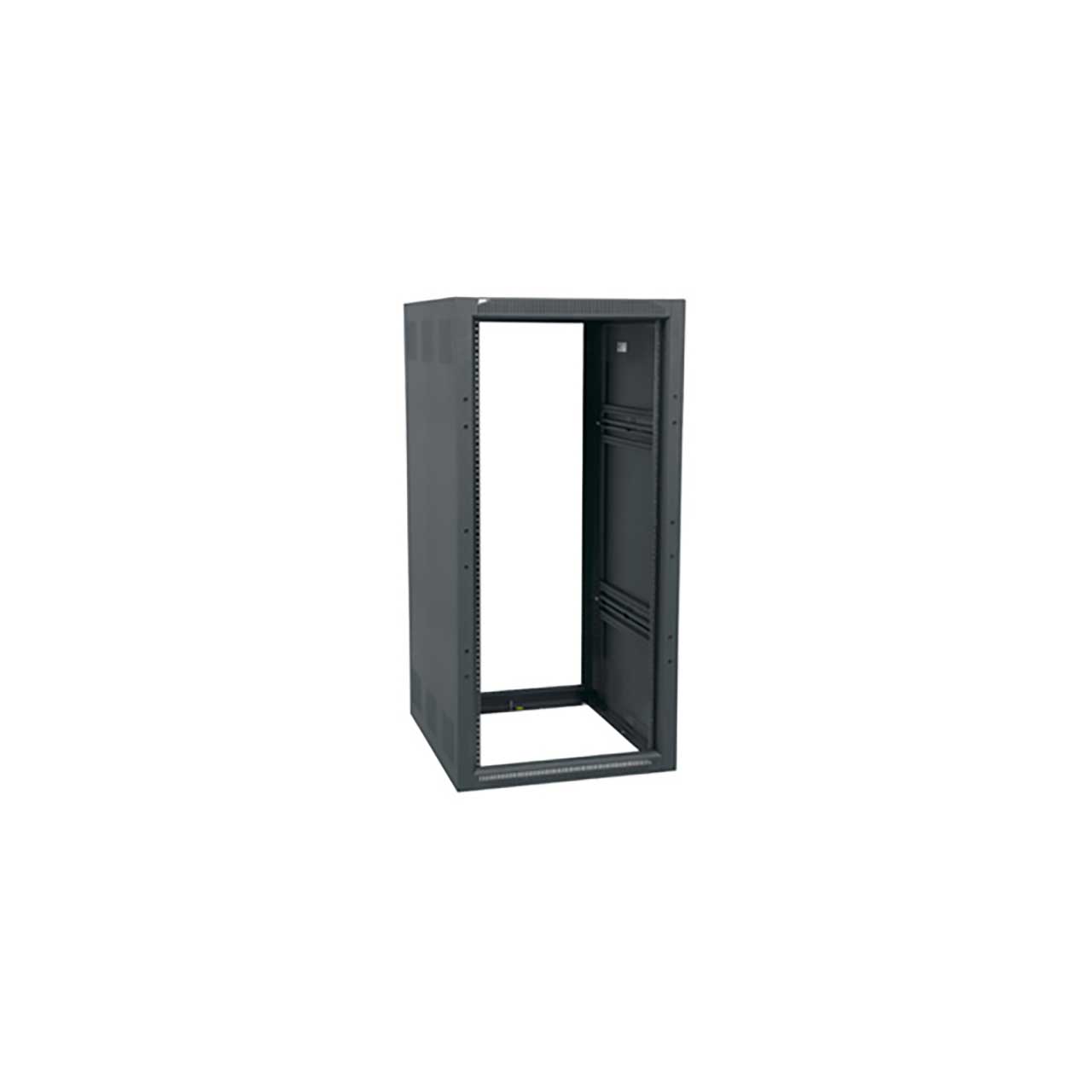

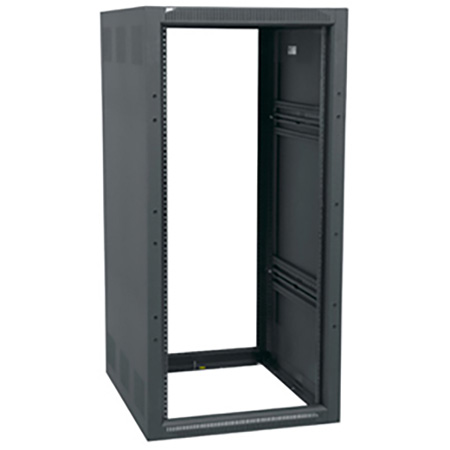

Middle Atlantic BGR-25SA-32LRD 25RU BGR-SA Series Rack - 32 Inch Depth - without Rear Door

BGR-25SA-32LRD - Overview

• Features:

  • All BGRs are now Forward Compatible and are equipped with the revolutionary Forward Rackrail, giving you the ability to use Forward blank panels, vent panels, horizontal cable mgmt. and vertical cable mgmt.
  • The 23" width gives you extra room in "no-man's land" for front-to-back cable management and for mounting small devices on Lever LockT freeing up valuable rackspace.
  • Solid sided for single rack applications. Can also be ganged together for rack separation and/or thermal managment considerations.
  • Innovative side lacing on the Forward rear rackrail provides flexibility for internal cabling and accepts the Forward vertical cable management products.
  • Breakthrough design provides high strength without extra weight
  • UL 1678, Seismic and OSHPD OPM Certified
  • Wide open top and bottom offer many cabling and cooling options
  • Accepts extender bay to add 3" of useable depth to the front or rear of the enclosure
  • Accepts brush grommet rear door kit for a large cable passage without fishing
  • Pre-threaded ganging holes allow ganging while enclosure is fully loaded


• Specifications:

  • General Info
  • Gangable: Yes
  • Finish: Black Powder Coat
  • UL Standards Tested: UL1678

    Listing Agencies/Third Party Certifications
  • ASCE: 7-10
  • OSHPD: Yes - OPM
  • RoHS: Yes
  • Greenguard: Yes
  • UL Listing No: E173107

    Dimensions
  • Usable Depth: 29.4
  • Usable Height: 43.875
  • Panel Width: 19
  • Capacity Weight (US): 12000
  • Depth (Metric): 812.80
  • Depth (US): 32
  • Height (Metric): 1216.02
  • Height (US): 47.875
  • Width (Metric): 584.20
  • Width (US): 23
  • Rack Units: 25

    Technical Information
  • Rackrail Type: Forward Rackrail
  • Seismic Load Capacity: 1175
  • UL Load Capacity: 3000
  • Material: Steel
  • Mounting: Horizontal
  • Seismic Rating: Yes
