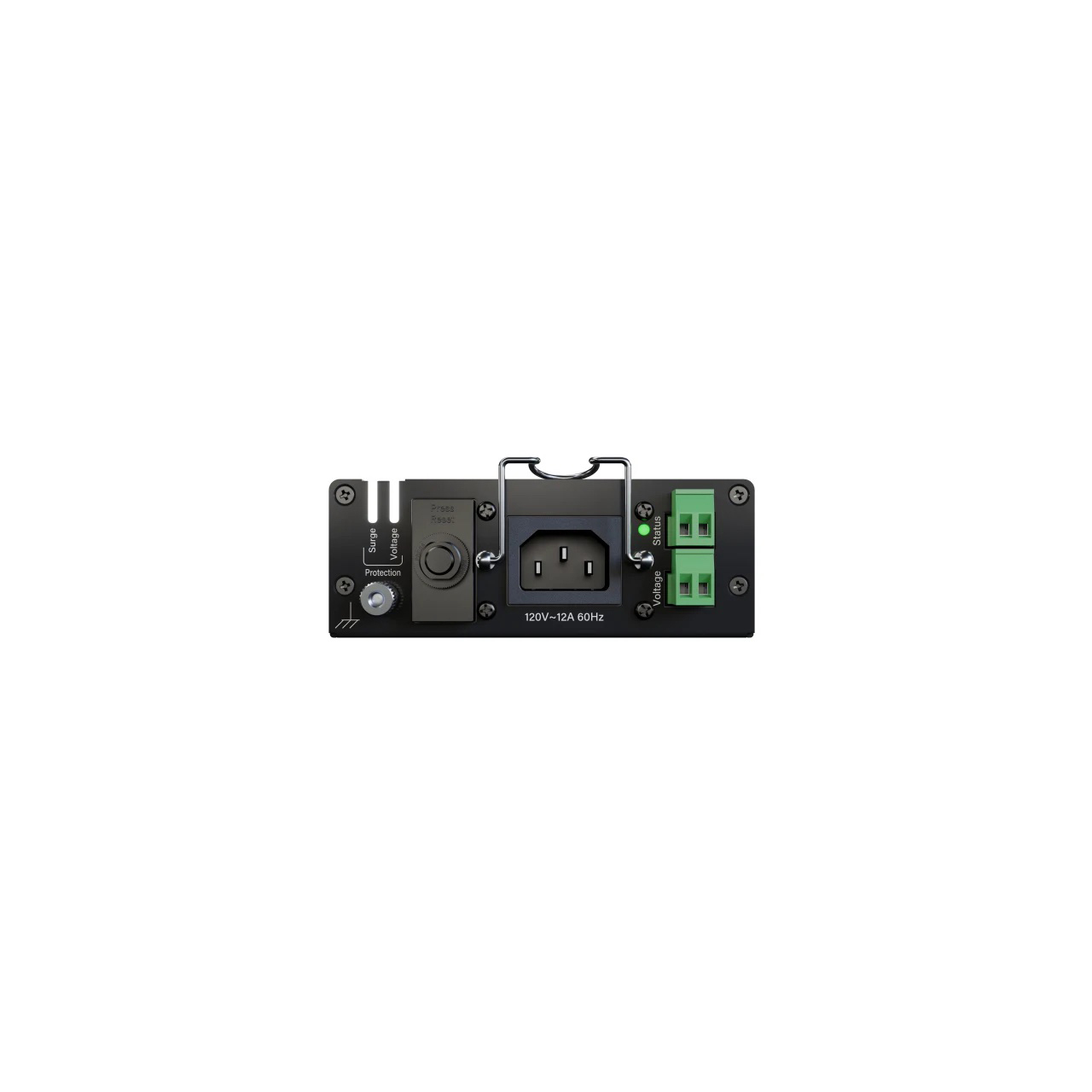

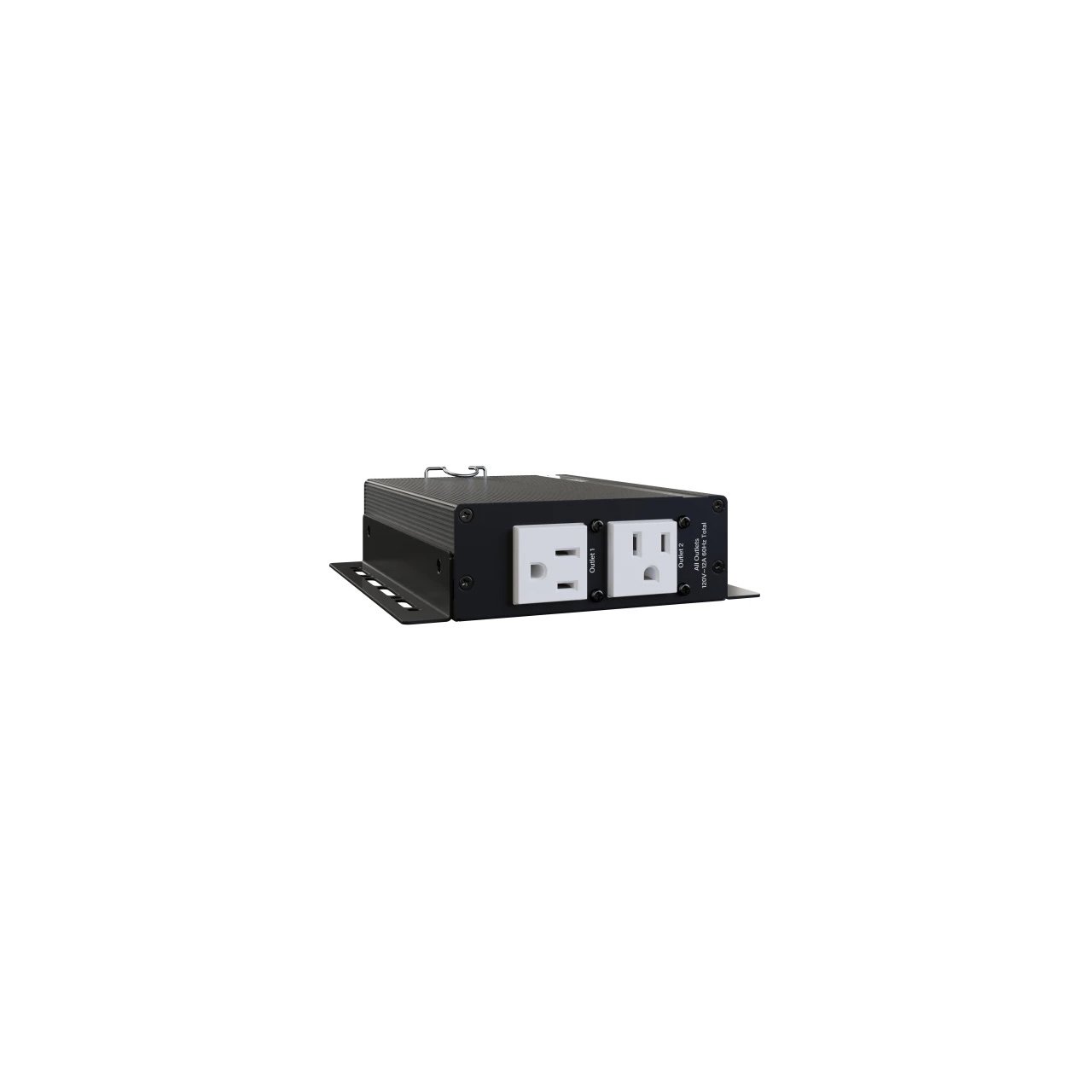

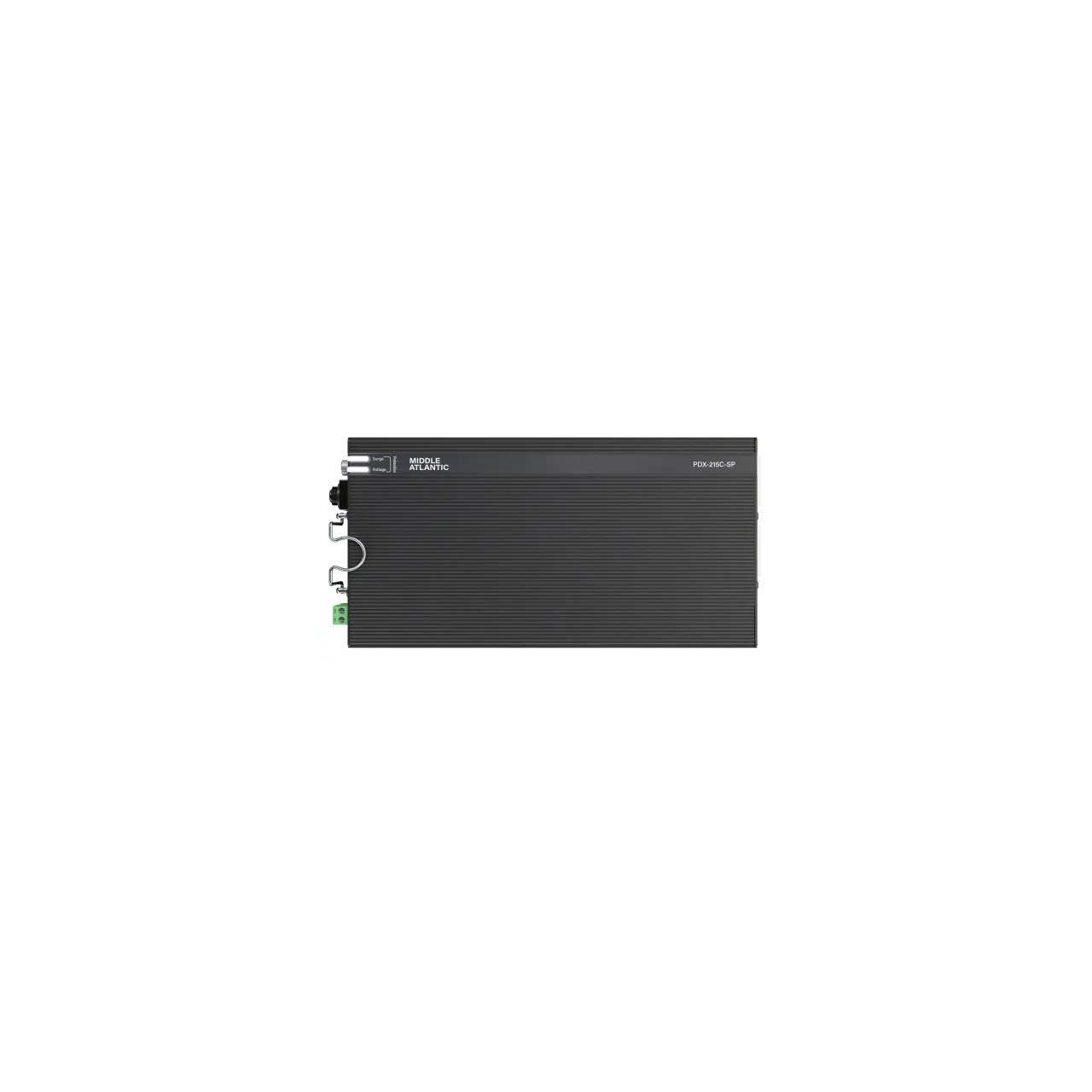

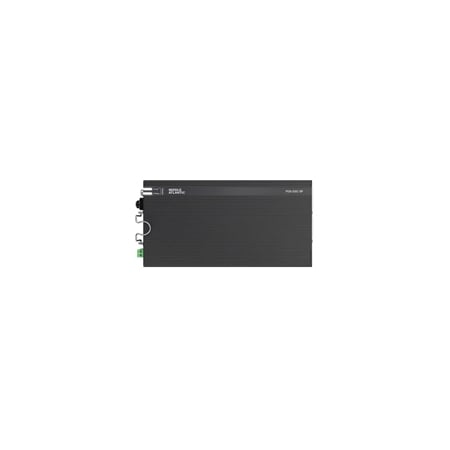

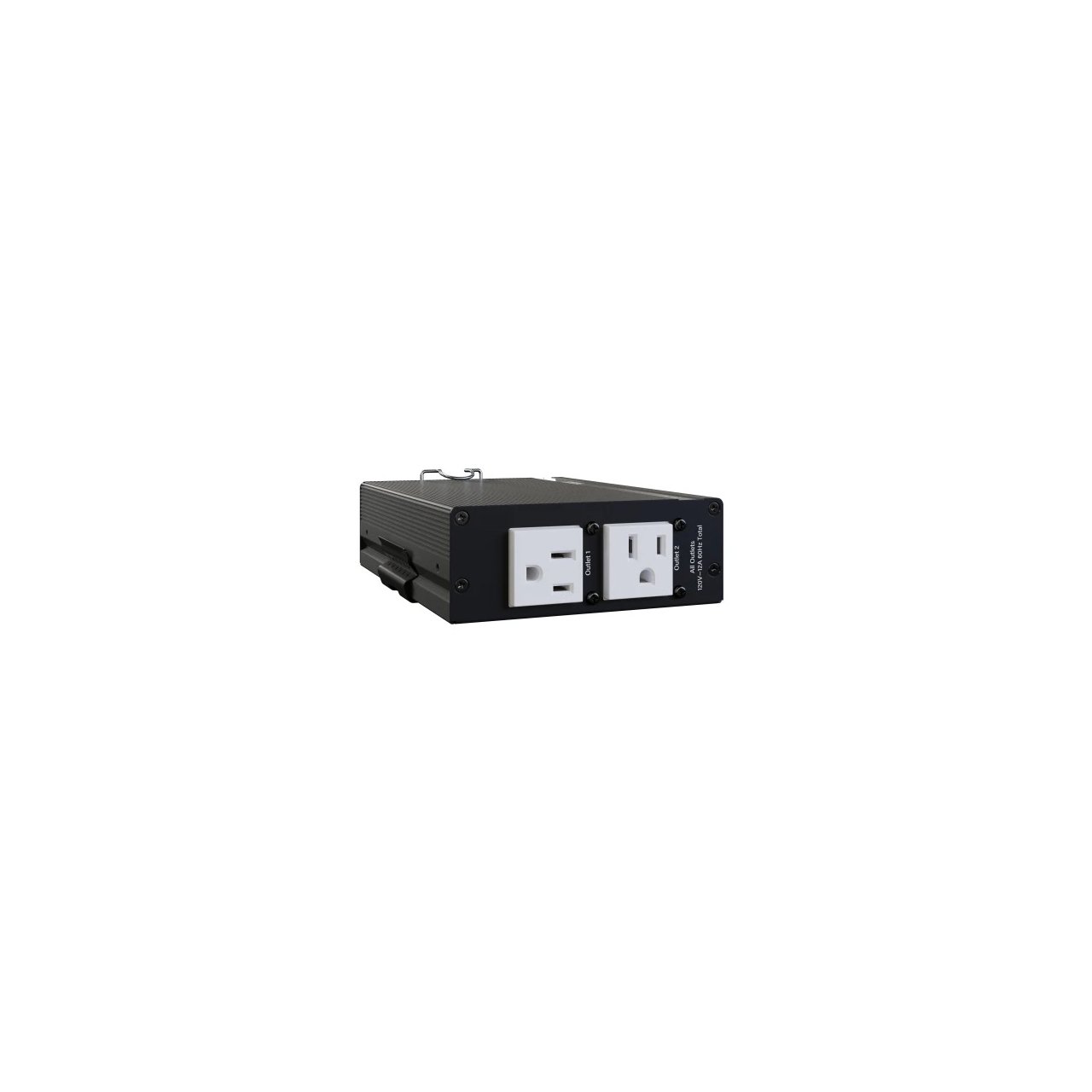

Middle Atlantic PDX-215C-SP NEXSYS 2 Outlet/15 Amp Compact Power Distribution Unit with Enhanced Series Surge Protection

ITEM #: MAP-PDX-215C-SP MFG #: PDX-215C-SP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$420.00

Our Price:

$378.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PDX-215C-SP - Overview

15A with (2) NEMA 5-15R Outlets

Middle Atlantic PDX-215C-SP NEXSYS PDU is perfect for "behind-the-display" applications, especially digital signage. The NEXSYS Compact PDU includes (2) mounting options for mounting flexibility, a clamp and L-brackets.

Worried about the under/over voltage? Don't. With the selectable on/off voltage protection from the dry contact port, it gives the option to protect sensitive equipment from over/under voltage scenarios. If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.

Tired of blocked outlets? You pay for 2 outlets and Middle Atlantic thinks you should be able to use all 2 outlets! The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.

  • Features:

    • 20A with (6) NEMA 5-20R Outlets
    • The compact design of this NEXSYS PDU is perfect for "behind-the-display" applications, especially digital signage.
    • The NEXSYS Compact PDU includes (2) mounting options for mounting flexibility, a clamp and L-brackets.
    • Easily attach both mounting solutions to a Lever Lock plate for tool-free mounting inside a rack, kiosk, in-wall box, etc.
    • Industry's fastest patented non-degrading surge technology
    • Protects equipment without contaminating system ground
    • Industry-leading 12 year warranty
    • 100% MOV-free design - unlike any competitive offering
    • With the selectable on/off voltage protection from the dry contact port, it gives the option to protect sensitive equipment from over/under voltage scenarios.

  • Specifications:

    • AC Voltage Input: 120 VAC
    • AC Voltage Output: 120V
    • Amps: 15 Amp
    • Cord Length: 2 ft (0.6 m)
    • Depth: 9 in (22.9 cm)
    • Height: 1.74 in (4.4 cm)
    • Rack Units: 0 RU
    • Width: 4.65 in (11.8 cm)
    • Isolated Ground: No
    • Outlet Count: 2
    • Plug Type: NEMA 5-15P
    • Receptacle Type: NEMA 5-15R
    • Special Features: NEXSYS PDU
    • Surge Protection Type: Series Protection
    • Certifications: UL Listed

  • Item Includes:

    • 1x Middle Atlantic PDX-215C-SP NEXSYS 2 Outlet 15 Amp Compact Power Distribution Unit with Enhanced Series Surge Protection

  • Warranty:

    • 12 Years

  • GTIN:

    0656747396441
