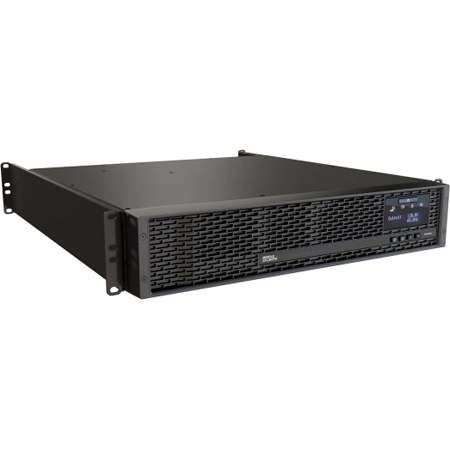

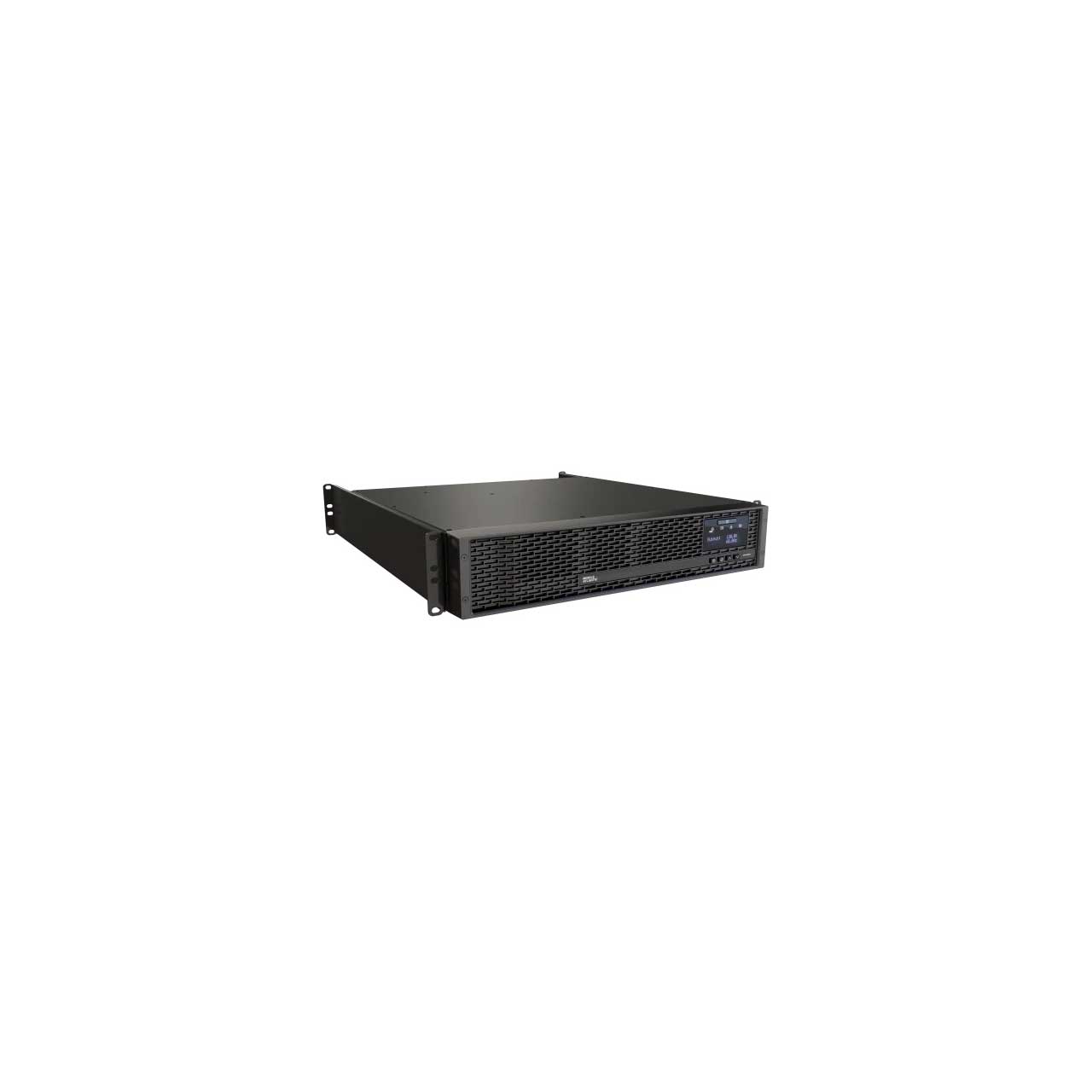

Middle Atlantic NEXSYS UPS Backup Power System with Bank Outlet Control - 1000 VA

UPX-1000R-2 - Overview

• Features:

  • An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations- Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail. The battery is already connected so just plug it in.
  • Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
  • "NEXSYS, alert me when." Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
  • The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6' (1.8m) IEC power cord.
  • U.S. Department of Energy Compliant for energy efficiency

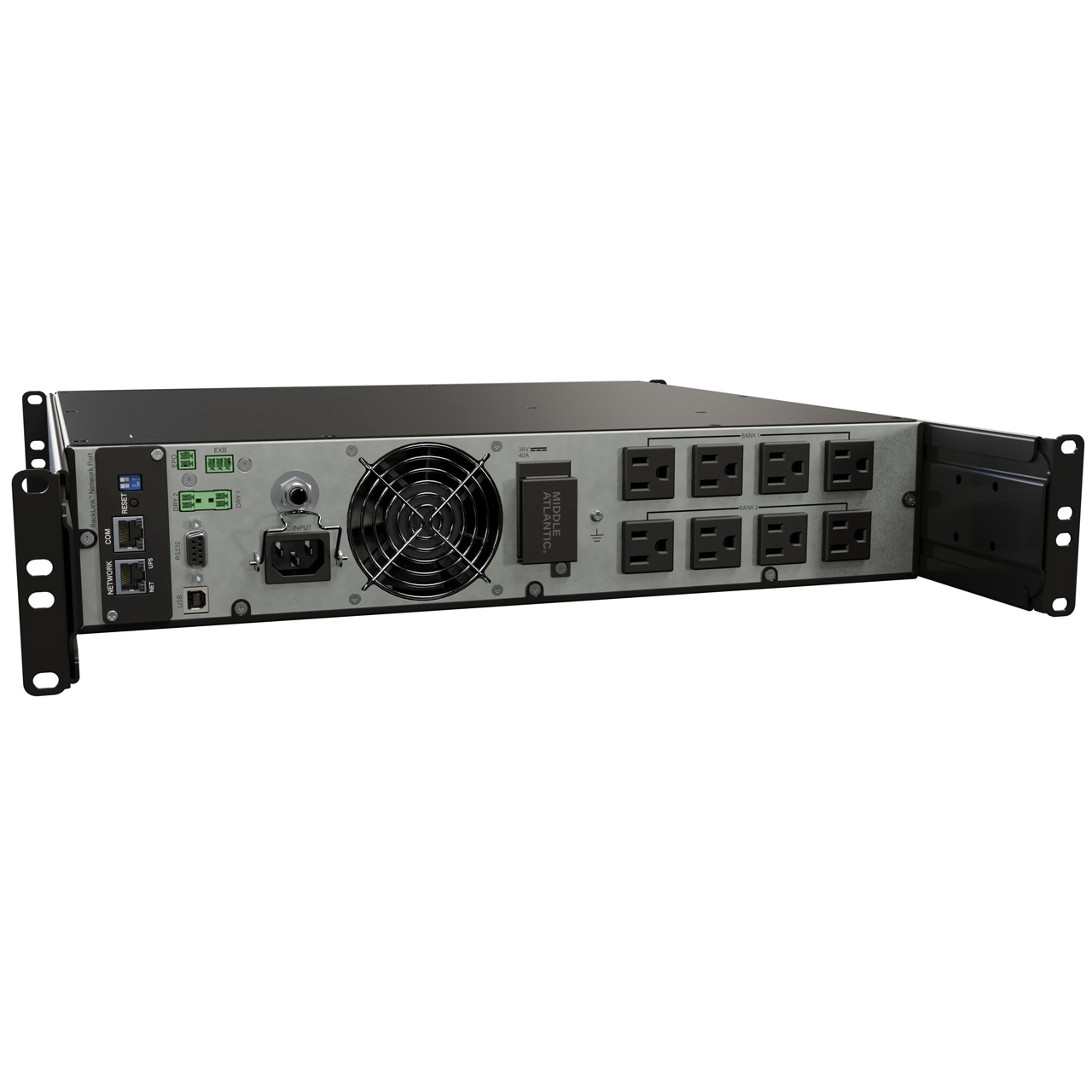

  • 8 Outlets with Bank Control
  • (2) outlet banks with 4 outlets each
  • 1000VA and 15 Amp

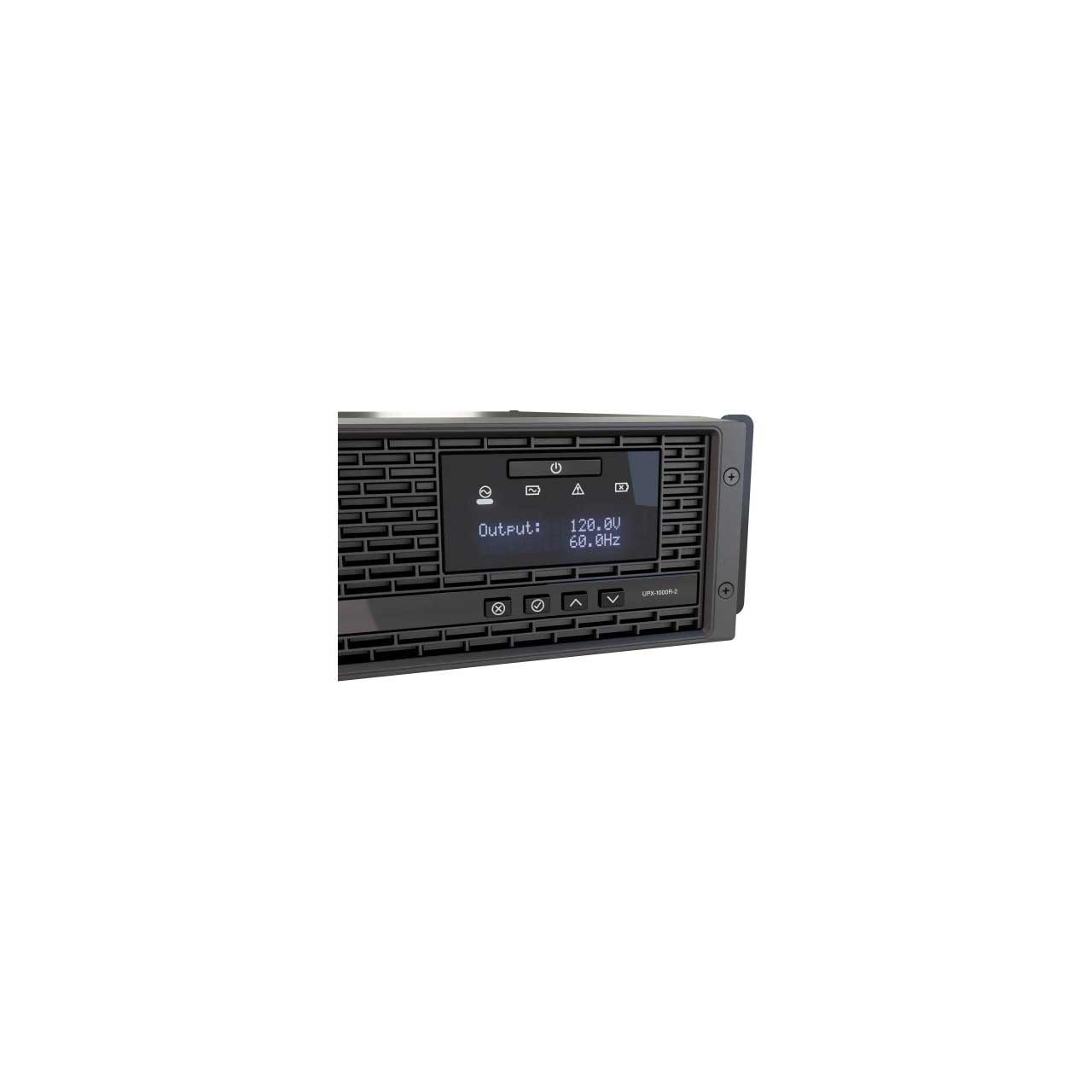

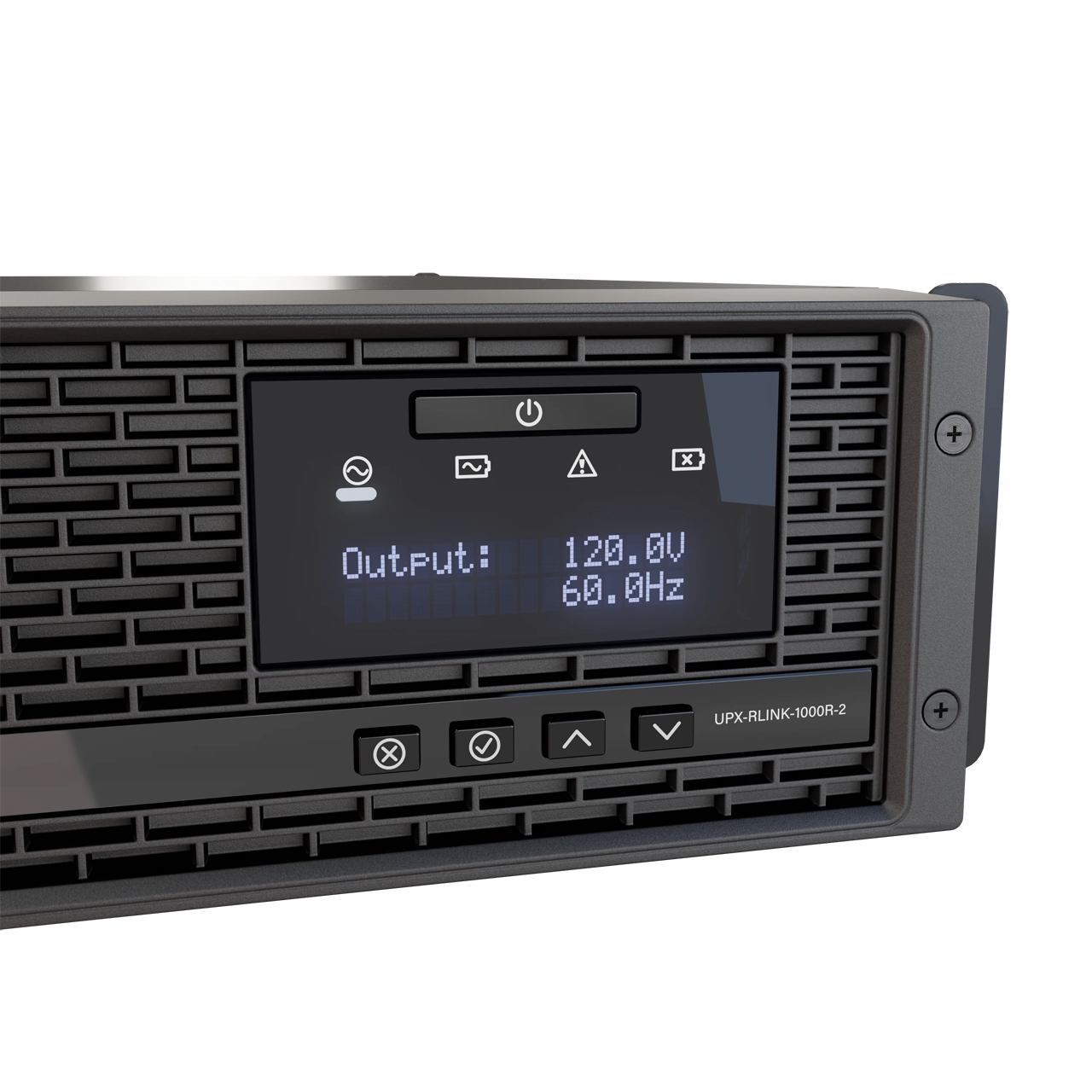

  • Name, address, and date of birth, please? Easily locate the Serial Number, replacement Battery Part Number, Battery Replacement Date, and UPS Firmware Version via the front LCD screen. You can even see the battery installation date.
  • Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
  • Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
  • Swap it like it's hot. Hot swappable battery from the front access panel for easy service without disrupting the system
  • Add RackLink™ Remote Management. The NEXSYS UPS is RackLink compatible (RackLink card sold separately) and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.
  • Included RS232 port for control
  • (2) dry contact ports for alerts - 1 contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold. 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds
  • Energy Star Certified


• Specifications:

  • Dimensions & Measurements
  • AC Voltage Input: 120 VAC
  • AC Voltage Output: 110-127 VAC
  • Amps: 15 Amp
  • Cord Length: 6 ft (1.83 m)
  • Depth: 16 in (40.64 cm)
  • Height: 3.46 in (8.79 cm)
  • Mounting Depth Max: 36 in (91.44 cm)
  • Mounting Depth Min: 22 in
  • Operating Temperature: 32F - 104F
  • Primary Package Weight: 54 lbs (24.49 kg)
  • Product Weight: 44.1 lbs (20 kg)
  • Rack Units: 2 RU
  • VA: 1,000 VA
  • Volts AC: 120 VAC
  • Volts DC: 36 VDC
  • Watts: 900 W
  • Width: 19 in (48.26 cm)

    Characteristics & Features
  • Color: Black
  • Federal Ops Country of Origin: China
  • Isolated Ground: No
  • Mounting Points: 4
  • Network Card Included: No
  • Network Enabled: Yes
  • Outlet Control Type: Bank
  • Outlet Count: 8
  • Plug Type: NEMA 5-15P
  • Receptacle Type: NEMA 5-15R
  • Surge Protection Type: MOV
  • Topology: Line Interactive

    Certifications
  • CSA
  • cTUVus tested to UL1778
  • FCC Class A
  • REACH
  • RoHS


• Item Includes:

  • 1x Middle Atlantic UPX-1000R-2 NEXSYS 2RU 1000VA 120V UPS Backup Power System - (2) Outlet Banks with 4 Outlets Each
  • 1x 6' (1.8m) IEC power cord


• Warranty:

  • 2 Years Battery / 3 Years
