Tripp Lite SMART1000RMXL2U 1000VA 900W UPS Smart LCD Rackmount AVR 120V USB DB9 2URM

ITEM #: TRL-S1000RMXL2U MFG #: SMART1000RMXL2U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,243.00

Our Price:

$843.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SMART1000RMXL2U - Overview

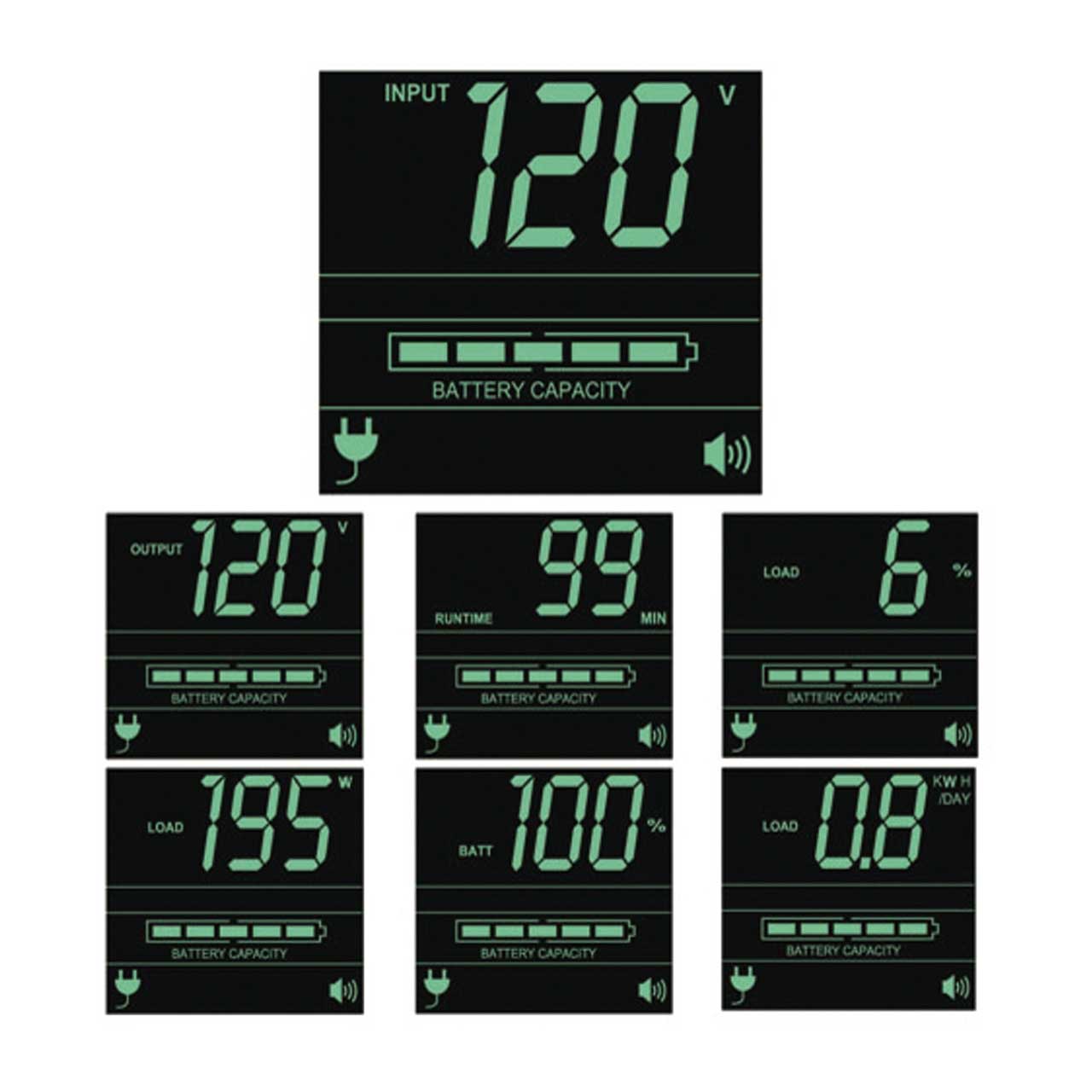

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 97% full load efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

  • Features:

    • Tripp Lite SMART1000RMXL2U line interactive 2U rack/tower UPS with 1000VA / 1kVA / 900 watt capacity
    • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 147V

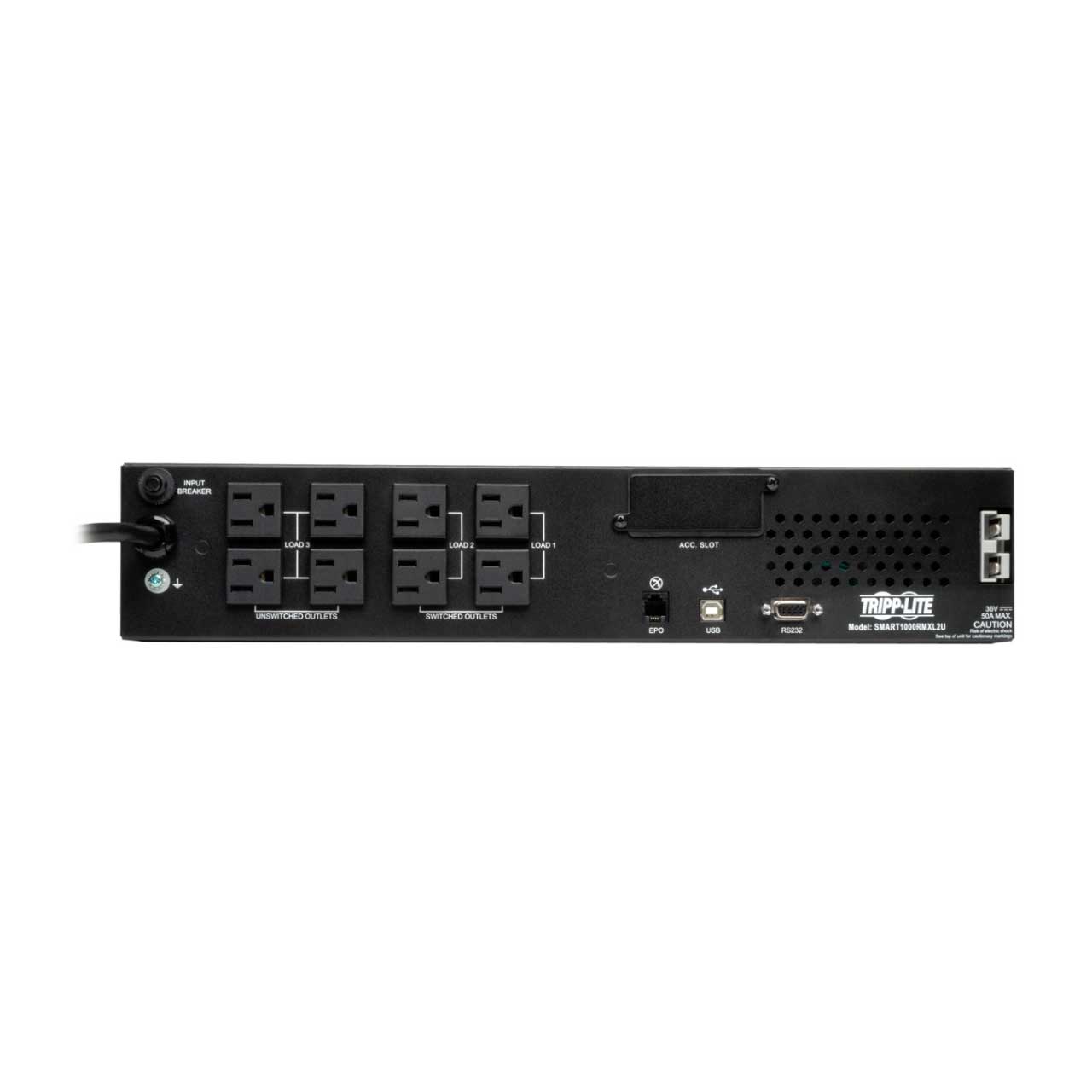

    • NEMA 5-15P input plug; 8 NEMA 5-15R output receptacles, Two independently switchable output load banks
    • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages

  • Specifications:

    • Output Capacity Details Max output de-rates to 800 watts with external battery packs connected
    • Output Volt Amp Capacity (VA) 1000
    • Output kVA Capacity (kVA) 1
    • Output Watt Capacity (Watts) 900
    • Power Factor 0.9
    • Nominal Output Voltage(s) Supported 120V
    • Frequency Compatibility 60 Hz
    • Output Voltage Regulation (Line Mode) 120V (+6%, -14%)
    • Output Voltage Regulation (Battery Mode) +/-5%
    • Output Receptacles (8) 5-15R
    • Load Management Receptacles Two switchable two outlet 5-15R load banks
    • Output AC Waveform (AC Mode) Pure Sine wave
    • Output AC Waveform (Battery Mode) Pure Sine wave
    • Rated input current (Maximum Load) 9.2A
    • Nominal Input Voltage(s) Supported 120V AC
    • UPS Input Connection Type 5-15P
    • UPS Input Cord Length (ft.) 10
    • UPS Input Cord Length (m) 3
    • Recommended Electrical Service 15A 120V
    • Input Phase Single-Phase
    • Full Load Runtime (min.) 6.3 min. (900w)
    • Half Load Runtime (min.) 18 min. (450w)
    • Expandable Battery Runtime Extended runtime supported via optional external battery packs
    • External Battery Pack Compatibility BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27-2US (multi-pack compatible)
    • DC System Voltage (VDC) 36
    • Battery Recharge Rate (Included Batteries) Less than 4.5 hours from 10 to 90% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge RBC93-2U
    • Battery Access Front panel battery access door
    • Battery Replacement Description Hot-swappable, replaceable batteries
    • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
    • Overvoltage Correction Input voltages between 127 and 147 are reduced by 12%
    • Undervoltage Correction Input voltages between 104 and 83 are boosted by 14%
    • Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
    • UPS AC Suppression Joule Rating 570
    • EMI / RFI AC Noise Suppression Yes
    • AC Suppression Response Time Instantaneous

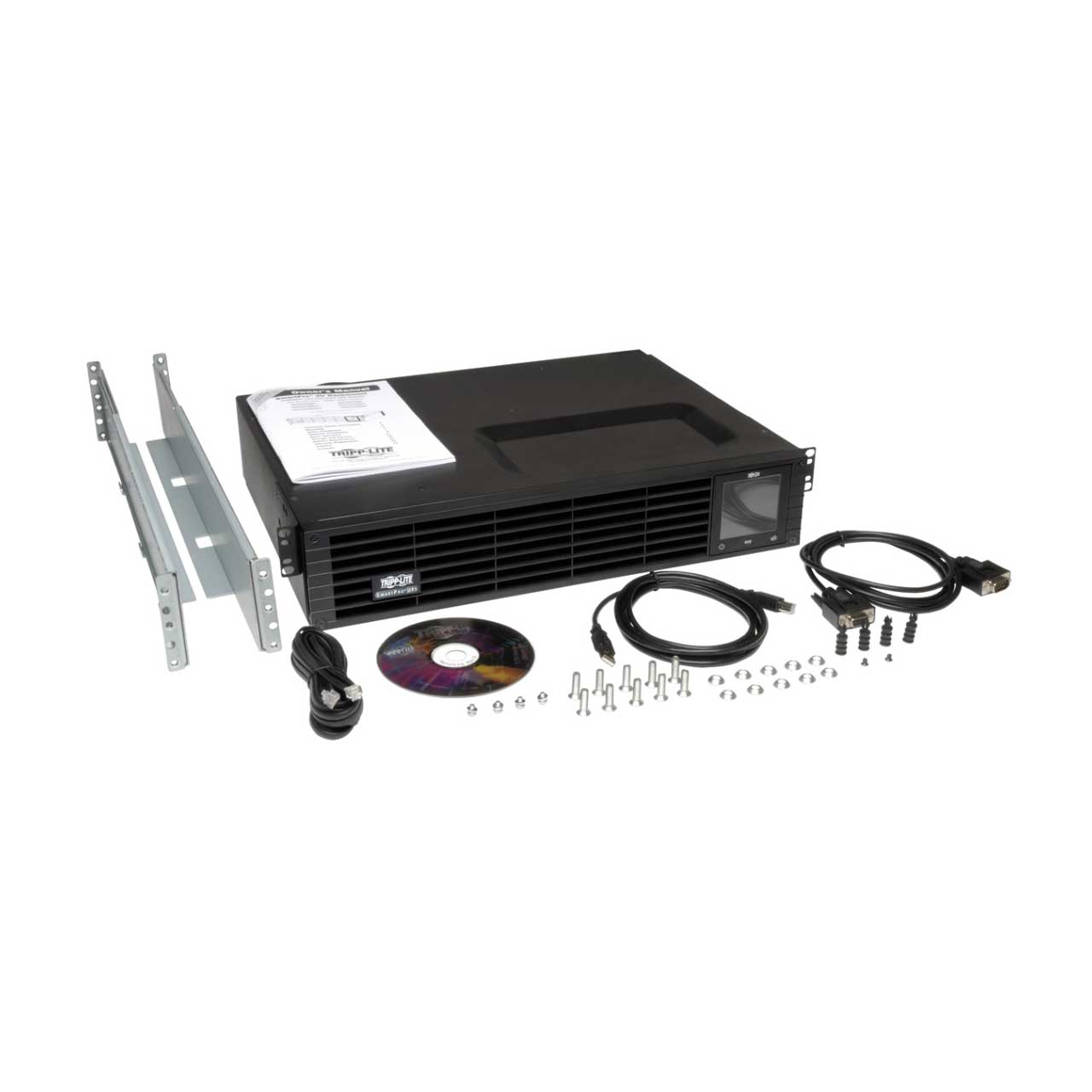

    • Included Mounting Accessory Description 4 post rackmount installation accessories included
    • Primary Form Factor Rackmount
    • UPS Power Module Dimensions (hwd, in.) 3.5 x 17.5 x 13.5
    • Rack Height (U Spaces) 2
    • UPS Power Module Weight (lbs.) 45.5
    • UPS Shipping Dimensions (hwd / in.) 9 x 23.5 x 23.5
    • Shipping Weight (lbs.) 56.5
    • Cooling Method Fan
    • UPS Housing Material Steel
    • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load) 89
    • Battery Mode BTU / Hr. (Full Load) 540
    • AC Mode Efficiency Rating (100% Load) 0.97
    • Communications Interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
    • Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
    • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Transfer Time 4 milliseconds (AC to battery mode), 3 millisecond (Battery to AC mode)
    • Low Voltage Transfer to Battery Power (Setpoint) 83
    • High Voltage Transfer to Battery Power (Setpoint) 147
    • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
    • High Availability UPS Features Hot swappable batteries
    • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks; Schedulable daily hours of economy mode operation
    • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
    • Product Warranty Period (Worldwide) 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
    • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance

  • GTIN:

    0037332160546
