Marshall V-MD1012 Dual Modular 10.0 Inch LCD Rack Monitor

ITEM #: MAR-V-MD1012 MFG #: V-MD1012

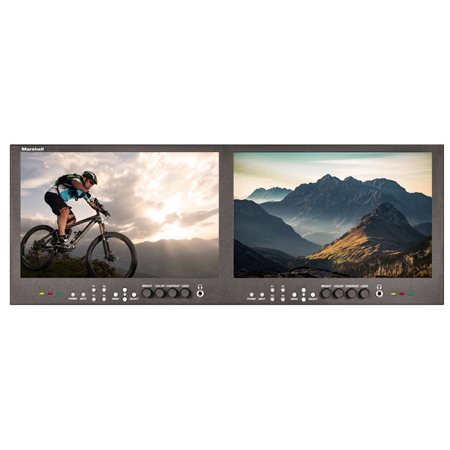

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MAR-V-MD1012

V-MD1012 - Overview

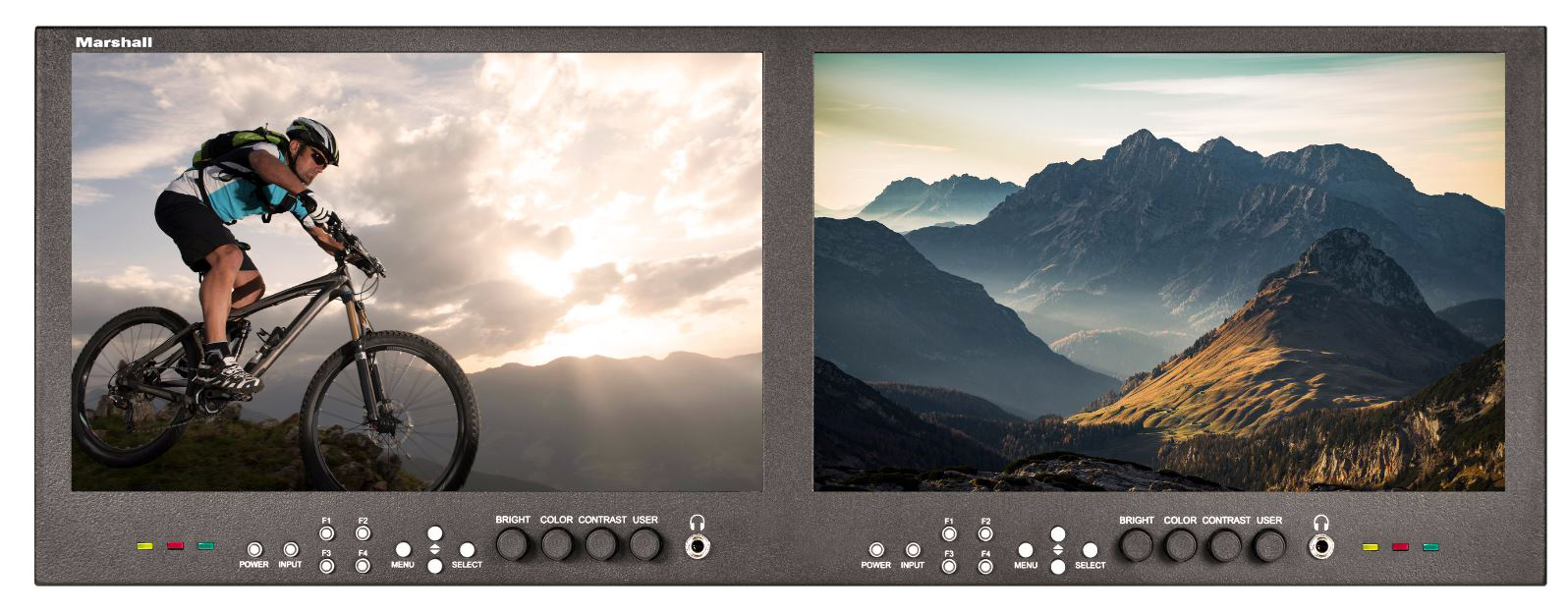

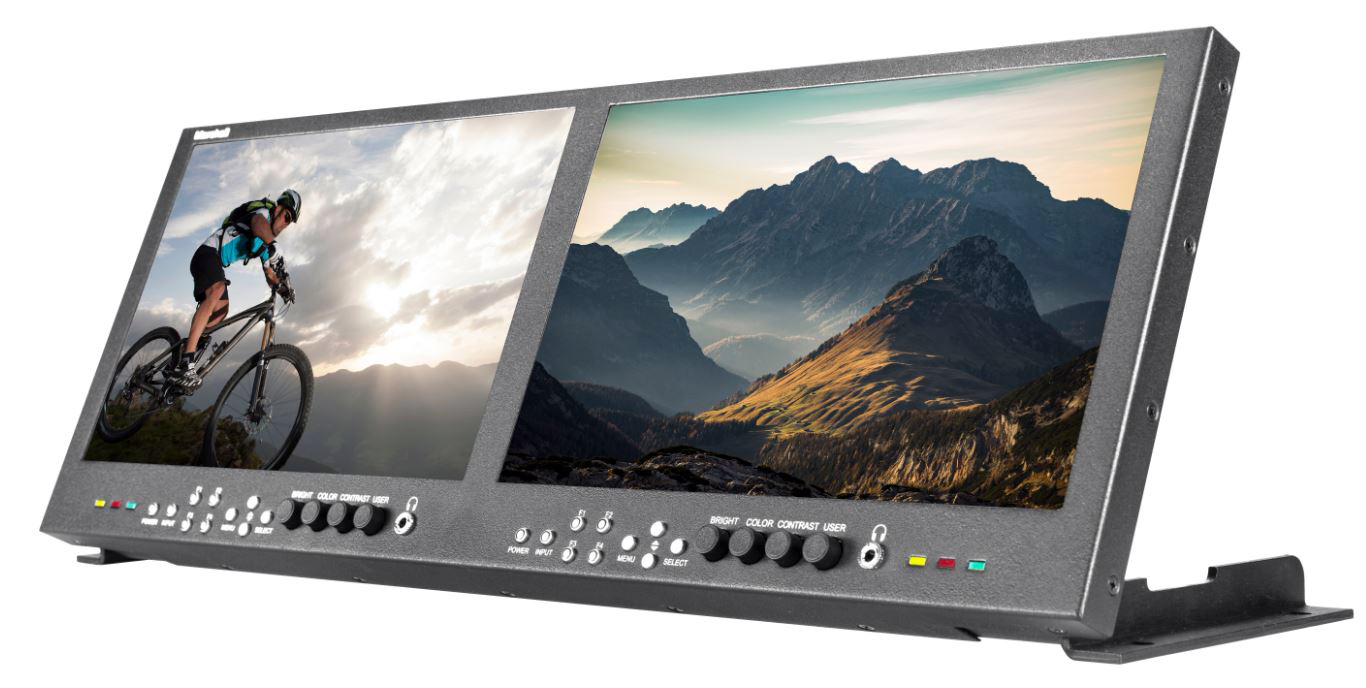

The Marshall Electronics V-MD1012 features two 10.1-inch LED high resolution (1920 x 1200) displays in a rack-mounted design with easily accessible back panels and swappable input modules. The dual independent displays include fully-adjustable crop, aspect ratio, and markers to dial in any kind of desired framing, as well as an easy-to-use graphical user interface.

The V-MD1012 can monitor two independent channels simultaneously, providing accurate details on false color, peaking, audio clipping, color temperature, and more, and includes four user-programmable preset buttons to take you immediately to any monitoring function.

Please note! Input Modules sold separately. Image is for reference only!

  • Features:

    • Modular 3G-SDI, HDMI, and DVI (optional) inputs and outputs for "future proofing" and compatibility with legacy systems

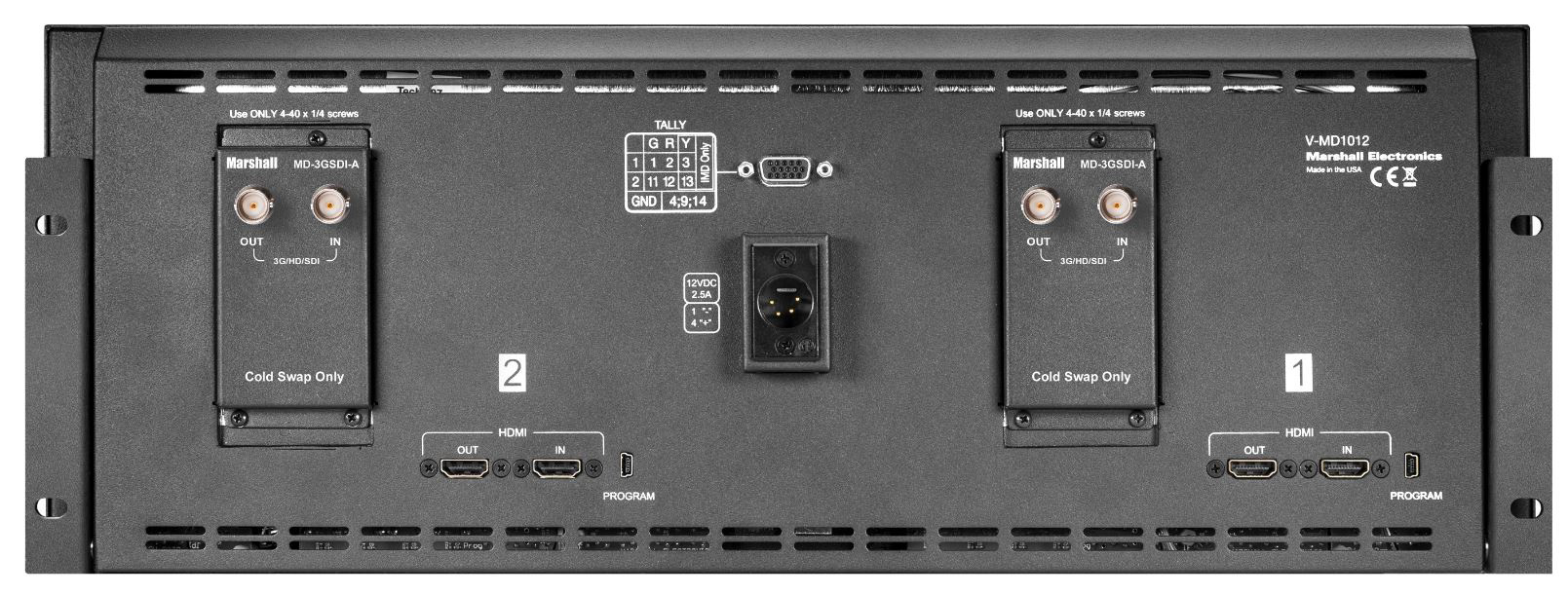

    • Hinged mount for easy access to back panel
    • Loop-through functionality for confidence monitoring
    • Two-channel audio analysis window with up to 16 channels of audio monitoring
    • Fully-adjustable, customizable aspect ratio markers
    • Expanded crop and scaling functions to select any portion of image
    • Easy-to-use graphical interface

  • Specifications:

    • Panel
    • Number of Panels: 2
    • Panel Size: 10" Diagonal
    • Resolution: 1920x1200
    • Aspect Ratio: 16:10 (H/V)
    • Active Area: 217.44mm (H) x 135.9mm (V)
    • Brightness: 450 cd/m²
    • Contrast: 700:1>
    • Color Gamut: YUV, RGB
    • Viewing Angles (CR>=10): 85/85/85/85 (R/L/U/D)
    • Backlight type: LED
    • Adjustable Backlight: Yes
    • Tally / GPI: Tally

      Video Input/Output Connectors
    • 3G-SDI/HDSDI: MD-3GE Module Looped
    • HDMI: Standard Looped

      Mechanical
    • Controls on front Panel: Yes
    • User-Defined Function Buttons: Yes
    • RotoMenu Control: No
    • Pivot Angle: Yes
    • Handles/Rack Ears: Yes

      Power
    • Voltage: 12 VDC
    • Power Consumption: 2.5A @ 12VDC (30W)
    • Power Switch: Yes
    • Connector: 4-Pin XLR

      Physical
    • Compliance: CE approved
    • Operating Temperature: 32° F to 104° F
    • Storage Temperature: -4° F to120° F
    • Dimensions (W x H x D): 18.97" x 6.95" x 2.09"
    • Weight: 5.1 Lbs

  • GTIN:

    0801813185942
