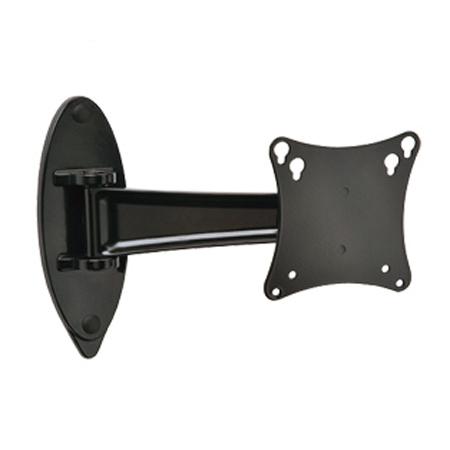

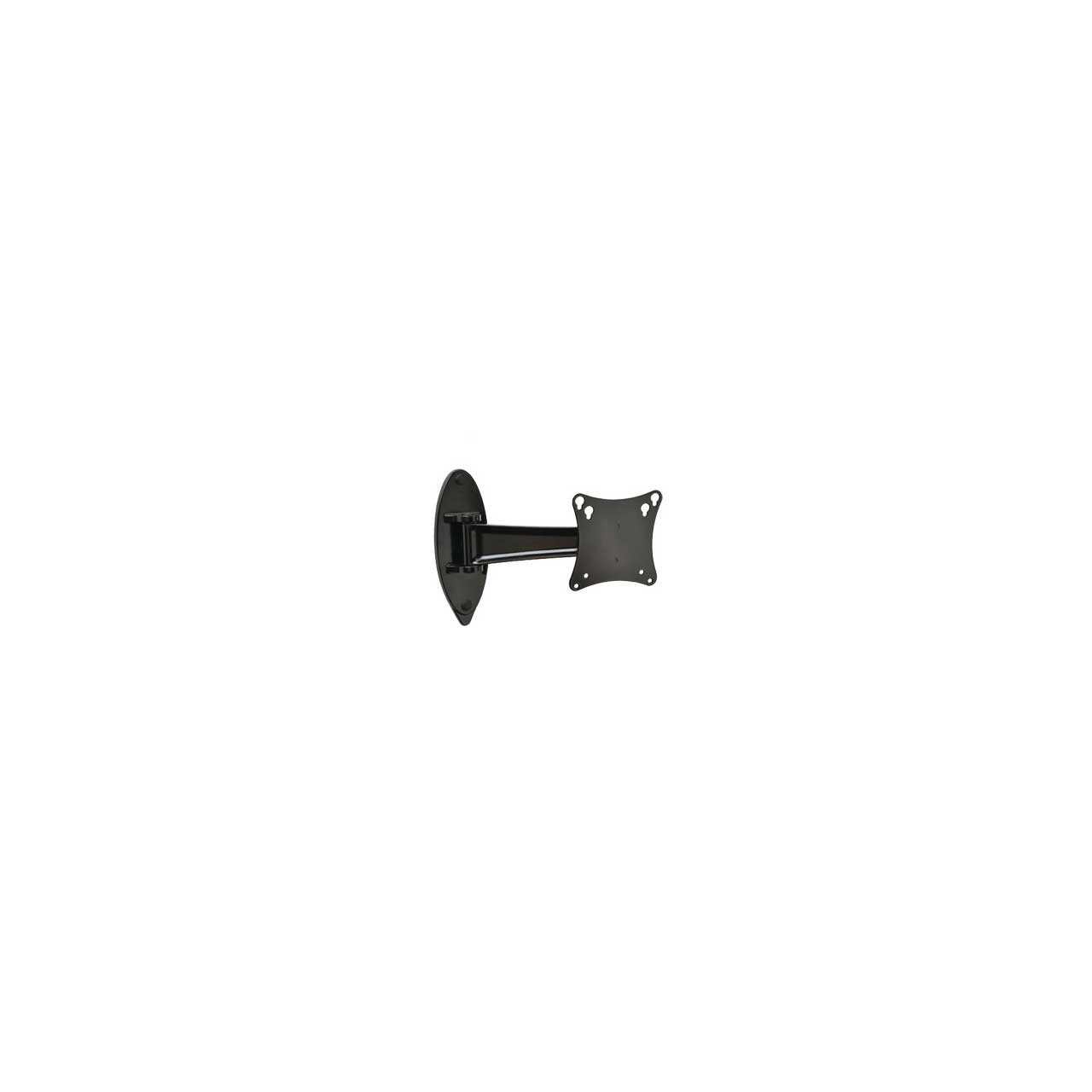

Peerless-AV SP730P SmartMount Pivot Arm for 10in - 29in LCD Screens VESA Weighing Up to 25 lb

ITEM #: PER-SP730P MFG #: SP730P

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$129.00

Our Price:

$89.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SP730P - Overview

Matching elements of easy installation and user-friendliness are found in this pivot mount. It boasts a low-profile wall plate design that easily attaches to the wall with only two screws. The pivot arm extends away from the wall with ease and closes back up to save space. The arm's multiple pivot points allow the flat panel display to swivel, tilt and roll for the perfect viewing angle adjustment and display leveling. Its fully integrated cable management system eliminates unsightly cable clutter and provides a safeguard for the cables. Designed and built in the USA, this mount maintains the same brilliant look as the entire SmartMount 700 Series line of Articulating and Pivot Wall Arm Mounts.

  • Features:

    • Compatible with 10" to 29" displays with mounting hole patterns of 75 x 75 and 100 x100mm
    • Display can be held as close to the wall as 2.44" (62mm) or be extended as far as 9.31" (237mm)
    • Pre-tensioned tilt mechanism offers up to +/- 35 degree of One-Touch tilt
    • +/-7 degree of roll allow for post-installation leveling
    • Display can be swiveled a full ±45° for obtaining ideal viewing direction
    • Integrated cable management system makes running cables simple while keeping the cables protected
    • UL Listed

  • Specifications:

    • Minimum to Maximum Screen Size: 10" to 29"
    • VESA Pattern: 75 x 75, 100 x 100
    • Mounting Pattern: 75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94")
    • Weight Capacity: 25lb (11.0kg)
    • Color: Black
    • Finish: High Gloss
    • Security Features: Non-Security Hardware
    • Tilt: +35 / -35
    • Swivel Yaw: +90 / -90
    • Roll: +7 / -7
    • Distance from Wall: 2.44 x 9.31" (62 - 237mm)
    • Product Dimensions: 10.77 x 8.06 x 2.44 - 9.31" (274 x 205 x 62 - 237mm)
    • Ship Dimensions: 4.33 x 4.33 x 8.07" (110.0 x 110.0 x 205.0mm)
    • Shipping Weight: 2.2lb (1.2kg)

  • GTIN:

    0735029237365
