Mackie 3204VLZ4 32-channel 4-bus FX Mixer with USB

ITEM #: MCK-3204VLZ4 MFG #: 3204VLZ4

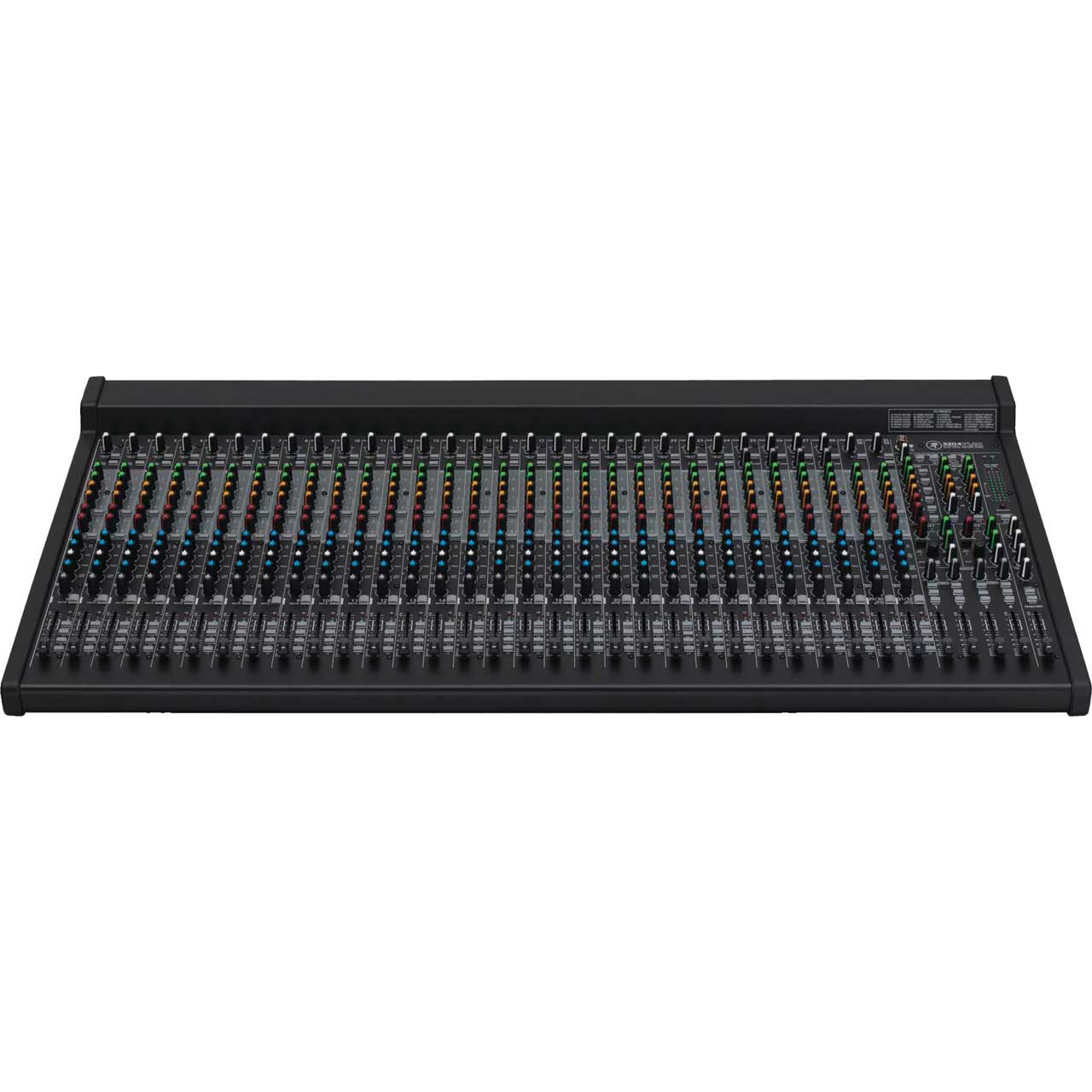

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,599.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


3204VLZ4 - Overview

The Mackie 3204VLZ4 is the ultimate "do-it-all" Live Sound Mixer, packed with a full set of processors allowing you to travel "rack free" while still making professional sounding mixes.

For starters, Mackie added not 1, but 2 of their patented Running Man FX processors (RMFX+™) featuring 24 "gig-ready" effects right into the board. This does not include useless effects such as "the warbler" or the "insanity delay", but rather a suite of quickly accessible and useable reverbs, choruses and delays that make coloring your mix a breeze.

Additionally, both FX processors feature a tap delay, typically only available on a outboard rack. Delays may easily be sync'd with the song at the tap of a finger. And because of flexible routing, the processed signal may be sent direct to the mains and monitors from the effects section or re-routed to the two stereo channels to bring them through the EQ and aux section, utilizing the 60mm fader to draw them into the mix.

But wait, there's more! The VLZ4 4-Bus has 8 (yes, 8!!) single knob compressors to stop the dynamic signals from poking out of the mix. 4 compressors are located on the last 4 mic inputs so that the most critical signals (such as vocals, snare drum or the occasional jaw harp) may be addressed. Plus, there are single knob compressors on each of the 4 subgroups so that grouped signals (such as a drum set or a choir of didgeridoos) may be blended together for paramount smoothness.

The VLZ4 4-Bus Series Mixers also feature a 4x2 USB recording and playback function. This means that up to 4 signals may be recorded simultaneously and a stereo mix returned to the mixer for playback.

Bottom line? You have an awesome mixer with VLZ4 sound quality, "Built-Like-A-Tank" build quality and a recording and processing feature set that is unparalleled. Congratulations and happy mixing!!

  • Features:

    • 4-Bus mixer featuring Mackie's high-headroom, low-noise design
    • Boutique-quality Onyx mic preamps
    • Improved RF rejection, perfect for broadcast applications
    • Phantom power for condenser mics
    • Dedicated in-line channels compression for critical inputs
    • High-headroom line inputs with dedicated inserts
    • 3-band EQ with sweepable midrange
    • 18dB/oct 100Hz low-cut filyter on mic input channels
    • Level, pan, solo and oveload/mute LEDs on each channel
    • 4 subgroups featuring dedicated in-line compressors for total dynamic control
    • 6 aux sends with inserts, pre/post fader and internal/external FX send options
    • 2 stereo returns and 4 group outs wih inserts
    • Dual 32-bit RMFX+™ processors featuring 24 "gig-ready" reverbs, choruses, and tap delay for live applications
    • Integrated 4x2 24-bit USB interface
    • PFL/AFL solo modes
    • 60mm long-wearing log-taper faders
    • High-resolution 12-segment stereo meters
    • Sealed rotary controls resist dust and grime
    • "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
    • High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback
    • Universal power supply for worldwide use

  • Specifications:

    • Main Mix Noise
    • Main Mix Fader Unity, Channel Fader Down: -84.5dBu (-88.5dB Signal to Noise Ratio, ref +4dBu)
    • Main Mix Fader @ Unity, Channel Fader @ Unity: -80dBu

      Total Harmonic Distortion (THD)
    • Mic In to Insert Send: <0.001%
    • Mic In to Main Out: <0.005%

      Attenuation/Crosstalk
    • Channel Mute Switch Engaged: -90dBu
    • Channel Fader Down: -88dBu

      Equivalent Input Noise (EIN)
    • 150Ω Termination: -128.5dBu, 20Hz - 20kHz

      Common Mode Rejection Ratio (CMRR)
    • 1kHz: better than -70dB

      Max. Levels
    • Mic In: +21dBu
    • All Other Inputs: +21dBu
    • Main Mix XLR Out: +27dBu
    • All Other Outputs: +21dBu

      3-Band EQ (Mono Channels)
    • High Shelving: ±15dB @ 12kHz
    • Mid Peaking: ±15dB sweep 100Hz - 8kHz
    • Low Shelving: ±15dB @ 80Hz
    • Low Cut Filter: 18dB/octave, -3dB @ 100Hz

      4-Band EQ (Stereo Channels)
    • High Shelving: ±15dB @ 12kHz
    • High Mid Peaking: ±15dB @ 2.5kHz
    • Low Mid Peaking: ±15dB @ 400Hz
    • Low Shelving: ±15dB @ 80Hz

      USB
    • Format: USB 1.1
    • I/O: Stereo Input, 4 Channel Output
    • A/D/A: 24 bit, 44.1kHz/48kHz

      Power
    • Power Consumption: 65W, 100 - 120V AC, 50 - 60Hz
    • Operating Temperature: 32°F - 104°F

      Physical
    • Dimensions (HxWxD): 6" x 38" x 19.1"
    • Weight: 39lbs

  • Warranty:

    • 1 year

  • GTIN:

    0663961039924
