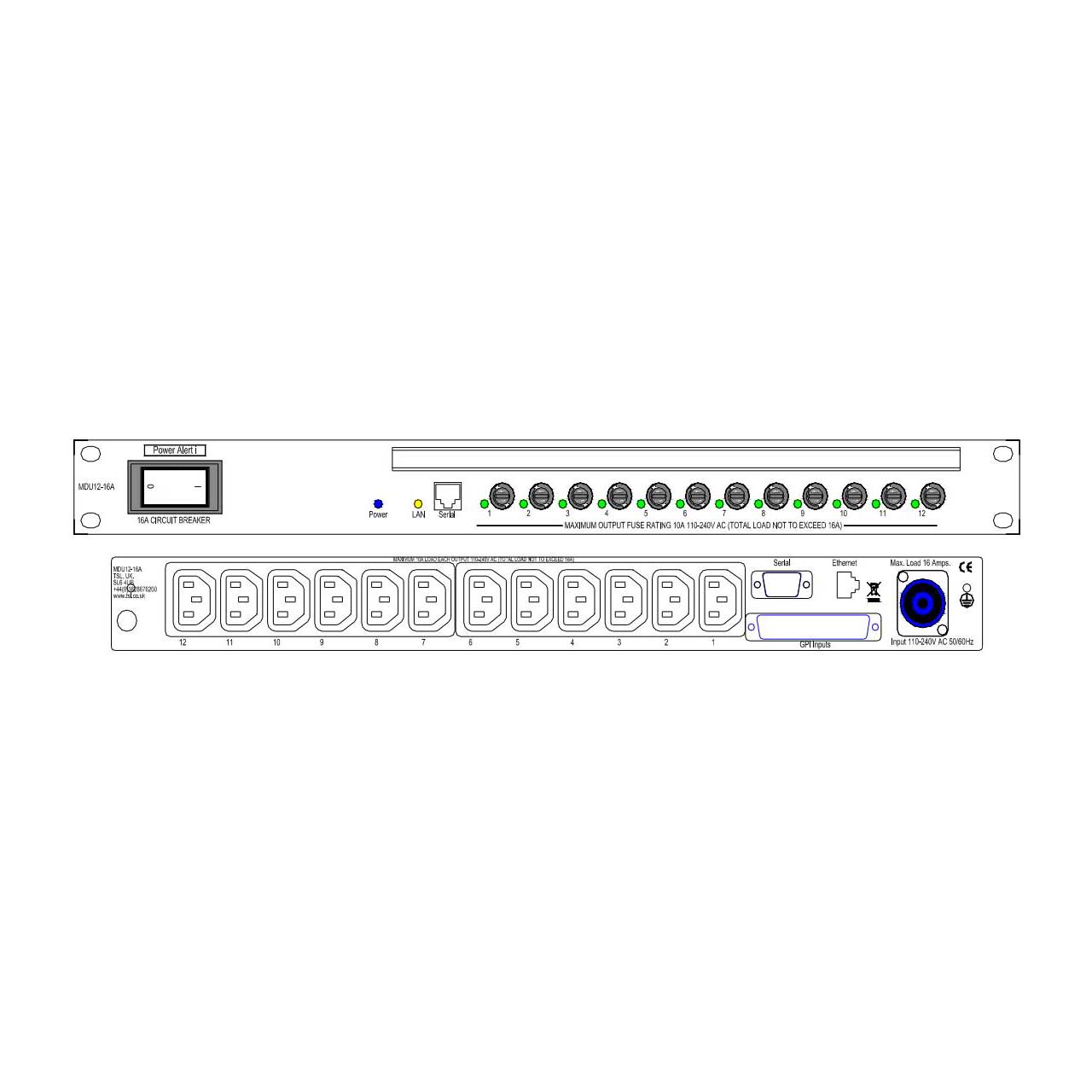

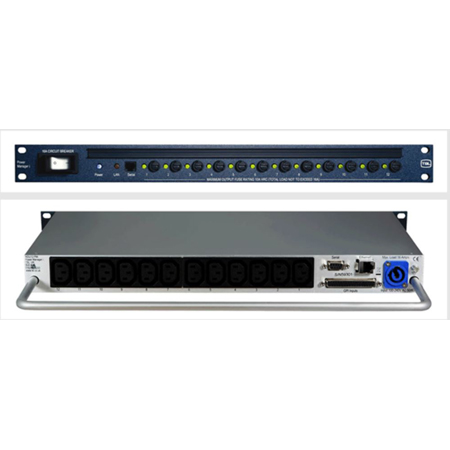

TSL Products MDU-12-PMi 16-Amp 2-way Power Managing Mains Distribution Unit with 16x GPIs

MDU-12-PMI - Overview

• Features:

  • Remote Ethernet control of 12 separate outputs via secure web browser
  • Overall Status page showing individual & total power consumption
  • Power Factor Monitoring
  • Sequential, immediate or user configured delayed output startup
  • Ethernet input power failure alarm
  • Internal temperature sensor with SNMP alarm
  • Unit and SNMP configuration via secure web browser interface
  • Front Panel LAN status LED
  • Tri-color output status LEDs
  • Rounded cable tie bar
  • Supplied with Powercon Input connector
  • Tri-colour front panel using status LEDs for rapid failure identification
  • Intuitive Graphic User Interface (GUI) for ease of set-up
  • Self contained operation with all software and hardware functions


• Specifications:

  • Power: 110-240V AC 16A Max. load, Power Consumption: 6W
  • Inputs: 16 x opto-isolated GPI alarm inputs
  • Features: Ethernet SNMP alarms and E-mail alerts for all 16 x GPIs and 12 x fuses
  • RS232: Setup via front and rear mounted connectors (RJ11 and D9)
  • Rack Mount: 1RU
  • Weight: 2.7Kg
  • Height: 44mm
  • Width: 483mm
  • Depth: 340mm Inc tiebar


• Item Includes:

  • 1x TSL Products MDU-12-PMI 16-Amp 2-way Power Managing Mains Distribution Unit with 16x GPIs
