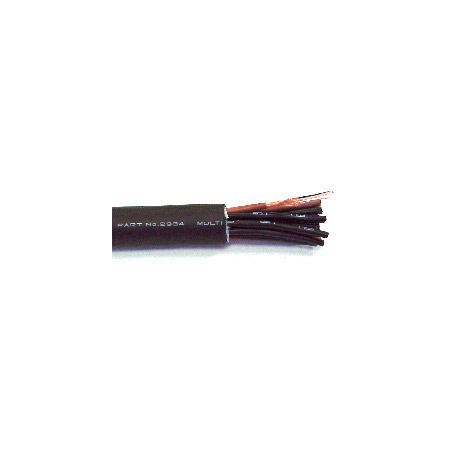

Mogami W2930 Multicore Microphone Snake Cable - 2 Pair - 500 Foot

MG-2930-500 - Overview

• Features:

  • Individually twisted shielded pairs
  • XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering
  • Rugged and flexible construction that is easy to handle, even at temperatures down to -4°F (-20°C)
  • Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped
  • Outer jackets of each pair are colour coded by standard resistor colour code, allowing quick identification of conductor pairs
  • Inner conductors are also colour coded based on the international standard resistor colour code. Each pair is colour coded by jacket and conductor colour combination.
  • Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.

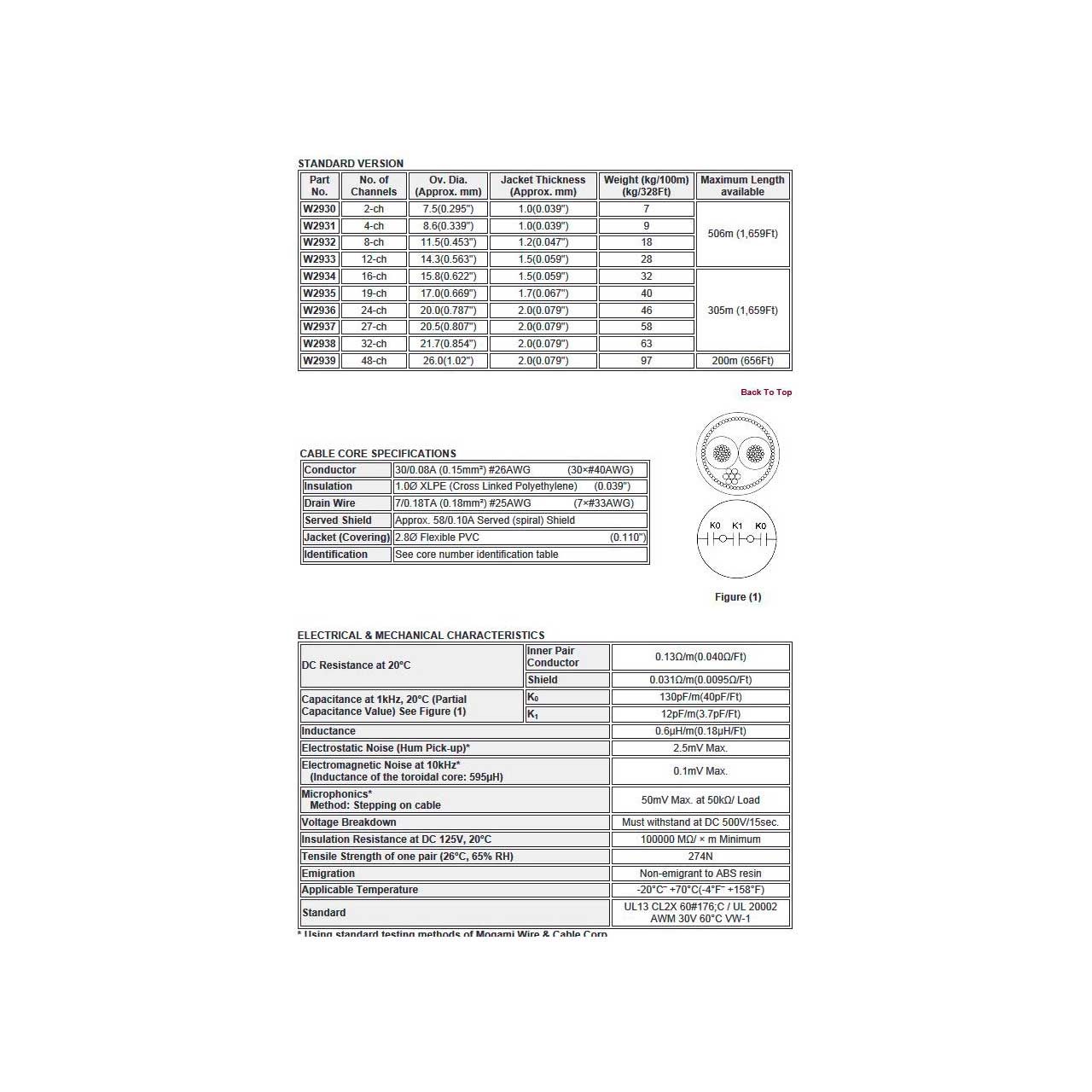

• Specifications:

  • Cable
  • Ov. Dia. (Approx. mm): 7.5 (0.295")
  • Jacket Thickness (Approx. mm): 1.0 (0.039")
  • Conductor: 30/0.08A (0.15mm²) #26AWG, (30x #40AWG)
  • Insulation: 1.0∅ XLPE (Cross Linked Polyethylene)(0.039")
  • Drain Wire: 7/0.18TA (0.18mm²) #25AWG (7x #33AWG)
  • Served Shield: Approx. 58/0.10A Served (spiral) Shield
  • Jacket (Covering): 2.8∅ Flexible PVC (0.110")

    Electrical & Mechanical
  • DC Resistance at 68°F (20°C):
    - Inner Pair Conductor: 0.13Ω/m (0.040Ω/ft)
    - Shield: 0.031Ω/m (0.0095Ω/ft)
  • Capacitance at 1kHz, 68°F (20°C):
    - K₀: 130pF/m (40pF/ft)
    - K₁: 12pF/m (3.7pF/ft)
  • Inductance: 0.6µH/m (0.18µH/ft)
  • Electrostatic Noise (Hum Pick-up): 2.5mV Max
  • Electromagnetic Noise at 10kHz: 0.1mV Max
    ^{(Inductance of the Toroidal Core: 595µH)}
  • Microphonics: 50mV Max at 50kΩ/Load
    ^{(Method: Stepping on cable)}
  • Voltage Breakdown: Must withstand at DC 500V/15 sec
  • Insulation Resistance at DC 125V, 68°F (20°C): 100000MΩ/x m Minimum
  • Tensile Strength of One Pair @ 79°F (26°C, 65% RH): 274N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: -4°F - 158°F (-20°C - 70°C)


• GTIN:

  0801813015638
