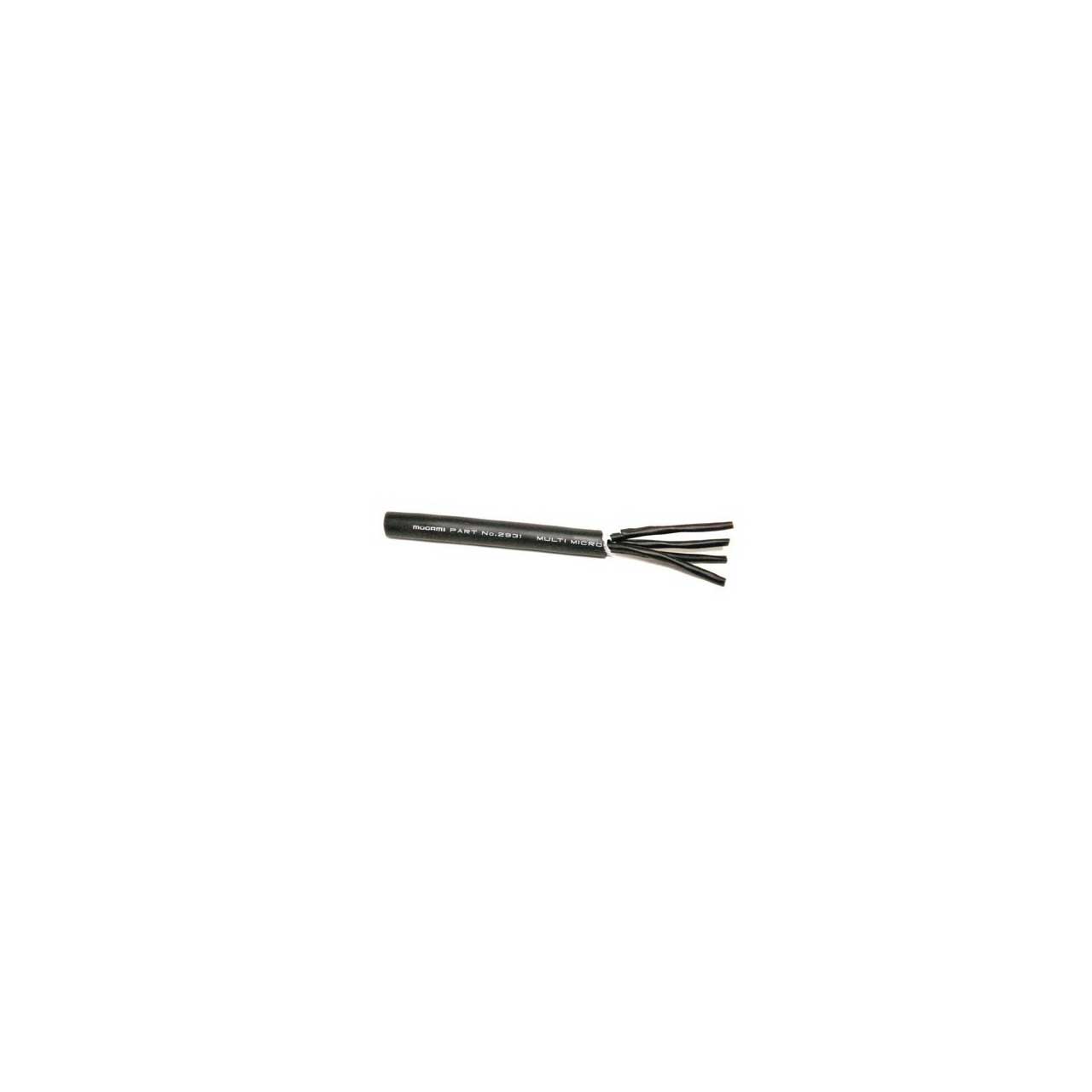

Mogami W2931 Analog 4 Pair Audio Snake Cable - Black - Per Foot

W2931-00-D - Overview

• Features:

  • Individually twisted shielded pairs
  • XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
  • Rugged and flexible construction that is easy to handle, even at temperatures down to -20°C (-4°F).
  • Easy cable identification system: Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped. Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs. Inner conductors are also color coded based on the international standard resistor color code. Each pair is color coded by jacket and conductor color combination. Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair
  • CL2 rated version available. Conductor size of CL2 rated version is thicker #25AWG so that it is also recommended for rugged application and firm and easier crimp terminal connector wiring as well as NEC fire regulation requirement

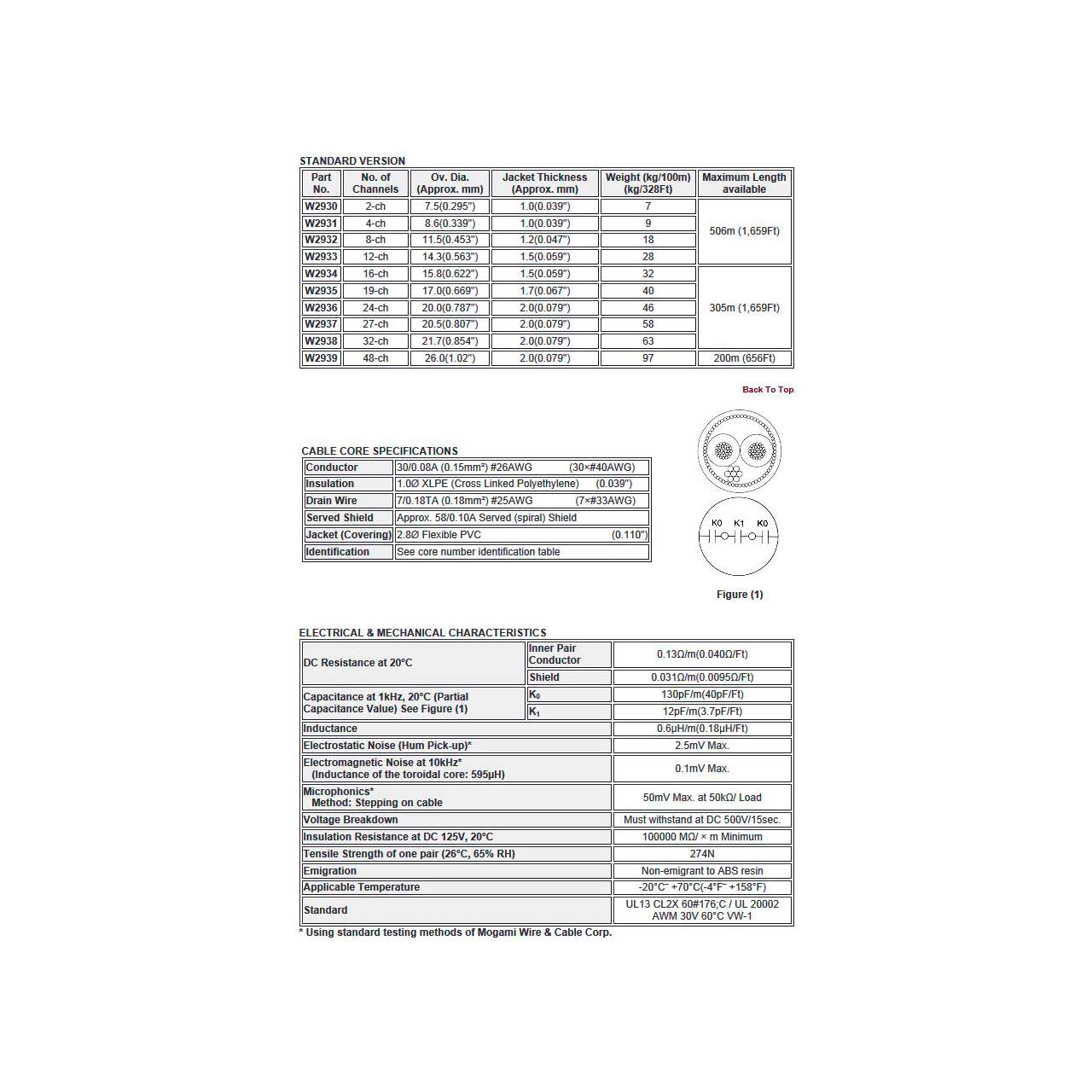

• Specifications:

  • Length: 1 Foot
  • Color: Black
  • Channels: 4
  • Ov. Diameter (approx): 0.339"
  • Jacket Thickness: 0.039"
  • Conductor: 30/0.08A (0.15mm²) #26AWG, (30x #40AWG)
  • Insulation: 1.0Ø XLPE (Cross Linked Polyethylene), (0.039")
  • Drain Wire: 7/0.18TA (0.18mm²) #25AWG, (7x #33AWG)
  • Served Shield: Approx. 58/0.10A Served (spiral) Shield
  • Jacket (Covering): 2.8Ø Flexible PVC, (0.110")
  • Inner Pair Conductor: 0.13Ω/m (0.040Ω/Ft)
  • Shield: 0.031Ω/m (0.0095Ω/Ft)
  • Inductance: 0.6µH/m (0.18µH/Ft)
  • Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
  • Electromagnetic Noise at 10kHz* (Inductance of the toroidal core 595µH): 0.1mV Max.


• Item Includes:

  • 1x Mogami W2931 Analog 4 Pair Audio Snake Cable - Black - Per Foot
