Mogami W2789-00-656 8-Conductor 26 AWG Multicore Control Cable - 656 Feet

ITEM #: MG-W2789-00-656 MFG #: W2789-00-656

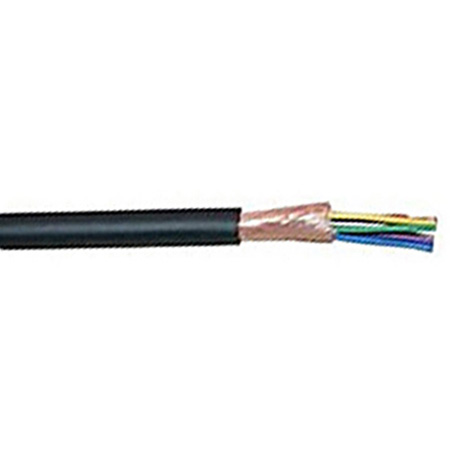

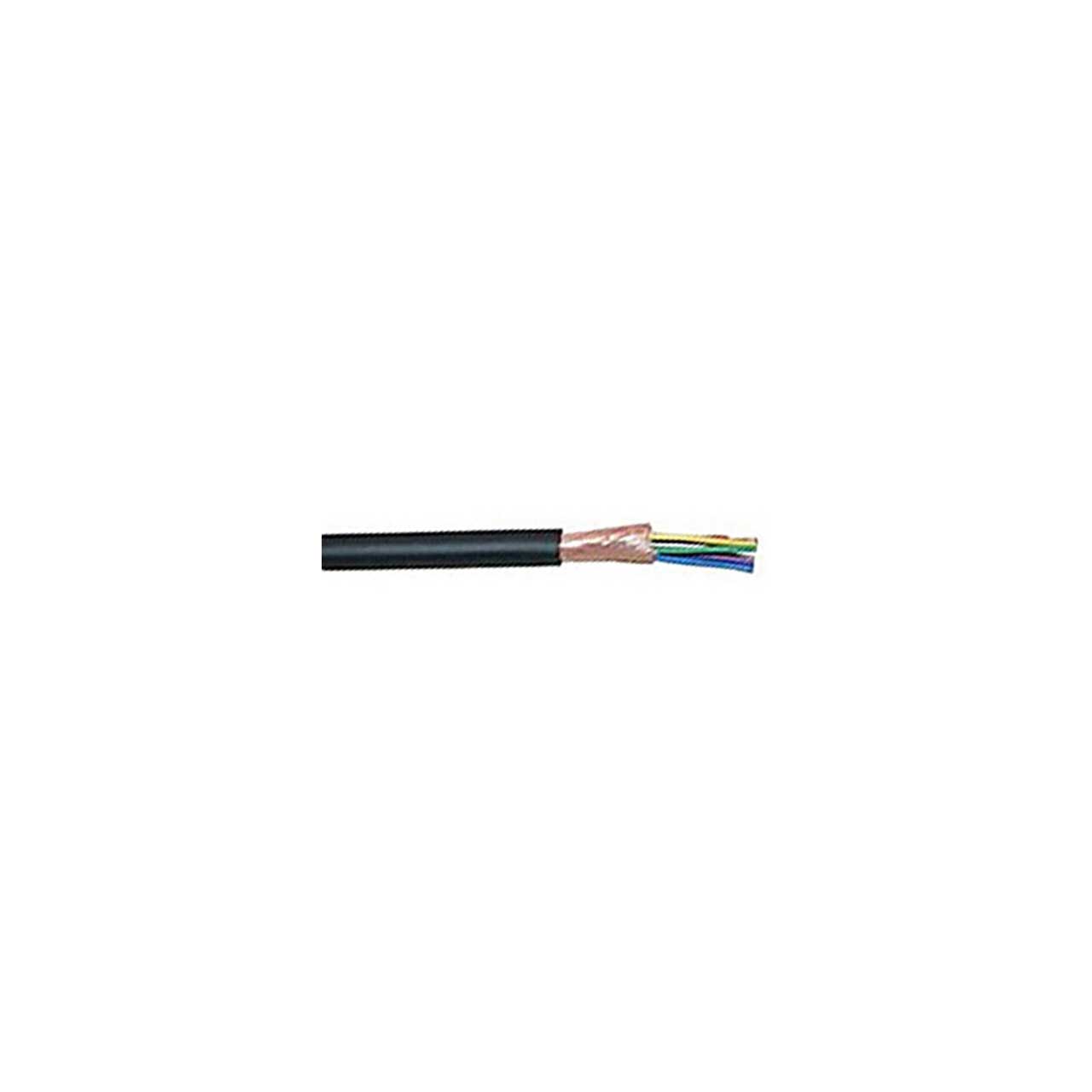

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$951.20

Our Price:

$881.19

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


W2789-00-656 - Overview

This Mogami W2789-00-656 is an 8-conductor overall shield cable series that is comprised of about two times larger conductor size as mechatro overall shield cable series. There is no community in design policy, as they were originally custom-made cables and remained as standard items one by one, however, they are suitable where larger conductor size, flexibility and compactness are all required. Available from five up to nine conductors, not in twisted pair configuration.

  • Specifications:

    • Electrical & Mechanical Characteristics
    • DC Resistance: At 68°F (20°C) 0.13Ω/m(0.040Ω/Ft)
    • Electromagnetic Noise: 0.1mV Max.
    • Voltage Breakdown: Must withstand at DC 500V/15sec.
    • Insulation Resistance: 10000 MΩ x m Min. at DC 500V , 20°C
    • Emigration: Non-emigrant to ABS resin
    • Applicable Temperature: -20°C to 70°C(-4°F to 158°F)
    • Standard: UL 758 AWM 20002 VW-1SC 30V 80°C Except for Part No. W2642-08 / No. W2789-00

      Cable Specifications
    • Conductor
      Details: 30/0.08A (40x#40AWG)
      Size: (mm²) 0.150mm² (#26AWG)
    • Insulation
      Ov. Dia.(mm)1.0Ø (0.0394")
      Material: PVC
    • Overall Shield
      Type: Served
      Coverage: 100%
    • Ov. Jacket
      Material: Flexible PVC
      Color: Dark Gray or Black

  • GTIN:

    0801813200690
