Magenta Research 2211114-02 HD-One DX500 HDMI Over CAT5 Video and Audio Extension Transmitter and Receiver Kit

ITEM #: MGE-2211114-02 MFG #: MGE-2211114-02

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$770.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MGE-2211114-02 - Overview

Since we don't think it's fair that the IT industry burdened Pro A/V professionals with an-all-too typical 100 meter limit for digital media extension, Magenta engineered an HDMI video and audio extension kit that can send 1920x1200 resolution HDCP-protected video and embedded audio to a distance of 500 feet (152 meters), all on a single Cat6.

While the HD-One Series is already known for its picture quality, ease-of-use and reliability, the HD-One DX500 goes a step further, boasting improved heat dissipation, lower power consumption and significantly better resistance to emissions.

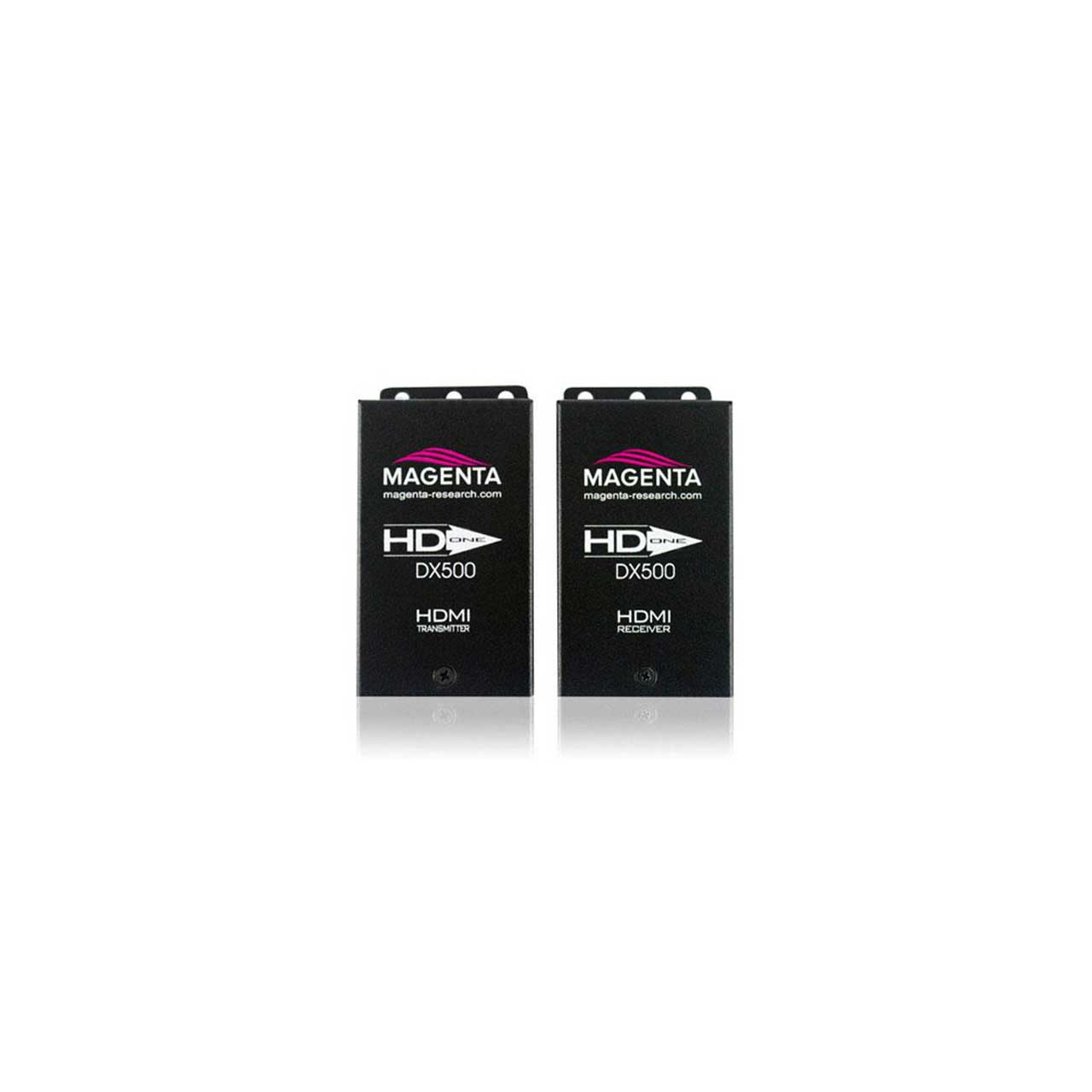

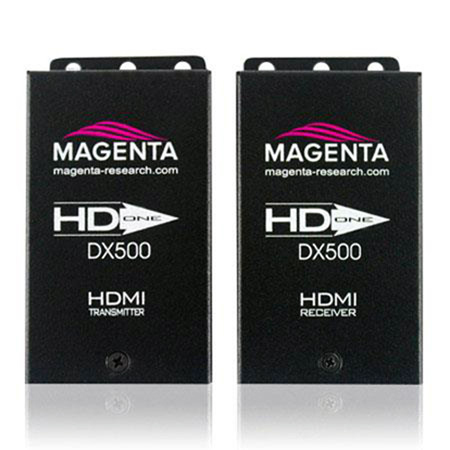

The HD-One DX500 kit contains (1) transmitter, (1) receiver and (2) universal power supplies.

  • Features:

    • 1920x1080, 1080P/60, Resolution, 4K UHD (LX,DX)
    • Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
    • Supports Embedded HDMI Audio, Including Dolby TrueHD and DTS-HD Master Audio
    • No Adjustments or Tuning Required
    • 328'/100 Meter Reach
    • 200'/60 Meter Reach 4k Resolutions (LX, DX)
    • 500'/152 Meter Reach (LX500, DX500)
    • HDMI 1.4 Compliant, HDBaseT
    • HDCP Compliant
    • Bi-Directional RS-232 Interface (HD-One LX/LX500)
    • Two-Way IR Support (HD-One LX/LX500)
    • Includes one IR Emitter/Receiver pair (HD-One LX/LX500)
    • Tolerances Designed for Commercial Environments
    • Compatable with CORIOmax HDBaseT input and output modules

  • Specifications:

    • Supported Video: HDMI/DVI Video Modes, HDMI 1.4, HDCP Compliant including standard formats @ 60Hz:640x480, 800x600, 1024x768, 1152x864,1280x768, 1280x960,1280x1024, 1360x760, 1366x768, 1600x1200,1680x1050, 1920x1080, 1920x1200 & HDTV: 480p,720p,1080i, & 1080p. 4k: 3840x2160p30 & 4096x2160p24 (DX/LX only up to 60m)

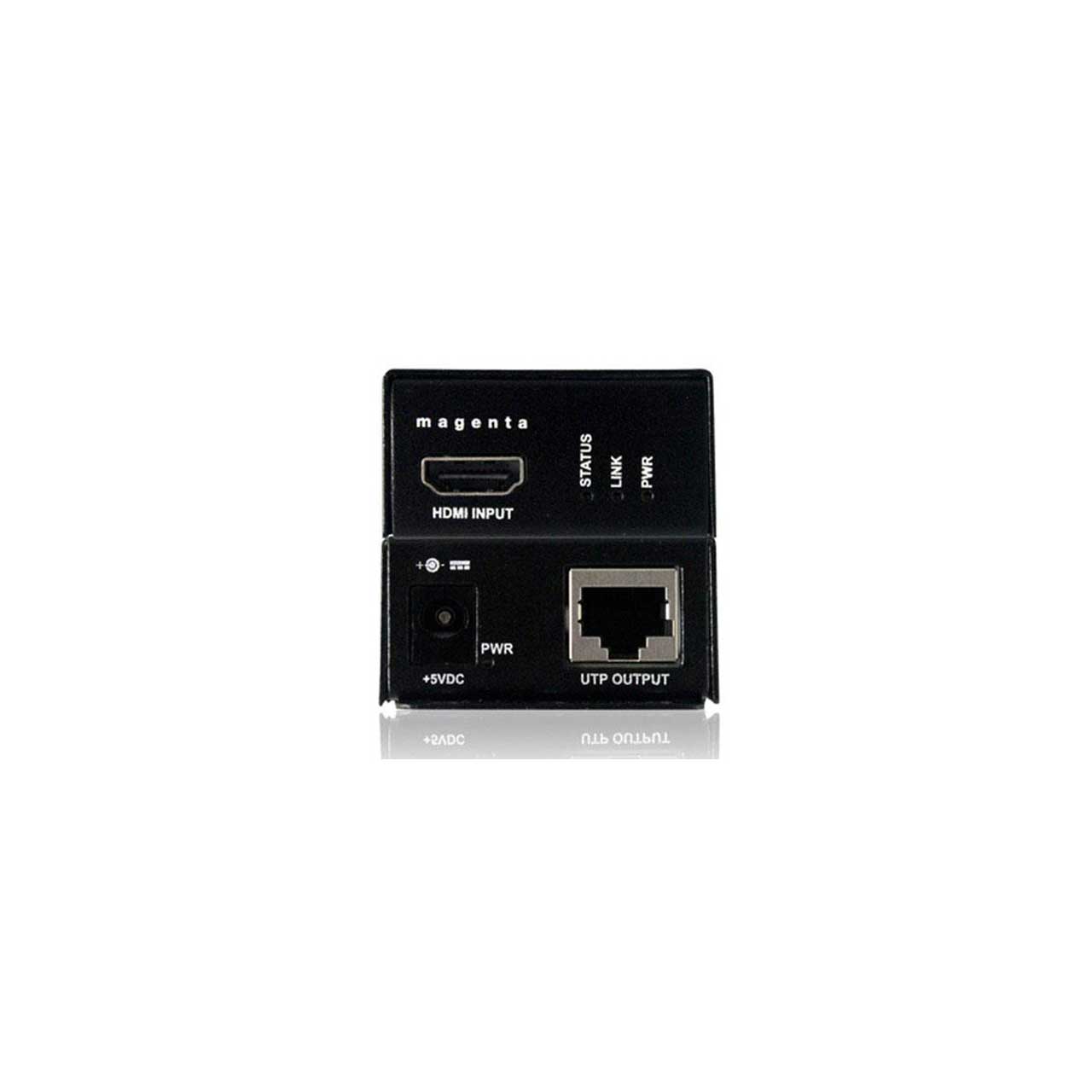

    • Video In: HDMI Type A (Transmitter)

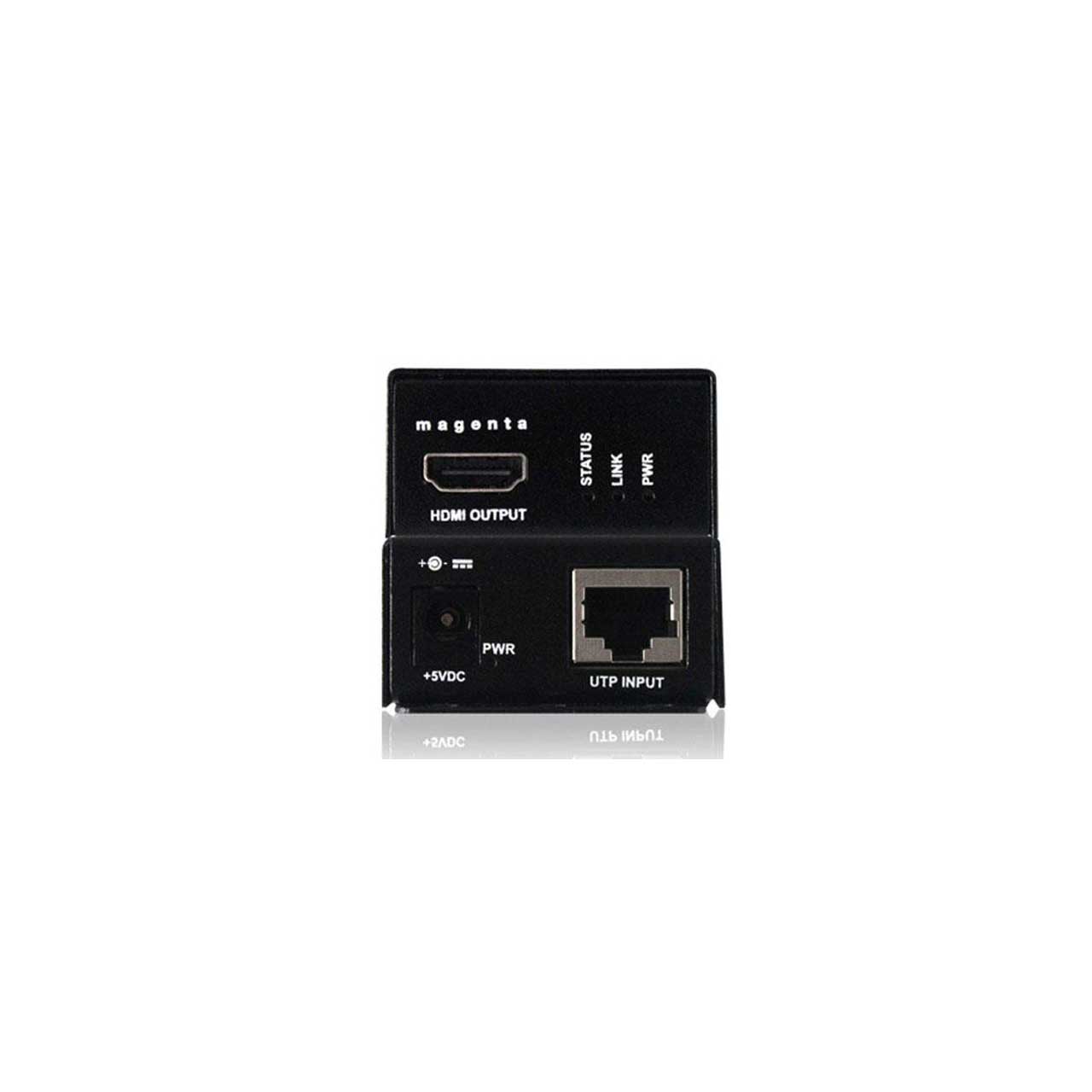

    • Video Out: HDMI Type A (Receiver)
    • Audio In/Out: Embedded with video signal
    • UTP In/Out: RJ45 Connector
    • Required UTP: CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP/STP/FTP (CAT6 or better is recommended)
    • Bandwidth: 3.4 Gbps
    • RS-232 Baud Rate (LX): To 115200bps; Full Duplex
    • RS-232 Connector (LX): DB9 Female / DB9 Female
