Magenta Research MG-AOC-662-10 HDMI 2.0 Active Optical Plenum Cable - 33 Foot (10m)

ITEM #: MGE-MG-AOC662-10 MFG #: MG-AOC-662-10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Magenta Research
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$350.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MG-AOC-662-10 - Overview

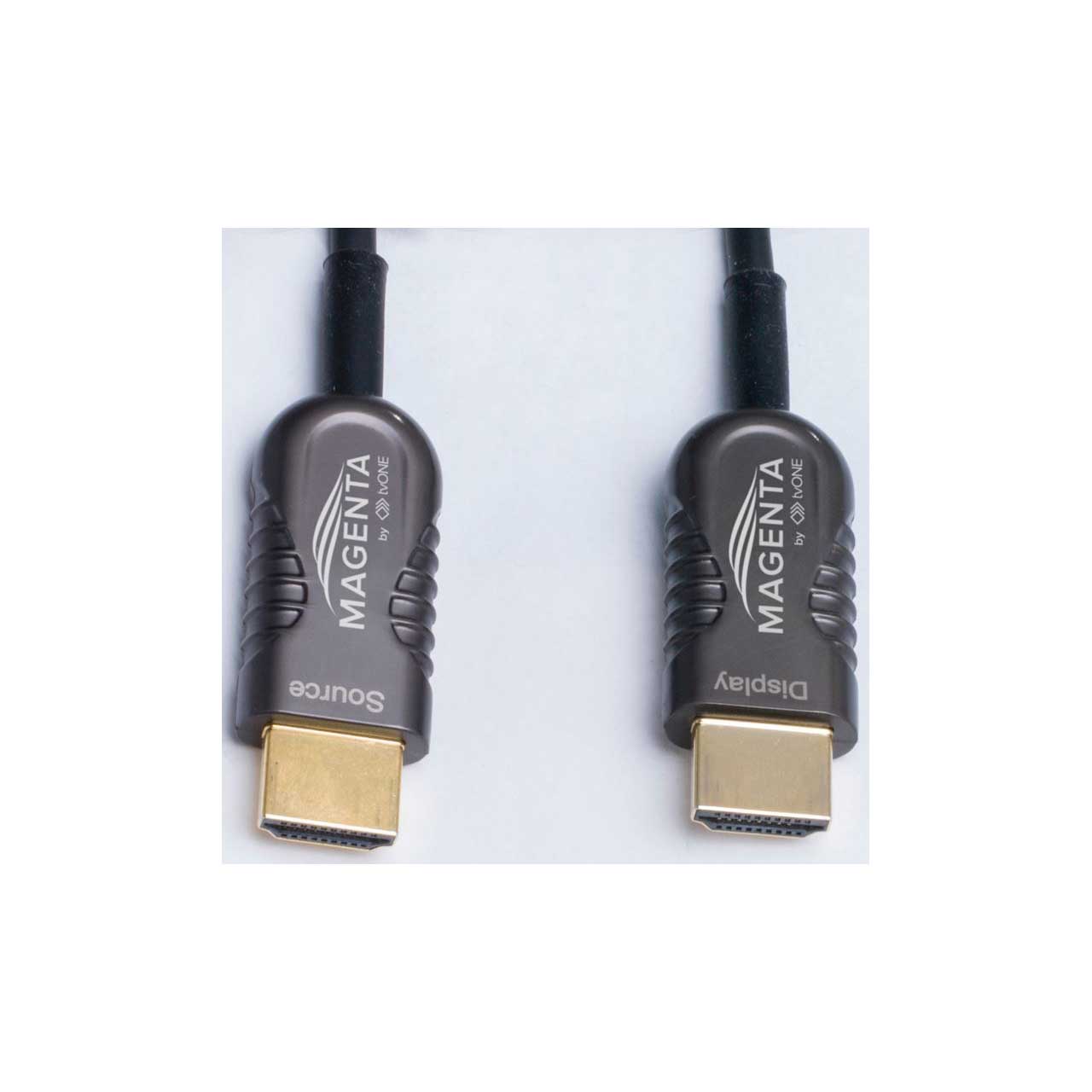

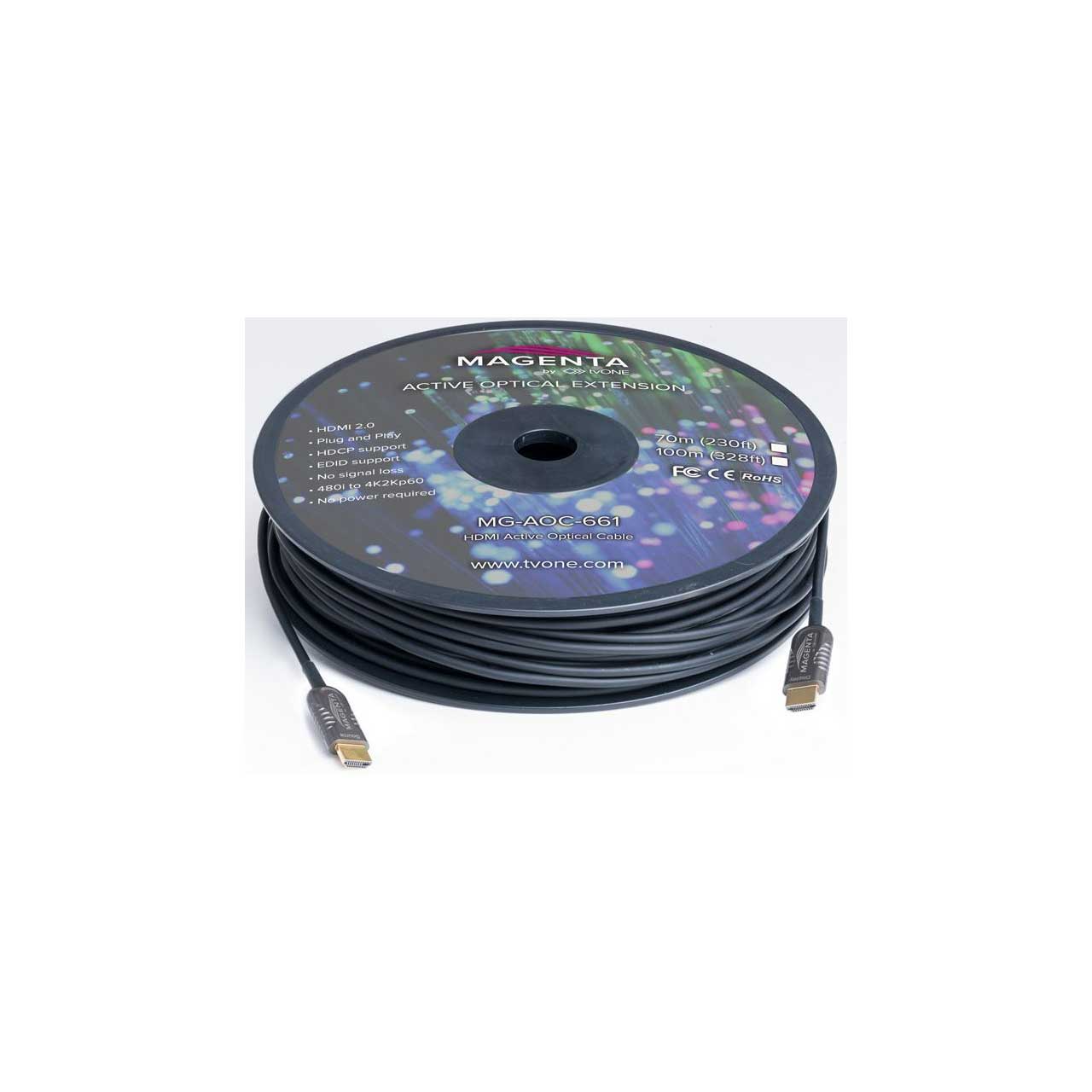

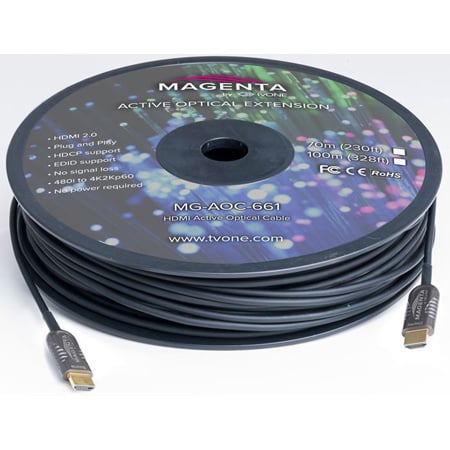

The Magenta MG-AOC-662 Active Optical Cable provides a simple yet powerful solution for extending high resolution over long distances. This plug and play HDMI 2.0 cable supports up to 4K60 4:4:4 with no compression or latency up to 328ft (100m) and without the need for external power and is available in UL rated Plenum (CMP), providing the ultimate flexibility.

  • Features:

    • Up to 328ft (100m)
    • No external power required
    • Plug and Play
    • HDMI 2.0
    • HDCP support
    • EDID support
    • No signal loss
    • 4K2Kp60 down to 480i supported
    • UL rated Plenum (CMP) option available


  • Specifications:

    • Connector Type: HDMI 2.0 type A
    • Cable Type: Hybrid type with OM3 fiber and copper wire
    • Cable Length: 10m, 15m, 20m, 25m, 30m, 40m, 50m, 60m, 70m, 100m (with +/-30cm tolerance).
    • Cable Outer Diameter: 4.5mm
    • Jacket Outer Material: Plenum
    • Cable Color: Black
    • Maximum Tensile Load: 15kg
    • Minimum Bend Radius: 20mm
    • Differential Input: 100Ω (typical)
    • Power Consumption: 250mW (max)
    • Power Supply: No external power required
