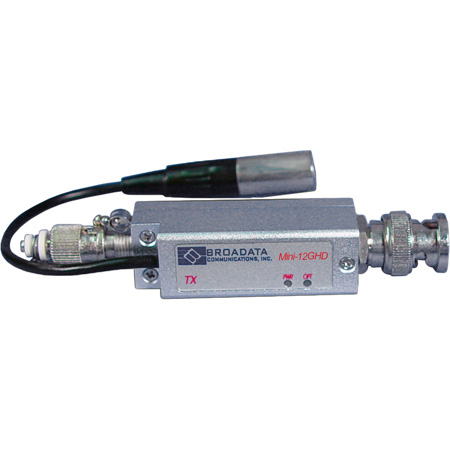

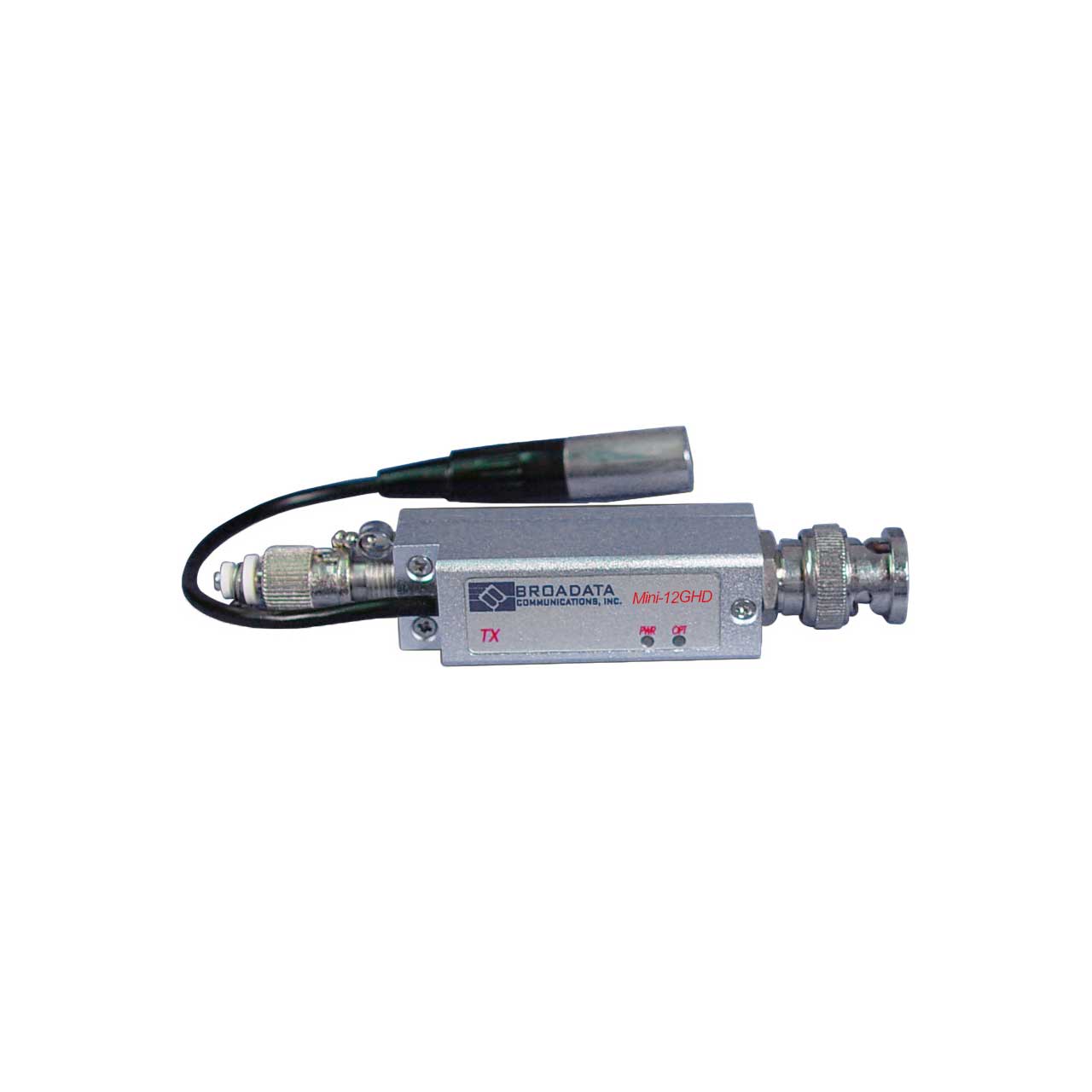

Broadata MINI-12GSDI-T-MS-ST Mini 12G-SDI Video Transmitter - Singlemode/Multimode - ST to ST - up to 1.8 Miles (3Km)

MINI-12GSDI-T-MS-ST - Overview

• Features:

  • Extend 12G-SDI video over singlemode fiber (up to 3Km) over a single fiber cable or multimode fiber (up to 300m)
  • Packaged in a miniature, lightweight housing, with 3" in length
  • Compliant with SMPTE 2082-1/2081-1, addressing SDI video rate from 1.5Gb/s to 12Gb/s
  • Support re-clocking for highest video quality
  • LED indicators for power on, data presence, and RX optical power levels


• Specifications:

  • Video
  • Input Level: 800 mV (peak to peak)
  • Input Impedance: 75 ohms
  • Coax Equalization:
    160m @ 1.485 Gbps (Belden1694A)
    100m @ 2.97 Gbps (Belden1694A)
    80m @ 5.94 Gbps (Belden4794R)
    75m @ 11.88 Gbps (Belden4794R)
  • Output Impedance: 75 ohms
  • Bit-Error Rate ((@ -12 dBm): 10-11 @12G
  • Jitter: < 22 ps @12G (pathological data pattern)
  • Rise/Fall Times: < 34 ps @12G
  • Video Connector: BNC

    Transmission
  • Operating wavelength: 1310nm FP
  • Optical Connector: ST single mode fiber
  • Transmitter Output: -3 dBm (1310nm FP)
  • Receiver Sensitivity: -12 dBm @12G
  • Fiber Type: Singlemode or Multimode

    Physical
  • Dimension (H x W x D): 0.75" x 0.65" x 3.2"
  • Input Voltage: 5~16 VDC
  • Power Connector: XLR 4 PIN
  • Power Consumption: 1.5W (each end)
  • LED Indicators: Power, signal link, optical power
  • Operating Temperature 32° to 104° (0°C to +40°C)
  • Humidity: 0 to 95% RH, Non-Condensing
