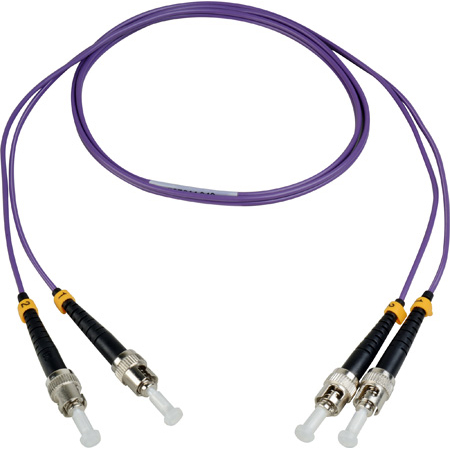

Camplex OM4 Premium Bend Tolerant Multimode Duplex ST to ST Fiber Patch Cable - Purple - 1 Meter

Name: Camplex OM4 Premium Bend Tolerant Multimode Duplex ST to ST Fiber Patch Cable - Purple - 1 Meter
Brand: Camplex
SKU: MMDM4-ST-ST-001
Price: 17.95 USD
Availability: InStock

ITEM #: MMDM4-ST-ST-001 MFG #: MMDM4-ST-ST-001

Camplex

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$18.95

Our Price:

$17.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MMDM4-ST-ST-001 - Overview

Duplex ST to ST OM4 multimode fiber optic patch cables connect patch panels or network devices requiring 50/125 multimode cables for higher bandwidths and longer distances. Designed for 10, 40, and 100 Gigabit applications, cost-effective OM4 cables are backwards compatible with existing OM3 systems. Purple cable is terminated with durable ceramic ferrule connectors.

Features:
- Use with Both LED and VCSEL Laser Light Sources
- Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment
- Connect a Fiber Optic Patch Panel and a Network Device
- Laser-Optimized Multimode Fiber 10, 40, and 100 Gigabit Application Support
- Better Performance at Longer Distances
- Transmission Distance Up to 1840 Feet/550 Meters for 10G and 492 Feet/150 Meters for 40 & 100G
- Lower Attenuation and Lower Insertion Loss
Specifications:
- 50Μ m Core and 125Μ m Cladding
- Minimum Distance @1Gb/s: 3281 ft/1000m (850nm)
- Minimum Distance @10Gb/s: 1840 ft/550m (850nm)
- Minimum Distance @40 & 100 Gb/s: 492 ft/150m (850nm)
- Insertion Loss: ≤0.20dB max (PC)
- Tensile Strength: Long Term: 160N / Short Term: 300N
- Pressive Strength: Long Term: 300N / Short Term: 1000N
- Bend Radius (mm): Dynamic: 80mm / Static: 40mm
- Attenuation: @850nm: ≤3.5dB/km / @1300nm: ≤3.5dB/km
- Temperature: -20°C ~ 80°C
- BW: @850nm: ≥3500MHz Km / @1300nm: ≥500MHz km
Warranty:
- 1 Year
