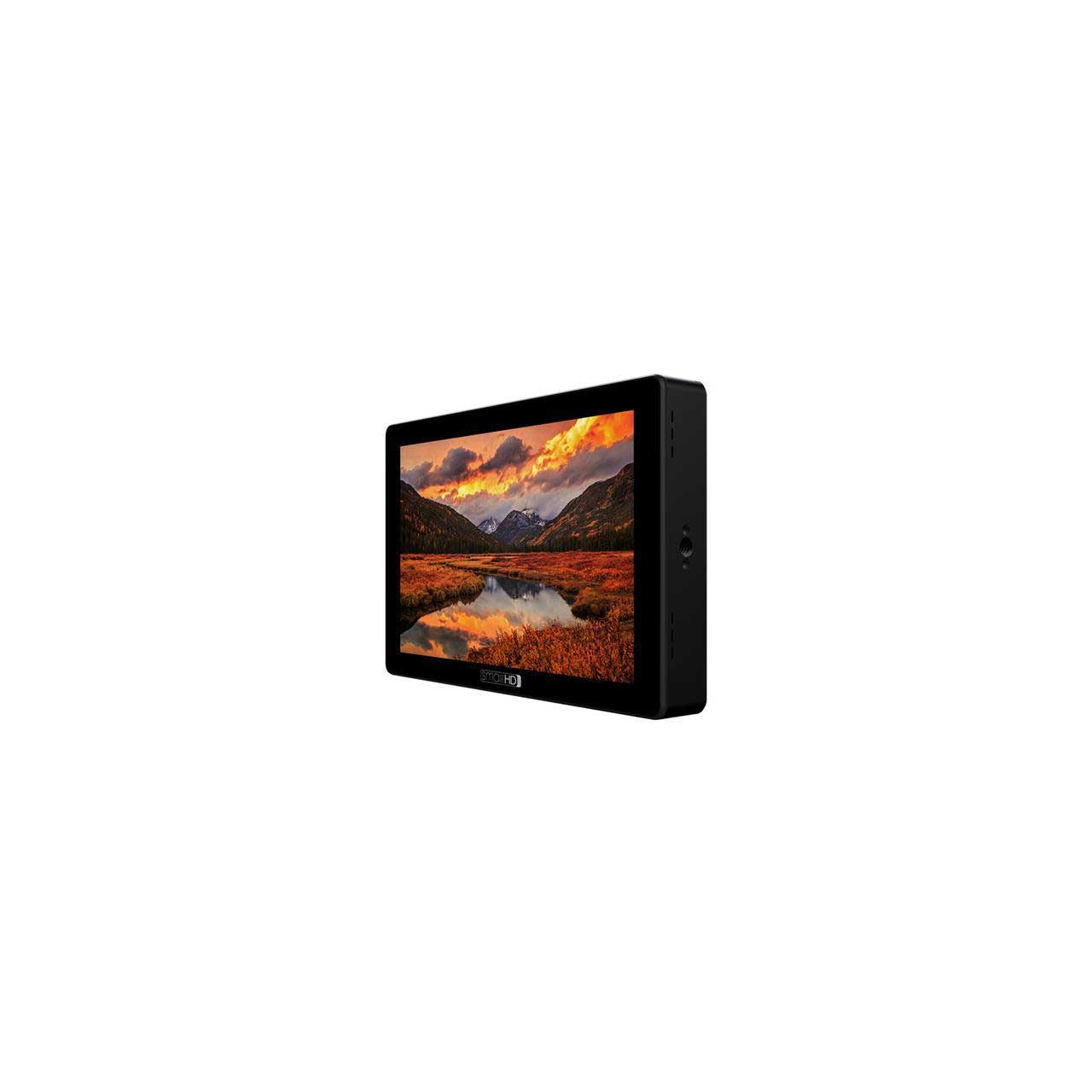

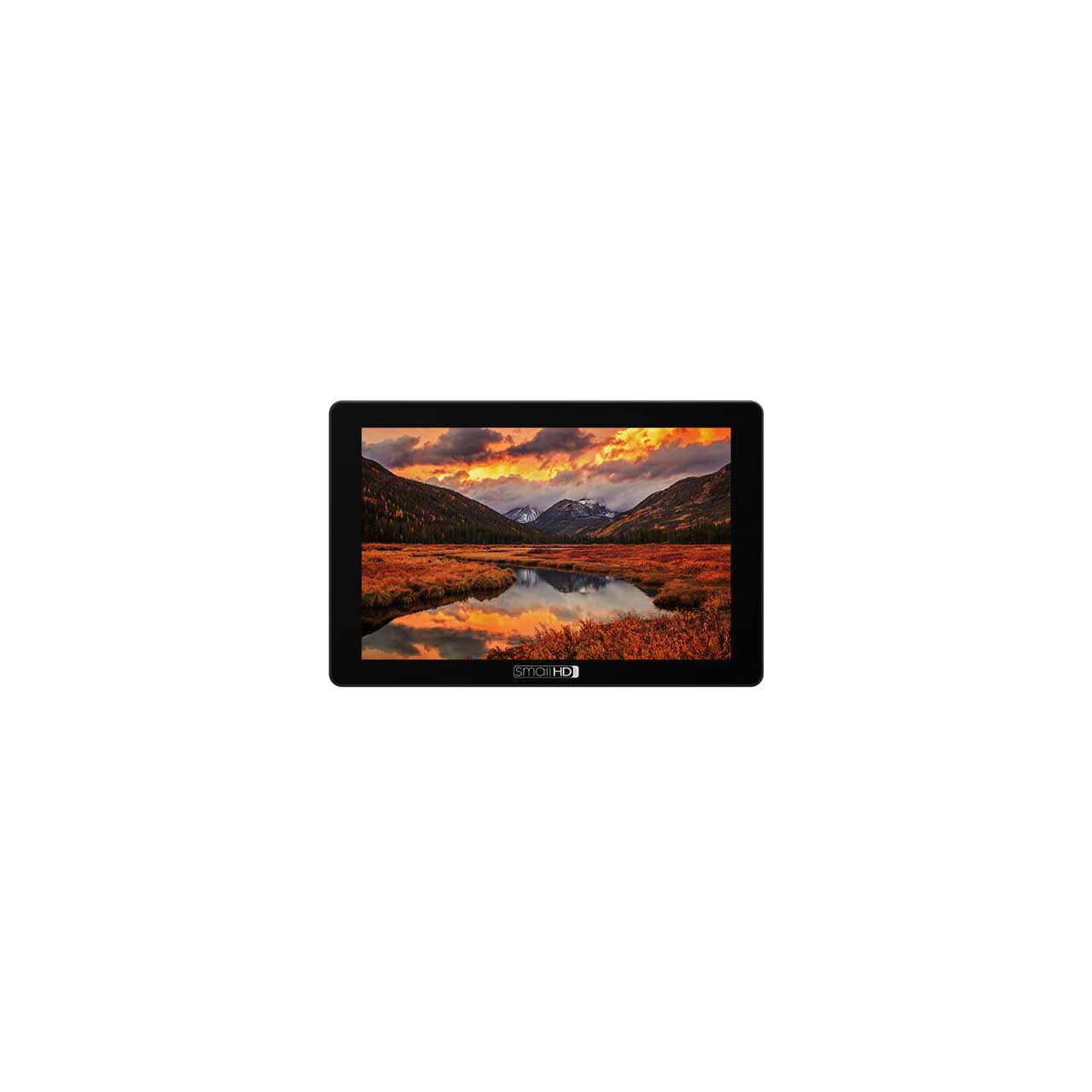

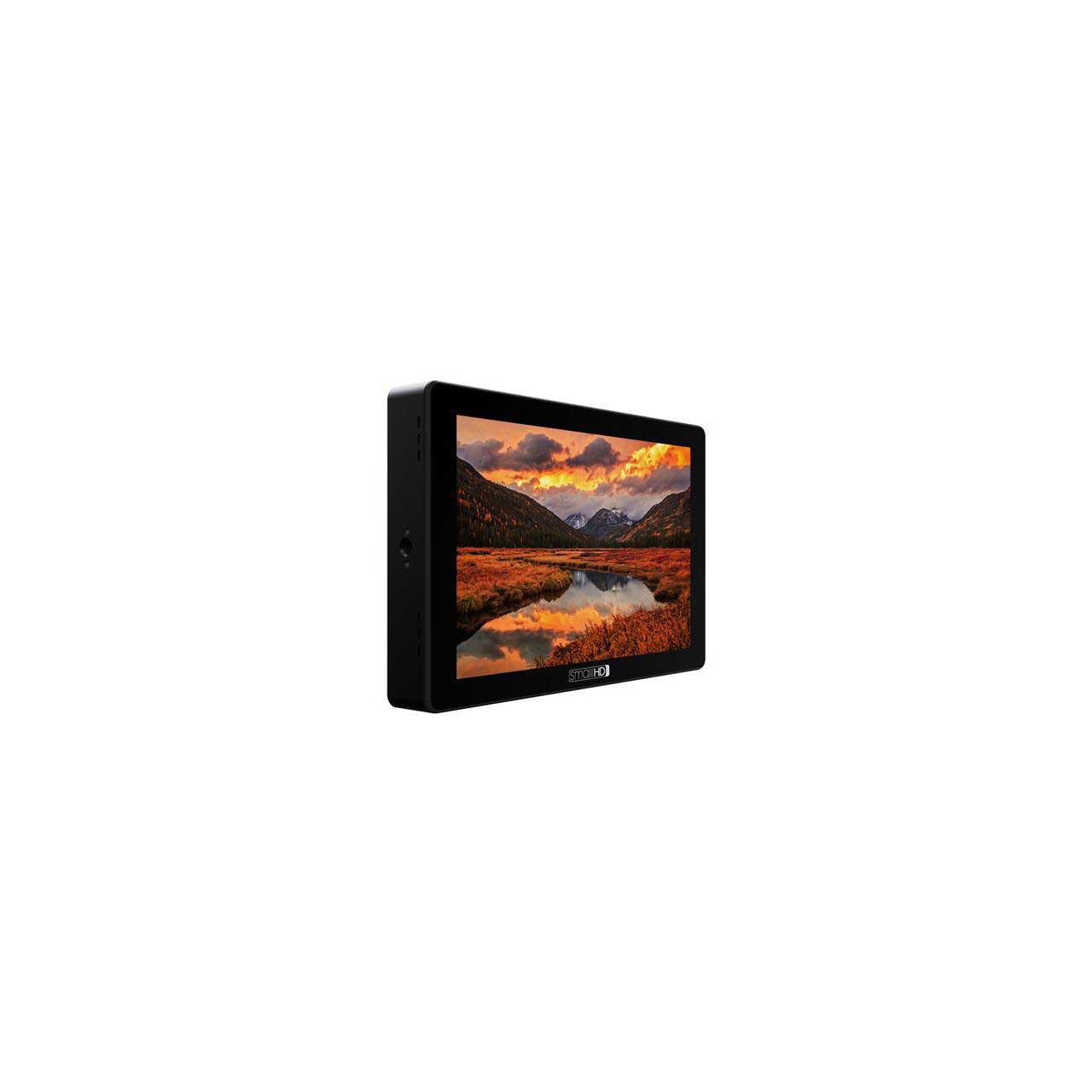

SmallHD MON-CINE7-ARRI Full HD 7-inch Touchscreen Monitor ARRI Kit with DCI-P3 Color & 1800nits Brightness

MON-CINE7-ARRI - Overview

• Features:

  • Display: 7-inch, 1920X1200
  • Brightness: 1800 nits
  • HDMI: 1x HDMI In, 1x HDMI Out
  • SDI: 1x 3G SDI In, 1x 3G SDI In/Out
  • Audio: 1/4" Headphone Jack
  • Power: 2-pin Locking Power Input (10V-34V, 2A DC), Sony Battery Bracket
  • Camera Control: ARRI


• Specifications:

  • Display
  • Panel Type: IPS LCD
  • Diagonal Size: 7.02
  • Resolution: 1920x1200
  • Pixel Density: 322 ppi
  • Aspect Ratio: 16:9
  • Active Area: 5.95 x 3.72
  • Brightness: 1800 NITs
  • Contrast: 1000:1
  • Gamut: 100% DCI-P3 Coverage
  • Color Depth: 10-bit Processing (8-bit panel)
  • Viewing Angle: 160
  • Backlight Type: LED
  • Adjustable Backlight: Yes
  • Brightness: 1800 NITs
  • DCI-P3 Color: 100% DCI-P3 Coverage

    Input Signal
  • 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
  • HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  • SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
  • Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

    Output Signal
  • 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
  • HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  • SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  • HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
  • Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

    Connector Type
  • SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
  • HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
  • Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
  • Power In: 2-pin Locking
  • USB: 1x USB 2.0 Micro-B receptacle

    Controls
  • Primary: Touch Screen
  • Record Capture: Image Capture Tool

    Power
  • Connector: LEMO
  • Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
  • Power Supply: Recommend DC 12~15V at ~2.5 amp or greater

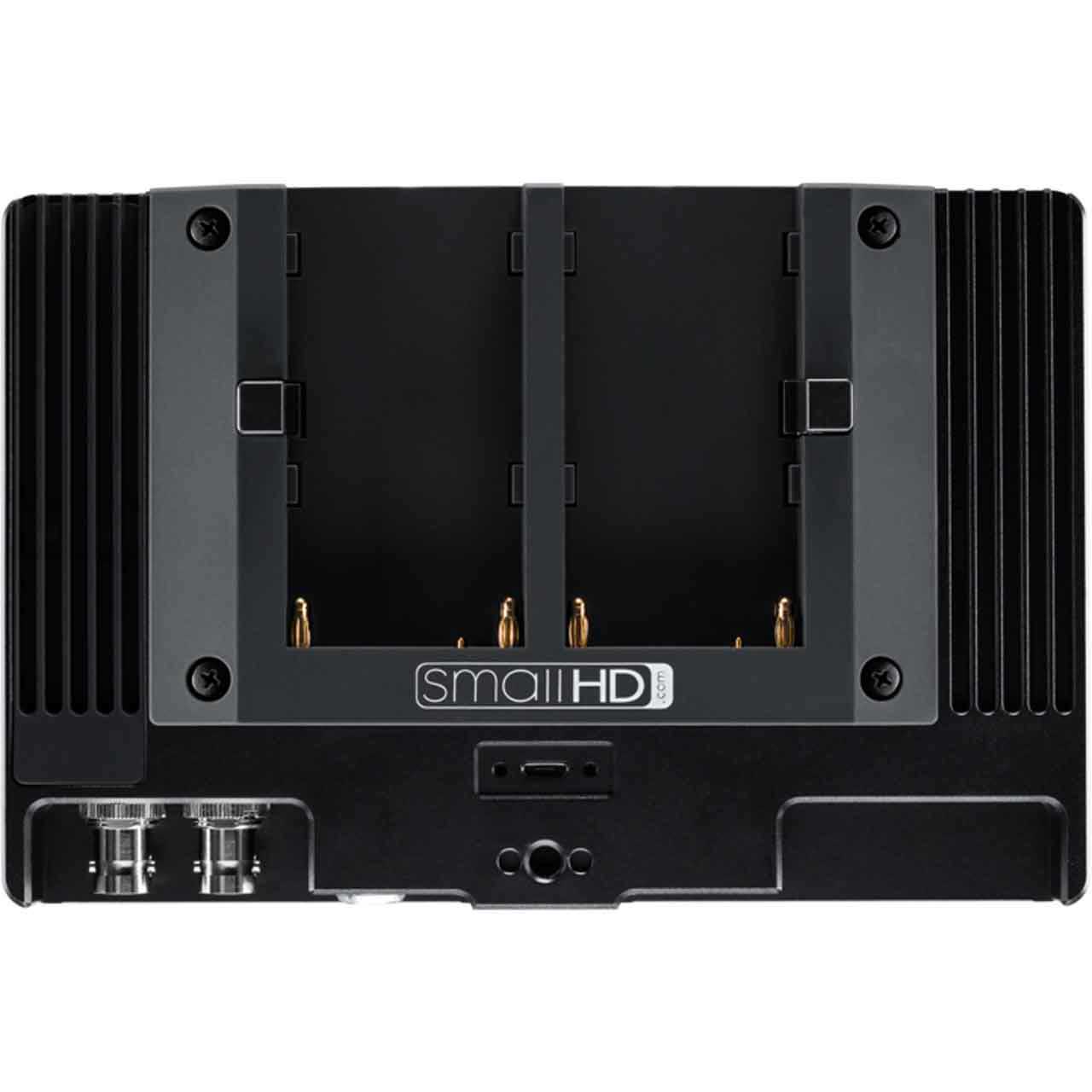

  • Battery Types: L-Series (included), V Mount, Gold Mount
  • Overload Protection: DC input: Reverse polarity
  • Battery Chemistry: Li-ion
  • Battery Charging Time: Monitor does not support the charging of batteries
  • Power Plug-in: LEMO

    Software
  • Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
  • Frame Guides: Preset Aspect Ratios & Customizable
  • DSLR Scale: Canon 5DMkii & Canon 7D
  • Custom Scale: Yes (Underscan Only)
  • Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
  • Image Rotate: Automatic or Manual Control
  • Image Flip: Automatic or Manual Control
  • Cross Conversion: Yes: HDMI -> SDI & SDI -> HDMI
  • Focus Assist: User Adjustable Color Style and Intensity
  • Peaking: User Adjustable Intensity
  • False Color: Rainbow, Arri Style, Custom with up to 10 nodes
  • Zebra: Dual - User Configurable
  • Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
  • Vectorscope: Yes
  • RGB Parade: Fully User Customizable
  • Histogram: Luma & RGB Style
  • Image Capture: Yes
  • Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
  • LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
  • LUT Import: via SD Card or USB Storage Device
  • Overlay: With Opacity Slider and Blink Setting
  • Audio Meters: HDMI & SDI up to 8 channel

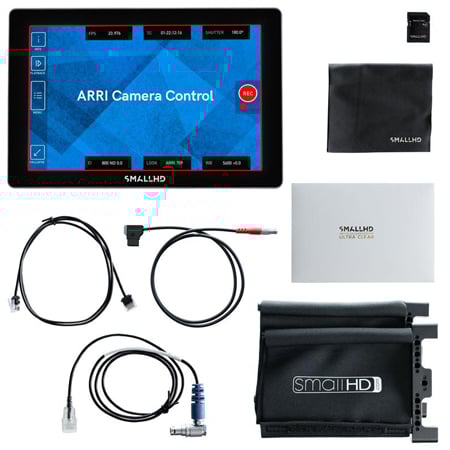

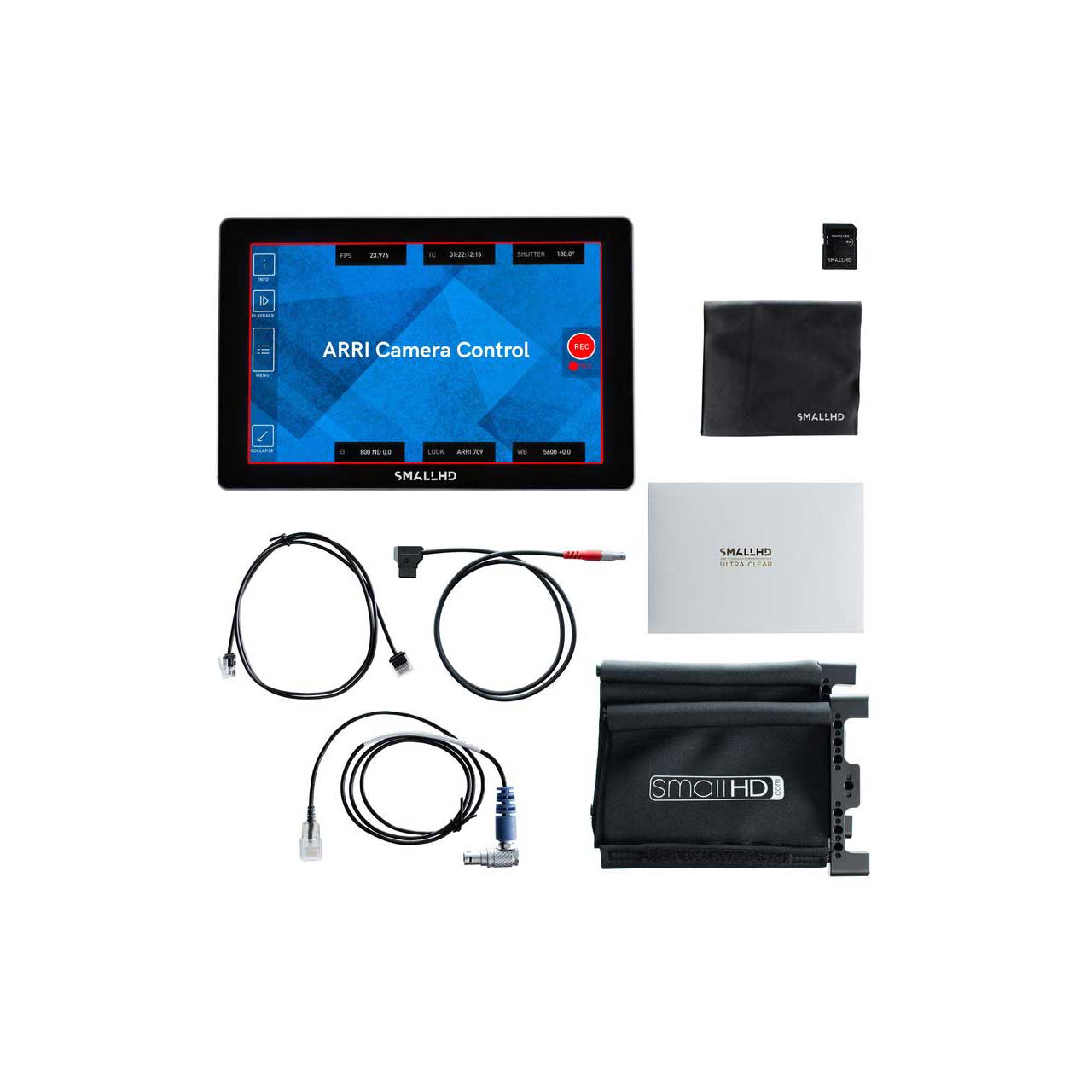

• Item Includes:

  • 1x Cine 7
  • 1x Sony L Series Battery Bracket
  • 1x UltraClear Screen Ptroector
  • 1x 7" Sun Hood
  • 1x ARRI Alexa Camera Control Cable (right angle)
  • 1x Camera Control for ARRI (software only)
  • 1x 8GB SD Card
  • 1x SmallHD Cleaning Cloth
  • 1x Smart 7 Sunhood
  • 1x D-Tap to 2pin Power Cable (36inch)
  • 1x Slim Ethernet Cable (36inch)
