Gepco MP1201 24AWG Quad-Star Microphone Cable 500 Foot Roll-Black

ITEM #: MP1201-500 MFG #: MP1201-500

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$584.33

Our Price:

$514.95

Availability: In Stock
iAvailability Description Popup


MP1201-500 - Overview

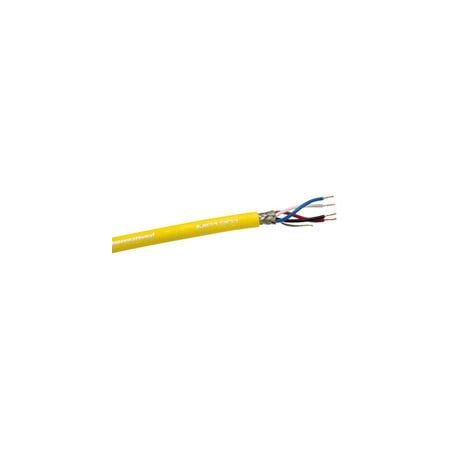

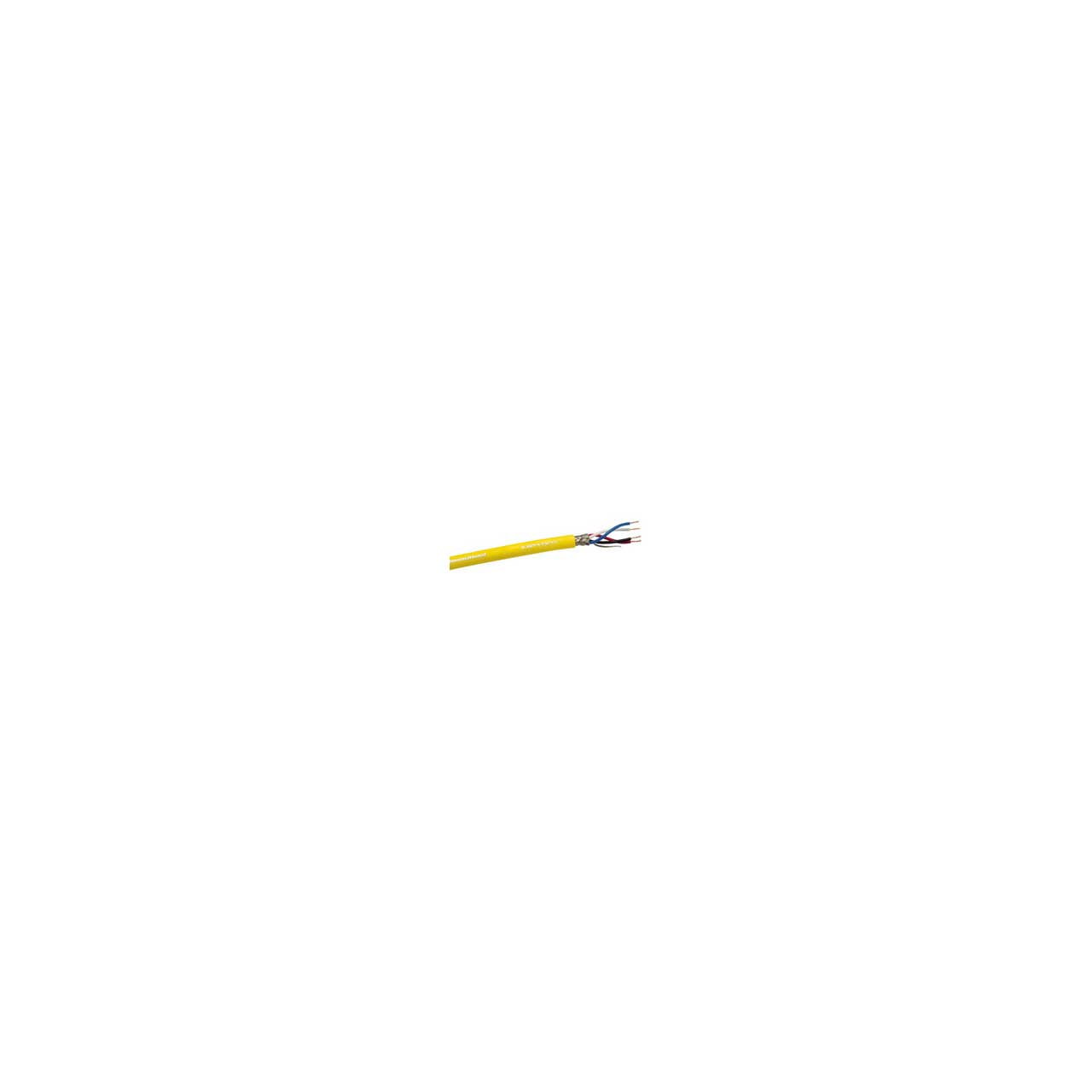

Gepco MP1201 24AWG Quad-Star Microphone Cable 500 Foot Roll

Industry-proven, quad-star design and tight-angle, full-coverage braid shield for maximum low-frequency EMI noise rejection. Four conductors form a "double balanced" system that minimizes the loop area and reduces noise induction from external sources such as AC lines and dimmer packs. As a result, this series is ideal for applications where high EMI is present, or where a redundant pin to pin connection is desired for improved flex-life.

  • Features:

    • Features
    • Improved Noise & Hum Rejection
    • Extra-flexible
    • Increased Flex-life
    • Polyethylene Dielectric
    • Full Copper Braid Shield
    • Drain Wire for Quick Shield Terminatioin (MP1201 only)
    • Matte PVC Flexible Master Jacket

  • Specifications:

    • Specifications:
    • # of Conductors: 4
    • Nominal O.D. : 0.240"
    • Conductors: 24 AWG (41x40) Stranded BC
    • Insulation / Color: PE, .016" / White & Black, Red & Blue
    • Shield: 95 TC Braid
    • Drain Wire: 24 AWG (41x40) Stranded TC
    • Jacket Type: Flexible Matte PVC
    • Capacitance: 39 pF/ft between conductors; 57pF/ft between one conductor and other tied to shield
    • Cond. DCR: 25.6 Ohm / 500 Feet
