Matrix Switch MSC-HDDA16 3G/HD/SD-SDI 16 Output Distribution Amplifier

ITEM #: MSC-HDDA16 MFG #: MSC-HDDA16

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MSC-HDDA16

MSC-HDDA16 - Overview

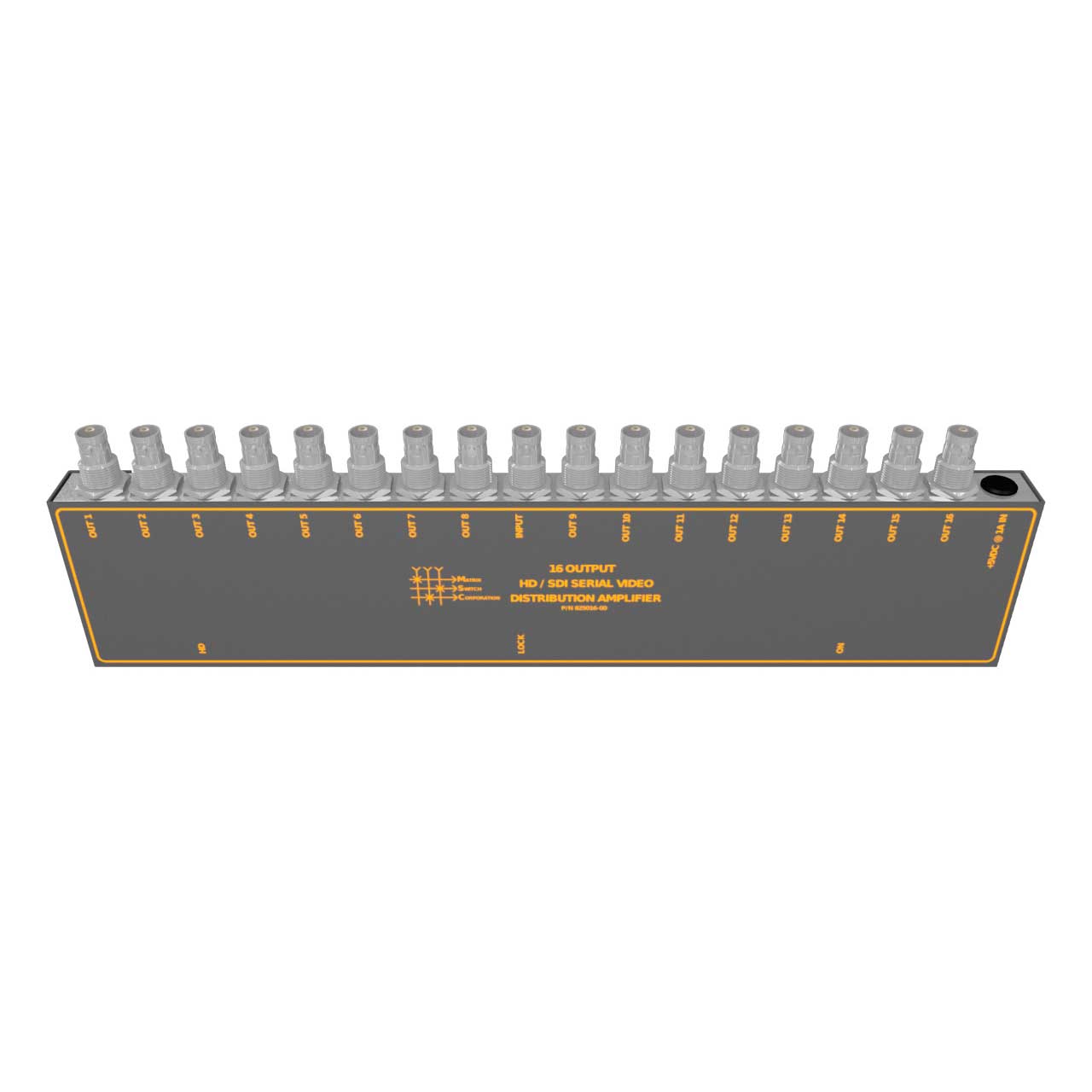

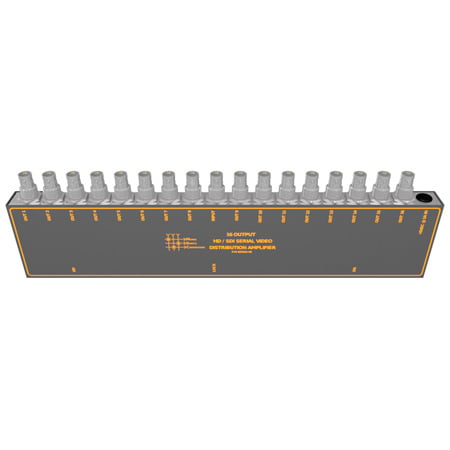

Matrix Switch Corporation distribution amplifiers combine exceptional performance with value. Their compact size allows for them to be utilized in space constrained situations and all external connections are on the same side making for a clean installation.

Power, Lock and HD LED indicators.

Two MSC-HDDA16 SDI Distribution Amplifiers can be mounted in a 1RU space using the MSC-DA16RA rack adapter, providing wide distribution of one or two SDI signals to 31 or 32 destinations.

  • Specifications:

    • Specifications
    • Size: 13"W x 1"H x 3.5"D
    • Weight: 1.7 lbs
    • Power: 5 VDC
    • Power Consumption: 3W
    • Storage Temp: -10 Through +50 Deg C
    • Operating Temp: 0 Through +40 Deg C
    • Humidity: 0 Through 90% Non-Condensing
    • Warranty: 2 Years Parts & Labor
    • SDI Video
    • Connector type: BNC
    • Data Types: SMPTE 259/292/424
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s
    • Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Level: 800 mV P-P +/- 20%
    • Input Impedance: 75 Ohms +/- 1%
    • Cable equalization (1694A coax): 350m @ SD, 175m @ HD, 100m @ 3G
    • Output Level: 800 mV P-P +/- 5%
    • Output Impedance: 75 Ohms +/- 1%
    • Output Jitter: < 0.2 UI
