Matrox MVX-D6152-4 Maevex Quad 4K Enterprise Decoder

ITEM #: MTX-MVX-D6152-4 MFG #: MVX-D6152-4

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,230.00

Our Price:

$2,935.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


MVX-D6152-4 - Overview

Showcase Content Anywhere, In Any Format

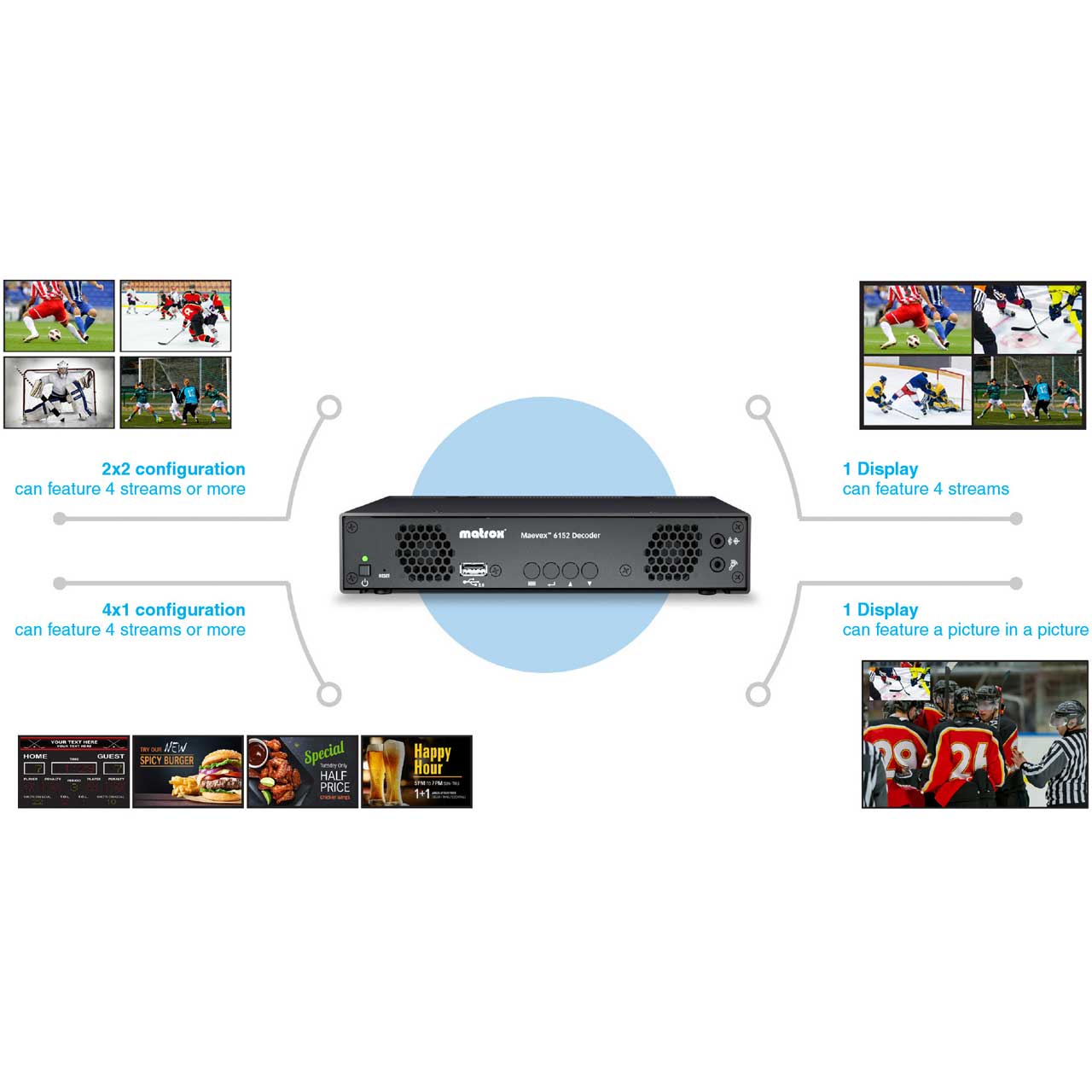

The Matrox® Maevex 6152 quad 4K decoder complements the entire Maevex product line. Efficiently decoding up to four 4K streams, or many more lower resolution streams, the Maevex 6152 decoder introduces plenty of options and advantages for multi-screen decoding.

The Maevex 6152 decoder is also compatible with the popular Matrox Maevex PowerStream Plus AV-over-IP management software, which allows for complete control of the entire Maevex network.

Complete reach and control
Discover devices, manage content, access hardware, and monitor all streams and recordings from any location on the network via the robust Maevex PowerStream Plus software. Included with the purchase of Maevex hardware, PowerStream Plus renders both generations of Maevex products entirely monitorable, configurable, manageable, and updateable via an intuitive and easy-to-use application. PowerStream Plus can be installed on any network-connected computer.

Easily tailor operations by integrating PowerStream Plus features into existing applications or create new software applications with the PowerStream Plus SDK-available for both Windows® and Linux®. A REST API is also available for more flexible and portable software development and more direct access to Maevex devices.

Fully customizable
Easily build new applications or integrate the functionalities of PowerStream into existing applications with the Matrox PowerStream Plus SDK. Further customize the appearance of your Matrox product-with new company naming, images, logos, colors, buttons, and identity-for greater ease of use and complete white label branding of Matrox hardware and software.

Applications
Digital signage
Military
Process control
Healthcare
Government
Corporate communications
House of worship
Science & technology
Education
Industrial, automation & production
Security
Government

  • Features:

    • Complete reach and control
    • Fully customizable

  • Specifications:

    • Connectivity:
    • Video Output Number of channels: 4
    • Formats: HDMI (Type A) zero latency pass-through
    • Audio Output
      4x HDMI (Type A) digital LPCM two-channel stereo audio
      1x 3.5 mm line-out
    • Network Connector: 1x RJ45 with status LED indicators
    • USB Ports: 1x USB 2.0 (front), 1x USB 3.0 (back)
    • RS-232: 1x for IP to RS-232 control

      Performance:
    • Color Space and Chroma Sub-Sampling: YUV 4:0:0, 4:2:0, 4:2:2, or 4:4:4 to RGB 4:4:4 8-bit
    • Video and Audio Processing
      Audio Encoding Format: MPEG-4 AAC-LC/HEv1/HEv2
      Audio Sampling Frequency: 32 kHz, 44.1 kHz, 48 kHz
      Audio Bitrates: Up to 144 Kbps (AAC-HEv2), Up to 288 Kbps (AAC-HEv1), Up to 576 Kbps (AAC-LC)

      Codec
    • Encoding Level: Up to 5.2
    • Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)
    • Encoding Profiles
      Baseline (BP)
      Main (MP)
      High (HiP)
      High 10 (Hi10P)
      High 4:2:2 (Hi422P)
      CAVLC 4:4:4 intra (44)
      High 4:4:4 predictive profile separate plane (Hi444PP)
    • Decoder Bitrates Range: 50 Kbps to 120 Mbps (per stream)

      Network
    • Network Standard: 100/1,000 base-T Ethernet, Auto speed, Half/full duplex
    • Routing Scheme: Unicast, Multicast
    • IP Addressing: IPv4, DHCP (default) and static IP
    • Streaming Protocols
      RTSP (TCP), RTCP & RTP (UDP) - all required
      RTSP over TCP (interleaved)
      SRT over UDP
      MPEG2.TS over UDP
    • Command and Control: HTTPS over TCP, UPnP (discovery)

      Physical
    • Product Dimensions: 8.53 (L) x 7.52 (W) x 1.68 (H) inches
    • Noise Emission: ~25 dB at full decode capacity

  • Item Includes:

    • 1x Maevex 6152 Quad 4K Decoder Appliance
    • 1x 100-240 V a.c. in, 12 V d.c. out, 60W power supply
    • 1x Power cords (US, EU, UK, Aus/NZ)
    • 1x DIN4 locking connector
