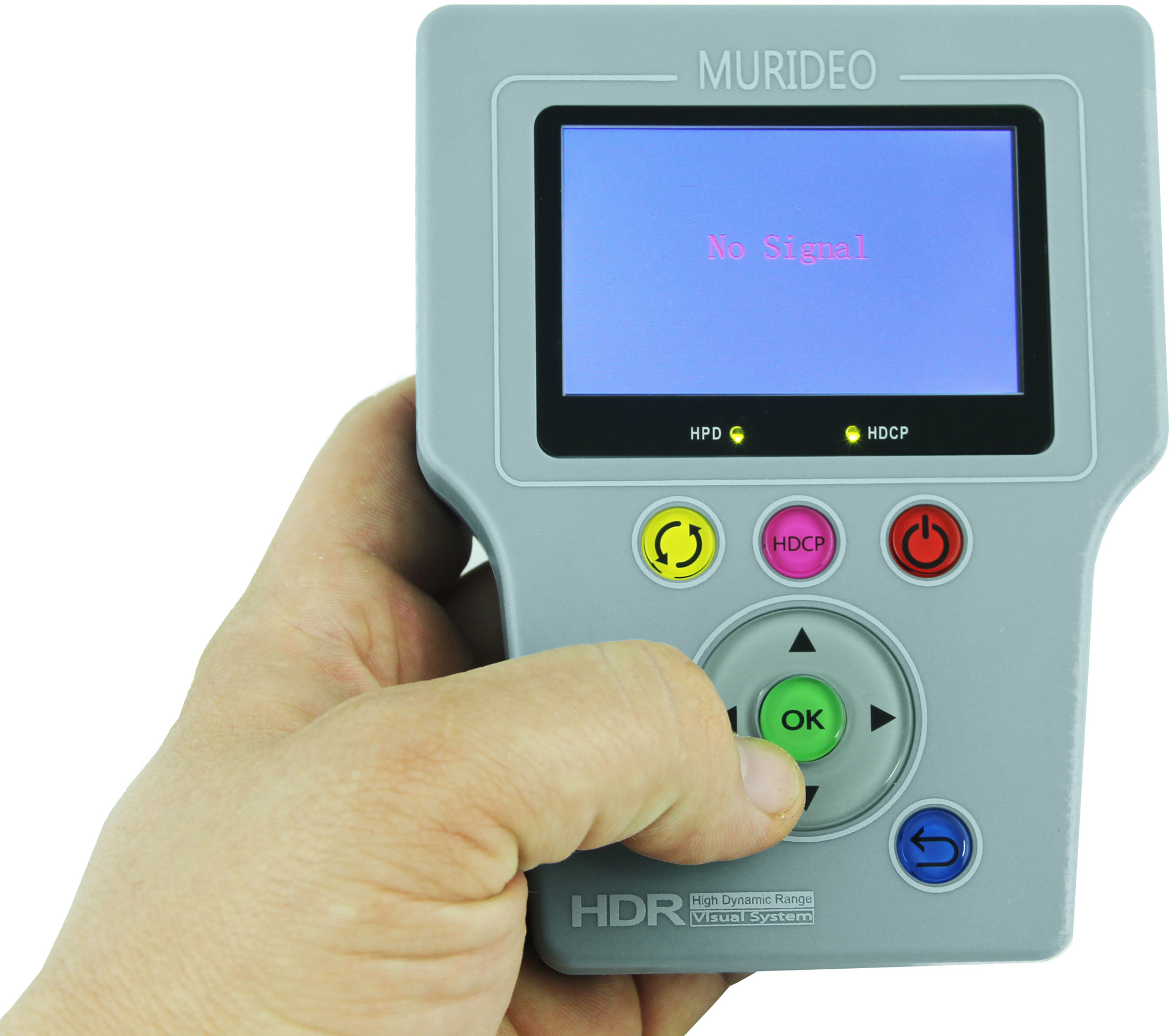

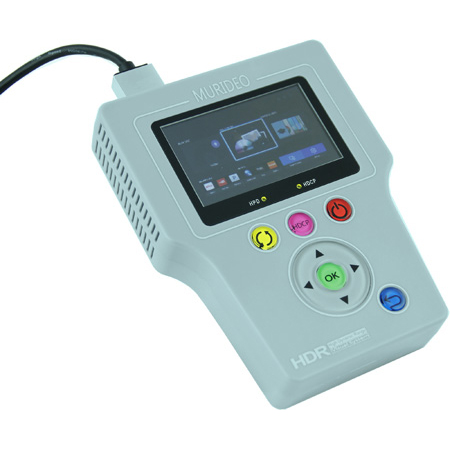

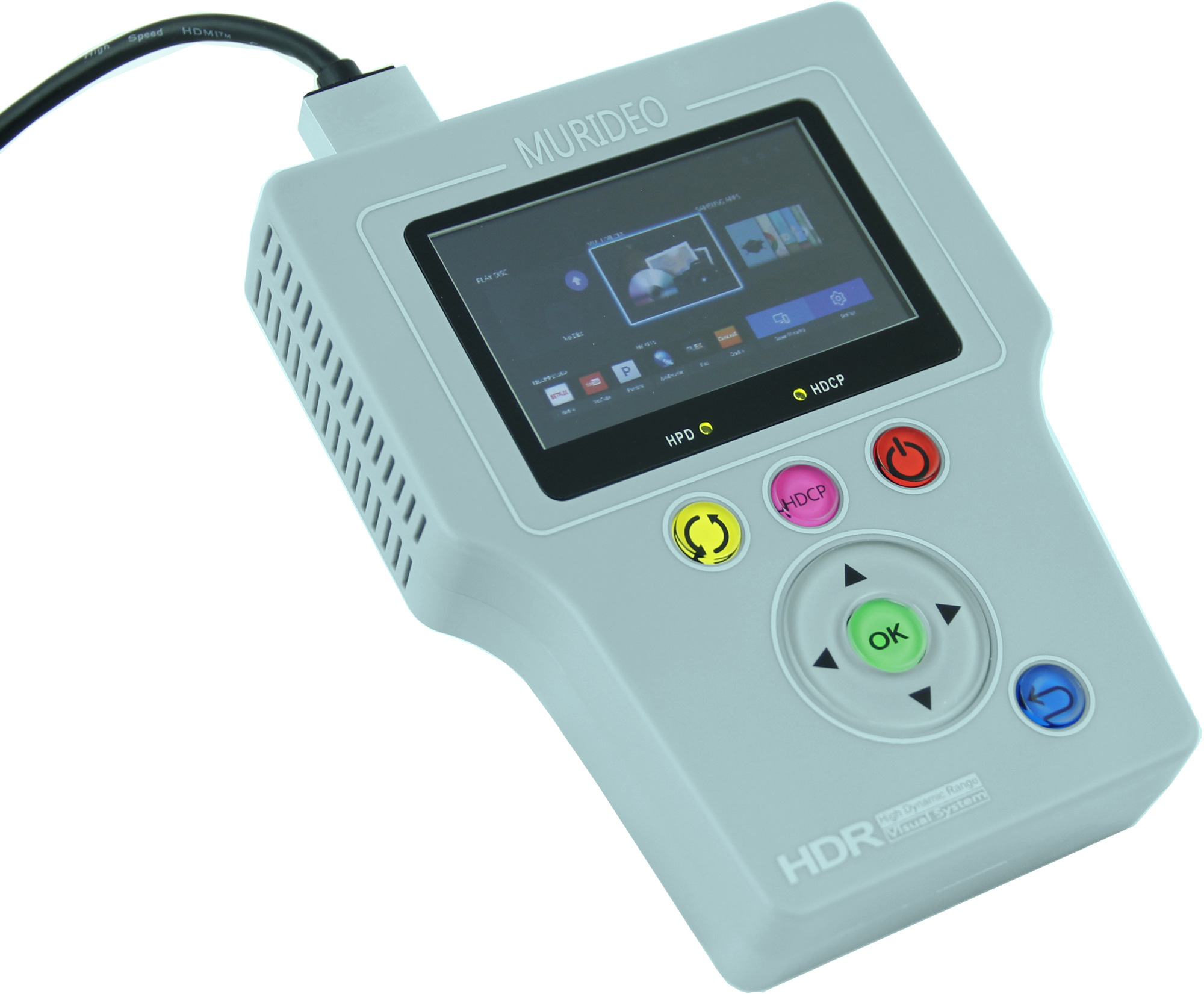

Murideo FRESCO-SIX-A-GEN2 Portable 18GBPS 4K HDMI HDCP and EDID Analyzer - Rechargeable Li-ion Battery

ITEM #: MUR-FRESCO-SIX-A MFG #: M-ANA-SIX-A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUR-FRESCO-SIX-A

M-ANA-SIX-A - Overview

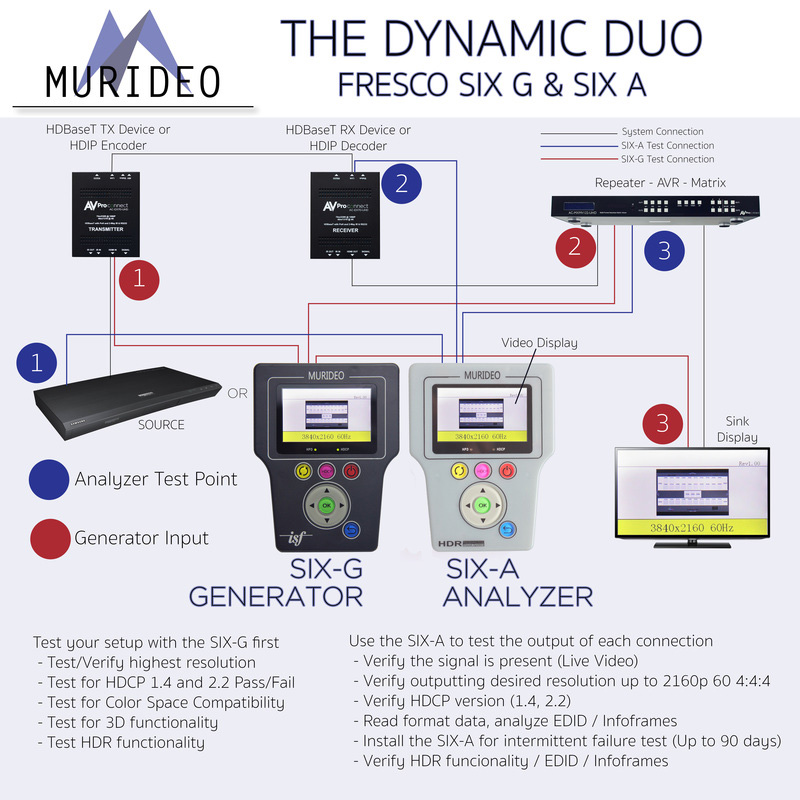

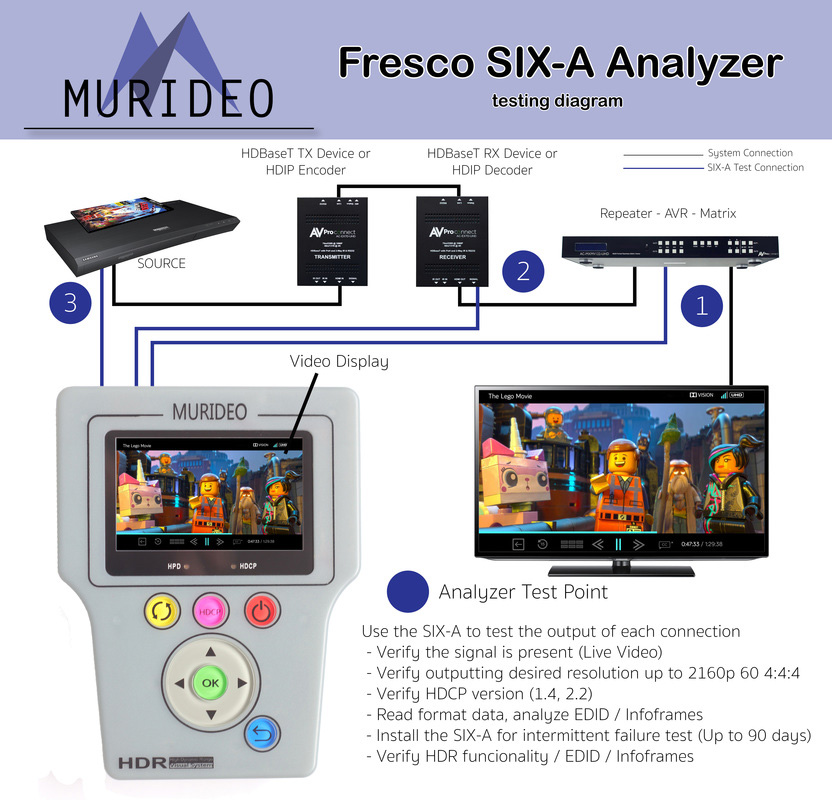

After over a year of development the Murideo engineering team has delivered an extremely useful and cost effective field test tool for systems integrators - The Murideo Fresco SIX-A Generation 2. In today's world of mixed systems and multiple flavors of SD, HD and UHD this tool solves problems - they use the SIX-A in their shop for testing what the manufacturer says a device will do vs. what it will actually do, they use the SIX-A for testing basic and complex switching solutions for maximum capability and performance (including complete high bandwidth HDMI cable testing, HDBaseT and HDIP link testing up to 18 GBPS (that means 8K SUHD, all HDR flavors, plus legacy sources like 480i/p). Plus, we can even use the SIX-A to monitor a pesky system with intermittent issues and capture the data required to fix the system. Consultants will love the SIX-A as a tool for system commissioning and validation - with included PC software for advanced analysis and reporting.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Analyze any HDMI/DVI signal up to 18 GBPS (4096x2160P60 4:4:4)
    • Test HDMI/DVI Cables up to 18 GBPS - Full TMDS Testing
    • View up to 18 GPBS Video Content & Format Info - Anywhere
    • Test/Analyze HDBaseT Signal Integrity & Report HDBaseT Data
    • Read & Analyze HDR Signals & Metadata
    • Report & Analyze InfoFrames
    • Analyze & Report HDMI Distribution System over Time (minutes, hours, days) - Down to the Pixel
    • Advanced EDID Analysis & Tools
    • Hot Plug Detect Setting
    • HDCP Analyzer - 2.2, 1.X, Disable
    • Audio Tests - 2 - Channel & Multichannel
    • Audio VU Meter
    • Pixel Color Checker
    • Portable, Battery Operated
    • CEC Testing
    • Printable Reports

  • Specifications:

    • HDMI Versions Supported: Up to HDMI 2.0a
    • HDCP Version Supported: HDCP 2.2 and 1.4
    • Maximum Clock Rate: 600Mcsc (594MHz)
    • Bandwidth supported: 18GBPS
    • Timings supported: All VESA / Video Standards with 0, 59.94, 30, 29.97, 24, 23.98 fps / Video Standard with 50, 25 fps / SMPTE 4K Timings (4096x2160) / UHD 4K Timings (384x2160)
    • Video Decoding: RGB, YCbCr
    • Color Space Information Displayed: ITU. REC709, BT. 2020
    • Audio Channels: Up to 8 (7.1)
    • Audio Output: 2CH LPCM
    • VU MeterChannels: up to 8 (7.1)
    • Control: RS-232, USB, PC Control Software
    • Firmware Flexibility: Field Upgradeable
    • Power: 5VDC Li-Ion Internal Battery (Rechargeable) or Wall Adaptor
    • Battery Charger: Input 100-240VAC - 50/60Hz @.5A Output 5VDC @3A
    • Outer Shell: High Impact ABS Molded
    • Carry Case: Custom Molded (Blow) High Impact Case Included
    • Size (Machine alone): 5.4" (H) x 4.2" (W) x 1.2" (D)
    • Weight: Less than 1lb!

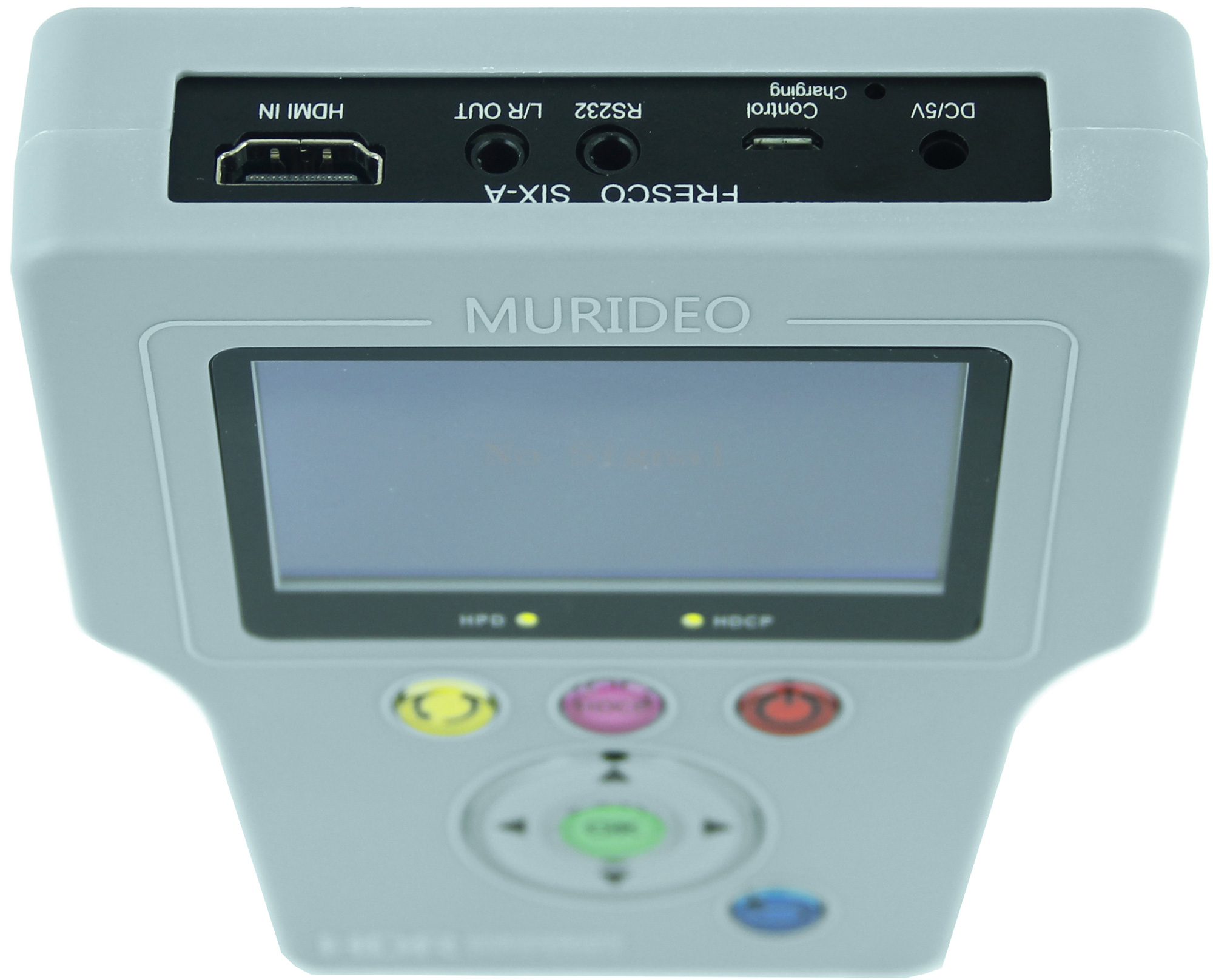

    • Interface Connectors: HDMI Out, 2CH PCM Audio Out, RS-232, Micro USB, DC 5V

  • Item Includes:

    • SIX-A Generation 2 Analyzer
    • AC Adapter/Charger 5 VDC 3A
    • Rechargeable Batteries (installed)
    • Hard Case
    • 3ft Micro USB to USB cable
    • 1ft 3.5mm to 9-pin serial adapter
    • 3ft HDMI 18 GBPS cable
