MuxLab 500220 Dante 60W Column Speaker - PoE

ITEM #: MUX-500220 MFG #: 500220

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$935.00

Our Price:

$748.00

Availability: In Stock
iAvailability Description Popup


500220 - Overview

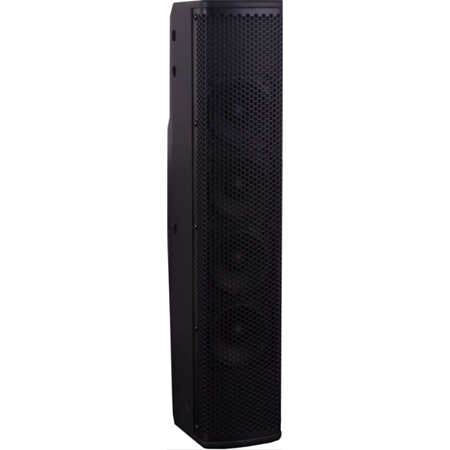

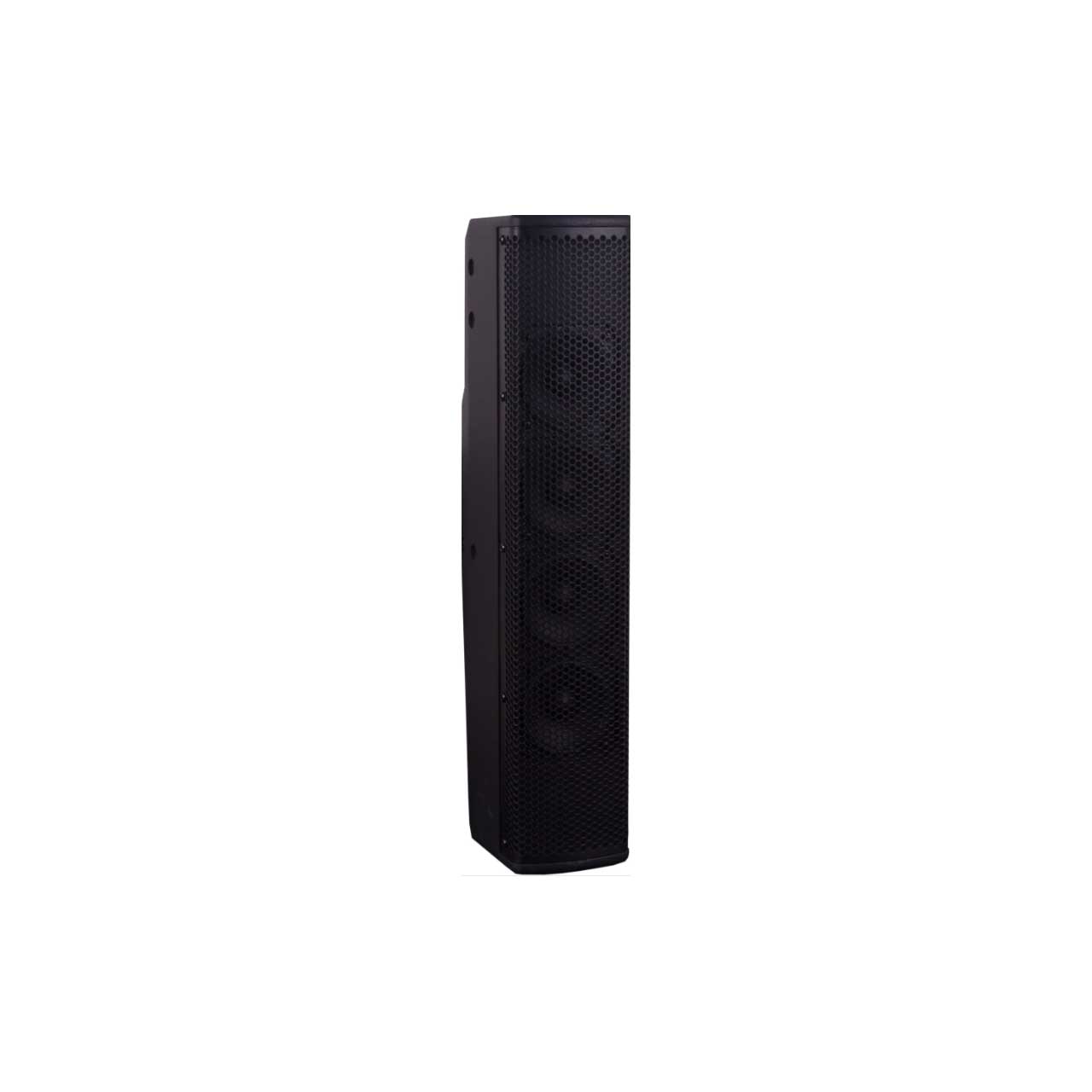

The MuxLab Dante 60W Column Speaker PoE (500220) is a speaker designed with advanced linear sound source technology, each speaker consists of 4 3-inch ferrite bass drivers with 25mm voice coils. It meets the design requirements of linear sound sources and has broad horizontal directivity and narrow vertical directivity, sending the sound to the target area accurately, avoiding reflection from the ceiling and ground while increases the proportion of direct and reverberation sound to greatly improve speech clarity.

The MuxLab Dante 60W Column Speaker PoE is mainly used in speech sound reinforcement system, works as the main loudspeaker in a multifunctional small conference room, or the supplementary loudspeaker in the medium-sized conference room. Could be used in small music sound reinforcement systems with subwoofer loudspeakers, and can also be used with the latest Dolby surround sound systems as left or right surround, back surround, or ceiling surrounds sound box use.

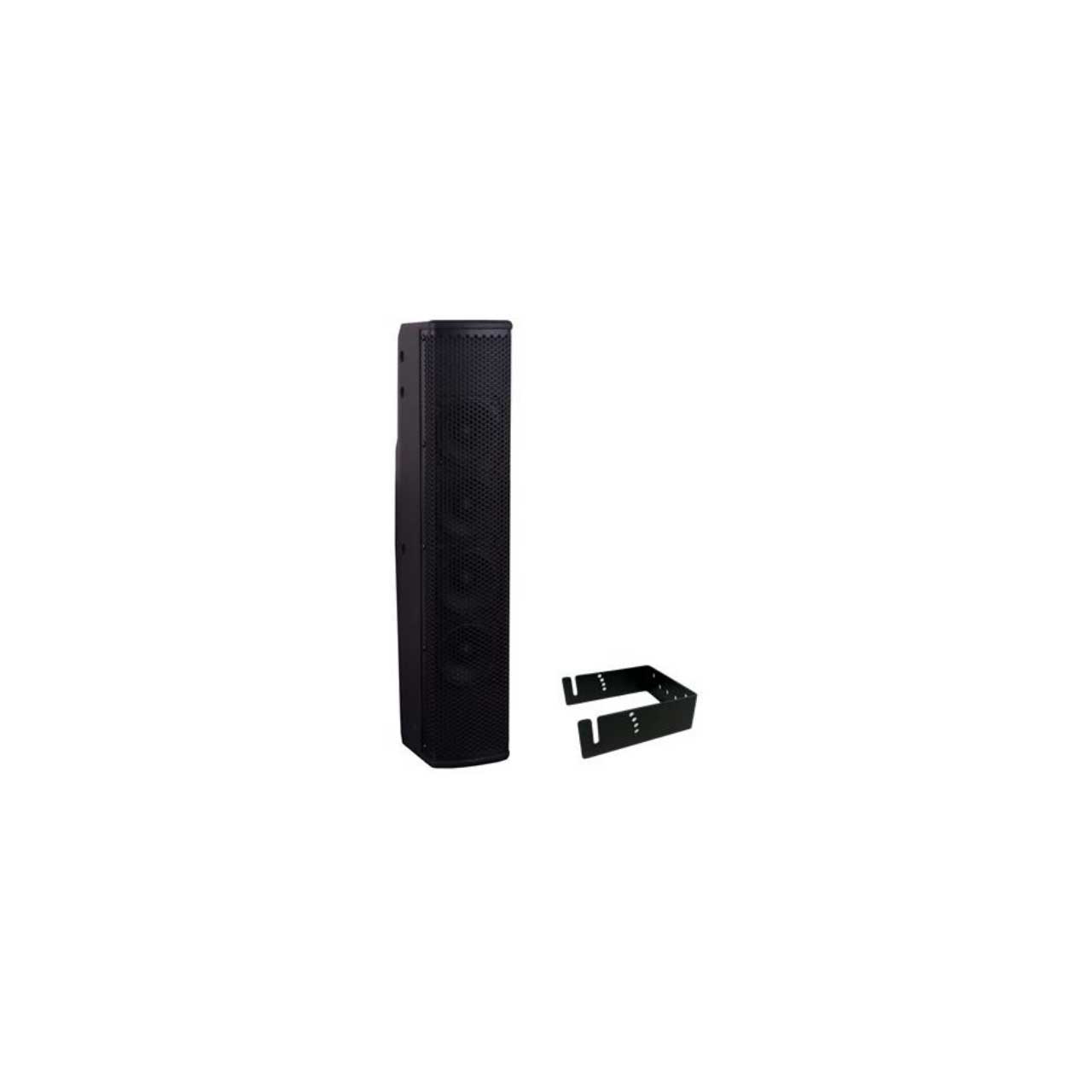

It supports a variety of installation methods including a convenient U-shaped frame. The special U frame provides two modes: fixed angle and adjustable angle. In the adjustable mode, the adjustment up and down angle is 15 degrees. You can also use the universal NBT717M wall mount frame or a vertical and horizontal multi-angle frame to hoist the speakers.

The MuxLab Dante 60W Column Speaker PoE has a small and exquisite appearance, the cabinet is made of high-quality wood, which restores the original sound. The clean finish on the surface of the cabinet allows the speaker to adapt to different decorative styles. Free software calibration tool available to customize speaker sound settings.
Applications
Conference rooms
Shopping center
Houses of worship
Hospitals
Restaurants
Education
Airports
Retail stores

  • Features:

    • Supports the Dante protocol
    • Built-in power amplifier module
    • Precise DSP matching
    • Power Supply via PoE
    • Various installation methods

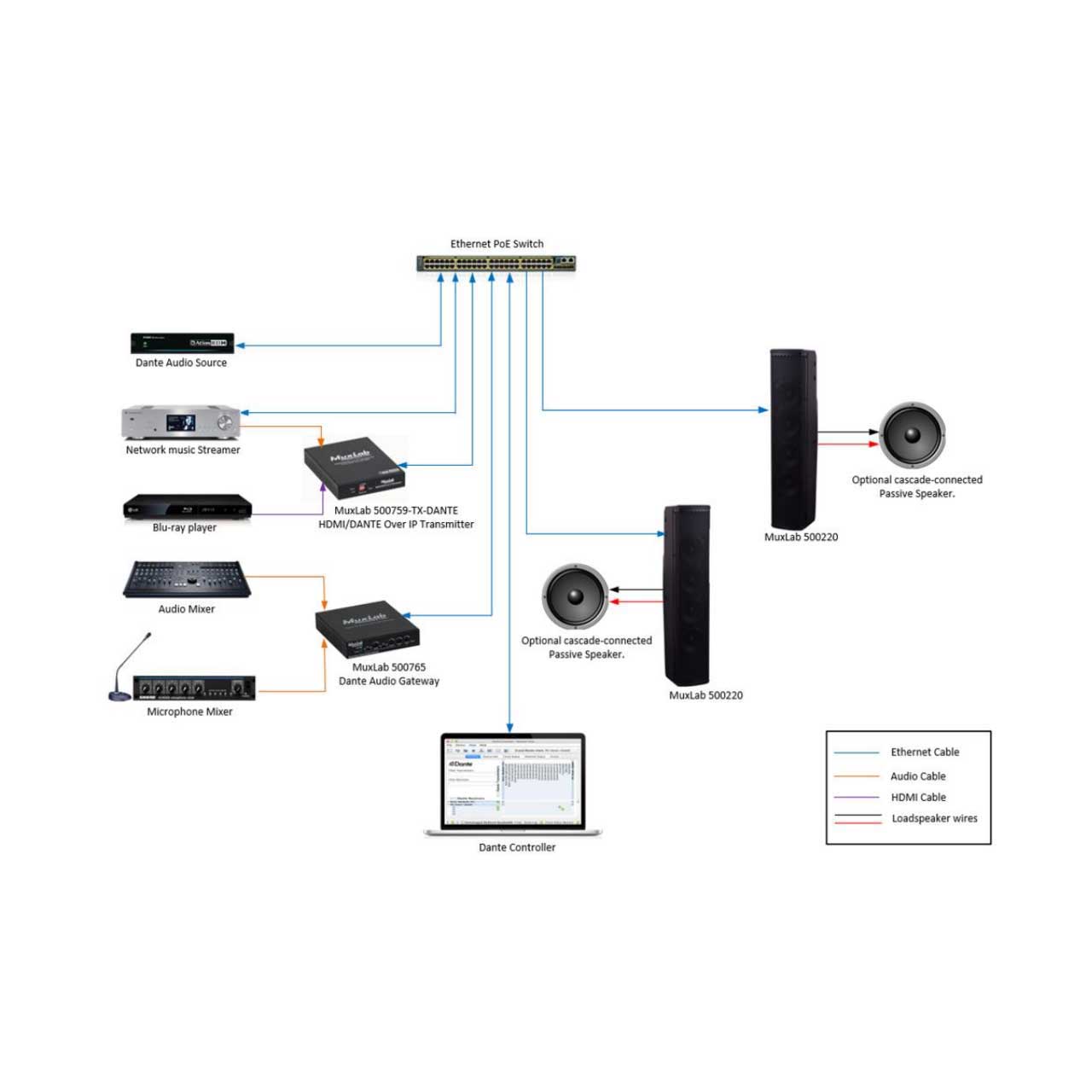

    • Supports cascaded connections
    • Compatible with standard NBT717M frame
    • Free sound calibration software tool available
    • Sleek and ultra-thin design suitable for all indoor installations

  • Specifications:

    • Frequency Response: 105Hz ~ 16KHz
    • Audio Input: Dante Audio via Ethernet
    • Output Power: 60W
    • Route Switching Control: Dante™ Controller Software
    • Sensitivity@1W/1M, f>100Hz: 88dB SPL
    • Maximum Continuous Level at 1m: 108dB SPL
    • Peak Level at 1m: 114dB SPL
    • Nominal Impedance:
    • Peak Power: 60W
    • Drivers: 3" x 4 Full range
    • Power Supply: PoE+ (IEEE 802.3AT/BT)
    • Built-in Function: DSP/Dante/Amplifier
    • DSP Function: Gain, Mute, 5-Band PEQ
    • Cabinet: 15mm MDF with paint
    • Unit dimensions (DxWxH): 6.29 x 3.93 x 19.68" (160 x 100 x 500mm) Single unit dimensions
    • Unit Weight: 8.81Lbs (3.99kg) Single unit weight
    • Shipping Weight: 24Lbs (10.88kg)

  • Warranty:

    • 2 Years

  • GTIN:

    0627699002209
