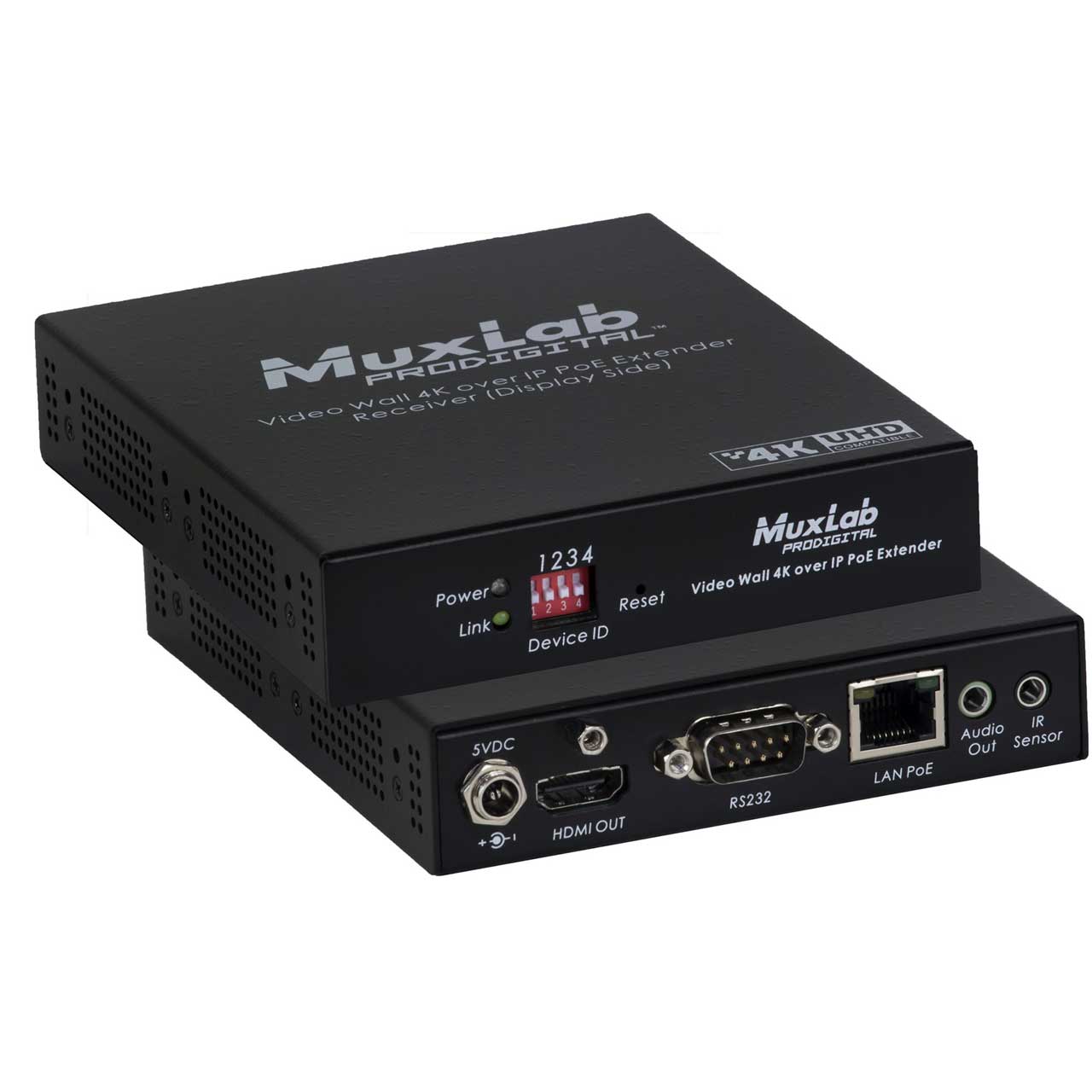

MuxLab 500759-RX Video Wall 4K over IP / PoE Extender Receiver

500759-RX - Overview

• Features:

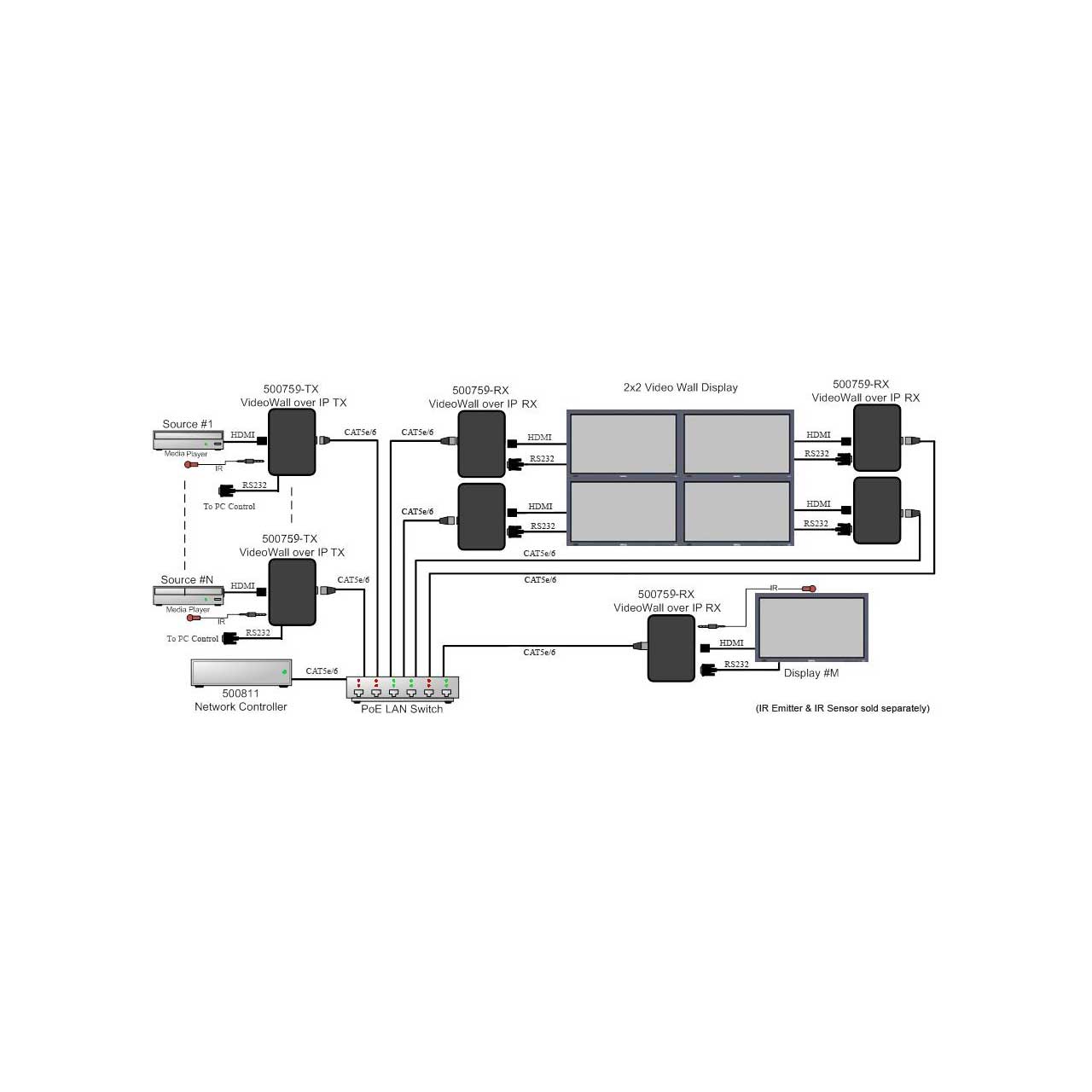

  • Configure a Video Wall array with 100’s of displays, depending on network bandwidth
  • Supports up to 4K @ 30Hz and 1080p @ 60Hz
  • Visually lossless video (1 frame latency)
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330ft (100m) over Cat5e/6
  • Supports audio insert (TX) & audio extract (RX)
  • Supports RS232 and IR transmission for remote control
  • PoE powered
  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)


• Specifications:

  • Environment: HDMI 1.4
  • Devices: Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
  • Bandwidth: 300MHz
  • Signals: HDMI 1.4 protocol
  • Connectors:
  • One (1) HDMI receptacle.
  • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
  • Two (2) 3.5mm jacks for IR emitter (on TX)/sensor (on RX).
  • Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX).
  • One (1) DB9 for the RS232
  • Four (4) DIP Switches for device ID addressing.
  • Maximum Distance Based on a maximum length of 6.6ft (2m) of HDMI cable per end: Cat5e/6: 330ft (100m) up to 4K @ 30Hz. Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
  • Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
  • Compression: Proprietary Compression
  • Bandwidth: Up to 850Mbps
  • Network Requirement: 1000BaseT with Jumbo Frame
  • IR Frequency: 38 to 56KHz (IR Emitter and IR Sensor sold separately)
  • RJ45 Pin Configuration: Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight-through wiring.
  • RJ45 Link: Pin 1 (R) Pin 2 (T); Pin 3 (R) Pin 6 (T); Pin 4 (R) Pin 5 (T); Pin 7 (R) Pin 8 (T)
  • Cable: One (1) Cat 5e/6 or better twisted pair cables required
  • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
  • PoE: IEEE 802.3af
  • Power Consumption Transmitter: 2.85Watt Receiver: 2.55Watt
  • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
  • Humidity: Up to 95% non-condensing
  • Dimensions: 4.40” x 5.08” x 1.00” (112mm x 129mm x 25mm)
  • Weight: 1.5lbs (0.68kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
  • Warranty: 2 years


• Warranty:

  • 2 Years Part & Labor


• GTIN:

  0627699807590
