MuxLab 500425 4K60 Ultra HD HDMI 1x2 Splitter

500425 - Overview

• Features:

  • Distribute one HDMI 2.0 source to two displays
  • Supports up to 4K @ 60Hz (4:4:4)
  • HDCP 1.4 and 2.2 compliant
  • Supports HDR and Deep Color
  • Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • LED diagnostic

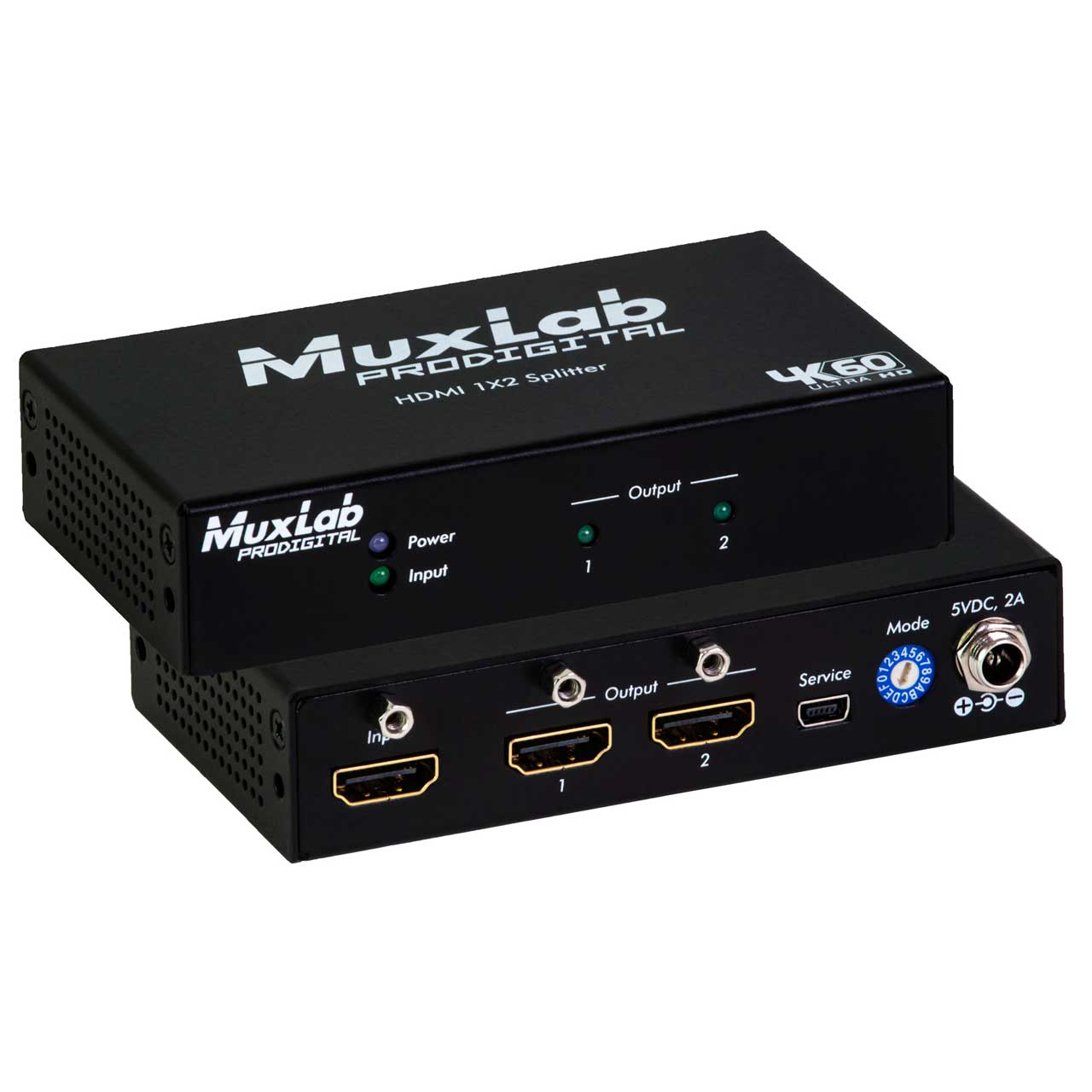

  • Connectors on rear for neater cabling


• Specifications:

  • Environment: HDMI 2.0a
  • Transmission: Transparent to the user
  • Video Bandwidth: 18 Gbps
  • Frequency Range: 25 to 600 MHz
  • Signals: HDMI 2.0a protocol
  • HDCP: Revision 1.4 & 2.2 compliant
  • Connectors: HDMI receptacle
  • LEDs:
    - Power: Blue
    - Input & Output Link: Green
  • Resolution:
    - 480i to 1080p @ 50/60 FPS
    - 1080p @ 24/50/60 FPS
    - 3840 X 2160 @ 24/25/30/60 FPS
  • Color: 8, 10 & 12 bit
  • Audio: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
  • Cable: HDMI cable of appropriate length for video resolution selected.
  • Power Supply: 1x 110-240V/5VDC, 2A power supply
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: -4°F - 140°F (-20°C - 60°C)
    - Humidity: up to 90% non-condensing
  • Enclosure: Metal enclosure
  • Bracket: Included
  • Dimensions: 4.33" x 2.44" x 1.00" (110mm x 62mm x 25mm)
  • Weight: 0.8lbs (0.36kg)


• Warranty:

  • 2 years


• Applications:

  • Commercial and residential AV systems
  • Classroom training systems
  • Digital signage
  • Boardroom systems
  • Collaborative PC systems
  • Medical information systems


• GTIN:

  0627699004258
