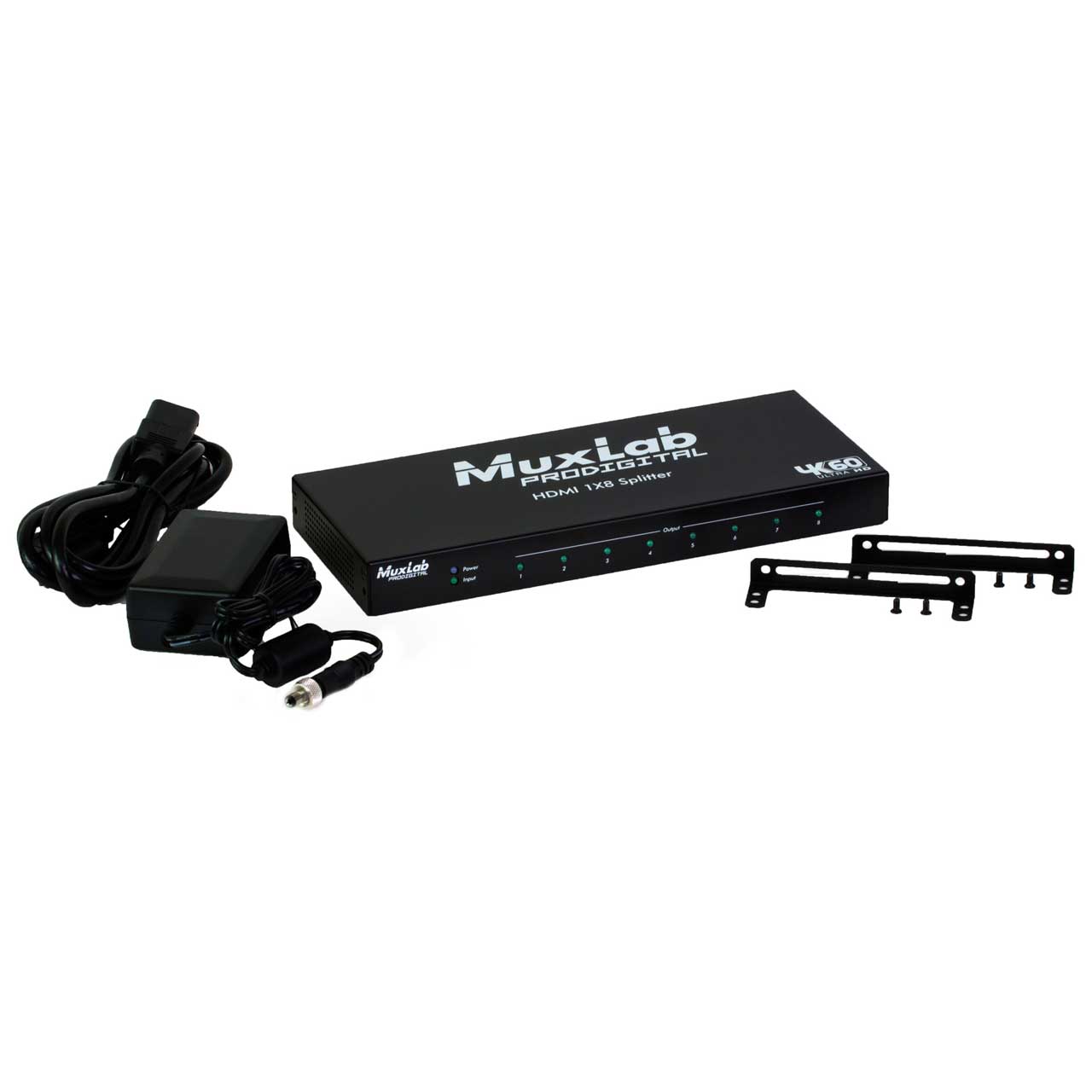

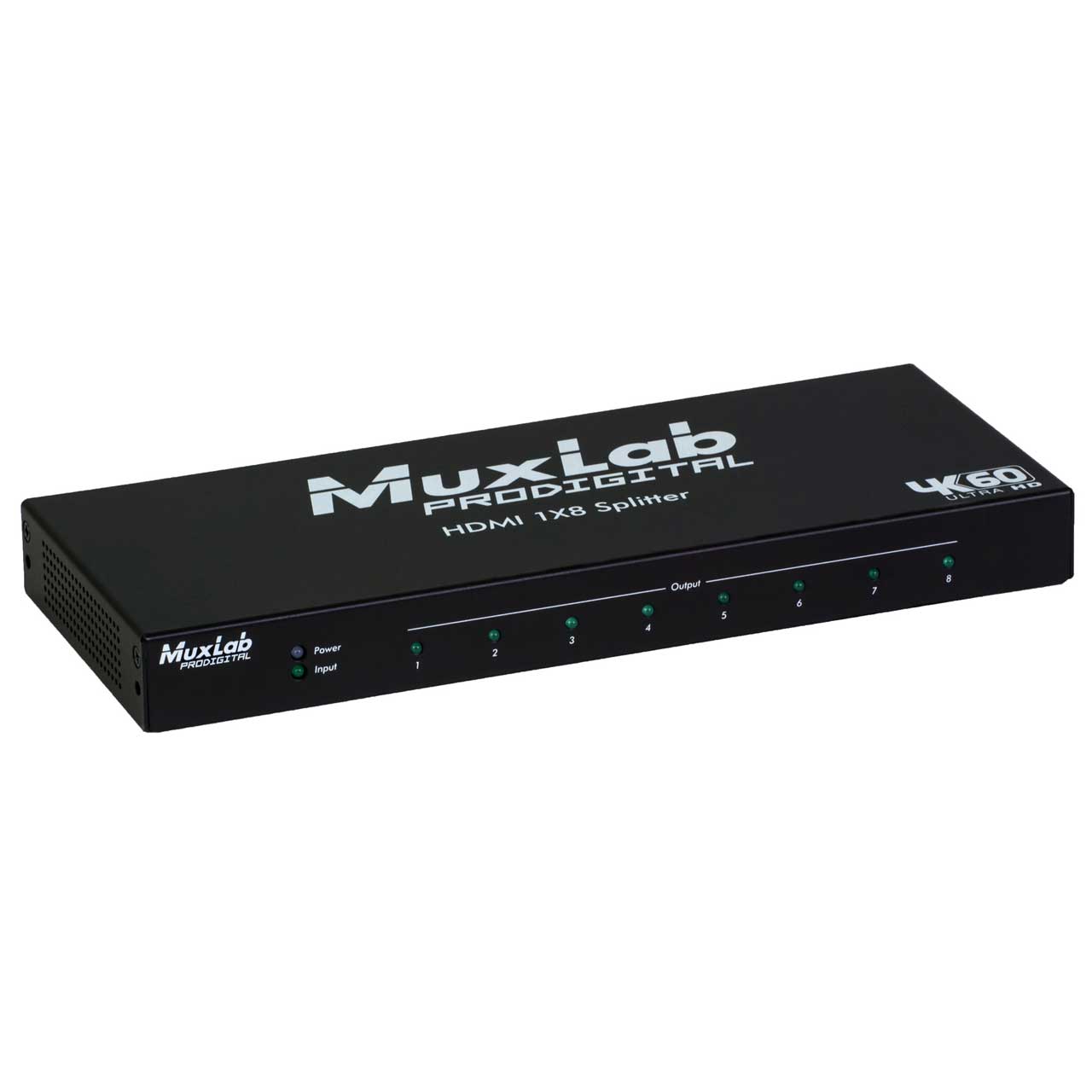

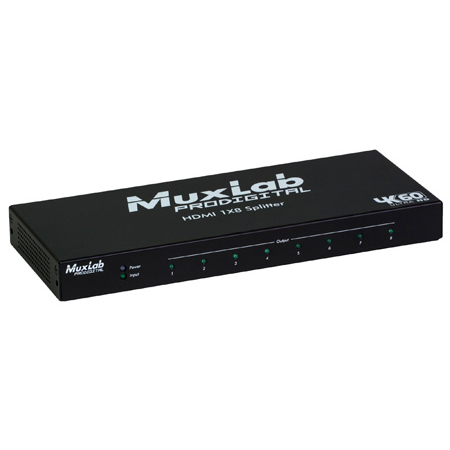

MuxLab 500427 4K60 Ultra HD HDMI 1x8 Splitter

500427 - Overview

• Features:

  • Distribute one HDMI 2.0 source to eight displays
  • Supports up to 4K @ 60Hz (4:4:4)
  • HDCP 1.4 and 2.2 compliant
  • Supports HDR and Deep Color
  • Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • LED diagnostic

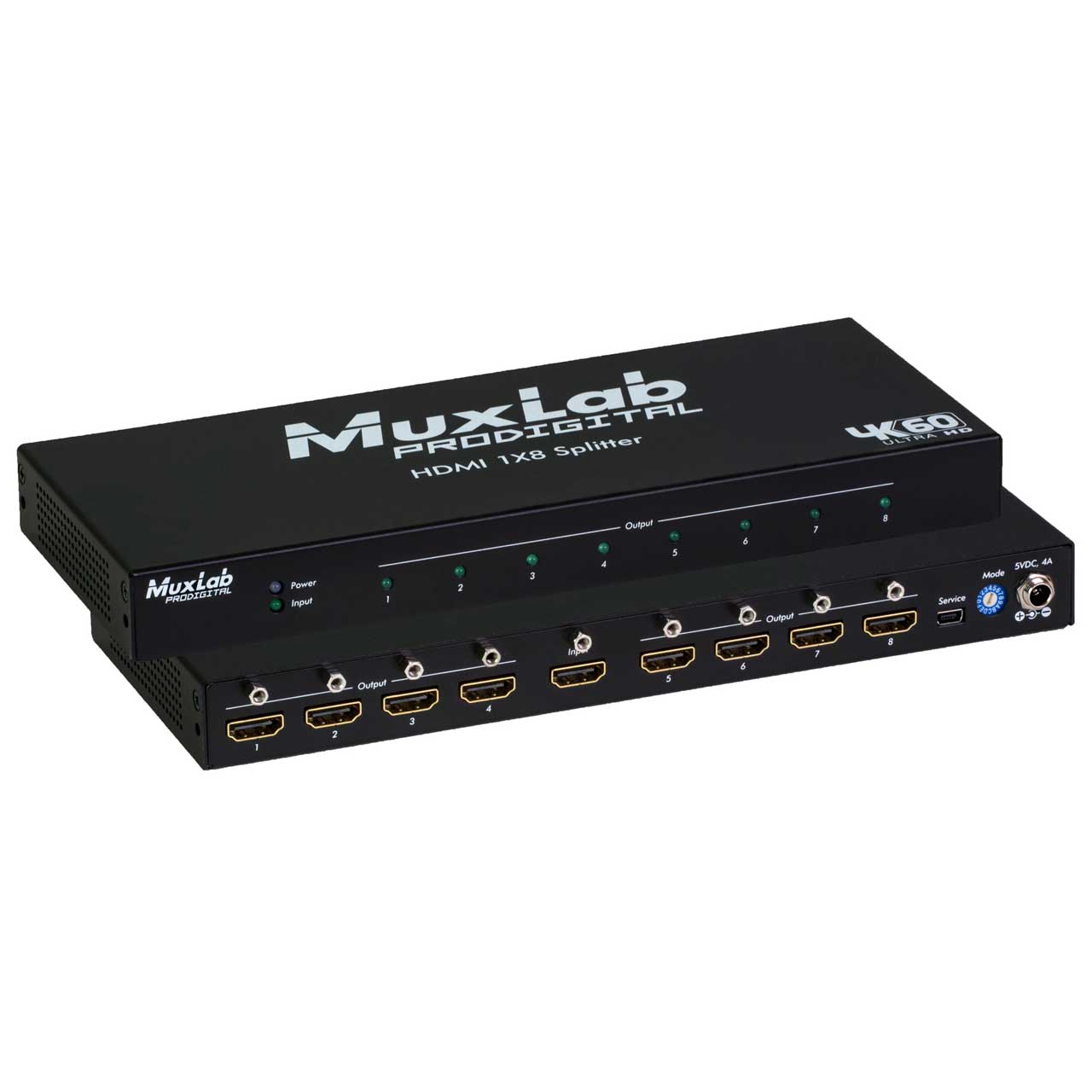

  • Connectors on rear for neater cabling


• Specifications:

  • Environment: HDMI 2.0a
  • Devices: Ultra HD Blu-Ray, projectors, monitors, TV, PC, laptops
  • Transmission: Transparent to the user
  • Video Bandwidth: 18 Gbps
  • Frequency Range: 25 to 600 MHz
  • Signals: HDMI 2.0a protocol
  • HDCP: Revision 1.4 & 2.2 compliant
  • Connectors: HDMI receptacle
  • LEDs: Power: Blue
  • Input & Output Link: Green
  • Resolution: 480i to 1080p @ 50/60 FPS, 1080p @ 24/50/60 FPS, 3840 X 2160 @ 24/25/30/60 FPS
  • Color: 8, 10 & 12 bit
  • Audio: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
  • Cable: HDMI cable of appropriate length for video resolution selected.
  • Power Supply: One (1) 110-240V/5VDC , 2A power supply
  • Temperature: Operating: 0° to 40°C / Storage: -20° to 60°C
  • Humidity: up to 90% non-condensing
  • Enclosure: Metal enclosure
  • Bracket: Included
  • Dimensions: 9.53" x 3.82" x 1.00"
  • Weight: 3.2 lbs
  • Compliance: Regulatory: FCC, CE, RoHS


• Warranty:

  • 2 years


• GTIN:

  0627699004272
