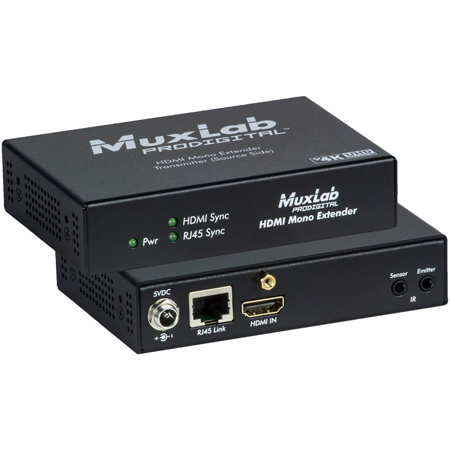

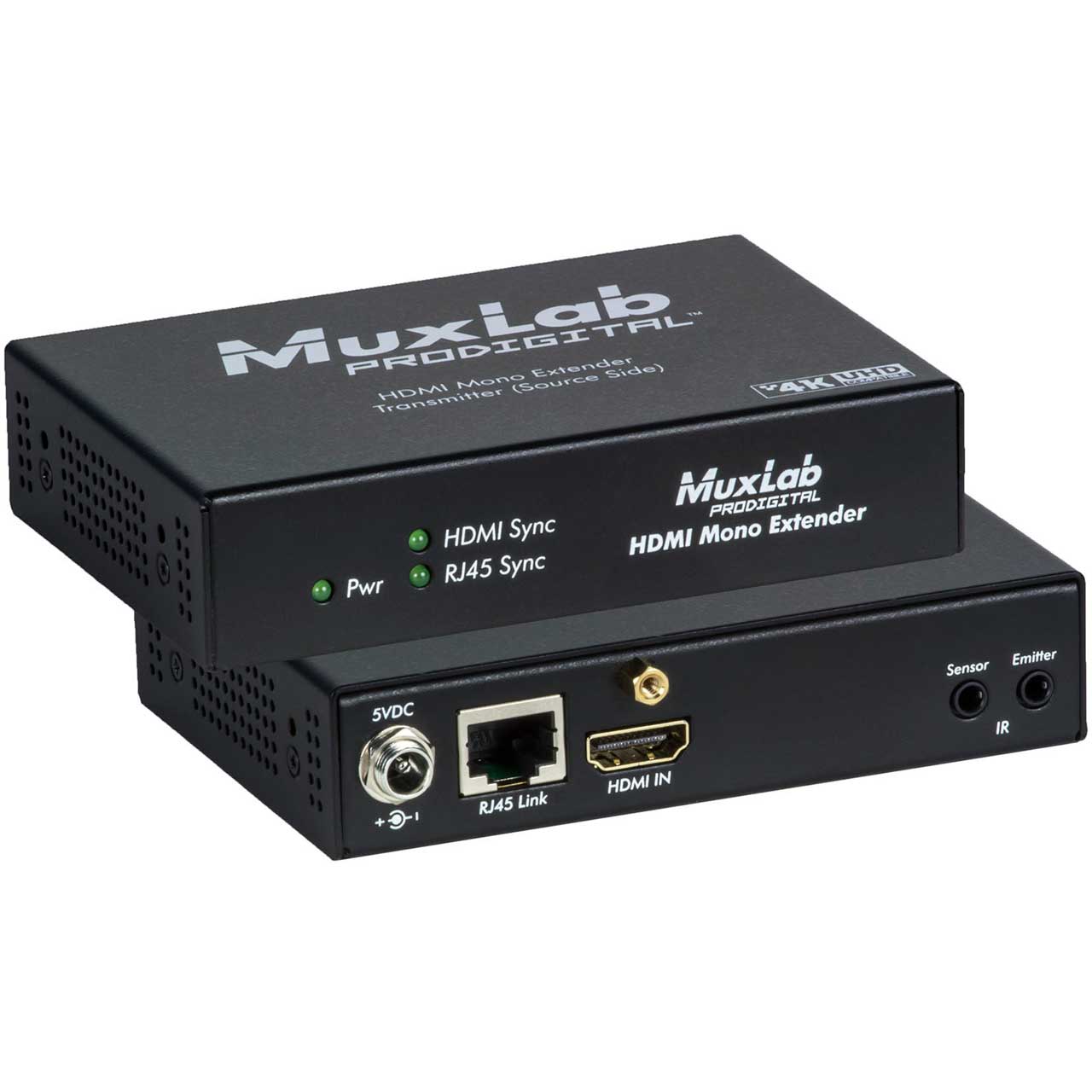

MuxLab 500451-TX HDMI Mono Transmitter - HDBaseT - UHD-4K

500451-TX - Overview

• Features:

  • HDMI extender 4K Supports 1080p deep color and full 3D to distances of up to 230 ft (70m) over single Cat5e/6
  • Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 ft (40m) over single Cat5e/6
  • HDMI extender 4K Supports Bi-directional IR pass through
  • HDMI extender Supports all digital audio modes
  • Includes IR emitter and IR sensor (carrier-wave)
  • Compatible with 500451-PoE

    Applications
  • Digital signage
  • Commercial AV systems
  • Classroom projector systems
  • Boardroom systems
  • Collaborative PC systems
  • Medical information systems


• Specifications:

  • Weight: 0.88LBS (0.400 kg)
  • Dimensions: 21.00 x 15.00 x 5.00 cm
  • Filters: 1080p, 4K/30, 4K/60, Copper/UTP, HDBaseT, HDCP, HDMI, IR, Uncompressed
  • Environment: HDMI 1.4a (3D)
  • Devices: DVDs, Blue-ray projectors, monitors, TVs, PCs, laptops, servers supporting HDMI
  • Transmission: Transparent to the user
  • Bandwidth: 340mHz
  • Signals: HDMI 2.4a protocol
  • Connectors (Cables not included):
    1x HDMI receptacle
    1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    2x 3.5mm sockets for IR Sensor & Emitter (carrier-wave)
  • Max Distance (Base on a maximum length of 6.6ft (2m) of HDMI cable per end):
    4K/30 (4:4:4): Cat 5e/6: 131ft (40m)
    4K/60 (4:2:0): Cat 5e/6: 131ft (40m)
    1080p: Cat 5e/6: 230ft (70m)
    1080p Deep Color: Cat 5e/6: 230ft (70m)
    When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
  • Cable: 1x Category 5e or better twisted pair cables required
  • Power Supply: 2x 110-240V/5DC power supplies with interchangeable blades
  • Power Consumption: 1.6W
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 185°F (-20&def to 85°C)
  • Humidity: up to 95% non-condensing
  • Enclosure: Metal
  • Dimensions: 4.4 x 3.00 x 1.00" (1.22 x 7.6 x 2.5cm)
  • Weight: 1.4lbs (0.6kg)
  • Compliance: Regulatory: FCC, CE, RoHS


• Item Includes:

  • 1x MuxLab 500451-TX HDMI Mono Transmitter
