500511 - Overview

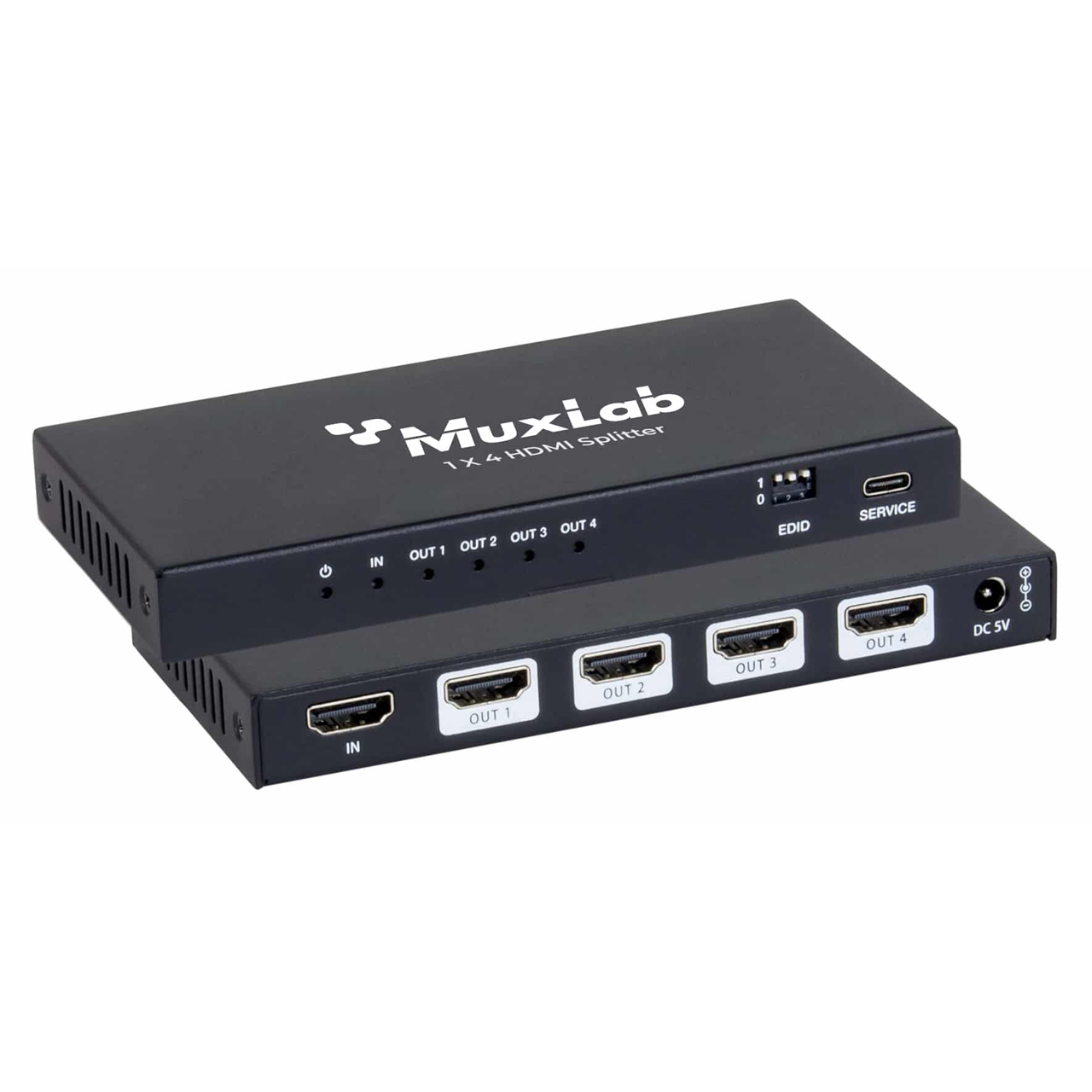

The MuxLab 500511 HDMI 2.1 48Gbps 1x4 Splitter is a versatile device with various applications, offering advanced features for splitting HDMI signals.

The HDMI 2.1 48Gbps 1x4 Splitter's ability to handle high data rates, support 8K resolution, and provide features like EDID management and cable equalization makes it suitable for a wide range of applications in both residential and commercial settings.

Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
- Supports video resolution up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM
- Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
- HDR to SDR auto converting on all outputs
- Advanced EDID management
- Compact design for easy and flexible installation
Specifications:
- HDMI Version: Support HDMI 2.1 and HDCP 2.3
- Video Bandwidth: 48Gbps
- Video Resolution: Up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
- Color Depth: 8/10/12 bit
- Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
- Audio Formats:
  - HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- Input: 1x HDMI IN (Type A, 19-pin female)
- Output: 4x HDMI OUT (Type A, 19-pin female)
- Control: 1x SERVICE (USB Type C, Update port)
- Housing: Black Metal Housing
- Dimensions: 5.71" x 2.68" x 0.70" (145mm x 68mm x 17mm)
- Weight: 9.28oz (263g)
- Power Supply:
  - Input: 100-240VAC 50/60Hz
  - Output: 5VDC/2A
- Power Consumption: 5.5W Max
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -13°F - 158°F (-25°C - 70°C)
Item Includes:
- 1x HDMI 2.1 48Gbps 1x4 Splitter
- 1x Power Supply
- 1x User manual (available via download)
Warranty:
- 2 Year Warranty

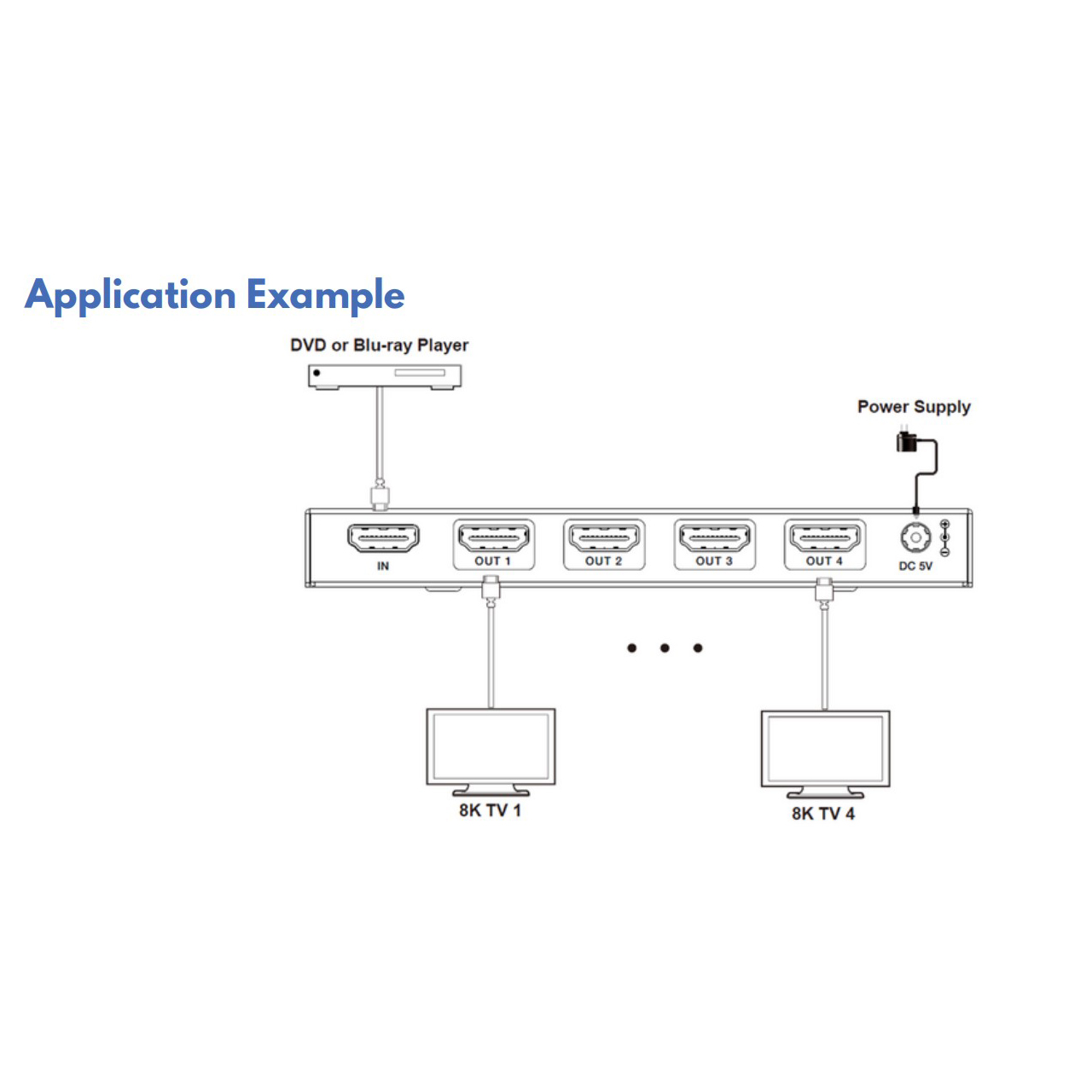

Applications:
- Home Entertainment Systems
- Gaming Setups
- Professional AV Installations
- Digital Signage
- Educational Institutions
- Medical Imaging
- Broadcasting and Production
- Compatibility Testing
- Event Venues
GTIN:
0627699005118
