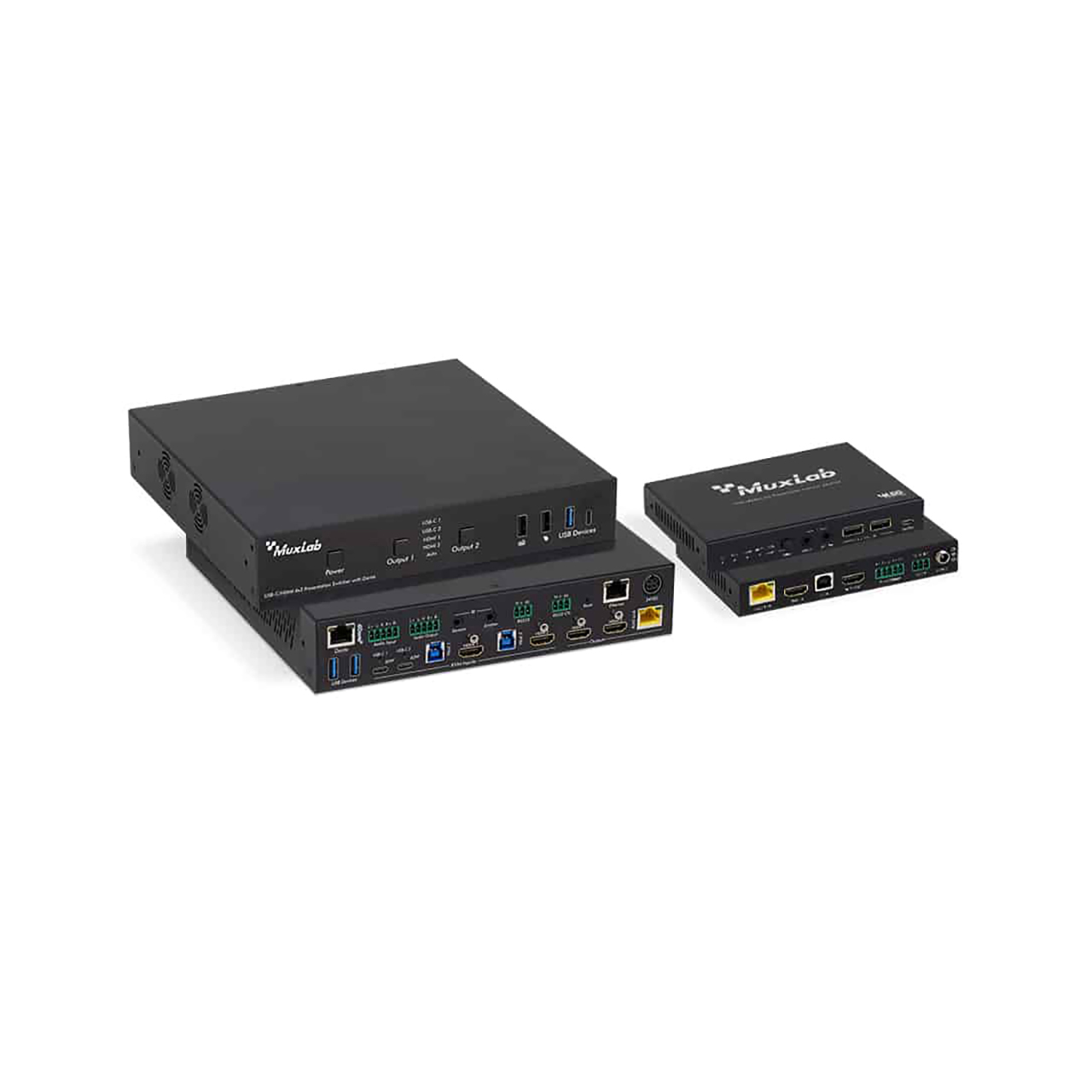

MuxLab 500532 USB-C/HDMI 4x2 Presentation Switcher with Dante - 4K@60Hz 4:4:4

500532 - Overview

• Features:

  • 18Gbps video bandwidth 4x1 switcher
  • HDMI 2.0b and HDCP 2.2 complaint
  • Supports video resolution up to 4K@60Hz 4:4:4
  • Supports HDBaseT 3.0 with PoE
  • Supports 4x2 seamless switching
  • Dante 2x2 audio embedding input and output Provides 5 Multiview display modes
  • Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
  • Manual switching or automatic switching
  • Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
  • Support standard PoE power supply


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Input Video Resolution: 480i 1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50Hz/60Hz 4:4:4
  • Output Video Resolution: Auto, 3840x2160p60, 3840x2160p50, 4096x2160p60, 4096x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60
  • Color Space:
    - Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4)
    - Output: 8-bit
  • Color Depth: RGB, YCbCr 4 :4 :4/4 :2 :2/4 :2 :0
  • Audio Formats: LPCM 2.0
  • Audio Sample Rate: 48KHz
  • Transmission Distance: 1080P&4K30 - 230ft/70m; 4K60 - 131ft/40m
  • HDR: Input supports HDR, outputdoes not support HDR
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    TX Analog Audio (Base)
  • Input Impedance: 10k Ohms
  • Output Impedance: 330 Ohms
  • Line Input Level (Max): 8.2dBu (2Vrms)@ balanced or unbalanced audi
  • Line Output Level (Max): 8.2dBu (2Vrms)@ balanced, 2.2dBu (1Vrms)@ unbalanced audio
  • Frequency Response: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Audio Output Sync Delay: <1ms
  • Audio S/N Ratio: 93dB @ 2Vrms, 1kHz A-weighted
  • Audio THD+N: <0.1% @ 0dBV, 1kHz

    RX Analog Audio (HDBaseT)
  • Output Impedance: 330 Ohms
  • Line Input Level (Max): 8.2dBu (2Vrms)@ balanced or unbalanced audio
  • Line Output Level (Max): 8.2dBu (2Vrms)@ balanced, 2.2dBu (1Vrms)@ unbalanced audio
  • Frequency Response: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Audio Output Sync Delay: 0 to 50ms
  • Audio S/N Ratio: 93dB @ 2Vrms, 1kHz A-weighted
  • Audio THD+N: <0.1% @ 0dBV, 1kHz

    Dante Audio
  • Audio Formant: LPCM2.0
  • Sample Rate: 44.1, 48, 88.2 and 96KHz at 24 bits
  • Audio Delay: 2ms, 3ms, 4ms, 5ms, 10ms
  • Network Bandwidth: 100Mbps

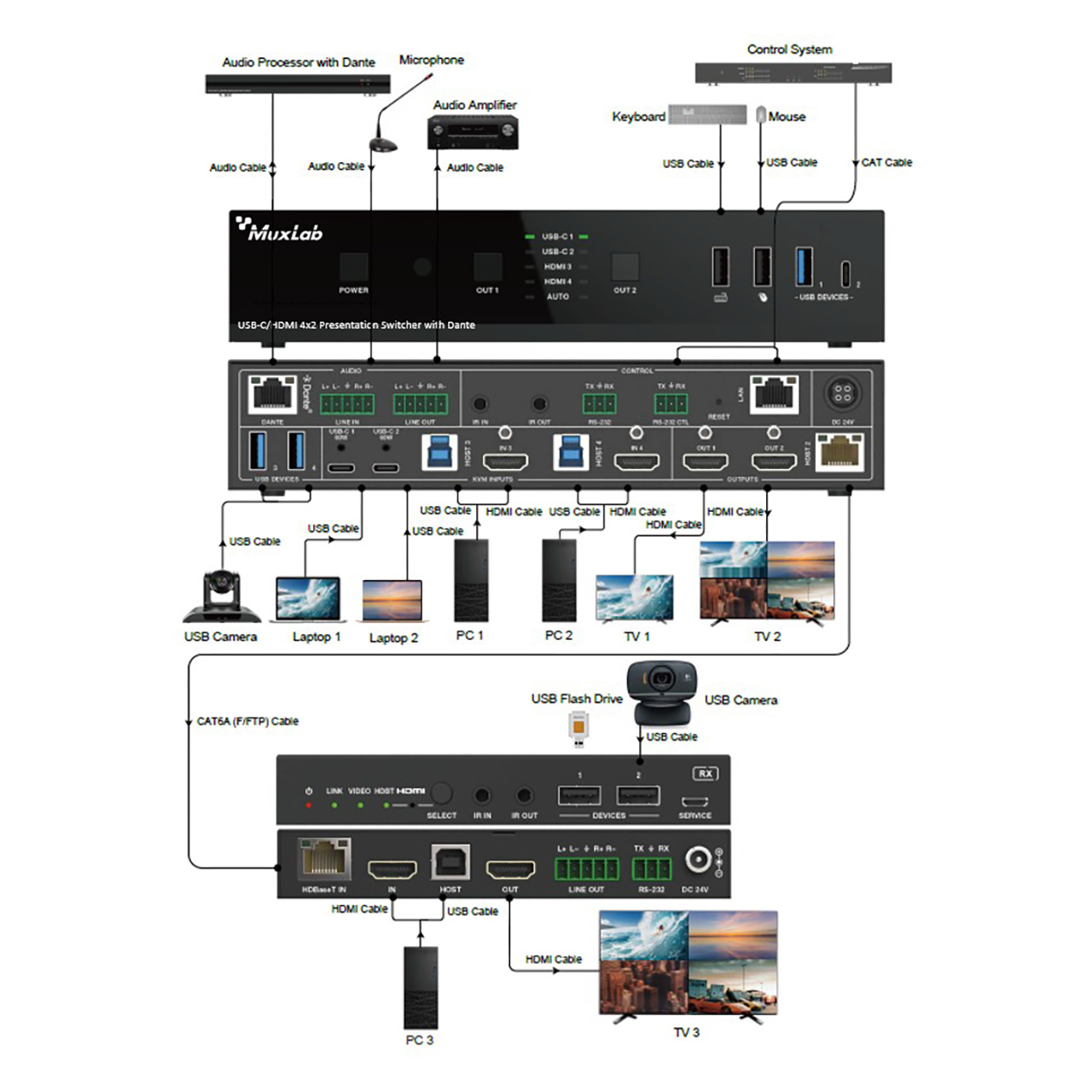

    Connections
  • Transmitter (Switcher) Inputs:
    - 2x HDMI INPUT [Type A, 19-pinfemale]
    - 2x USB-C [24-pin female]
    - 1x LINE IN [5pin-3.5mm phoenix connector]
    - 1x DANTE [RJ45]
  • Transmitter (Switcher) Outputs:
    - 2x HDMI OUTPUT [Type A, 19-pinfemale]
    - 1x HDBT OUTPUT [RJ45]
    - 1x LINE OUT [5pin-3.5mm phoenix connector]
  • Transmitter (Switcher) Controls:
    - 1x RS-232 [3pin-3.5mm phoenix connector]
    - 1x LAN [RJ45]
    - 2x USB HOST [USB Type B]
    - 3x USB DEVICES [USB Type A]
    - 2x USB 1.1 KVM [USB Type A]
    - 1x USB-C DEVICE [USB Type C]
    - 1x IR IN [3.5mm stereo mini-jack]
    - 1x IR OUT [3.5mm stereo mini-jack]
  • HDBaseT Receiver Inputs:
    - 1x HDMI IN [TypeA, 19-pin female]
    - 1x HDBaseT IN [RJ45]
  • HDBaseT Receiver Outputs:
    - 1x HDMI OUT [Type A, 19-pinfemale]
    - 1x LINE OUT [5pin-5mm phoenix connector]
  • HDBaseT Receiver Controls:
    - 1x RS-232 [3pin-3.5mm phoenix connector]
    - 1x USB HOST [USB Type B]
    - 2x USB DEVICES [USB Type A]
    - 1x SERVICE [Micro USB]
    - 1x IR IN [3.5mm stereo mini-jack]
    - 1x IR OUT [3.5mm stereo mini-jack]

    Mechanical
  • Housing: Metal enclosure with Aluminum front panel
  • Color: Black
  • Dimensions (WxDxH):
    - Transmitter: 8.66" x 8.66" x 1.73" (220mm x 220mm x 44mm)
    - Receiver: 5.51" x 4.13" x 0.84" (140mm x 105mm x 21.5mm)
  • Weight:
    - Transmitter: 3.92lbs (1.78kg)
    - Receiver: 0.93lbs (424g)
  • Power Supply:
    - Input: 100V AC - 240V AC 50/60Hz
    - Output: 24V DC/8A
  • Power Consumption: 170W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (non-condensing)


• Item Includes:

  • 1x USB-C/HDMI 4x2 Presentation Switcher Transmitter
  • 1x USB-C/HDMI 4x2 Presentation Switcher Receiver
  • 2x 24VDC/8A Power Supply


• Warranty:

  • 2 Year Limited Warranty
