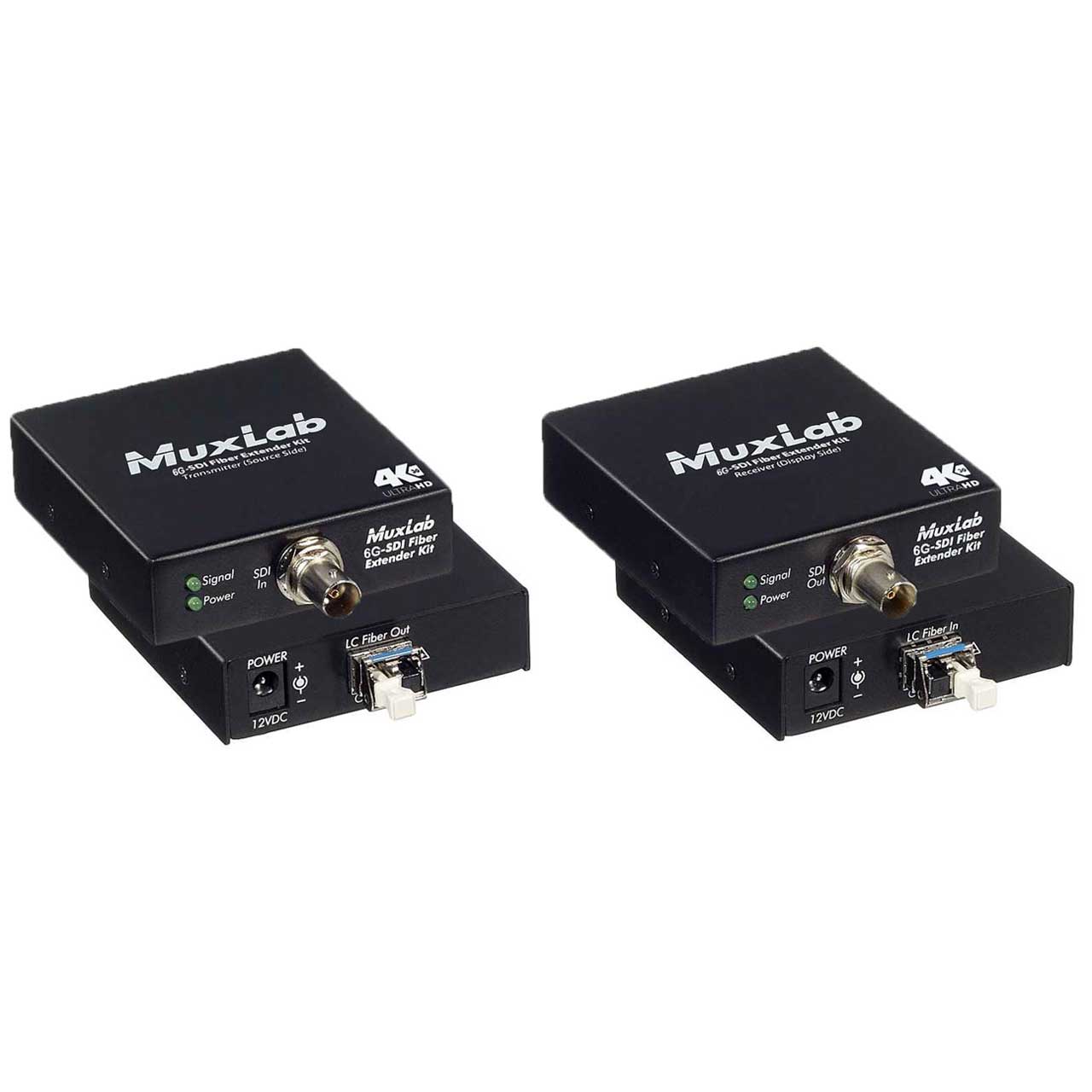

MuxLab 500712 6G-SDI Fiber Extender Kit - Single Mode (LC)

500712 - Overview

• Features:

  • Supports 6G/3G/HD-SDI signals
  • Supports up to 4K/30 video
  • Extend transmission up to 60,000ft (20km) over singlemode fiber
  • LED diagnostics

    Typical Applications:
  • Video production & Broadcasting
  • Studio-to-studio & Post production
  • Outside broadcasting vehicle
  • Mobile video & Live Events

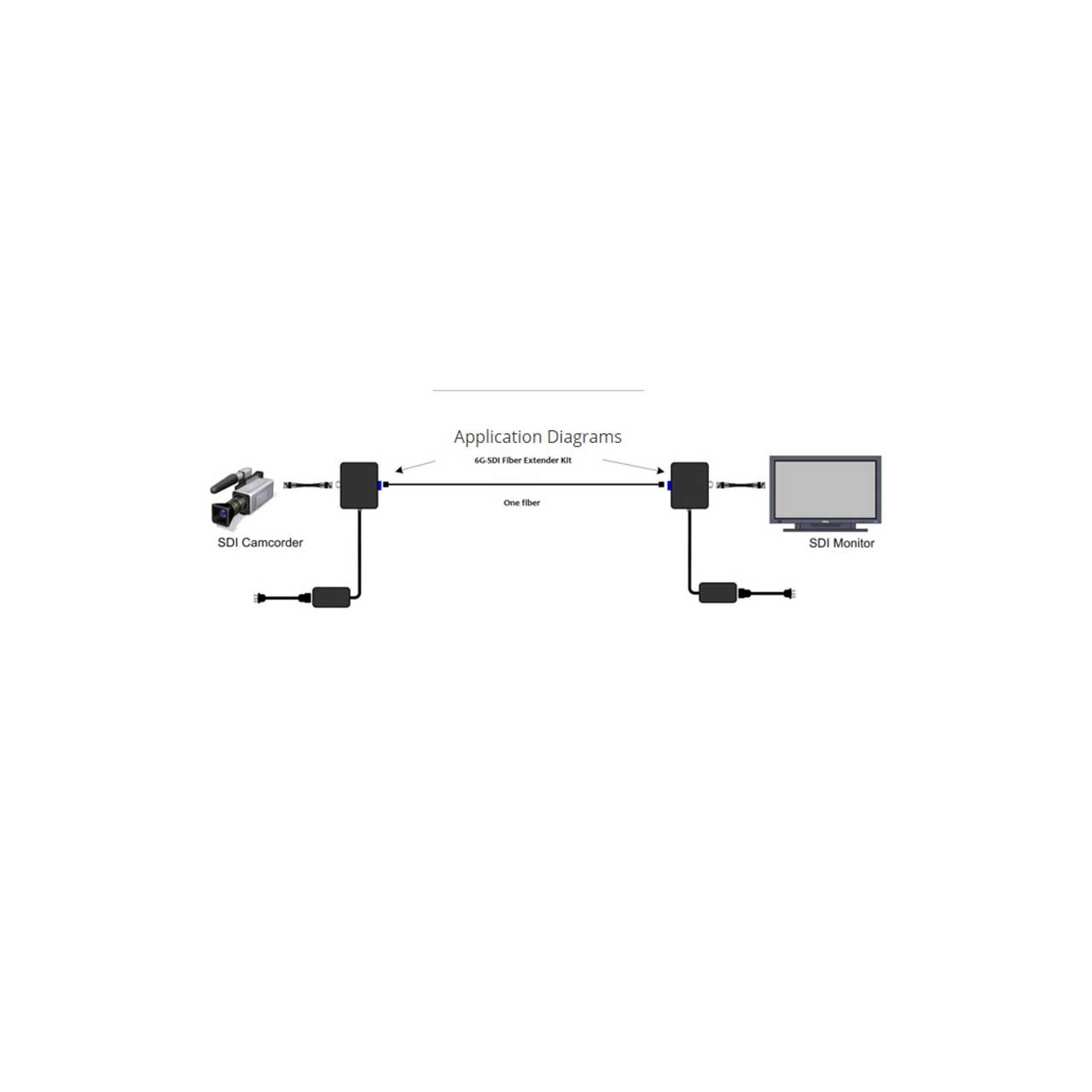

  • SDI camcorder
  • Medical imaging display
  • 6G/3G/HD-SDI routing
  • 6G/3G/HD-SDI CCTV


• Specifications:

  • Environment: SDI singlemode link: 6G (UHD), 3G & HD.
  • Devices: Monitors or any equipment supporting an SDI singlemode link.
  • Standard supported: SMPTE 2081, SMPTE 424M, SMPTE 292 & SMPTE 259
  • Bit rates: 5.94Gb/s, 2.97Gb/s & 1.485Gb/s (automatic selection).
  • Indicators: Power, Optic signal present
  • Connectors On each unit: 1 BNC 75ohm female, 1 LC singlemode fiber connector, 1 locking power connector, 2mm.
  • Typical Distance (for coax and singlemode fiber): Coax between source & TX unit, and between display & RX unit, for low loss Belden 1694A cable (RG6): 260ft (80m) at 5.94Gb/s, 700ft (210m) at 2.97Gb/s & 1000ft (300m) at 1.485Gb/s. Fiber between TX and RX units, for simplex singlemode fiber 9/125æm at 1310nm: 60,000ft (20km)
  • Optic link (Not included): Simplex SMF fiber 9/125μm with LC connectors
  • Power Supply (Included): Two 100-240V/12VDC 6W power supplies with interchangeable blades for NA, Europe and UK.
  • Power Consumption Transmitter: 1.25Watts Receiver: 1.25Watts
  • Temperature Operating: 0° to 50°C Storage: -20° to 85°C
  • Humidity: Up to 95% non-condensing
  • Module Enclosure: Black, metal
  • Size: 3" x 3" x 1" (7.6cm x 7.6cm x 2.5cm) excluding connectors
  • Weight: 3.5lbs (1.5kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0


• Warranty:

  • 2 Years


• GTIN:

  0627699007129
