MX405RLP/N - Overview

Shock-Mounted Gooseneck with LED Ring Less Preamp - 5 Inch

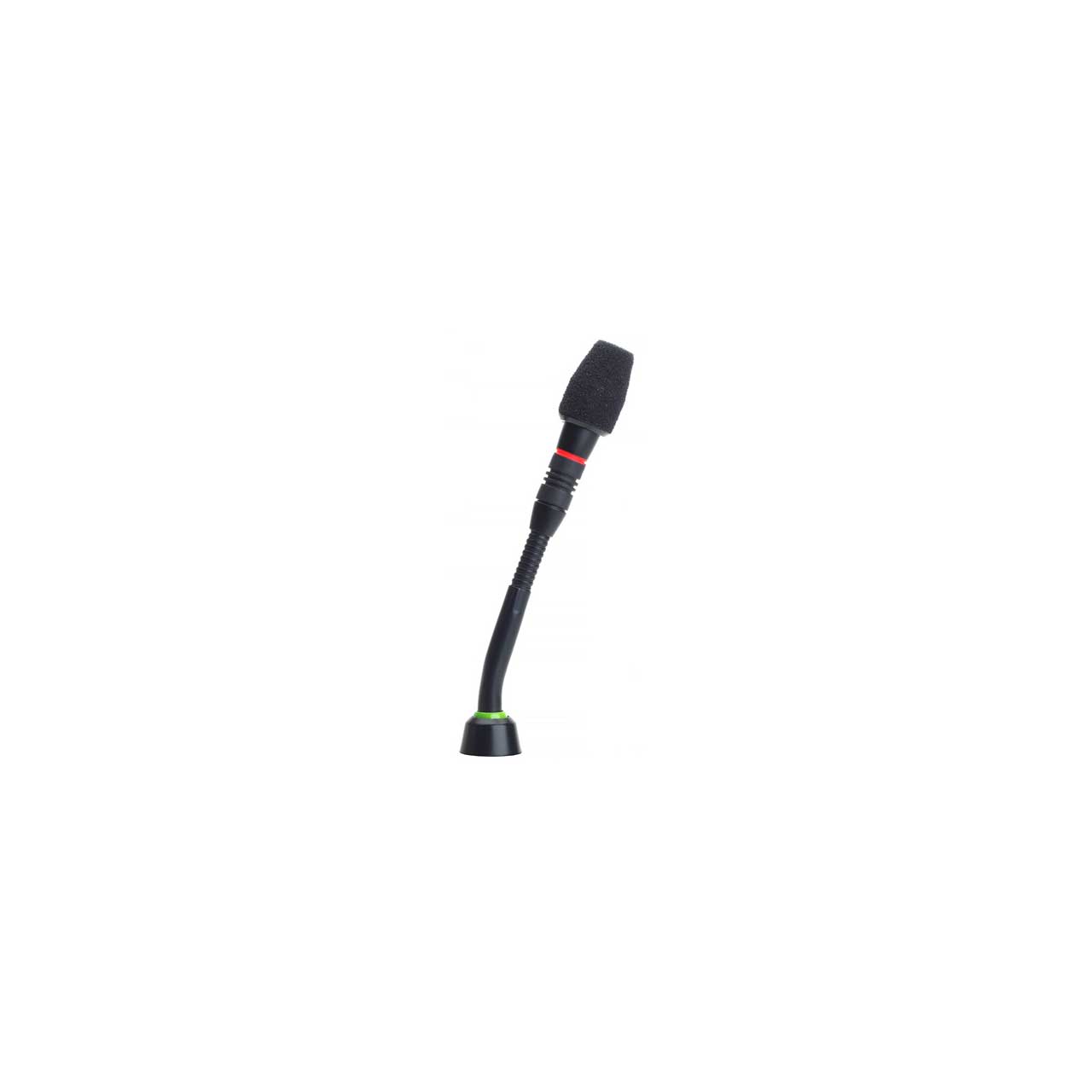

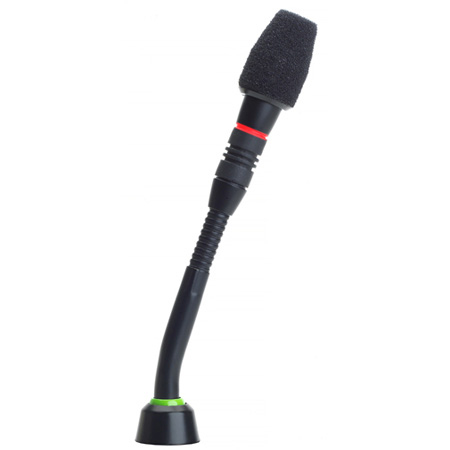

The Shure MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
Flexible in more ways than one, Microflex Miniature Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it's easy to get the perfect fit for your conferencing installation. Fully compatible with SLX wireless systems, including the SLX4L wireless receiver with logic output for applications requiring
logic functionality.
The MX405LP/C microphone is an electret condenser 5" gooseneck microphone (12,7 cm) with cardioid polar pattern, black finish,and logic controlled bi-colored status indicator. The microphone is compatible with the MX400SMP or MX890. The mic is resistant to RF interference from portable mobile and handheld devices. The frequency response is 50 Hz to 17 kHz and the sensitivity is 18 mV/Pa.

Please Note! Preamp & Capsule sold separately,

Features:
- Available in 5 inch (127 mm) and 10 inch (254 mm) lengths
- Cardioid and supercardioid polar patterns
- Bi-color status indicator or single color light ring
- Programmable mute switch (desktop models only)
- Logic input/output for remote LED and mute control
- Surface-mount and wired or wireless desktop base options
- CommShield™ Technology for improved RF filtering
Specifications:
- Type Condenser (electret bias)
- Frequency Response 50-17000 Hz
- Polar Pattern (at 1 kHz) MX405/C, MX410/C: Cardioid
- MX405/S, MX410/S: Supercardioid
- Output Impedance EIA Rated at 150 ? (170 ? actual)
- Output Configuration Active Balanced
- Sensitivity (at 1 kHz , open circuit voltage) Cardioid: -35 dBV/Pa (18 mV)
- Supercardioid: -34 dBV/Pa (21 mV)
- 1 Pascal=94 dB SPL
- Maximum SPL (1 kHz at 1% THD, 1 kW load) Cardioid: 121 dB
- Supercardioid: 120 dB
- Equivalent Output Noise (A-weighted) Cardioid: 28 dB SPL
- Supercardioid: 27 dB SPL
- Signal-to-Noise Ratio
- (referenced at 94 dB SPL at 1 kHz)
- Cardioid: 66 dB
- Supercardioid: 68 dB
- Dynamic Range (1 k? load at 1 kHz) 93 dB
- Common Mode Rejection (10 Hz to 100 kHz) 45 dB minimum
- Preamplifier Output Clipping Level (1% THD) -8 dBV (0.4 V)
- Polarity 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2
- relative to pin 3 of output XLR connector.
- 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4
- relative to pin 2 of output XLR connector.
- Weight MX405: 0.054 kg (0.119 lbs)
- MX410: 0.068 kg (0.150 lbs)
- MX400DP: 0.516 kg (1.138 lbs)
- MX400SMP (w/ Kit): 0.125 kg (0.275 lbs)
- Logic Connections LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT: Active low (=1.0V), sinks up to 20mA, TTL compatible. Absolute maximum
- voltage: -0.7V to 50V (up to 50V through 3k?).
- Mute Switch Attenuation -50 dB minimum
- Cable MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin
- male XLR and three unterminated conductors for logic control
- Environmental Conditions Operating Temperature: -18-57 °C (0-135 °F)
- Storage Temperature: -29-74 °C (-20-165 °F)
- Relative Humidity: 0-95%
- Power Requirements 48-52 Vdc phantom, 8.0 mA
