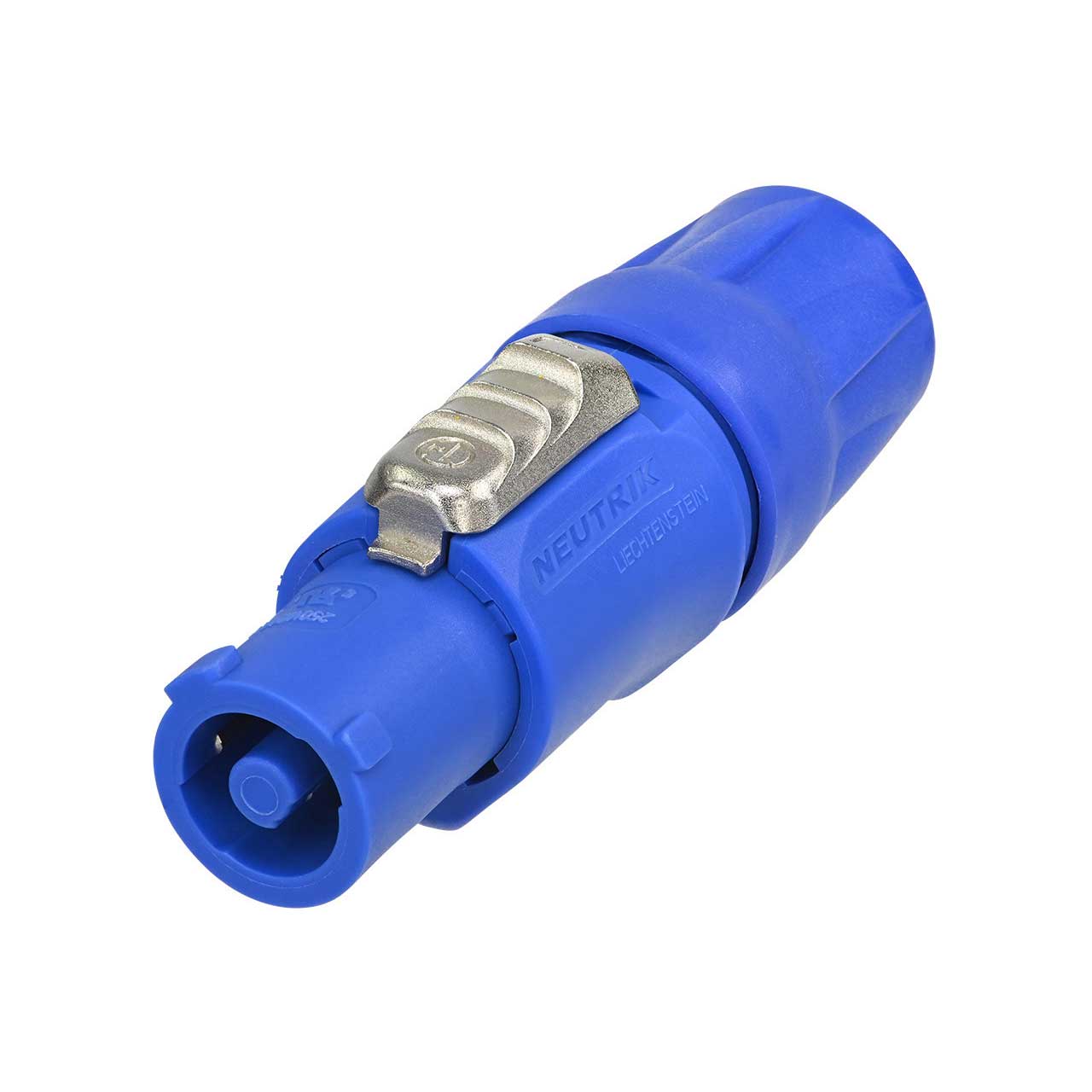

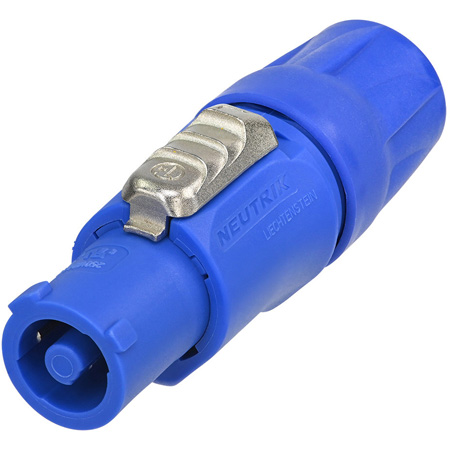

Neutrik NAC3FCA-D powerCON Cable End Power In [Blue] - 100 Pack

NAC3FCA-D - Overview

• Features:

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • UL, cUL recognized components
  • VDE certified
  • SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product


• Specifications:

  • Electrical
  • Contact resistance: < 3 mΩ (inner)
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 20 A rms
  • Rated voltage: 250 V ac


  • Mechanical
  • Cable O.D.: 6 - 15 mm (1)
  • Lifetime: > 1000 mating cycles
  • Wiresize: 2,5 mm²
  • Wiresize: 14 AWG
  • Locking device: Quick Lock
  • (1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE


  • Material
  • Contact plating: 4 µm Ag
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Polyamide (PA 6 30 % GR)
  • Strain relief: Polyacetal (POM)


  • Environmental
  • Temperature range: -30 °C to +80 °C


  • Product specific
  • Coding: A-type for power inlet (color coding blue)
