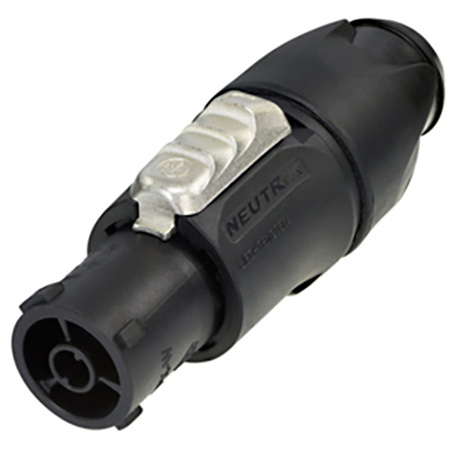

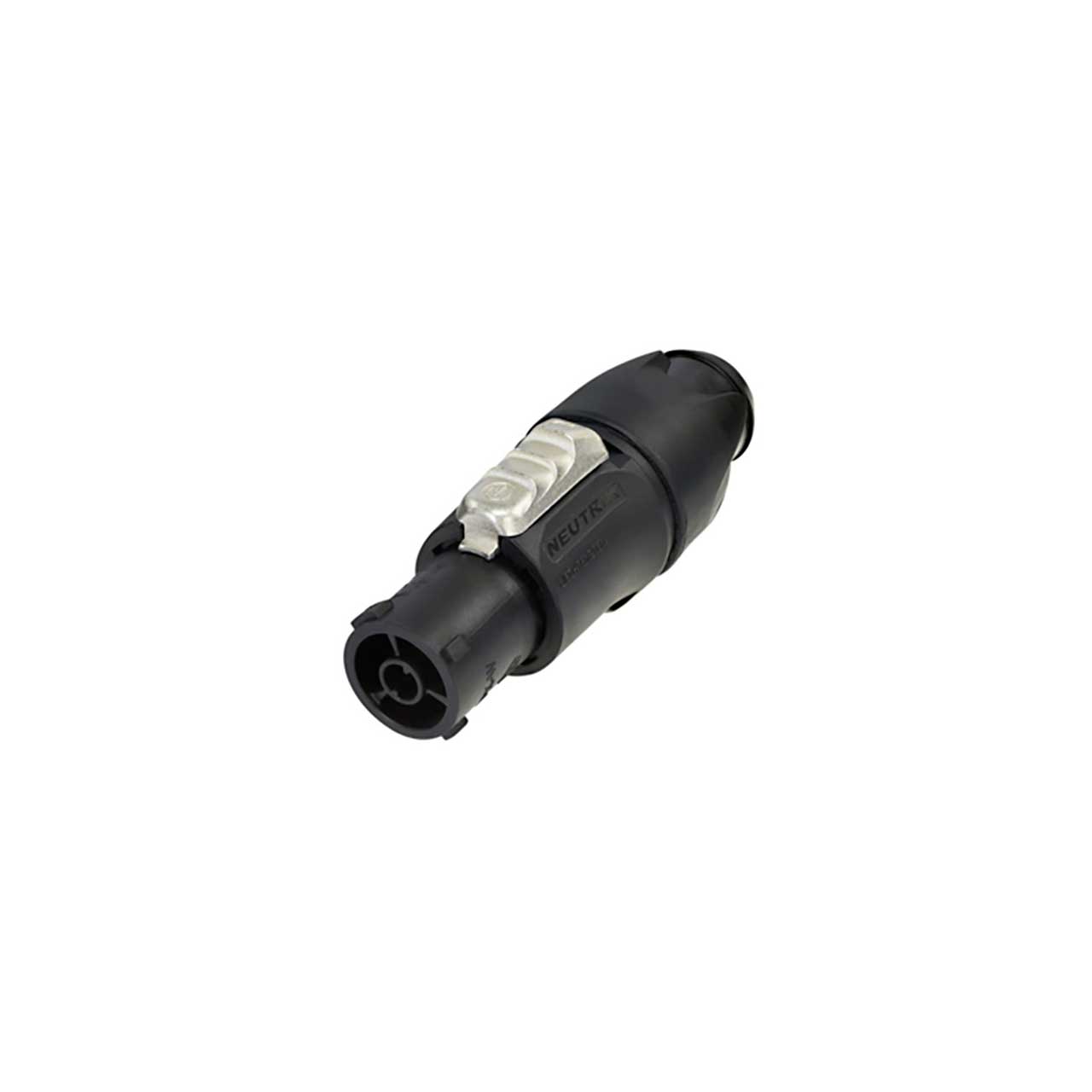

Neutrik NAC3FX-W-TOP-D Cable End Connector powerCON TRUE1 TOP - Female - PWR Out - IP65 - UV Rated - 20A - 50 Pack

ITEM #: NAC3FX-W-TOP-D MFG #: NAC3FX-W-TOP-D

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$571.50

Our Price:

$473.11

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NAC3FX-W-TOP-D - Overview

The NAC3FX-W-TOP-D is a 20 amp Locking female cable connector with screw terminals. The powerCON TRUE1 TOP is a locking 20 Amp true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

  • Features:

    • Heavy duty sealed power connector for harsch and demanding environment
    • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
    • Uses high impact UV-resistant materials
    • True mains connector with breaking capacity (CBC)
    • Lockable 20 A single phase connector (USA: 20 A)
    • Easy and reliable twist lock system
    • Extremely robust and reliable
    • Unique Neutrik cable retention
    • ENEC certified according to IEC 60320
    • UL498 certified


  • Specifications:

    • Contact resistance: ≥ 3 mΩ
    • Dielectric strength: 4 kVdc / 2.8 kVac
    • Insulation resistance: > 0,1 GΩ (after damp heat test IEC 68-2-30)
    • Number of electronical contacts: 2 + PE
    • Rated current per contact: 20 A rms (USA: 20 A)
    • Rated voltage: 250 V ac
    • Cable O.D.: 6 - 12 mm
    • Lifetime: > 5000 mating cycles
    • Wiresize: 1.0 - 2.5 mm
    • Wiresize: 12 AWG
    • Contact plating: 2 μm Ag
    • Contacts: Bronze (CuSn0.2)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: ZuAl4Cu1
    • Shell: Polyamide (PA 6.6 30 % GR)
    • Strain relief: Polyacetal (POM)
    • Flammability: UL 94 V-0
    • Protection class: IP65, UL50E enclosure type 4 (mated)
    • Temperature range: -30 °C to +80 °C
