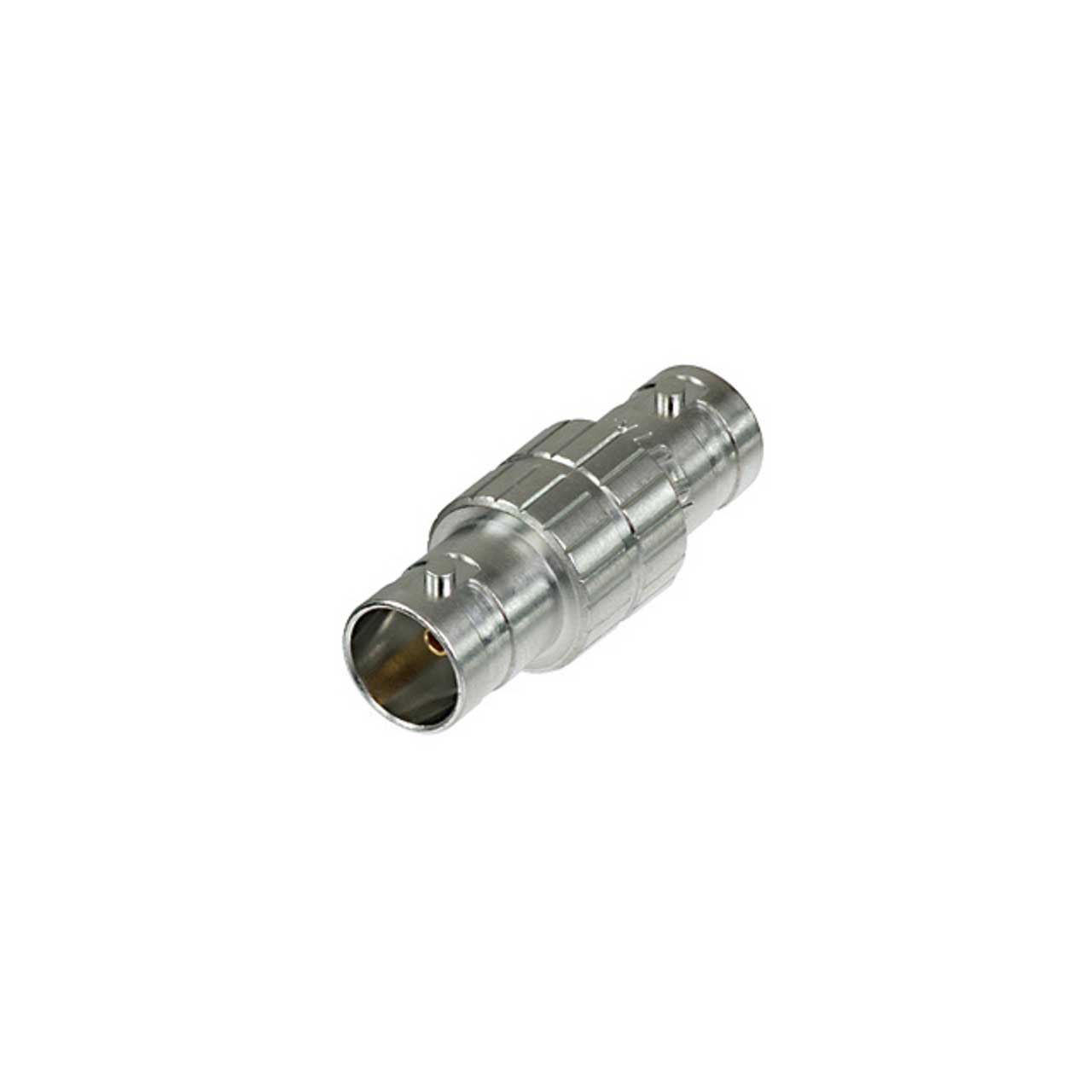

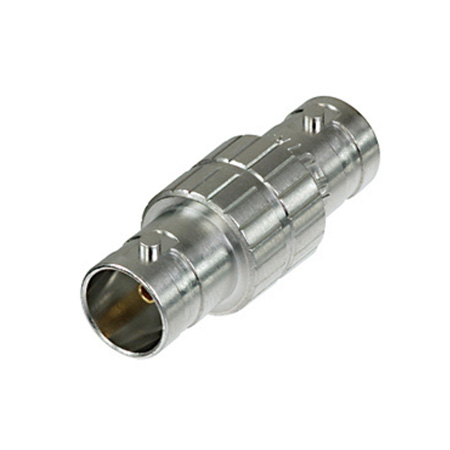

Neutrik NBB75FA BNC Feedthrough Nickel Female BNC Jack to BNC Jack Adapter - Pre-Wired

Name: Neutrik NBB75FA BNC Feedthrough Nickel Female BNC Jack to BNC Jack Adapter - Pre-Wired
Brand: Neutrik Americas
SKU: NBB75FA
Price: 9.50 USD
Availability: InStock

ITEM #: NBB75FA MFG #: NBB75FA

Neutrik Americas

List Price:

$11.08

Our Price:

$9.50

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NBB75FA - Overview

The Neutrik NBB75FA BNC feed through coupler offers a true 75 Ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Cage Type Contact
Closed contact design that is extremely robust with a Gold plated cage type clip for the best possible shielding and lowest contact resistance.

Features:
- Gold plated cage type center contact
- True 75Ω design meets the stringent HD requirements
Specifications:
- Electrical
- Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- Contact Resistance: ≤ 3 mΩ (inner)
- Contact Resistance: ≤ 2 mΩ (outer)
- Dielectric Strength: 1.5 kVdc
- Insulation Resistance: > 5 GΩ
- Rated Voltage: <50 V
- VSWR:
  ≤1.03 /> 37 dB up to 1 GHz
  ≤1.05 /> 32 dB up to 2 GHz
  ≤1.08 /> 28 dB up to 3 Ghz

  Mechanical
- Insertion Force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking Device: Bayonett

  Material
- Contacts: Brass (CuZn39Pb3) (ground contact)
- Insert: PTFE
- Shell: Brass (CuZn39Pb3)

  Environmental
- Temperature Range: -22°F - 185°F (-30 °C - 85 °C)
