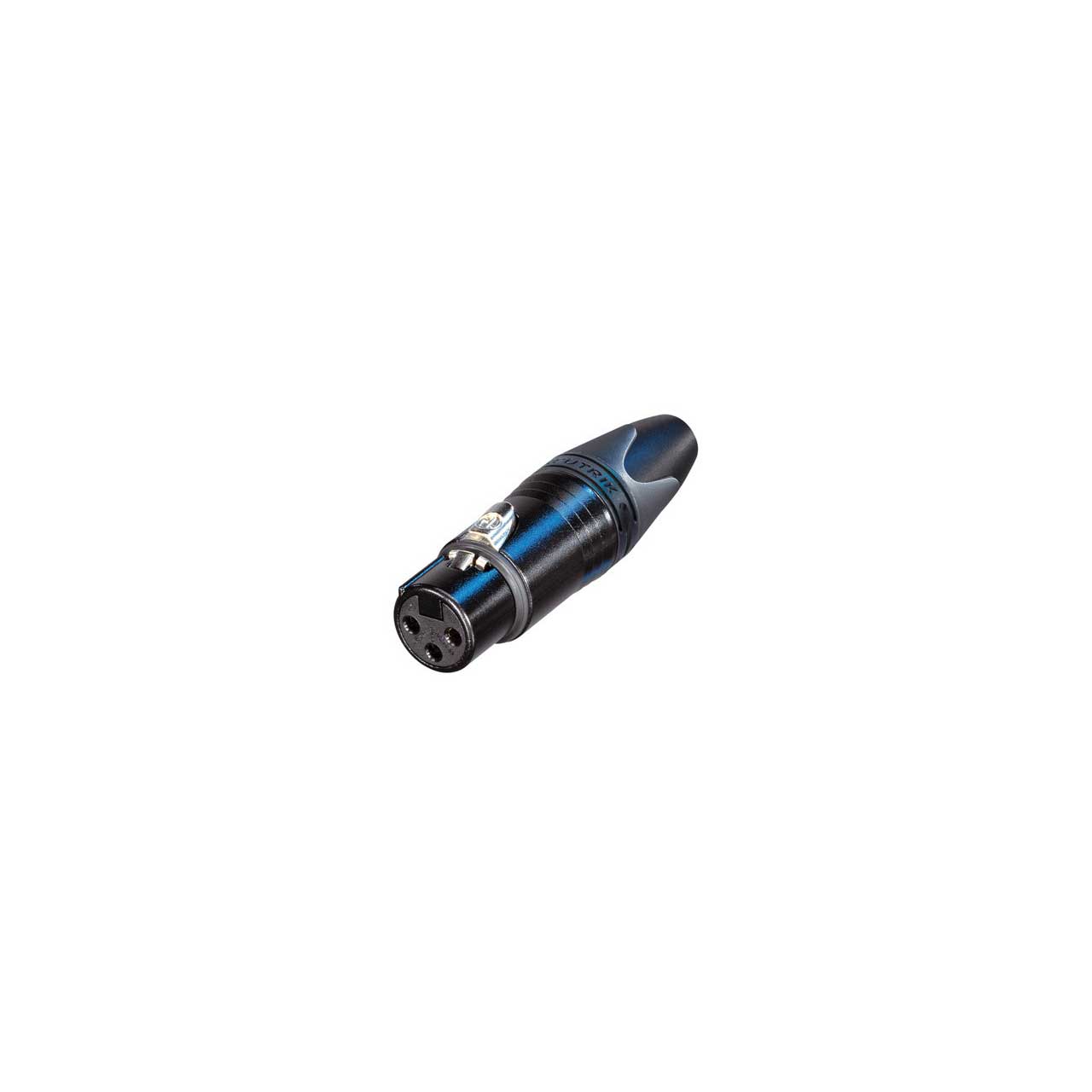

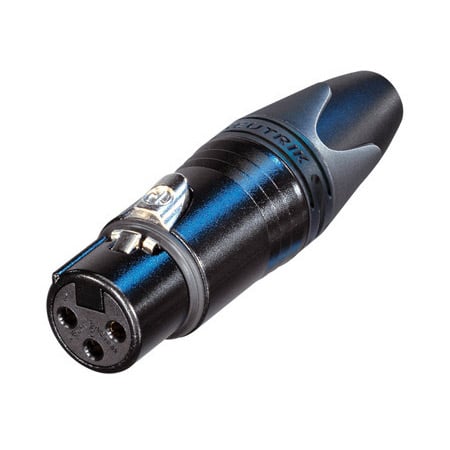

Neutrik NC3FXX-HA-BAG 3 Pole Female Solderless XLR Cable Connector Black/Silver

NC3FXX-HA-BAG - Overview

• Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Crimp termination with HX-R-BNC and DIE-R-HA-1 only.
  • Gastight and Solderless connection (RoHS compliant)
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable


• Specifications:

  • Capacitance Between Contacts: = 4 pF
  • Contact Resistance: = 3 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current Per Contact: 1 A
  • Rated Voltage: < 50 V
  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion Force: = 20 N
  • Withdrawal Force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: 0.22 - 0.34 mm²
  • Wiresize: 24 - 22 AWG
  • Wiring: Crimp contacts
  • Locking Device: Latch lock
  • Boot: Polyurethan
  • Contact Plating: 2 µm Ag
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium
  • Strain Relief: Polyacetal (POM)
  • Flammability: UL 94 HB
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• Item Includes:

  • 1x Neutrik NC3FXX-HA-BAG 3 Pole Female Solderless XLR Cable Connector Black/Silver


• GTIN:

  7613187000911
