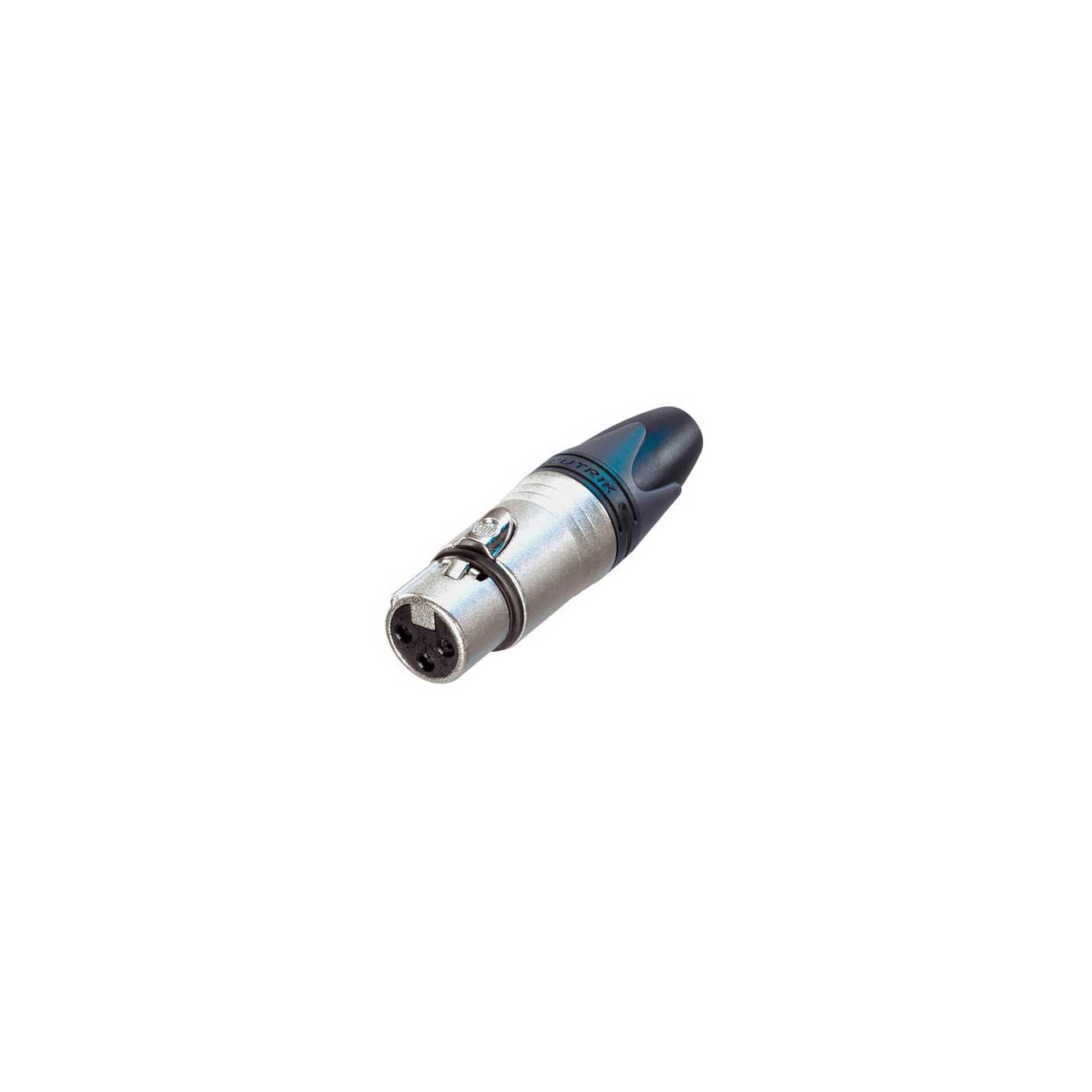

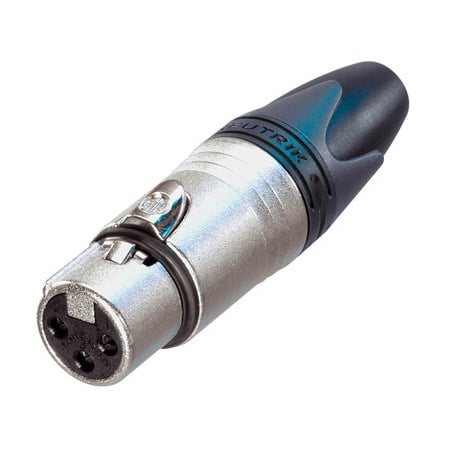

Neutrik NC3FXX-HA Crimp Type 3 Pole Female Solderless XLR Cable Connector Nickel/Silver

ITEM #: NC3FXX-HA MFG #: NC3FXX-HA

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4.33

Our Price:

$3.71

Availability: In Stock
iAvailability Description Popup


    NC3FXX-HA - Overview

    The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

    3-Pin female cable connector with Nickel housing, silver contacts and crimp termination with special tooling.

    Please Note: DIE-R-HA-1 Crimp Die and HX-R-BNC Crimp Frame Tool required.

    • Features:

      • Unique cage design of female contact for low contact resistance and high integrity
      • Crimp termination with HX-R-BNC and DIE-R-HA-1 only.
      • Gastight and Solderless connection (RoHS compliant)
      • Female connector with improved solid metal latch which is larger and easier to handle
      • Additional ground spring contacts for better shell ground continuity
      • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
      • Boot with polyurethane gland gives high protection to cable bending stresses
      • Colored rings and boots available for coding or identification
      • Sleek and ergonomic design - valuable and handy
      • Rugged zinc die-cast shell, long lasting and dependable

    • GTIN:

      7613187000904
