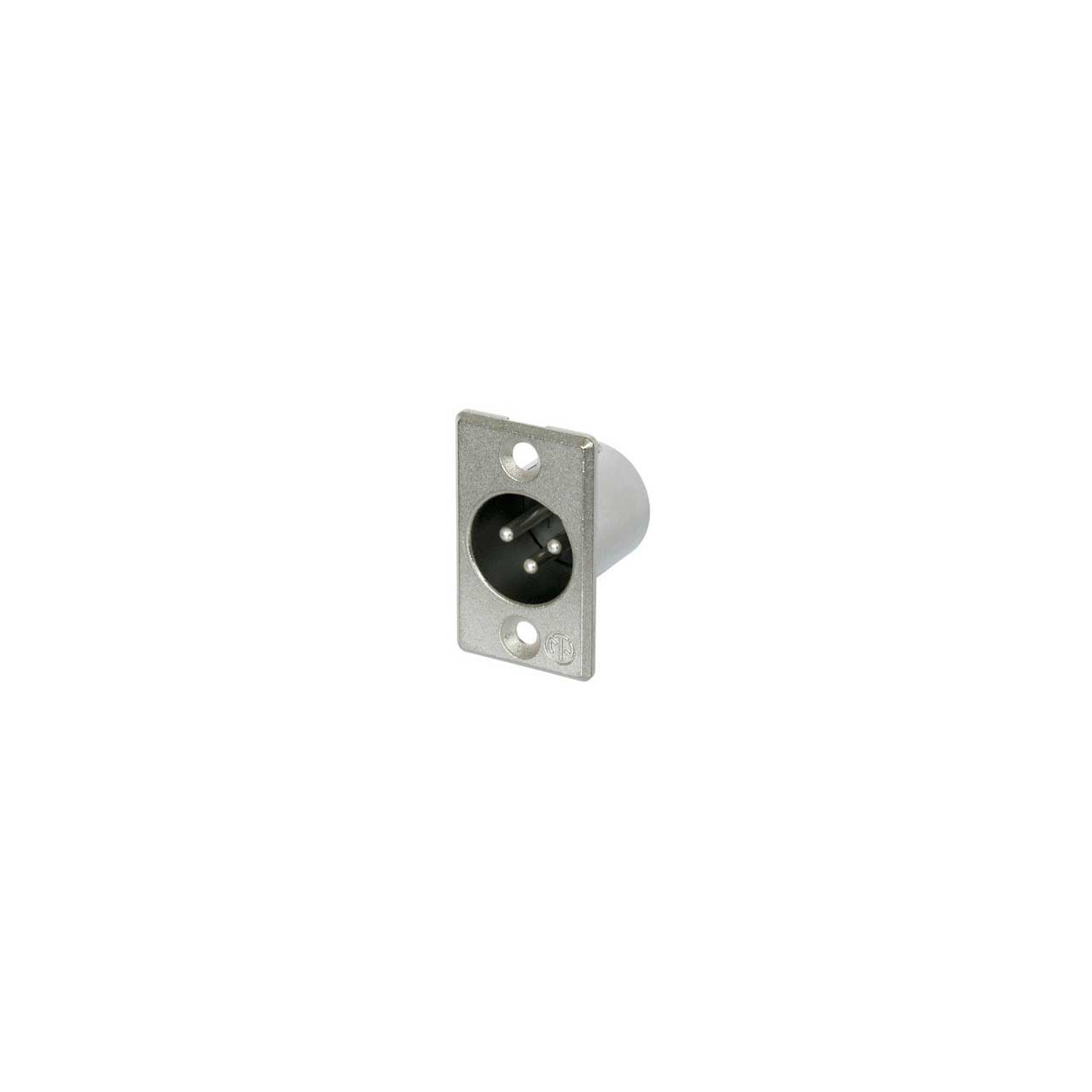

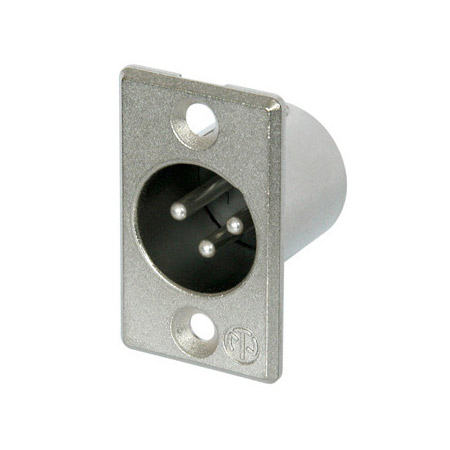

Neutrik NC3MP 3-Pin XLR Male Panel/Chassis Mount Connector - Nickel/Silver

NC3MP - Overview

• Features:

  • Smallest available hard wiring receptacles with large solder cups.
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32.


• Specifications:

  • Connection Type:XLR
  • Gender: male
  • Capacitance between contacts:≤ 4 pF
  • Contact resistance:≤ 5 mΩ (inner)
  • Dielectric strength:1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact:16 A
  • Rated voltage: 50 V
  • Insertion Force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Mounting direction: front
  • Chassis shape: P
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn35Pb2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C


• GTIN:

  0736902401002
