Neutrik NC7FD-L-B-1 7-Pin XLR Female Panel/Chassis Mount Connector - Black/Gold

ITEM #: NC7FD-L-B-1 MFG #: NC7FD-L-B-1

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$22.42

Our Price:

$19.21

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    NC7FD-L-B-1 - Overview

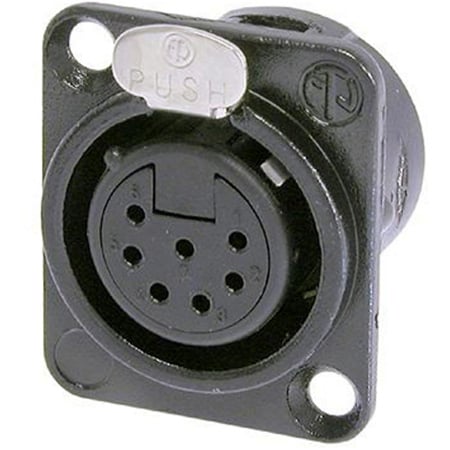

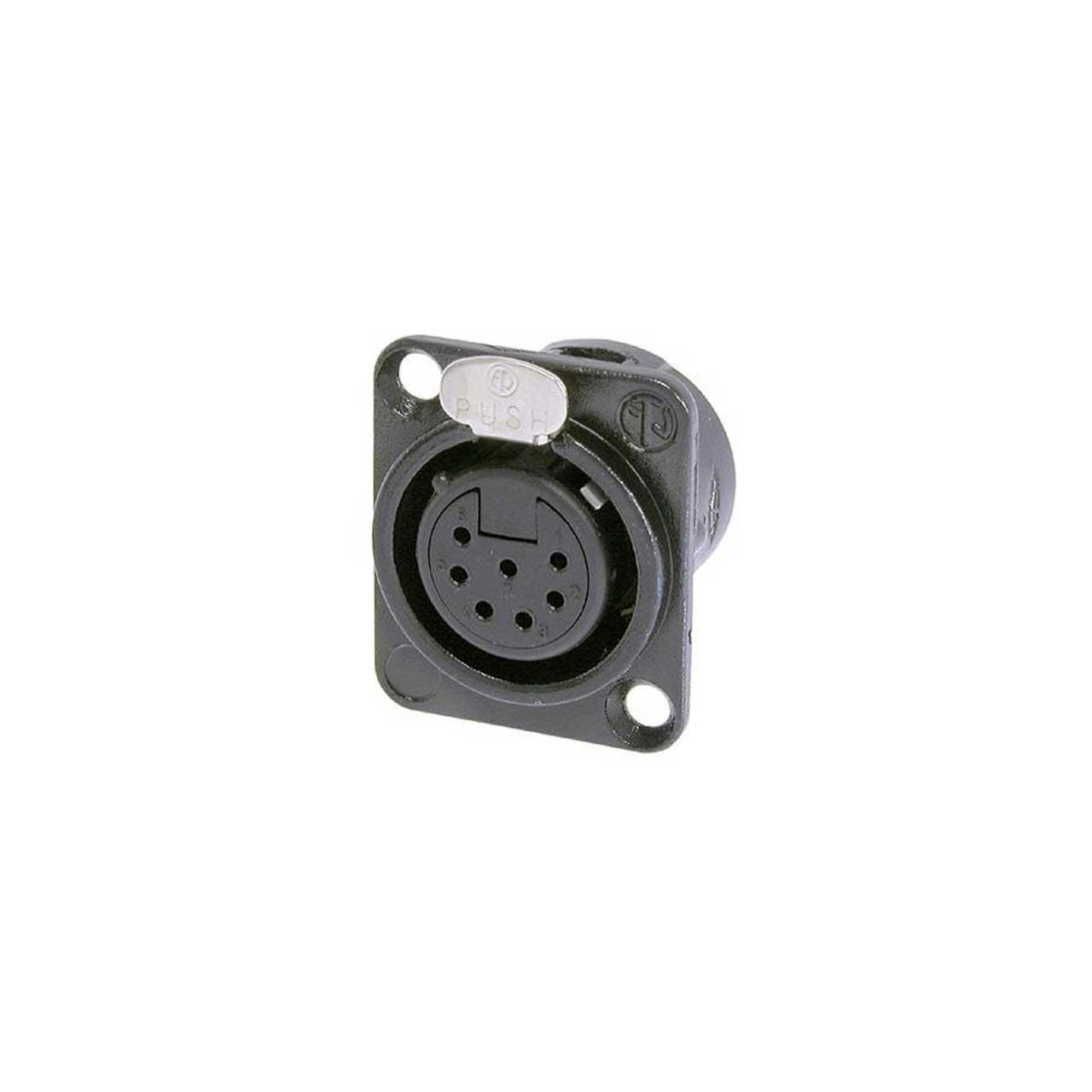

    The Neutrik NC7FD-L-B-1 is a 7-pole female XLR D-size panel mount receptacle with solder cups, black metal housing, and gold contacts.

    • Features:

      • Robust "D" metal shell
      • Solder cups on 3 - 7 pole version
      • Standardized D sized 24mm panel cutout


    • Specifications:

      • Electrical
      • Capacitance Between Contacts: ≤9pF
      • Contact Resistance: ≤5mΩ
      • Dielectric Strength: 1,5 kVdc
      • Insulation Resistance: >10GΩ (initial)
      • Rated Current per Contact: 5A
      • Rated Voltage: <50V

        Mechanical
      • Insertion Force: ≤20N
      • Withdrawal Force: ≤20N
      • Lifetime: >1000 mating cycles
      • Wiresize: Max. 1.0mm²
      • Wiresize: Max. 18 AWG
      • Wiring: Solder contacts
      • Locking Device: Latch lock
      • Chassis Shape: D

        Material
      • Contact Plating: 0.2µm Au hard alloy over 2µm Ni
      • Contacts: Brass (CuZn39Pb3)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking Element: Steel Ck67
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell Coating: Black KTL

        Environmental
      • Approvals: UL
      • Flammability: UL 94 HB
      • Standard Compliance: IEC 61076-2-103
      • Protection Class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature Range: -22°F - 176°F (-30°C - 80°C)
