Neutrik NE8MX-TOP Cable Carrier etherCON TOP Series Nickel etherCON Shell Only - Requires RJ45 Connector and Cable

Name: Neutrik NE8MX-TOP Cable Carrier etherCON TOP Series Nickel etherCON Shell Only - Requires RJ45 Connector and Cable
Brand: Neutrik Americas
SKU: NE8MX-TOP
Price: 3.60 USD
Availability: InStock

ITEM #: NE8MX-TOP MFG #: NE8MX-TOP

Neutrik Americas

List Price:

$4.20

Our Price:

$3.60

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NE8MX-TOP - Overview

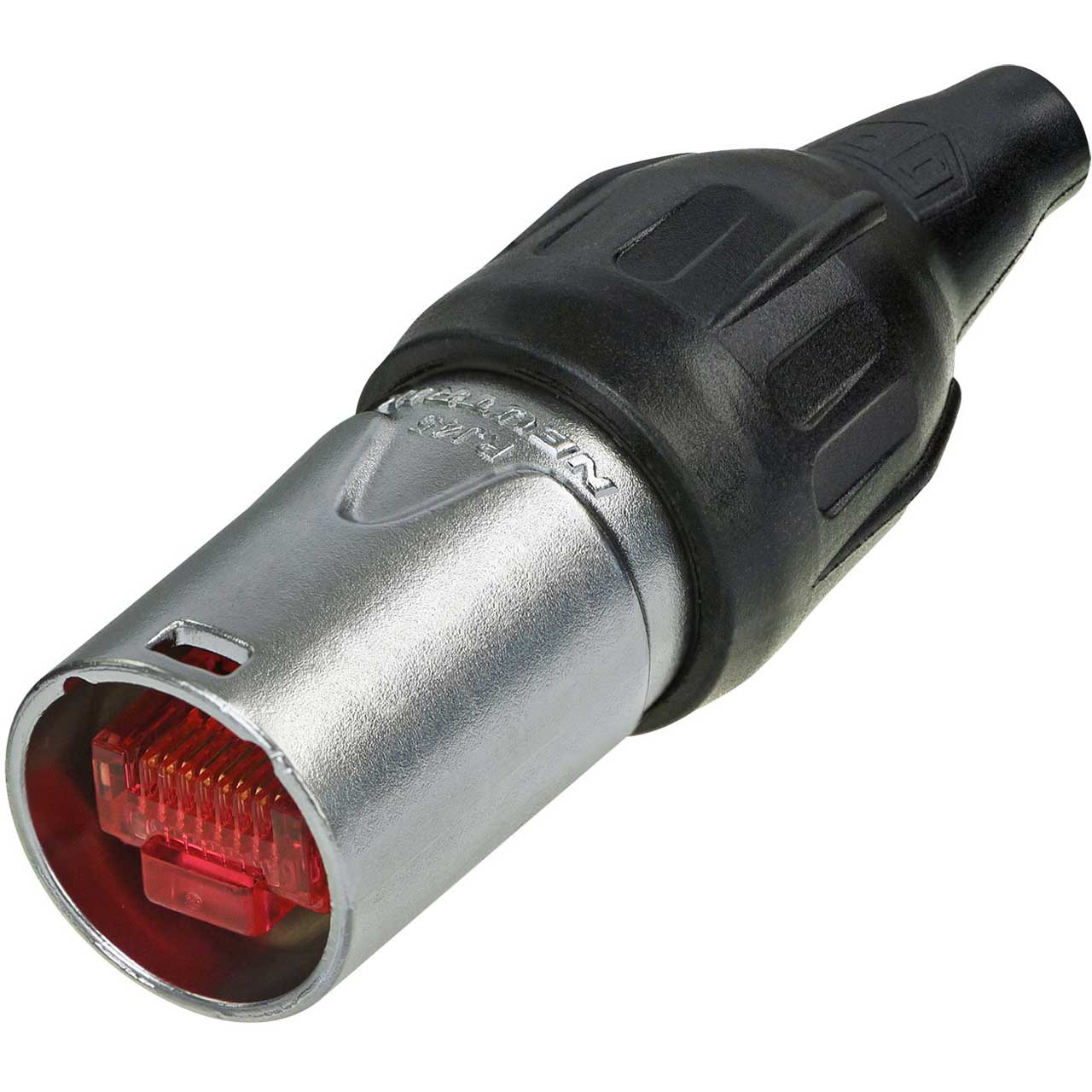

The NE8MX-TOP is a cable connector carrier that consists of a velour chromiuim shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust, outdoor protected lockable solution (IP65 & UL50E). ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Please note! Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Features:
- The RJ45 system for harsh and demanding environment
- Rugged diecast shell and unique chuck type strain relief
- Allows assembly of pre-assembled conventional RJ45 cables
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
- Accessories include color coded boots in 9 standard colors
Specifications:
- Cable O.D.: 5.0 - 8.0 mm
- Insertion force: ≥ 20 N
- Withdrawal force: ≥ 20 N
- Lifetime: > 1000 mating cycles
- Boot: UV-resistant rubber
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Velour Chromium
- Strain relief: Polyacetal (POM)
- Temperature range: -30 °C to +80 °C
- Protection class: IP65, UL50E (mated)
