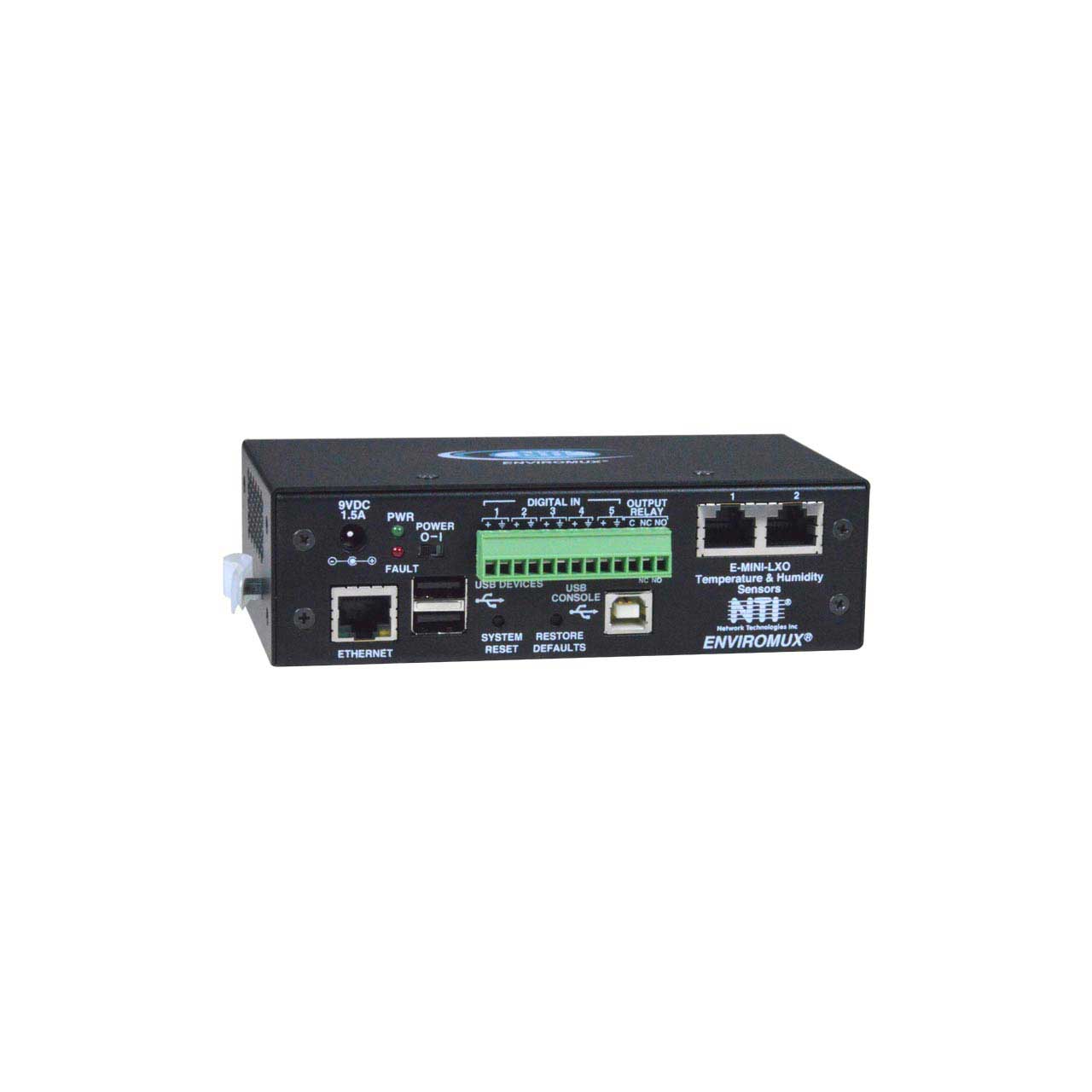

NTI E-MINI-LXOD Mini Server Room Environment Monitoring System - DIN Mounted

E-MINI-LXO-D - Overview

• Features:

  • Sensors are hot pluggable.
  • Monitor (ping) up to 16 IP network devices - alerts are sent if devices
  • are not responding.
  • Sensor conditions (events) can be configured to trigger alerts by
  • themselves, and/or be used in combination with other events to trigger
  • Smart Alerts.
  • Integrates with various Open Source monitoring packages -
  • Nagios, MRTG and others, The unit can be polled via SNMP.
  • Optional battery backup - alerts are sent when there is a power outage and when power returns.
  • USB ports for connecting USB modem, for downloading log data to
  • USB flash drive, and for serial terminal interface.
  • Flexible Zero-RU mounting; optional DIN mounting available.
  • Supports IP network video cameras for live view of any facility.
  • Security: HTTPS, SSHv2, SSLv3, TLS, IP Filtering, LDAPv3, AES
  • 256-bit encryption, 16-character username/password authentication,
  • user account restricted access rights.
  • Linux inside.
  • Optional industrial model for high temperature environments. This
  • industrial system has the ability to operate and monitor in harsh
  • environments at high temperatures up to 167°F (75°C).


• Specifications:

  • Temperature/Humidity Inputs: Two female RJ45 connectors for connecting temperature sensors, humidity sensors and/or combined temperature/humidity sensors, Two levels of user-defined alerts - non-critical and critical.
  • Dry Contact Closures: Five screw terminal pairs for connecting dry contact devices and the liquid detection sensor, Potential-free, Output voltage: +5 V DC, Current limited to 10 mA, Maximum resistance to close contact: 300K Ohm.
  • Output Relay: One screw terminal pair, Potential-free relay switch contacts, Maximum switching load: 1A at 125VAC or 30VDC.
  • USB Port: Two female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive, One female USB Type B connector for connecting a PC for serial terminal access.
  • Ethernet Port: One female RJ45 connector,10/100 Base-T Ethernet interface.
  • Optional Back-Up Battery: Rechargeable sealed lithium battery, Provides back-up for two hours.
  • MTBF: E-MINI-LXO: 274,783 hours.
  • Power: 100 to 240 VAC at 50 or 60 Hz via AC adapter, Includes 9V, 1.5A adapter, Will work with a 12V, 2A adapter, Overvoltage and overcurrent protection in the unit and power supply.
  • Power consumption: 10 W.
  • Use the PWR-48V-12V1-6A DC-DC power converter to install the E-MINI-LXO in a 48V or 24V Telecom environment.
  • Protocols: HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
  • Compatible with any SNMP management software, The unit can be polled via SNMP.
  • Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB serial interface, Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC, Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
  • An IP address can be assigned to the E-MINI-LXO automatically by a DHCP server.
  • Generates SNMP traps, email alerts, and syslog messages, Alerts are posted in event log, which is accessible through Web user interface, Email alerts can be sent to 17 addresses.
  • Dimensions: WxDxH: 5.82x3x1.75 in (148x76x44 mm)
  • Optional 1RU rackmount kit available (E-RK1-2D), the ENVIROMUX system can be mounted so that the sensor connectors are facing the front or back of the rack.
  • Environmental: Operating temperature: E-MINI-LXO: 32 to 104°F (0 to 40°C), E-MINI-LXO-IND: 32 to 167°F (0 to 75°C).
  • Storage temperature: -4 to 176°F (-20 to 80°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
  • Regulatory Approvals: CE, RoHS, EN51055, EN50121-3-2, TAA compliant.
  • Warranty:Two years.
