AV System Automation

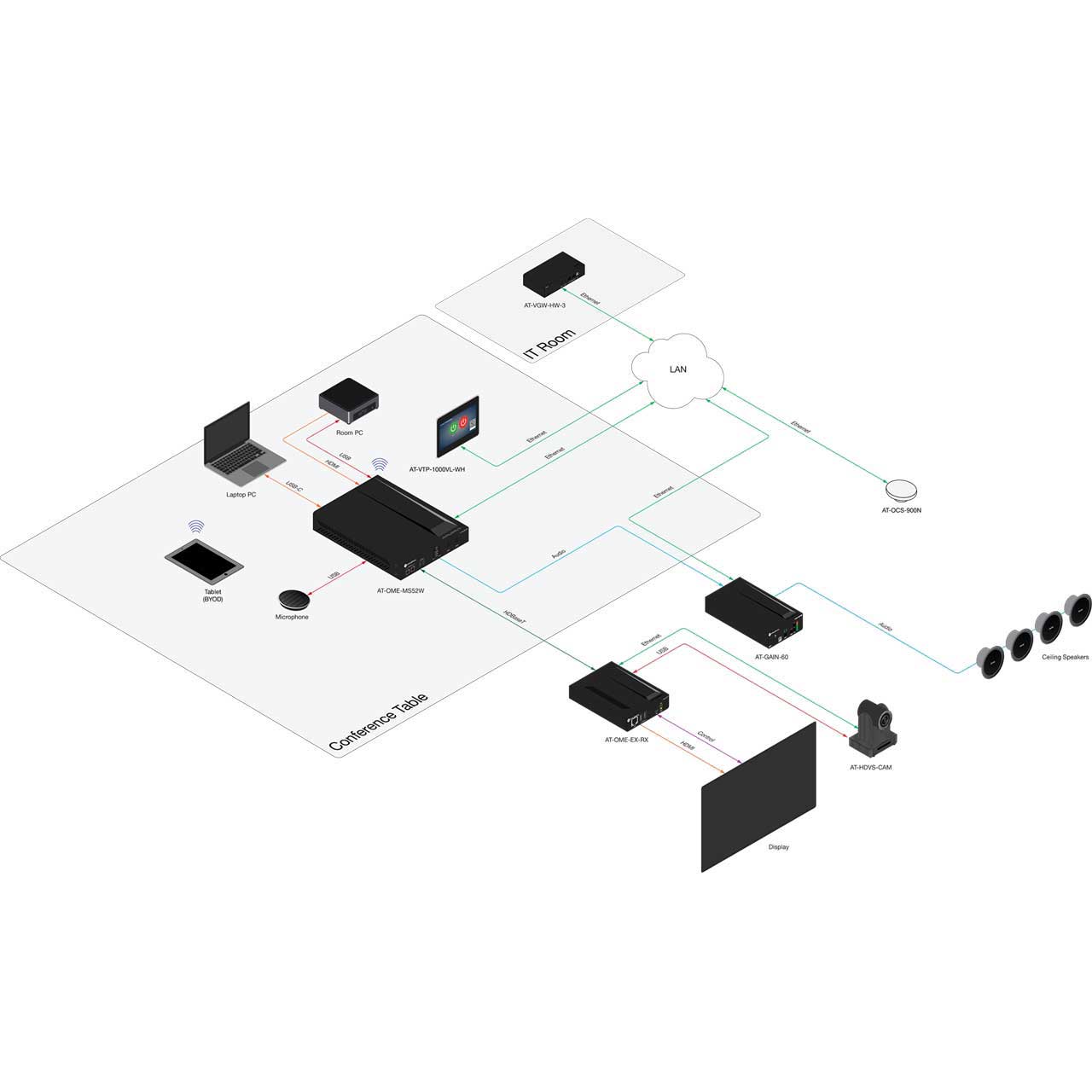

The AT-OCS-900N works directly with the AT-WAVE-101 or Velocity® to automatically control AV system startup or shutdown based on room occupancy.

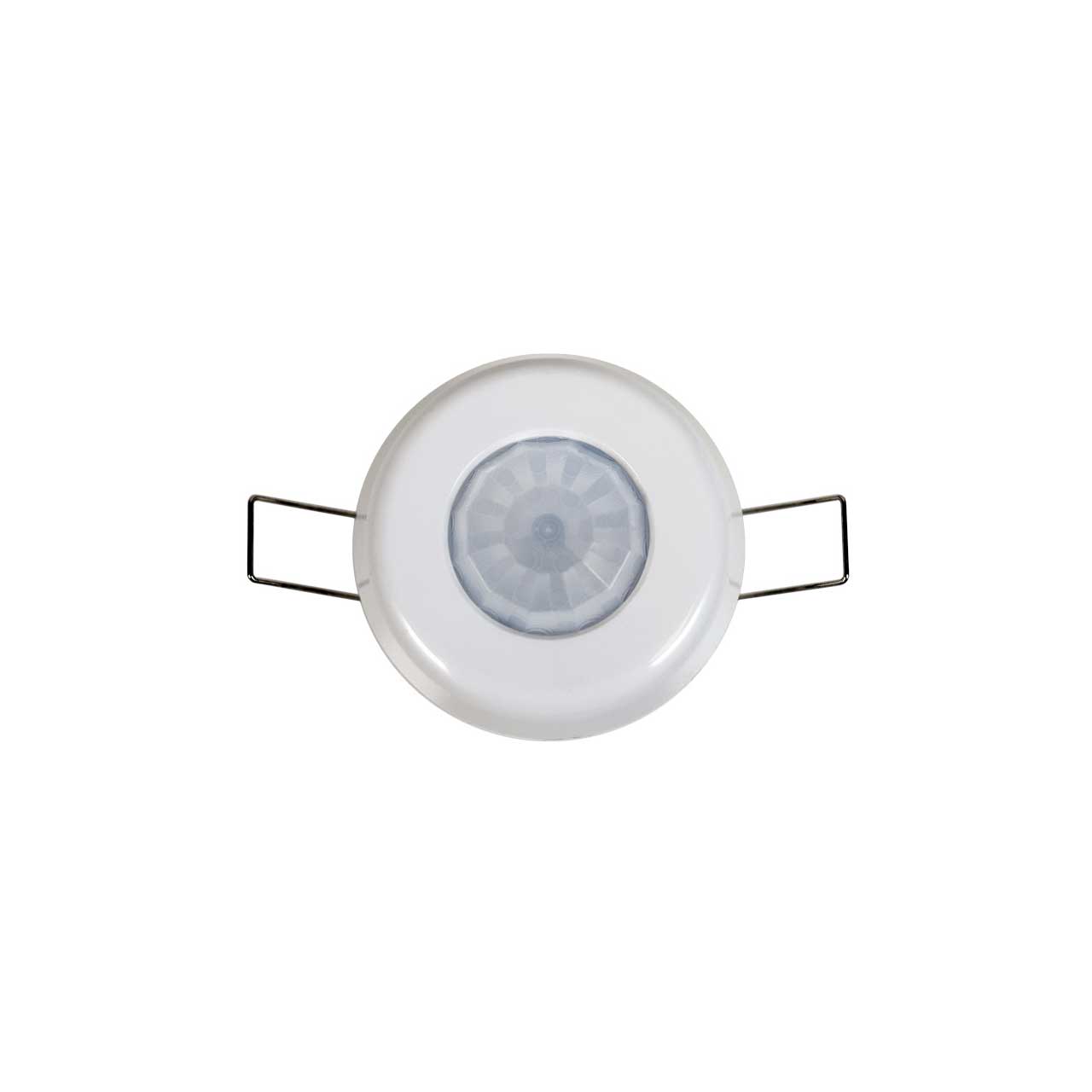

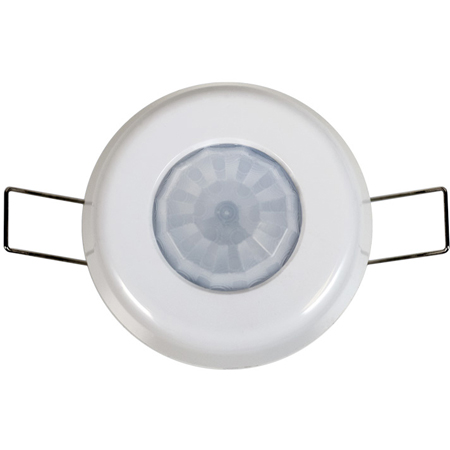

The Atlona AT-OCS-900N is a network-enabled multi-function sensor designed for use in a wide variety of AV automation applications. This ceiling mounted sensor uses passive infrared (PIR) technology to detect occupancy in the coverage area. The OCS-900N utilizes an IP network to communicate with select Atlona products or our Velocity system to automatically control AV components based on whether the space is occupied. It comes with two lenses that cover approximately 900 or 2,000 square feet depending on ceiling height. A blinder insert is included that limits the sensor's field of view, preventing detection in unwanted areas such as doorways or windows with heavy cross traffic. Installation is simplified by Power over Ethernet (PoE), that provides both communications and power over a single cable as well as spring-loaded clamps that secure the sensor to a ceiling tile.
In addition to occupancy, the OCS-900N also captures temperature and ambient light level information. Its open standard design allows sensor information to be communicated to third-party ventilation, lighting, and other systems over TCP/IP using common protocols such as UDP, TCP, WebSocket, and MQTT.
Multi-function and Open Protocols
In addition to occupancy, the OCS-900N also captures temperature and ambient light levels, and allows the information to be communicated to Atlona products and third-party systems over the network using common protocols including UDP, TCP, WebSocket, and MQTT.
Customization and Straightforward Installation

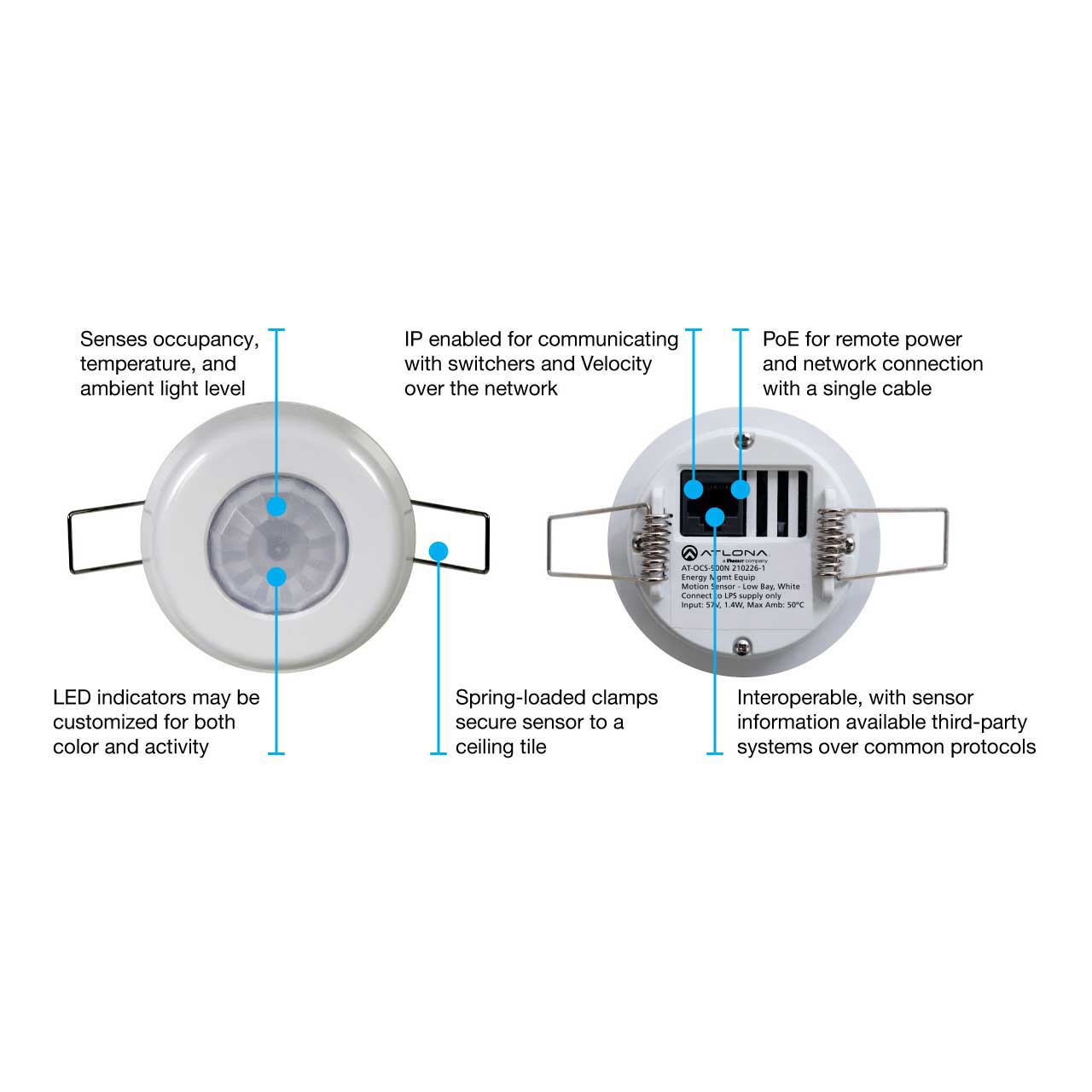

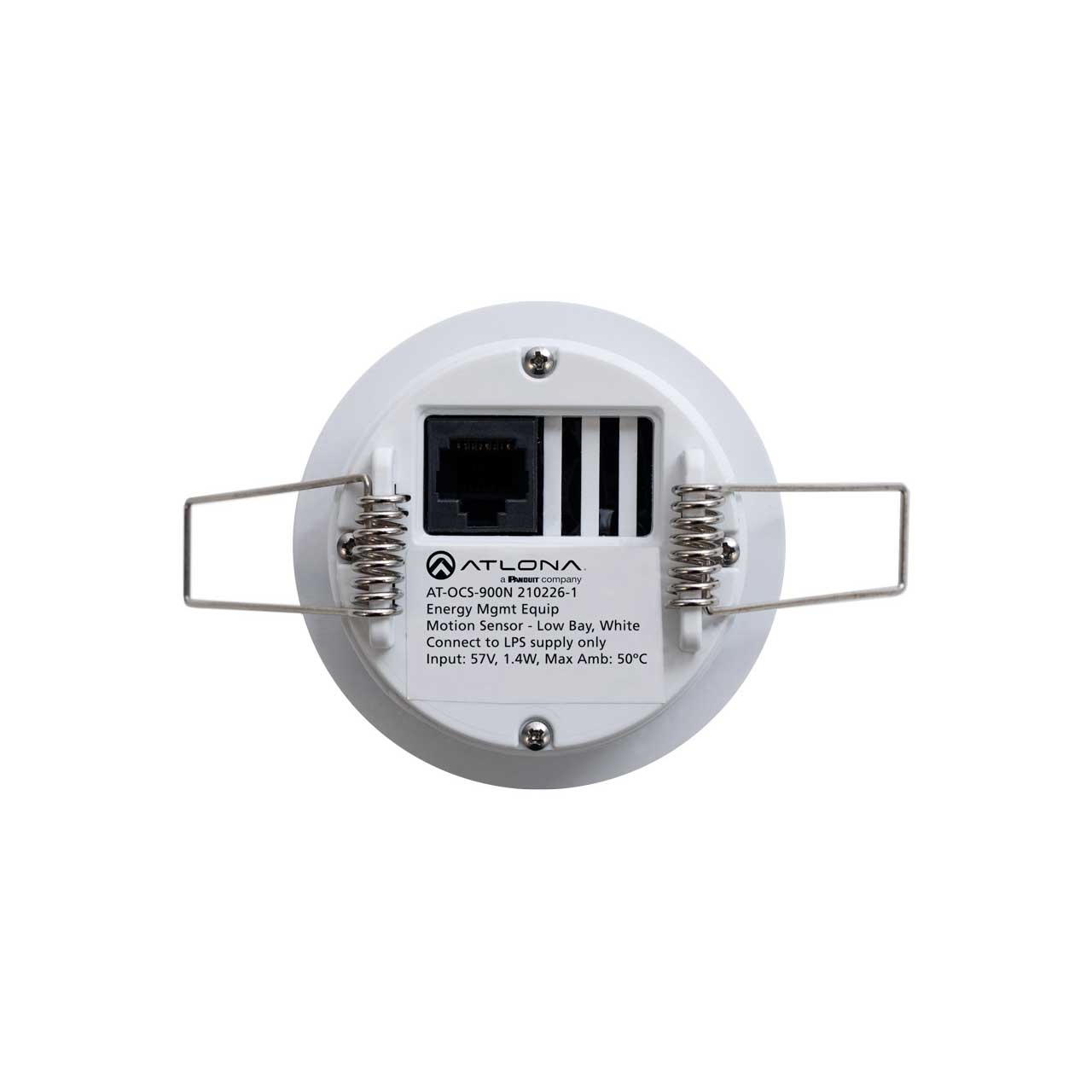

Includes two lenses that cover 900 or 2,000 square feet depending on ceiling height and a blinder insert to help prevent unwanted detection from cross traffic. Configurable LED's to differentiate it from other equipment in the ceiling. Single PoE connection provides both communication and power. Self-contained spring-loaded clamps secure the sensor to a ceiling tile.
The Atlona AT-OCS-900N is a network-enabled multi-function sensor designed for use in a wide variety of AV automation applications. It uses passive infrared (PIR) technology to detect occupancy in the coverage area and communicates with select Atlona products over the network to automatically control AV components.
Network-Enabled - Communicates over IP with WAVE-101 for automatic display control and Velocity for more complex automation applications
Multi-function - In addition to occupancy, the sensor also captures temperature and ambient light level information.
Configurable Coverage - Includes two lenses covering 900 or 2,000 square feet based on height and a blinder to prevent unwanted detection.
Third-party Integration - Sensor information can be communicated to third-party systems using UDP, TCP, WebSocket, and MQTT.
Applications
Commercial - Automate AV system operation in conference rooms and huddle spaces based on occupancy.
Education - Automate AV system operation in classrooms and lecture spaces based on occupancy.
Hospitality / Retail - Create interactive with digital signage and video walls in lobbies or stores based on motion near the display.
